Interpolation.h File Reference

#include <openvdb/version.h>
#include <openvdb/Platform.h>
#include <openvdb/math/Math.h>
#include <openvdb/math/Transform.h>
#include <openvdb/Grid.h>
#include <openvdb/tree/ValueAccessor.h>
#include <cmath>
#include <type_traits>

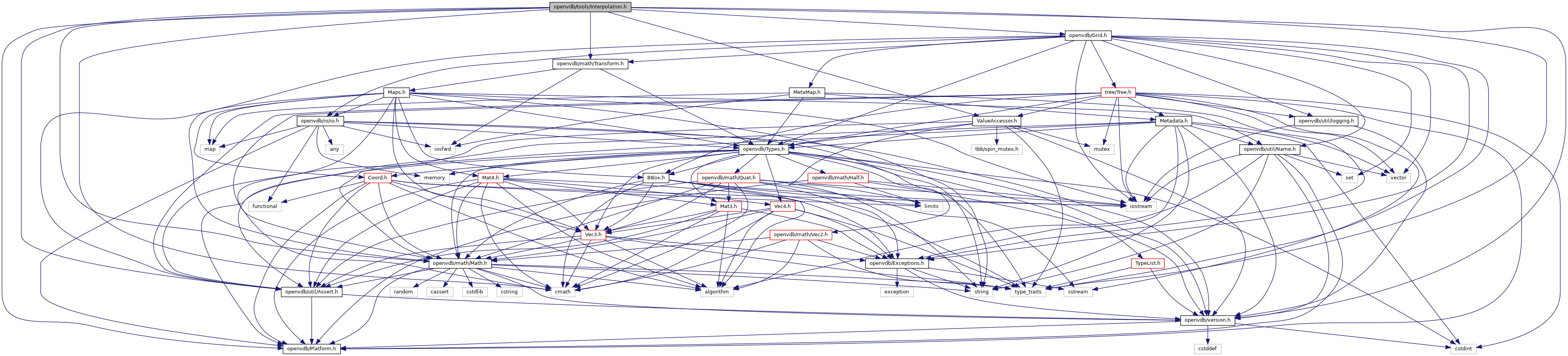

Include dependency graph for Interpolation.h:

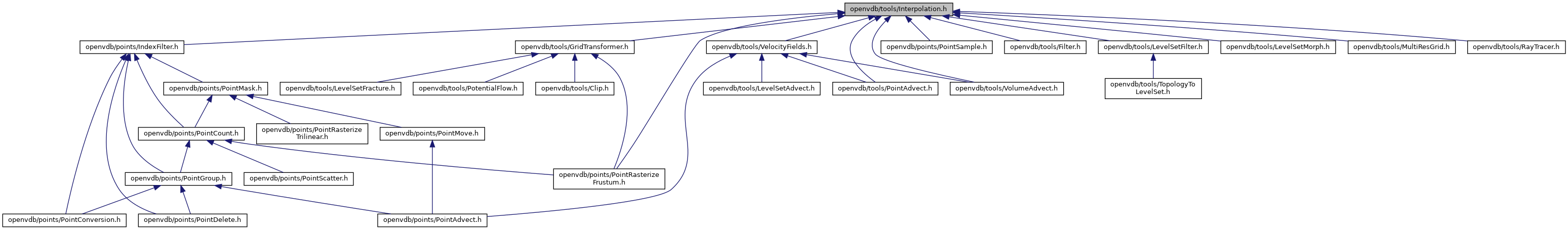

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	openvdb::OPENVDB_VERSION_NAME::tools::Sampler< Order, Staggered >
	Provises a unified interface for sampling, i.e. interpolation. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::PointSampler
struct	openvdb::OPENVDB_VERSION_NAME::tools::BoxSampler
struct	openvdb::OPENVDB_VERSION_NAME::tools::QuadraticSampler
struct	openvdb::OPENVDB_VERSION_NAME::tools::StaggeredPointSampler
struct	openvdb::OPENVDB_VERSION_NAME::tools::StaggeredBoxSampler
struct	openvdb::OPENVDB_VERSION_NAME::tools::StaggeredQuadraticSampler
class	openvdb::OPENVDB_VERSION_NAME::tools::GridSampler< GridOrTreeType, SamplerType >
	Class that provides the interface for continuous sampling of values in a tree. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::GridSampler< tree::ValueAccessor< TreeT >, SamplerType >
	Specialization of GridSampler for construction from a ValueAccessor type. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::DualGridSampler< GridOrTreeT, SamplerT >
	This is a simple convenience class that allows for sampling from a source grid into the index space of a target grid. At construction the source and target grids are checked for alignment which potentially renders interpolation unnecessary. Else interpolation is performed according to the templated Sampler type. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::DualGridSampler< tree::ValueAccessor< TreeT >, SamplerT >
	Specialization of DualGridSampler for construction from a ValueAccessor type. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::AlphaMask< GridT, MaskT, SamplerT, FloatT >
struct	openvdb::OPENVDB_VERSION_NAME::tools::Sampler< 0, false >
struct	openvdb::OPENVDB_VERSION_NAME::tools::Sampler< 1, false >
struct	openvdb::OPENVDB_VERSION_NAME::tools::Sampler< 2, false >
struct	openvdb::OPENVDB_VERSION_NAME::tools::Sampler< 0, true >
struct	openvdb::OPENVDB_VERSION_NAME::tools::Sampler< 1, true >
struct	openvdb::OPENVDB_VERSION_NAME::tools::Sampler< 2, true >

Namespaces
	openvdb
	openvdb::OPENVDB_VERSION_NAME
	openvdb::OPENVDB_VERSION_NAME::tools
	openvdb::OPENVDB_VERSION_NAME::tools::local_util

Functions
Vec3i	openvdb::OPENVDB_VERSION_NAME::tools::local_util::floorVec3 (const Vec3R &v)
Vec3i	openvdb::OPENVDB_VERSION_NAME::tools::local_util::ceilVec3 (const Vec3R &v)
Vec3i	openvdb::OPENVDB_VERSION_NAME::tools::local_util::roundVec3 (const Vec3R &v)

Detailed Description

Sampler classes such as PointSampler and BoxSampler that are intended for use with tools::GridTransformer should operate in voxel space and must adhere to the interface described in the example below:

struct MySampler
{
    // Return a short name that can be used to identify this sampler
    // in error messages and elsewhere.
    const char* name() { return "mysampler"; }

    // Return the radius of the sampling kernel in voxels, not including
    // the center voxel.  This is the number of voxels of padding that
    // are added to all sides of a volume as a result of resampling.
    int radius() { return 2; }

    // Return true if scaling by a factor smaller than 0.5 (along any axis)
    // should be handled via a mipmapping-like scheme of successive halvings
    // of a grid's resolution, until the remaining scale factor is
    // greater than or equal to 1/2.  Set this to false only when high-quality
    // scaling is not required.
    bool mipmap() { return true; }

    // Specify if sampling at a location that is collocated with a grid point
    // is guaranteed to return the exact value at that grid point.
    // For most sampling kernels, this should be false.
    bool consistent() { return false; }

    // Sample the tree at the given coordinates and return the result in val.
    // Return true if the sampled value is active.
    template<class TreeT>
    bool sample(const TreeT& tree, const Vec3R& coord, typename TreeT::ValueType& val);
};

Definition in file Interpolation.h.
