cl_d3d11.h File Reference
#include <d3d11.h>
#include <CL/cl.h>
#include <CL/cl_platform.h>

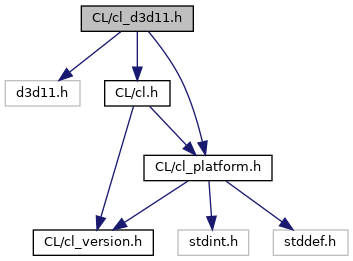

+ Include dependency graph for cl_d3d11.h:

Go to the source code of this file.

Macros

#define cl_khr_d3d11_sharing   1

#define CL_INVALID_D3D11_DEVICE_KHR   -1006

#define CL_INVALID_D3D11_RESOURCE_KHR   -1007

#define CL_D3D11_RESOURCE_ALREADY_ACQUIRED_KHR   -1008

#define CL_D3D11_RESOURCE_NOT_ACQUIRED_KHR   -1009

#define CL_D3D11_DEVICE_KHR   0x4019

#define CL_D3D11_DXGI_ADAPTER_KHR   0x401A

#define CL_PREFERRED_DEVICES_FOR_D3D11_KHR   0x401B

#define CL_ALL_DEVICES_FOR_D3D11_KHR   0x401C

#define CL_CONTEXT_D3D11_DEVICE_KHR   0x401D

#define CL_CONTEXT_D3D11_PREFER_SHARED_RESOURCES_KHR   0x402D

#define CL_MEM_D3D11_RESOURCE_KHR   0x401E

#define CL_IMAGE_D3D11_SUBRESOURCE_KHR   0x401F

#define CL_COMMAND_ACQUIRE_D3D11_OBJECTS_KHR   0x4020

#define CL_COMMAND_RELEASE_D3D11_OBJECTS_KHR   0x4021

#define cl_intel_sharing_format_query_d3d11   1


Typedefs

typedef cl_uint cl_d3d11_device_source_khr

typedef cl_uint cl_d3d11_device_set_khr

typedef cl_int(CL_API_CALL * clGetDeviceIDsFromD3D11KHR_fn )(cl_platform_id platform, cl_d3d11_device_source_khr d3d_device_source, void *d3d_object, cl_d3d11_device_set_khr d3d_device_set, cl_uint num_entries, cl_device_id *devices, cl_uint *num_devices) CL_API_SUFFIX__VERSION_1_2

typedef cl_mem(CL_API_CALL * clCreateFromD3D11BufferKHR_fn )(cl_context context, cl_mem_flags flags, ID3D11Buffer *resource, cl_int *errcode_ret) CL_API_SUFFIX__VERSION_1_2

typedef cl_mem(CL_API_CALL * clCreateFromD3D11Texture2DKHR_fn )(cl_context context, cl_mem_flags flags, ID3D11Texture2D *resource, UINT subresource, cl_int *errcode_ret) CL_API_SUFFIX__VERSION_1_2

typedef cl_mem(CL_API_CALL * clCreateFromD3D11Texture3DKHR_fn )(cl_context context, cl_mem_flags flags, ID3D11Texture3D *resource, UINT subresource, cl_int *errcode_ret) CL_API_SUFFIX__VERSION_1_2

typedef cl_int(CL_API_CALL * clEnqueueAcquireD3D11ObjectsKHR_fn )(cl_command_queue command_queue, cl_uint num_objects, const cl_mem *mem_objects, cl_uint num_events_in_wait_list, const cl_event *event_wait_list, cl_event *event) CL_API_SUFFIX__VERSION_1_2

typedef cl_int(CL_API_CALL * clEnqueueReleaseD3D11ObjectsKHR_fn )(cl_command_queue command_queue, cl_uint num_objects, const cl_mem *mem_objects, cl_uint num_events_in_wait_list, const cl_event *event_wait_list, cl_event *event) CL_API_SUFFIX__VERSION_1_2

typedef cl_int(CL_API_CALL * clGetSupportedD3D11TextureFormatsINTEL_fn )(cl_context context, cl_mem_flags flags, cl_mem_object_type image_type, cl_uint plane, cl_uint num_entries, DXGI_FORMAT *d3d11_formats, cl_uint *num_texture_formats)


Functions

CL_API_ENTRY cl_int CL_API_CALL clGetSupportedD3D11TextureFormatsINTEL (cl_context context, cl_mem_flags flags, cl_mem_object_type image_type, cl_uint plane, cl_uint num_entries, DXGI_FORMAT *d3d11_formats, cl_uint *num_texture_formats)


Macro Definition Documentation

#define CL_ALL_DEVICES_FOR_D3D11_KHR   0x401C

Definition at line 61 of file cl_d3d11.h.

#define CL_COMMAND_ACQUIRE_D3D11_OBJECTS_KHR   0x4020

Definition at line 74 of file cl_d3d11.h.

#define CL_COMMAND_RELEASE_D3D11_OBJECTS_KHR   0x4021

Definition at line 75 of file cl_d3d11.h.

#define CL_CONTEXT_D3D11_DEVICE_KHR   0x401D

Definition at line 64 of file cl_d3d11.h.

#define CL_CONTEXT_D3D11_PREFER_SHARED_RESOURCES_KHR   0x402D

Definition at line 65 of file cl_d3d11.h.

#define CL_D3D11_DEVICE_KHR   0x4019

Definition at line 56 of file cl_d3d11.h.

#define CL_D3D11_DXGI_ADAPTER_KHR   0x401A

Definition at line 57 of file cl_d3d11.h.

#define CL_D3D11_RESOURCE_ALREADY_ACQUIRED_KHR   -1008

Definition at line 52 of file cl_d3d11.h.

#define CL_D3D11_RESOURCE_NOT_ACQUIRED_KHR   -1009

Definition at line 53 of file cl_d3d11.h.

#define CL_IMAGE_D3D11_SUBRESOURCE_KHR   0x401F

Definition at line 71 of file cl_d3d11.h.

#define cl_intel_sharing_format_query_d3d11   1

Definition at line 127 of file cl_d3d11.h.

#define CL_INVALID_D3D11_DEVICE_KHR   -1006

Definition at line 50 of file cl_d3d11.h.

#define CL_INVALID_D3D11_RESOURCE_KHR   -1007

Definition at line 51 of file cl_d3d11.h.

#define cl_khr_d3d11_sharing   1

Definition at line 42 of file cl_d3d11.h.

#define CL_MEM_D3D11_RESOURCE_KHR   0x401E

Definition at line 68 of file cl_d3d11.h.

#define CL_PREFERRED_DEVICES_FOR_D3D11_KHR   0x401B

Definition at line 60 of file cl_d3d11.h.

Typedef Documentation

typedef cl_uint cl_d3d11_device_set_khr

Definition at line 45 of file cl_d3d11.h.

typedef cl_uint cl_d3d11_device_source_khr

Definition at line 44 of file cl_d3d11.h.

typedef cl_mem(CL_API_CALL * clCreateFromD3D11BufferKHR_fn)(cl_context context, cl_mem_flags flags, ID3D11Buffer *resource, cl_int *errcode_ret) CL_API_SUFFIX__VERSION_1_2

Definition at line 88 of file cl_d3d11.h.

typedef cl_mem(CL_API_CALL * clCreateFromD3D11Texture2DKHR_fn)(cl_context context, cl_mem_flags flags, ID3D11Texture2D *resource, UINT subresource, cl_int *errcode_ret) CL_API_SUFFIX__VERSION_1_2

Definition at line 94 of file cl_d3d11.h.

typedef cl_mem(CL_API_CALL * clCreateFromD3D11Texture3DKHR_fn)(cl_context context, cl_mem_flags flags, ID3D11Texture3D *resource, UINT subresource, cl_int *errcode_ret) CL_API_SUFFIX__VERSION_1_2

Definition at line 101 of file cl_d3d11.h.

typedef cl_int(CL_API_CALL * clEnqueueAcquireD3D11ObjectsKHR_fn)(cl_command_queue command_queue, cl_uint num_objects, const cl_mem *mem_objects, cl_uint num_events_in_wait_list, const cl_event *event_wait_list, cl_event *event) CL_API_SUFFIX__VERSION_1_2

Definition at line 108 of file cl_d3d11.h.

typedef cl_int(CL_API_CALL * clEnqueueReleaseD3D11ObjectsKHR_fn)(cl_command_queue command_queue, cl_uint num_objects, const cl_mem *mem_objects, cl_uint num_events_in_wait_list, const cl_event *event_wait_list, cl_event *event) CL_API_SUFFIX__VERSION_1_2

Definition at line 116 of file cl_d3d11.h.

typedef cl_int(CL_API_CALL * clGetDeviceIDsFromD3D11KHR_fn)(cl_platform_id platform, cl_d3d11_device_source_khr d3d_device_source, void *d3d_object, cl_d3d11_device_set_khr d3d_device_set, cl_uint num_entries, cl_device_id *devices, cl_uint *num_devices) CL_API_SUFFIX__VERSION_1_2

Definition at line 79 of file cl_d3d11.h.

typedef cl_int(CL_API_CALL * clGetSupportedD3D11TextureFormatsINTEL_fn)(cl_context context, cl_mem_flags flags, cl_mem_object_type image_type, cl_uint plane, cl_uint num_entries, DXGI_FORMAT *d3d11_formats, cl_uint *num_texture_formats)

Definition at line 142 of file cl_d3d11.h.

Function Documentation

CL_API_ENTRY cl_int CL_API_CALL clGetSupportedD3D11TextureFormatsINTEL ( cl_context  context,
cl_mem_flags  flags,
cl_mem_object_type  image_type,
cl_uint  plane,
cl_uint  num_entries,
DXGI_FORMAT *  d3d11_formats,
cl_uint *  num_texture_formats
)
