GA_ROGenericHandle< T, T_OWNER > Class Template Reference

#include <GA_GenericHandle.h>

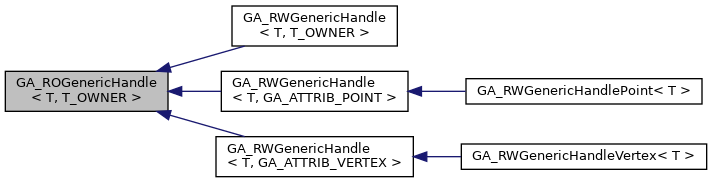

+ Inheritance diagram for GA_ROGenericHandle< T, T_OWNER >:

Public Member Functions

 GA_ROGenericHandle (const GA_Attribute *attr, int component=0, bool forceisp=false)

const GA_Attribute * getAttribute () const

bool isRational () const

T getValue (GA_Offset off) const

T getHomogeneous (GA_Offset off) const

bool isForcedP () const


Protected Attributes

GA_RWHandleT< T > myHandle

int myComponent

bool myConst

bool myIsRational

bool myIsForcedP


Detailed Description

template<typename T, GA_AttributeOwner T_OWNER>
class GA_ROGenericHandle< T, T_OWNER >

Read-only generic handle.

The handle provides read-only access to attributedata. The T template parameter can be specialized with

  • float
  • UT_Vector2
  • UT_Vector3
  • UT_Vector4 (see specializations below)
  • UT_Matrix3
  • UT_Matrix4
  • GA_Offset (see specializations below) The T_OWNER parameter can be specialized with
  • GA_ATTRIB_POINT
    Point offsets will be passeed to math.getValue(). Only point attributes will be modified for GA_Offset specializations.
  • GA_ATTRIB_VERTEX Vertex offsets must be passed to math.getValue(). Both point and vertex attributes will be modified with the GA_Offset specialization.

The offsets passed to getValue() must match the T_OWNER template parameter.

Definition at line 90 of file GA_GenericHandle.h.

Constructor & Destructor Documentation

template<typename T, GA_AttributeOwner T_OWNER>
GA_ROGenericHandle< T, T_OWNER >::GA_ROGenericHandle ( const GA_Attribute *  attr,
int  component = 0,
bool  forceisp = false
)
inline

Definition at line 93 of file GA_GenericHandle.h.

Member Function Documentation

template<typename T, GA_AttributeOwner T_OWNER>
const GA_Attribute* GA_ROGenericHandle< T, T_OWNER >::getAttribute ( ) const
inline

Definition at line 101 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
T GA_ROGenericHandle< T, T_OWNER >::getHomogeneous ( GA_Offset  off) const
inline

Definition at line 127 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
T GA_ROGenericHandle< T, T_OWNER >::getValue ( GA_Offset  off) const
inline

Definition at line 106 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
bool GA_ROGenericHandle< T, T_OWNER >::isForcedP ( ) const
inline

Definition at line 132 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
bool GA_ROGenericHandle< T, T_OWNER >::isRational ( ) const
inline

Definition at line 103 of file GA_GenericHandle.h.

Member Data Documentation

template<typename T, GA_AttributeOwner T_OWNER>
int GA_ROGenericHandle< T, T_OWNER >::myComponent
protected

Definition at line 137 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
bool GA_ROGenericHandle< T, T_OWNER >::myConst
protected

Definition at line 138 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
GA_RWHandleT<T> GA_ROGenericHandle< T, T_OWNER >::myHandle
protected

Definition at line 136 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
bool GA_ROGenericHandle< T, T_OWNER >::myIsForcedP
protected

Definition at line 140 of file GA_GenericHandle.h.

template<typename T, GA_AttributeOwner T_OWNER>
bool GA_ROGenericHandle< T, T_OWNER >::myIsRational
protected

Definition at line 139 of file GA_GenericHandle.h.

The documentation for this class was generated from the following file:
