GU_PrimPolySoup Class Reference

#include <GU_PrimPolySoup.h>

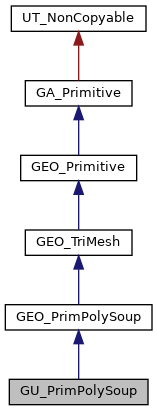

+ Inheritance diagram for GU_PrimPolySoup:

Public Member Functions

 GU_PrimPolySoup (GA_Detail *gdp, GA_Offset offset=GA_INVALID_OFFSET)
 NOTE: This constructor should only be called via GU_PrimitiveFactory. More...

virtual int64 getMemoryUsage () const
 Report approximate memory usage. More...

virtual void countMemory (UT_MemoryCounter &counter) const

virtual const
GA_PrimitiveDefinition
getTypeDef () const

virtual GEO_Primitiveconvert (GEO_ConvertParms &parms, GA_PointGroup *usedpts=0)

virtual GEO_PrimitiveconvertNew (GEO_ConvertParms &parms)

void removeInlinePoints (float tol, GA_PointGroup *&delgrp)

virtual void normal (NormalComp &output) const

void sortSpatial ()
 Sorts the polygons in the polysoup spatially. More...

virtual void convex (GA_Size maxpts=3, const GA_Detail *restgdp=nullptr, bool flipedges=false, bool avoiddegeneracy=false) final

- Public Member Functions inherited from GEO_PrimPolySoup
void stashed (bool beingstashed, GA_Offset offset=GA_INVALID_OFFSET) override
 Have we been deactivated and stashed? More...

UT_Vector3 baryCenter () const override

UT_Vector3 computeNormal (const PolygonIterator &it) const

UT_Vector3 baryCenter (const PolygonIterator &it) const

fpreal calcVolume (const UT_Vector3 &refpt, const PolygonIterator &it) const

fpreal calcArea (const PolygonIterator &it) const

fpreal calcPerimeter (const PolygonIterator &it) const

GA_Size getPolygonCount () const
 Get number of polygons in the soup. More...

GA_Size getPolygonSize (GA_Size polygon) const
 Get the number of vertices in the polygon. More...

void getPolygonVertexRange (GA_Size polygon, GA_Size &start, GA_Size &count) const

GA_Offset getPolygonVertexOffset (GA_Size polygon, GA_Size vertexofpolygon) const

GA_Offset getPolygonVertexOffset (const PolygonIterator &it, GA_Size vertexofpolygon) const

void getTriangleVertexOffsets (GA_Size start, GA_Offset &v0, GA_Offset &v1, GA_Offset &v2) const

void getQuadVertexOffsets (GA_Size start, GA_Offset &v0, GA_Offset &v1, GA_Offset &v2, GA_Offset &v3) const

GA_Size getMaxPolygonSize () const
 Return the maximum number of vertices in any face. More...

GA_Size getMinPolygonSize () const
 Return the minimum number of vertices in any face. More...

void getMinMaxPolygonSize (GA_Size &mn, GA_Size &mx) const
 Return the minimum and maximum number of vertices for any face. More...

const GA_PrimitiveJSONgetJSON () const override

void appendPolygonCopyUnique (const GEO_PrimPoly *polygon, GA_VertexWrangler &wrangler)

void appendPolygonCopyShared (const GEO_PrimPoly *polygon, GA_VertexWrangler &wrangler, GA_AttributeRefMap &attributemap)

void appendPolygonCopyUnique (const GA_OffsetListRef &polygon, const GA_Detail &srcdetail, GA_VertexWrangler &wrangler)

void appendPolygonCopyShared (const GA_OffsetListRef &polygon, const GA_Detail &srcdetail, GA_VertexWrangler &wrangler, GA_AttributeRefMap &attributemap)

void appendPolySoupCopyUnique (const GEO_PrimPolySoup *that, GA_VertexWrangler &wrangler)

void appendPolySoupCopyShared (const GEO_PrimPolySoup *that, GA_VertexWrangler &wrangler, GA_AttributeRefMap &attributemap)

void appendPolygon (const UT_Array< GA_Offset > &vertices)

void appendPolygons (const GA_PolyCounts &sizes, const GA_OffsetList &vertices)

bool areAllVerticesUnique () const

void makeAllVerticesUnique ()

void optimize ()
 Optimizes the internal representation of the PolySoup. More...

GA_Size cleanData (const bool removeNearPoints=false, float tol=0.001F, bool deleteOrphanedPoints=true)

GA_Size remove012 (bool deleteOrphanedPoints=true)

void deleteUnusedVertices (bool andpoints=true)

void remeshPolygons (const UT_Array< GA_Size > &polygonstoremesh, const GA_OffsetList &newvertices, const GA_PolyCounts &newpolygonsizelist)

GA_Primitive::GA_DereferenceStatus dereferencePoints (const GA_RangeMemberQuery &point_query, bool dry_run) override

void copyPrimitive (const GEO_Primitive *psrc) override

GEO_Primitivecopy (int preserve_shared_pts) const override

void copyUnwiredForMerge (const GA_Primitive *prim_src, const GA_MergeMap &map) override

void swapVertexOffsets (const GA_Defragment &defrag) override
 Defragmentation. More...

GA_Size getPolygonVertexCount () const

GA_Size appendVertex (GA_Offset ptoff) override

GA_Offset appendSharedVertices (GA_Offset startptoff, GA_Size nvertices)

void iterateEdges (GA_IterateEdgesFunc apply_func) const override

void iterateEdgesByVertex (GA_IterateEdgesByVertexFunc apply_func) const override

bool hasEdge (const GA_Edge &edge) const override

void computeInteriorPointWeights (UT_Array< GA_Offset > &vtxlist, UT_FloatArray &weightlist, fpreal u, fpreal v, fpreal w) const override

UT_Vector3 computeNormal () const override

void reverse () override

fpreal calcVolume (const UT_Vector3 &refpt) const override

fpreal calcArea () const override

fpreal calcPerimeter () const override

bool savePolygonInfo (UT_JSONWriter &w, const GA_SaveMap &map) const

bool loadPolygonInfo (UT_JSONParser &p, const GA_LoadMap &map)

- Public Member Functions inherited from GEO_TriMesh
virtual int getBBox (UT_BoundingBox *bbox) const

virtual void addToBSphere (UT_BoundingSphere *bsphere) const

virtual bool saveH9 (std::ostream &os, bool binary, const UT_Array< GA_AttribSaveDataH9 > &prim_attribs, const UT_Array< GA_AttribSaveDataH9 > &vtx_attribs) const

virtual bool loadH9 (UT_IStream &is, const UT_Array< GA_AttribLoadDataH9 > &prim_attribs, const UT_Array< GA_AttribLoadDataH9 > &vtx_attribs)

virtual void addPointRefToGroup (GA_PointGroup &grp) const final

virtual bool changePointRef (GA_Offset from, GA_Offset to)

virtual bool isDegenerate () const
 Is the primitive degenerate. More...

void setSize (GA_Size sz)

virtual int detachPoints (GA_PointGroup &grp)

virtual GA_DereferenceStatus dereferencePoint (GA_Offset point, bool dry_run=false)

virtual GA_Size insertVertex (GA_Offset ppt, GA_Size where=0)

virtual int deleteVertex (GA_Size num)

virtual void deleteVertices (const UT_Array< GA_Size > &nums)

GA_Size findVertex (GA_Offset vtx) const
 return the index of a vertex within our vertex list More...

virtual GA_Size stealVertex (GA_Offset vtx, GA_Offset insert_before_vtx=GA_INVALID_OFFSET)

virtual GA_Size getVertexCount () const final

SYS_FORCE_INLINE GA_Size getFastVertexCount () const

virtual GA_Offset getVertexOffset (GA_Size index) const final

SYS_FORCE_INLINE GA_Offset getFastVertexOffset (GA_Size index) const

SYS_FORCE_INLINE GA_Index getVertexIndex (GA_Size i) const

SYS_FORCE_INLINE GA_Offset getPointOffset (GA_Size i) const

SYS_FORCE_INLINE GA_Index getPointIndex (GA_Size i) const

SYS_FORCE_INLINE UT_Vector3 getPos3 (GA_Size i) const

SYS_FORCE_INLINE void setPos3 (GA_Size i, const UT_Vector3 &pos) const

SYS_FORCE_INLINE UT_Vector4 getPos4 (GA_Size i) const

SYS_FORCE_INLINE void setPos4 (GA_Size i, const UT_Vector4 &pos) const

bool isVertexListTrivial () const

bool isPointListTrivial () const

virtual void beginVertex (const_iterator &i) const final

virtual void nextVertex (const_iterator &i) const final

GA_Size find (GA_Offset pt) const

const GEO_Vertex operator() (GA_Size i) const

GEO_Vertex operator() (GA_Size i)

const GEO_Vertex operator[] (GA_Size i) const

GEO_Vertex operator[] (GA_Size i)

void setVertexPoint (GA_Size i, GA_Offset pt)

virtual bool vertexApply (bool(*apply)(GA_Offset vtx, void *), void *data=0) const final

virtual void unitLengthToUnitPair (float ulength, float vlength, float &uparm, float &vparm) const

virtual void unitToUnitLengthPair (float uparm, float vparm, float &ulength, float &vlength) const

void assignVertexList (const GA_OffsetList &list, bool destroy_existing=true, bool update_topology=true)

virtual bool jsonSaveBasis (UT_JSONWriter &w) const

virtual bool jsonSaveBasis (UT_JSONValue &v) const

virtual bool jsonLoadBasis (UT_JSONParser &p)

virtual bool jsonLoadBasis (UT_JSONParser &p, const UT_JSONValue &v)

bool saveVertexArray (UT_JSONWriter &w, const GA_SaveMap &map) const

bool loadVertexArray (UT_JSONParser &p, const GA_LoadMap &map)

- Public Member Functions inherited from GEO_Primitive
virtual GA_PrimCompat::TypeMask getPrimitiveId () const

void copyAttributesAndGroups (const GEO_Primitive &src, bool copy_groups=true)

void copyAttributesAndGroups (const GEO_Primitive &src, GA_AttributeRefMap &gah, bool copy_groups=true)

void copyAttributesAndGroups (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler, bool copy_groups=true)
 NOTE: The copying of groups only works if src is in the same detail. More...

void copyAttributeData (const GEO_Primitive &src)

void copyAttributeData (const GEO_Primitive &src, GA_AttributeRefMap &gah)

void copyAttributeData (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler)

void copyAttributeValues (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler)

void copyGroupMembership (const GEO_Primitive &src)

virtual void transform (const UT_Matrix4 &)

virtual void realToUnitPair (float ureal, float vreal, float &uunit, float &vunit) const

virtual void unitToRealPair (float uunit, float vunit, float &ureal, float &vreal) const

bool evaluateBaryCenter (GA_Offset result_vtx, GA_AttributeRefMap &map) const

bool evaluatePoint (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v=0, uint du=0, uint dv=0) const

int evaluatePoint (UT_Vector4 &pos, float u, float v=0, unsigned du=0, unsigned dv=0) const

bool evaluateInteriorPoint (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v, fpreal w=0) const

int evaluateInteriorPoint (UT_Vector4 &pos, fpreal u, fpreal v, fpreal w=0) const

SYS_FORCE_INLINE GEO_DetailgetParent () const

virtual void isolate ()
 Method to isolate a pasted surface. More...

GEO_Vertex getVertexElement (GA_Size i) const

virtual GEO_MetaPrimcastToMetaPrim (void)

virtual const GEO_MetaPrimcastToMetaPrim (void) const

virtual int parametricBBox (float u, float v, float *u0, float *u1, float *v0, float *v1)

virtual float uvDist (float u1, float v1, float u2, float v2) const

int bboxIntersectRay (const UT_Vector3 &rayorig, const UT_Vector3 &raydir, int maxtries=10, float tmax=1E17F, float *distance=0, UT_Vector3 *nml=0) const

virtual bool isQuadric () const

virtual void clip (UT_Vector3 normal, float distance=0, GA_PrimitiveGroup *clipgrp=NULL)

virtual int intersectRay (const UT_Vector3 &o, const UT_Vector3 &d, float tmax=1E17F, float tol=1E-12F, float *distance=0, UT_Vector3 *pos=0, UT_Vector3 *nml=0, int accurate=0, float *u=0, float *v=0, int ignoretrim=1) const

virtual bool enlargeBoundingBox (UT_BoundingRect &b, const GA_Attribute *P) const

virtual bool enlargeBoundingBox (UT_BoundingBox &b, const GA_Attribute *P) const

virtual bool hasGuideEdge (int edgeid, UT_Vector3 &a, UT_Vector3 &b) const

virtual bool hasXsectPoint (int pointid, UT_Vector3 &p) const

- Public Member Functions inherited from GA_Primitive
virtual ~GA_Primitive ()

const char * getTypeName () const

SYS_FORCE_INLINE GA_DetailgetDetail () const

SYS_FORCE_INLINE GA_Offset getMapOffset () const
 Gets the offset of this primitive in the detail containing it. More...

SYS_FORCE_INLINE GA_Index getMapIndex () const
 Gets the index of this primitive in the detail containing it. More...

SYS_FORCE_INLINE const
GA_IndexMap
getIndexMap () const
 Gets the index map for primitives in the detail containing this primitive. More...

GA_Index getNum () const

void swapOffsetValue (const GA_Defragment &defrag)
 For defragmentation, we need to update the offset. More...

bool isPrimary () const

SYS_FORCE_INLINE const
GA_PrimitiveTypeId
getTypeId () const

GA_PrimitiveFamilyMask getFamilyMask () const

bool isFamily (unsigned family_mask) const

bool hasLocalTransform () const
 Whether the primitive has a transform associated with it. More...

virtual void getLocalTransform (UT_Matrix3D &matrix) const

virtual void getLocalTransform4 (UT_Matrix4D &matrix) const

virtual void setLocalTransform (const UT_Matrix3D &matrix)
 Set the local transform. The default implementation does nothing. More...

SYS_FORCE_INLINE GA_Size getVertexCount () const
 Return the number of vertices used by this primitive. More...

SYS_FORCE_INLINE GA_Offset getVertexOffset (GA_Size primvertexnum) const

SYS_FORCE_INLINE GA_Index getVertexIndex (GA_Size primvertexnum) const

SYS_FORCE_INLINE GA_Offset getPointOffset (GA_Size i) const

SYS_FORCE_INLINE void setPointOffset (GA_Size i, GA_Offset ptoff)

SYS_FORCE_INLINE GA_Index getPointIndex (GA_Size i) const

SYS_FORCE_INLINE UT_Vector3 getPos3 (GA_Size i) const

SYS_FORCE_INLINE void setPos3 (GA_Size i, const UT_Vector3 &pos) const

SYS_FORCE_INLINE UT_Vector4 getPos4 (GA_Size i) const

SYS_FORCE_INLINE void setPos4 (GA_Size i, const UT_Vector4 &pos) const

GA_Range getVertexRange (bool harden=false) const
 Get a range of all the vertices accessed by the primitive. More...

GA_Range getPointRange (bool harden=false) const

bool isPointUsed (GA_Offset ptoff) const

void addPointRefToGroup (GA_PointGroup &grp) const

void edgeApply (GA_EdgeApplyFunc apply, void *data=nullptr) const

void edgeApplyIndex (GA_EdgeApplyIndexFunc apply, void *data=nullptr) const

bool findEdgePoints (GA_Offset ptoff0, GA_Offset ptoff1, GA_Size &vtx0, GA_Size &vtx1) const

virtual bool enlargeBoundingSphere (UT_BoundingSphere &b, const GA_Attribute *P) const

virtual void enlargePointBounds (UT_BoundingBox &box) const

virtual bool saveSharedLoadData (UT_JSONWriter &w, GA_SaveMap &save, GA_GeometryIndex *geometryIndex) const

virtual bool registerSharedLoadData (int load_data_type, GA_SharedDataHandlePtr item)

const GA_IntrinsicManagergetIntrinsicManager () const

virtual void getAdjacentBoundaryVertices (GA_Offset vtx, GA_Offset &prev_vtx, GA_Offset &next_vtx) const

virtual bool supportsHedge () const

virtual int isVisible () const

virtual unsigned getNumSecondaryDetails () const
 A primitive may support any number of secondary details. More...

virtual const GA_DetailgetSecondaryDetail (GA_Index i) const

virtual GA_DetailgetSecondaryDetail (GA_Index i)

GA_Index getNumSecondary (GA_Index detail) const

const GA_PrimitivegetSecondaryByIndex (GA_Index detail, GA_Index i) const

GA_PrimitivegetSecondaryByIndex (GA_Index detail, GA_Index i)

const GA_PrimitivegetSecondaryByOffset (GA_Index detail, GA_Offset o) const

GA_PrimitivegetSecondaryByOffset (GA_Index detail, GA_Offset o)

SYS_FORCE_INLINE bool isVertexListTrivial () const

bool isPointListTrivial () const

template<typename FUNCTOR >
SYS_FORCE_INLINE void forEachVertex (FUNCTOR &&functor) const

template<typename FUNCTOR >
SYS_FORCE_INLINE void forEachPoint (FUNCTOR &&functor) const

bool vertexApply (bool(*apply)(GA_Offset vtx, void *), void *data=nullptr) const

virtual void flushCEWriteCaches ()
 Copy any modified caches from the GPU back to CPU cache. More...

virtual void flushCECaches ()

GA_LocalIntrinsic findIntrinsic (const char *nm) const

GA_LocalIntrinsic findIntrinsic (GA_GlobalIntrinsic h) const

GA_GlobalIntrinsic findGlobalIntrinsic (GA_LocalIntrinsic h) const

const char * getIntrinsicName (GA_LocalIntrinsic h) const

GA_Size getIntrinsicTupleSize (GA_LocalIntrinsic h) const

GA_StorageClass getIntrinsicStorage (GA_LocalIntrinsic h) const

bool getIntrinsicReadOnly (GA_LocalIntrinsic h) const

const UT_OptionsgetIntrinsicOptions (GA_LocalIntrinsic h) const

GA_Size getIntrinsic (GA_LocalIntrinsic h, UT_String &val) const

GA_Size getIntrinsic (GA_LocalIntrinsic h, UT_StringArray &val) const

GA_Size getIntrinsic (GA_LocalIntrinsic h, int64 *v, GA_Size size) const

GA_Size getIntrinsic (GA_LocalIntrinsic h, fpreal64 *v, GA_Size sz) const

bool getIntrinsic (GA_LocalIntrinsic h, float &v) const

bool getIntrinsic (GA_LocalIntrinsic h, int &v) const

bool getIntrinsic (GA_LocalIntrinsic h, UT_Vector2 &v) const

bool getIntrinsic (GA_LocalIntrinsic h, UT_Vector3 &v) const

bool getIntrinsic (GA_LocalIntrinsic h, UT_Vector4 &v) const

bool getIntrinsic (GA_LocalIntrinsic h, UT_Matrix2 &v) const

bool getIntrinsic (GA_LocalIntrinsic h, UT_Matrix3 &v) const

bool getIntrinsic (GA_LocalIntrinsic h, UT_Matrix4 &v) const

GA_Size setIntrinsic (GA_LocalIntrinsic h, const char *value)

GA_Size setIntrinsic (GA_LocalIntrinsic h, const UT_StringArray &value)

GA_Size setIntrinsic (GA_LocalIntrinsic h, const char **val, GA_Size s)

GA_Size setIntrinsic (GA_LocalIntrinsic h, const int64 val)

GA_Size setIntrinsic (GA_LocalIntrinsic h, const fpreal64 val)

GA_Size setIntrinsic (GA_LocalIntrinsic h, const int64 *val, GA_Size sz)

GA_Size setIntrinsic (GA_LocalIntrinsic h, const fpreal64 *v, GA_Size sz)


Static Public Member Functions

static GU_PrimPolySoupbuild (GA_Detail *detail)
 Builds an empty polygon soup (i.e. contains no vertices or polygons) More...

static GA_Offset build (GA_Detail *detail, const UT_Vector3 *points, const GA_Size npoints, const GEO_PolyCounts &polygonsizelist, const int *polygonpointnumbers, const bool sharedvertices=true)

static GA_Offset build (GA_Detail *detail, const UT_Vector3 *points, const GA_Size npoints, const GA_PolyCounts &polygonsizelist, const int *polygonpointnumbers, const bool sharedvertices=true)

static GA_Offset build (GA_Detail *detail, const GA_Offset startpt, const GA_Size npoints, const GEO_PolyCounts &polygonsizelist, const int *polygonpointnumbers, const bool sharedvertices=true)

static GA_Offset build (GA_Detail *detail, const GA_Offset startpt, const GA_Size npoints, const GA_PolyCounts &polygonsizelist, const int *polygonpointnumbers, const bool sharedvertices=true)

- Static Public Member Functions inherited from GEO_PrimPolySoup
static void convertDetail (GEO_Detail *dest_detail, const GEO_Detail *src_detail, const GEO_PolySoupParms &parms)

- Static Public Member Functions inherited from GEO_Primitive
static GA_PrimCompat::TypeMask getPrimitiveMaskH9 (const char *maskstr)

- Static Public Member Functions inherited from GA_Primitive
static SYS_FORCE_INLINE
GA_PrimCompat::TypeMask
primCompatMaskFromTypeId (int type_id)


Protected Member Functions

virtual ~GU_PrimPolySoup ()

- Protected Member Functions inherited from GEO_PrimPolySoup
 GEO_PrimPolySoup (GA_Detail *d, GA_Offset offset=GA_INVALID_OFFSET)

virtual ~GEO_PrimPolySoup ()

void appendUniqueVertexCopy (const GA_Offset vertex, const GA_Detail &srcdetail, GA_VertexWrangler &wrangler)

void appendSharedVertexCopy (const GA_Offset vertex, const GA_Detail &srcdetail, GA_VertexWrangler &wrangler, GA_AttributeRefMap &attributemap)

bool evaluateInteriorPointRefMap (GA_Offset result_vtx, GA_AttributeRefMap &hlist, fpreal u, fpreal v, fpreal w) const override

int evaluateInteriorPointV4 (UT_Vector4 &pos, fpreal u, fpreal v, fpreal w) const override

int evaluateNormalVector (UT_Vector3 &nml, float u, float v, float w) const override

bool savePrivateH9 (std::ostream &, bool binary) const override

bool loadPrivateH9 (UT_IStream &) override

- Protected Member Functions inherited from GEO_TriMesh
SYS_FORCE_INLINE GEO_TriMesh (GA_Detail *d, GA_Offset offset=GA_INVALID_OFFSET)

virtual ~GEO_TriMesh ()

virtual void clearForDeletion ()

virtual bool validate (void) const

virtual GA_Size getMinVertexCount () const

GA_Size multipleInsert (GA_Size where, GA_Size count, bool appendPoints=true)

SYS_FORCE_INLINE GA_Offset vertexPoint (GA_Size i) const

void swapVertices (GA_Size i, GA_Size j)

virtual bool evaluatePointRefMap (GA_Offset result_vertex, GA_AttributeRefMap &hlist, fpreal u, fpreal v, uint du, uint dv) const

virtual int evaluatePointV4 (UT_Vector4 &pos, float u, float v=0, unsigned du=0, unsigned dv=0) const

virtual bool evaluateBaryCenterRefMap (GA_Offset result_vertex, GA_AttributeRefMap &hlist) const

virtual GA_Offset releaseVertex (GA_Offset vtx)

int64 getBaseMemoryUsage () const
 Report approximate memory usage for myVertexList for subclasses. More...

void countBaseMemory (UT_MemoryCounter &counter) const

- Protected Member Functions inherited from GEO_Primitive
SYS_FORCE_INLINE GEO_Primitive (GA_Detail *d, GA_Offset offset=GA_INVALID_OFFSET)

virtual ~GEO_Primitive ()

- Protected Member Functions inherited from GA_Primitive
SYS_FORCE_INLINE GA_Primitive (GA_Detail &detail, GA_Offset offset=GA_INVALID_OFFSET)

void setNumVertices (GA_Size nvertices)

GA_Offset allocateVertex (GA_Offset point=GA_INVALID_OFFSET)
 allocateVertex() will call wireVertex() if the point given is not -1 More...

void destroyVertex (GA_Offset vertex)

void wireVertex (GA_Offset vertex, GA_Offset point)

void registerVertex (GA_Offset vertex)

SYS_FORCE_INLINE int64 getBaseMemoryUsage () const
 Report approximate memory usage for myVertexList for subclasses. More...

void countBaseMemory (UT_MemoryCounter &counter) const

void copyVertexListForMerge (const GA_OffsetListRef &src_vertices, const GA_MergeMap &map)


Friends

class GU_PrimitiveFactory


Additional Inherited Members

- Public Types inherited from GA_Primitive
enum  GA_DereferenceStatus { GA_DEREFERENCE_FAIL, GA_DEREFERENCE_OK, GA_DEREFERENCE_DEGENERATE, GA_DEREFERENCE_DESTROY }

- Static Public Attributes inherited from GEO_Primitive
static const UT_Array
< GA_AttribSaveDataH9 > &
theEmptySaveAttribs
 Convience objects to pass as arguments to saveH9()/loadH9(). More...

- Static Protected Member Functions inherited from GEO_PrimPolySoup
static GA_PrimitiveFamilyMask buildFamilyMask ()

- Static Protected Member Functions inherited from GEO_TriMesh
static GA_PrimitiveFamilyMask buildFamilyMask ()

static
GA_IntrinsicManager::Registrar
registerIntrinsics (GA_PrimitiveDefinition &defn)

- Static Protected Member Functions inherited from GEO_Primitive
static
GA_IntrinsicManager::Registrar
registerIntrinsics (GA_PrimitiveDefinition &defn)

- Protected Attributes inherited from GEO_PrimPolySoup
GA_PolyCounts myPolygonSizeList

GA_OffsetList myPolygonVertexList

- Protected Attributes inherited from GEO_TriMesh
GA_OffsetList myVertexList

- Protected Attributes inherited from GA_Primitive
GA_OffsetList myVertexList


Detailed Description

Definition at line 24 of file GU_PrimPolySoup.h.

Constructor & Destructor Documentation

virtual GU_PrimPolySoup::~GU_PrimPolySoup ( )
inlineprotectedvirtual

NOTE: Primitives should not be deleted directly. They are managed by the GA_PrimitiveList and the stash.

Definition at line 29 of file GU_PrimPolySoup.h.

GU_PrimPolySoup::GU_PrimPolySoup ( GA_Detail gdp,
GA_Offset  offset = GA_INVALID_OFFSET
)
inline

NOTE: This constructor should only be called via GU_PrimitiveFactory.

Definition at line 33 of file GU_PrimPolySoup.h.

Member Function Documentation

static GU_PrimPolySoup* GU_PrimPolySoup::build ( GA_Detail detail)
static

Builds an empty polygon soup (i.e. contains no vertices or polygons)

static GA_Offset GU_PrimPolySoup::build ( GA_Detail detail,
const UT_Vector3 points,
const GA_Size  npoints,
const GEO_PolyCounts polygonsizelist,
const int polygonpointnumbers,
const bool  sharedvertices = true
)
static

Builds npoints new points with the specified positions, and then creates a polygon soup that uses those points, as dictated by polygonsizelist and polygonpointnumbers, in parallel. polygonpointnumbers lists the numbers of the points used by each polygon, relative to the first point created by this method. The offset of the polysoup is returned.

If sharedvertices is false, there will be polygonsizelist.getNumVertices() vertices, and they won't be shared by any polygons in the polygon soup. If sharedvertices is true, there will be npoints vertices, and each will be shared by all polygons using the corresponding point.

NOTE: If sharedvertices is true, it's necessary for the polysoup to use all points created. If sharedvertices is false, this limitation is lifted, although doing so probably isn't useful.

static GA_Offset GU_PrimPolySoup::build ( GA_Detail detail,
const UT_Vector3 points,
const GA_Size  npoints,
const GA_PolyCounts polygonsizelist,
const int polygonpointnumbers,
const bool  sharedvertices = true
)
static

Builds npoints new points with the specified positions, and then creates a polygon soup that uses those points, as dictated by polygonsizelist and polygonpointnumbers, in parallel. polygonpointnumbers lists the numbers of the points used by each polygon, relative to the first point created by this method. The offset of the polysoup is returned.

If sharedvertices is false, there will be polygonsizelist.getNumVertices() vertices, and they won't be shared by any polygons in the polygon soup. If sharedvertices is true, there will be npoints vertices, and each will be shared by all polygons using the corresponding point.

NOTE: If sharedvertices is true, it's necessary for the polysoup to use all points created. If sharedvertices is false, this limitation is lifted, although doing so probably isn't useful.

static GA_Offset GU_PrimPolySoup::build ( GA_Detail detail,
const GA_Offset  startpt,
const GA_Size  npoints,
const GEO_PolyCounts polygonsizelist,
const int polygonpointnumbers,
const bool  sharedvertices = true
)
static

Builds a polygon soup using the specified range of point offsets, as dictated by polygonsizelist and polygonpointnumbers, in parallel. polygonpointnumbers lists the offsets of the points used by each polygon MINUS startpt, i.e. they are offsets relative to startpt, not indices relative to startpt. The offset of the polysoup is returned. All polygonpointnumbers must be between 0 (inclusive) and npoints (exclusive).

If sharedvertices is false, there will be polygonsizelist.getNumVertices() vertices, and they won't be shared by any polygons in the polygon soup. If sharedvertices is true, there will be npoints vertices, and each will be shared by all polygons using the corresponding point.

NOTE: If sharedvertices is true, no primitives can be using the points in the specified range already, and polygons in the polygon soup being created should use all of them, because the vertices will be wired as the only vertices for their corresponding points. If sharedvertices is false, these limitations are lifted, allowing multiple primitives to use the same points, and allowing the polysoup being created to use a subset of the points in the range.

static GA_Offset GU_PrimPolySoup::build ( GA_Detail detail,
const GA_Offset  startpt,
const GA_Size  npoints,
const GA_PolyCounts polygonsizelist,
const int polygonpointnumbers,
const bool  sharedvertices = true
)
static

Builds a polygon soup using the specified range of point offsets, as dictated by polygonsizelist and polygonpointnumbers, in parallel. polygonpointnumbers lists the offsets of the points used by each polygon MINUS startpt, i.e. they are offsets relative to startpt, not indices relative to startpt. The offset of the polysoup is returned. All polygonpointnumbers must be between 0 (inclusive) and npoints (exclusive).

If sharedvertices is false, there will be polygonsizelist.getNumVertices() vertices, and they won't be shared by any polygons in the polygon soup. If sharedvertices is true, there will be npoints vertices, and each will be shared by all polygons using the corresponding point.

NOTE: If sharedvertices is true, no primitives can be using the points in the specified range already, and polygons in the polygon soup being created should use all of them, because the vertices will be wired as the only vertices for their corresponding points. If sharedvertices is false, these limitations are lifted, allowing multiple primitives to use the same points, and allowing the polysoup being created to use a subset of the points in the range.

virtual GEO_Primitive* GU_PrimPolySoup::convert ( GEO_ConvertParms parms,
GA_PointGroup usedpts = 0
)
virtual

Implements GEO_Primitive.

virtual GEO_Primitive* GU_PrimPolySoup::convertNew ( GEO_ConvertParms parms)
virtual

Implements GEO_Primitive.

virtual void GU_PrimPolySoup::convex ( GA_Size  maxpts = 3,
const GA_Detail restgdp = nullptr,
bool  flipedges = false,
bool  avoiddegeneracy = false
)
finalvirtual

Implements GEO_PrimPolySoup.

virtual void GU_PrimPolySoup::countMemory ( UT_MemoryCounter counter) const
virtual

Count memory usage using a UT_MemoryCounter in order to count shared memory correctly. NOTE: This should always include sizeof(*this).

Reimplemented from GA_Primitive.

virtual int64 GU_PrimPolySoup::getMemoryUsage ( ) const
virtual

Report approximate memory usage.

Reimplemented from GA_Primitive.

virtual const GA_PrimitiveDefinition& GU_PrimPolySoup::getTypeDef ( ) const
inlinevirtual

Implements GA_Primitive.

Definition at line 45 of file GU_PrimPolySoup.h.

virtual void GU_PrimPolySoup::normal ( NormalComp output) const
virtual

Implements GEO_Primitive.

void GU_PrimPolySoup::removeInlinePoints ( float  tol,
GA_PointGroup *&  delgrp
)
void GU_PrimPolySoup::sortSpatial ( )

Sorts the polygons in the polysoup spatially.

Friends And Related Function Documentation

friend class GU_PrimitiveFactory
friend

Definition at line 149 of file GU_PrimPolySoup.h.


The documentation for this class was generated from the following file:
