HdBufferArray Class Reference

#include <bufferArray.h>

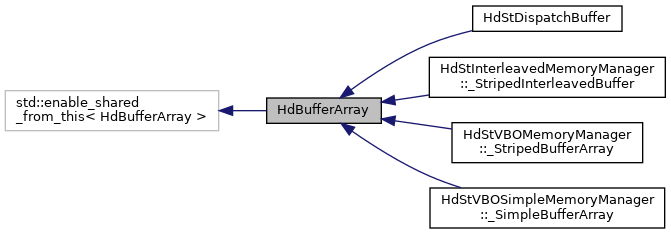

Inheritance diagram for HdBufferArray:

Public Member Functions
HD_API	HdBufferArray (TfToken const &role, TfToken const garbageCollectionPerfToken, HdBufferArrayUsageHint usageHint)
virtual HD_API	~HdBufferArray ()
TfToken const &	GetRole () const
	Returns the role of the GPU data in this bufferArray. More...
size_t	GetVersion () const
HD_API void	IncrementVersion ()
	Increments the version of this buffer array. More...
HD_API bool	TryAssignRange (HdBufferArrayRangeSharedPtr &range)
virtual bool	GarbageCollect ()=0
	Performs compaction if necessary and returns true if it becomes empty. More...
virtual void	Reallocate (std::vector< HdBufferArrayRangeSharedPtr > const &ranges, HdBufferArraySharedPtr const &curRangeOwner)=0
virtual HD_API size_t	GetMaxNumElements () const
	Returns the maximum number of elements capacity. More...
virtual void	DebugDump (std::ostream &out) const =0
	Debug output. More...
size_t	GetRangeCount () const
	How many ranges are attached to the buffer array. More...
HD_API HdBufferArrayRangePtr	GetRange (size_t idx) const
	Get the attached range at the specified index. More...
HD_API void	RemoveUnusedRanges ()
bool	NeedsReallocation () const
	Returns true if Reallocate() needs to be called on this buffer array. More...
bool	IsImmutable () const
	Returns true if this buffer array is marked as immutable. More...
HdBufferArrayUsageHint	GetUsageHint () const
	Returns the usage hints for this buffer array. More...

Protected Member Functions
void	_SetMaxNumRanges (size_t max)
HD_API void	_SetRangeList (std::vector< HdBufferArrayRangeSharedPtr > const &ranges)
	Swap the rangelist with ranges. More...

Protected Attributes
bool	_needsReallocation

Detailed Description

Similar to a VAO, this object is a bundle of coherent buffers. This object can be shared across multiple HdRprims, in the context of buffer aggregation.

Definition at line 87 of file bufferArray.h.

Constructor & Destructor Documentation

HD_API HdBufferArray::HdBufferArray	(	TfToken const &	role,
		TfToken const	garbageCollectionPerfToken,
		HdBufferArrayUsageHint	usageHint
	)

virtual HD_API HdBufferArray::~HdBufferArray ( )

virtual

Member Function Documentation

void HdBufferArray::_SetMaxNumRanges ( size_t  max )

inlineprotected

Limits the number of ranges that can be allocated to this buffer to max.

Definition at line 170 of file bufferArray.h.

HD_API void HdBufferArray::_SetRangeList ( std::vector< HdBufferArrayRangeSharedPtr > const &  ranges )

protected

Swap the rangelist with ranges.

virtual void HdBufferArray::DebugDump ( std::ostream &  out ) const

pure virtual

Debug output.

Implemented in HdStVBOMemoryManager::_StripedBufferArray, HdStVBOSimpleMemoryManager::_SimpleBufferArray, HdStInterleavedMemoryManager::_StripedInterleavedBuffer, and HdStDispatchBuffer.

virtual bool HdBufferArray::GarbageCollect ( )

pure virtual

Performs compaction if necessary and returns true if it becomes empty.

Implemented in HdStVBOMemoryManager::_StripedBufferArray, HdStVBOSimpleMemoryManager::_SimpleBufferArray, HdStInterleavedMemoryManager::_StripedInterleavedBuffer, and HdStDispatchBuffer.

virtual HD_API size_t HdBufferArray::GetMaxNumElements ( ) const

virtual

Returns the maximum number of elements capacity.

Reimplemented in HdStVBOMemoryManager::_StripedBufferArray, and HdStVBOSimpleMemoryManager::_SimpleBufferArray.

HD_API HdBufferArrayRangePtr HdBufferArray::GetRange

(

size_t

idx

)

const

Get the attached range at the specified index.

size_t HdBufferArray::GetRangeCount ( ) const

inline

How many ranges are attached to the buffer array.

Definition at line 137 of file bufferArray.h.

TfToken const& HdBufferArray::GetRole ( ) const

inline

Returns the role of the GPU data in this bufferArray.

Definition at line 99 of file bufferArray.h.

HdBufferArrayUsageHint HdBufferArray::GetUsageHint ( ) const

inline

Returns the usage hints for this buffer array.

Definition at line 159 of file bufferArray.h.

size_t HdBufferArray::GetVersion ( ) const

inline

Returns the version of this buffer array. Used to determine when to rebuild outdated indirect dispatch buffers

Definition at line 103 of file bufferArray.h.

HD_API void HdBufferArray::IncrementVersion

(

)

Increments the version of this buffer array.

bool HdBufferArray::IsImmutable ( ) const

inline

Returns true if this buffer array is marked as immutable.

Definition at line 154 of file bufferArray.h.

bool HdBufferArray::NeedsReallocation ( ) const

inline

Returns true if Reallocate() needs to be called on this buffer array.

Definition at line 149 of file bufferArray.h.

virtual void HdBufferArray::Reallocate ( std::vector< HdBufferArrayRangeSharedPtr > const &  ranges, HdBufferArraySharedPtr const &  curRangeOwner  )

pure virtual

Performs reallocation. After reallocation, the buffer will contain the specified ranges. If these ranges are currently held by a different buffer array instance, then their data will be copied from the specified curRangeOwner.

Implemented in HdStVBOMemoryManager::_StripedBufferArray, HdStVBOSimpleMemoryManager::_SimpleBufferArray, HdStInterleavedMemoryManager::_StripedInterleavedBuffer, and HdStDispatchBuffer.

HD_API void HdBufferArray::RemoveUnusedRanges

(

)

Remove any ranges from the range list that have been deallocated Returns number of ranges after clean-up

HD_API bool HdBufferArray::TryAssignRange

(

HdBufferArrayRangeSharedPtr &

range

)

Attempts to assign a range to this buffer array. Multiple threads could be trying to assign to this buffer at the same time. Returns true is the range is assigned to this buffer otherwise returns false if the buffer doesn't have space to assign the range.

Member Data Documentation

bool HdBufferArray::_needsReallocation

protected

Dirty bit to set when the ranges attached to the buffer changes. If set Reallocate() should be called to clean it.

Definition at line 166 of file bufferArray.h.

---

The documentation for this class was generated from the following file:

• pxr/imaging/hd/bufferArray.h
