HdExtComputation Class Reference

#include <extComputation.h>

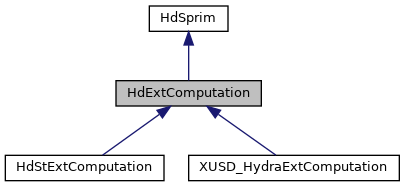

+ Inheritance diagram for HdExtComputation:

Public Types

enum  DirtyBits : HdDirtyBits {
  Clean = 0, DirtyInputDesc = 1 << 0, DirtyOutputDesc = 1 << 1, DirtyElementCount = 1 << 2,
  DirtySceneInput = 1 << 3, DirtyCompInput = 1 << 4, DirtyKernel = 1 << 5, DirtyDispatchCount = 1 << 6,
  AllDirty
}


Public Member Functions

HD_API HdExtComputation (SdfPath const &id)
 Construct a new ExtComputation identified by id. More...

HD_API ~HdExtComputation () override

HD_API void Sync (HdSceneDelegate *sceneDelegate, HdRenderParam *renderParam, HdDirtyBits *dirtyBits) override

HD_API HdDirtyBits GetInitialDirtyBitsMask () const override

HD_API size_t GetDispatchCount () const

HD_API size_t GetElementCount () const

HD_API TfTokenVector const & GetSceneInputNames () const

HD_API TfTokenVector GetOutputNames () const

HD_API
HdExtComputationInputDescriptorVector
const & 		GetComputationInputs () const

HD_API
HdExtComputationOutputDescriptorVector
const & 		GetComputationOutputs () const

HD_API const std::string & GetGpuKernelSource () const

HD_API bool IsInputAggregation () const

- Public Member Functions inherited from HdSprim
HD_API HdSprim (SdfPath const &id)

virtual HD_API ~HdSprim ()

SdfPath const & GetId () const

virtual HD_API void Finalize (HdRenderParam *renderParam)


Protected Member Functions

HD_API void _Sync (HdSceneDelegate *sceneDelegate, HdRenderParam *renderParam, HdDirtyBits *dirtyBits)


Static Protected Member Functions

static HD_API bool _IsEnabledSharedExtComputationData ()


Detailed Description

Hydra Representation of a Client defined computation.

A computation provides a way to procedurally generate a primvar.

It represents a basic Input -> Processing -> Output model.

Primarily inputs are provided by the scene delegate via the Get() mechanism.

Computations can also be chained together, such that the output from one computation can be an input to another.

The results of a computation is designed to be in SOA form (structure or array), where each output is a member of the "structure" producing several parallel arrays. While the type of the elements of the array is defined by the output member, the number of elements in each array is the same across all outputs.

ExtComputations use a pull model, so processing is only triggered if a downstream computation or prim pulls on one the computations outputs.

Definition at line 56 of file extComputation.h.

Member Enumeration Documentation

enum HdExtComputation::DirtyBits : HdDirtyBits

Change tracking

Enumerator
Clean
DirtyInputDesc

The list of inputs or input bindings changed

DirtyOutputDesc

The list of outputs changed.

DirtyElementCount

The number of elements in the output arrays changed

DirtySceneInput

A scene input changed value.

DirtyCompInput

A computation input changed value.

DirtyKernel

The compute kernel binding changed.

DirtyDispatchCount

The number of kernel invocations to execute changed

AllDirty

Definition at line 69 of file extComputation.h.

Constructor & Destructor Documentation

HD_API HdExtComputation::HdExtComputation ( SdfPath const &  id)

Construct a new ExtComputation identified by id.

HD_API HdExtComputation::~HdExtComputation ( )
override

Member Function Documentation

static HD_API bool HdExtComputation::_IsEnabledSharedExtComputationData ( )
staticprotected
HD_API void HdExtComputation::_Sync ( HdSceneDelegate *  sceneDelegate,
HdRenderParam *  renderParam,
HdDirtyBits *  dirtyBits
)
protected
HD_API HdExtComputationInputDescriptorVector const& HdExtComputation::GetComputationInputs ( ) const
inline

Definition at line 116 of file extComputation.h.

HD_API HdExtComputationOutputDescriptorVector const& HdExtComputation::GetComputationOutputs ( ) const
inline

Definition at line 122 of file extComputation.h.

HD_API size_t HdExtComputation::GetDispatchCount ( ) const
HD_API size_t HdExtComputation::GetElementCount ( ) const
inline

Definition at line 104 of file extComputation.h.

HD_API const std::string& HdExtComputation::GetGpuKernelSource ( ) const
inline

Definition at line 127 of file extComputation.h.

HD_API HdDirtyBits HdExtComputation::GetInitialDirtyBitsMask ( ) const
overridevirtual

Returns the minimal set of dirty bits to place in the change tracker for use in the first sync of this prim. Typically this would be all dirty bits.

Implements HdSprim.

HD_API TfTokenVector HdExtComputation::GetOutputNames ( ) const
HD_API TfTokenVector const& HdExtComputation::GetSceneInputNames ( ) const
inline

Definition at line 107 of file extComputation.h.

HD_API bool HdExtComputation::IsInputAggregation ( ) const
HD_API void HdExtComputation::Sync ( HdSceneDelegate *  sceneDelegate,
HdRenderParam *  renderParam,
HdDirtyBits *  dirtyBits
)
overridevirtual

Synchronizes state from the delegate to this object.

Parameters
[in,out]dirtyBitsOn input specifies which state is is dirty and can be pulled from the scene delegate. On output specifies which bits are still dirty and were not cleaned by the sync.

Implements HdSprim.

Reimplemented in HdStExtComputation.

The documentation for this class was generated from the following file:
