#include <UT/UT_Array.h>
#include <UT/UT_ArraySet.h>
#include <UT/UT_ArrayStringMap.h>
#include <UT/UT_SharedPtr.h>
#include <UT/UT_StringMap.h>
#include <UT/UT_UniquePtr.h>

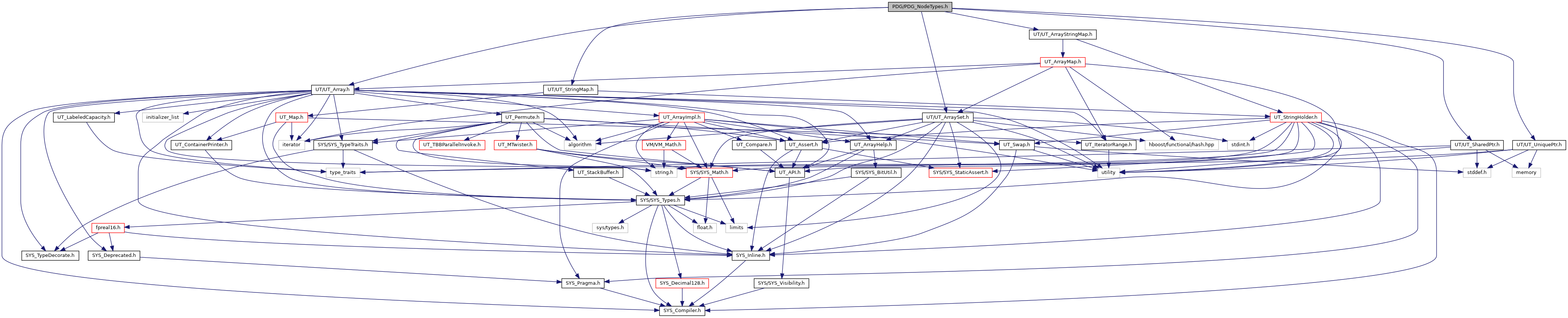

Include dependency graph for PDG_NodeTypes.h:

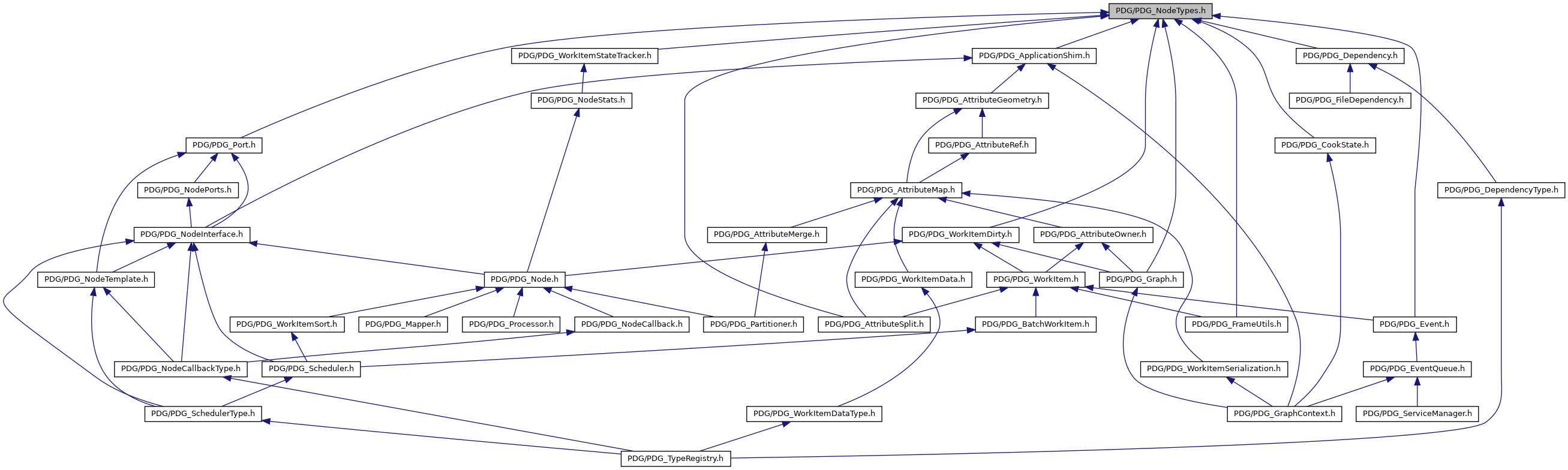

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
using	PDG_DependencyPtr = UT_SharedPtr< PDG_Dependency >
	Type defs for registered type objects. More...

using	PDG_NodeCallbackPtr = UT_SharedPtr< PDG_NodeCallback >

using	PDG_NodeID = int
	Node ID type. More...

using	PDG_CacheID = int

using	PDG_NodePtr = UT_UniquePtr< PDG_Node >
	Array, set and map of nodes. More...

using	PDG_NodePtrMap = UT_ArrayStringMap< PDG_NodePtr >

using	PDG_NodeArray = UT_Array< PDG_Node * >

using	PDG_NodeSet = UT_ArraySet< PDG_Node * >

using	PDG_NodeMap = UT_ArrayStringMap< PDG_Node * >

using	PDG_PortArray = UT_Array< PDG_Port * >
	Array of input/output/parameter ports. More...

using	PDG_NodePortPair = std::pair< UT_StringHolder, UT_StringHolder >

using	PDG_NodePortArray = UT_Array< PDG_NodePortPair >

using	PDG_NodePortMap = UT_StringMap< PDG_NodePortArray >

Enumerations
enum	PDG_CallbackResult { PDG_CallbackResult::eFailure, PDG_CallbackResult::eSuccess, PDG_CallbackResult::eMissing, PDG_CallbackResult::eNone, PDG_CallbackResult::eAll }
	Enumeration of callback return types. More...

enum	PDG_NodeState { PDG_NodeState::eUncooked, PDG_NodeState::eCooking, PDG_NodeState::eCooked, PDG_NodeState::eFailed, PDG_NodeState::eCanceled, PDG_NodeState::eWaiting, PDG_NodeState::eIncomplete }
	Node state, used for UI/progress reporting. More...

enum	PDG_NodeType { PDG_NodeType::eMapper, PDG_NodeType::ePartitioner, PDG_NodeType::eProcessor, PDG_NodeType::eScheduler, PDG_NodeType::eUndefined }
	Enumeration of node types in a PDG graph. More...

enum	PDG_NodeSubtype { PDG_NodeSubtype::eRegular, PDG_NodeSubtype::eFeedbackBegin, PDG_NodeSubtype::eFeedbackEnd, PDG_NodeSubtype::eUtility, PDG_NodeSubtype::eUndefined }
	Enumeration of node subtypes. More...

enum	PDG_PortDisplayType { PDG_PortDisplayType::eDefault = 0x0, PDG_PortDisplayType::eMenu = 0x01, PDG_PortDisplayType::eToggle = 0x02, PDG_PortDisplayType::eJoin = 0x04, PDG_PortDisplayType::eSeparator = 0x08, PDG_PortDisplayType::eNoLabel = 0x10, PDG_PortDisplayType::eOperator = 0x20 }

enum	PDG_PortType { PDG_PortType::eInput, PDG_PortType::eOutput, PDG_PortType::eParameter, PDG_PortType::eCount }
	Enumeration of node port types. More...

Typedef Documentation

using PDG_CacheID = int

Definition at line 30 of file PDG_NodeTypes.h.

using PDG_DependencyPtr = UT_SharedPtr<PDG_Dependency>

Type defs for registered type objects.

Definition at line 25 of file PDG_NodeTypes.h.

using PDG_NodeArray = UT_Array<PDG_Node*>

Definition at line 36 of file PDG_NodeTypes.h.

using PDG_NodeCallbackPtr = UT_SharedPtr<PDG_NodeCallback>

Definition at line 26 of file PDG_NodeTypes.h.

using PDG_NodeID = int

Node ID type.

Definition at line 29 of file PDG_NodeTypes.h.

using PDG_NodeMap = UT_ArrayStringMap<PDG_Node*>

Definition at line 38 of file PDG_NodeTypes.h.

using PDG_NodePortArray = UT_Array<PDG_NodePortPair>

Definition at line 44 of file PDG_NodeTypes.h.

using PDG_NodePortMap = UT_StringMap<PDG_NodePortArray>

Definition at line 45 of file PDG_NodeTypes.h.

using PDG_NodePortPair = std::pair<UT_StringHolder, UT_StringHolder>

Definition at line 43 of file PDG_NodeTypes.h.

using PDG_NodePtr = UT_UniquePtr<PDG_Node>

Array, set and map of nodes.

Definition at line 33 of file PDG_NodeTypes.h.

using PDG_NodePtrMap = UT_ArrayStringMap<PDG_NodePtr>

Definition at line 34 of file PDG_NodeTypes.h.

using PDG_NodeSet = UT_ArraySet<PDG_Node*>

Definition at line 37 of file PDG_NodeTypes.h.

using PDG_PortArray = UT_Array<PDG_Port*>

Array of input/output/parameter ports.

Definition at line 41 of file PDG_NodeTypes.h.

Enumeration Type Documentation

enum PDG_CallbackResult

strong

Enumeration of callback return types.

Enumerator
eFailure	The callback failed to execute.
eSuccess	The callback executed successfully.
eMissing	The callback is missing or undefined.
eNone	Special "None" case – the callback took no action or returned no results
eAll	Special "All" case – the callback returned all results.

Definition at line 48 of file PDG_NodeTypes.h.

enum PDG_NodeState

strong

Node state, used for UI/progress reporting.

Enumerator
eUncooked	The node is uncooked, either because it wasn't on the cook path or because it chose to generate no items
eCooking	The node is actively cooking work items.
eCooked	The node is completely cooked.
eFailed	One or more work items failed during the cook.
eCanceled	One or more work items were canceled during the cook.
eWaiting	The node is waiting on upstream nodes to make progress.
eIncomplete	The node is partially cooked, and likely won't make any progress during the rest of the active cook

Definition at line 68 of file PDG_NodeTypes.h.

enum PDG_NodeSubtype

strong

Enumeration of node subtypes.

Enumerator
eRegular	A regular node – default value.
eFeedbackBegin	A feedback begin node – part of a feedback block.
eFeedbackEnd	A feedback end node – part of a feedback block.
eUtility	A utility node, such as a null or switch.
eUndefined	Placeholder/undefined node subtype.

Definition at line 118 of file PDG_NodeTypes.h.

enum PDG_NodeType

strong

Enumeration of node types in a PDG graph.

Enumerator
eMapper	Mapper nodes – add dependencies between upstream and downstream work items [Deprecated]
ePartitioner	Partitioner nodes – group multiple upstream work items into partitions with a common property
eProcessor	Processor nodes – generate zero more more new work items from upstream work items that perform real work
eScheduler	Scheduler nodes – submits work items to some sort of scheduling or farm system
eUndefined	Placeholder/undefined node type.

Definition at line 95 of file PDG_NodeTypes.h.

enum PDG_PortDisplayType

strong

Enumeration of node port display type, e.g. menus or toggles, for parameters

Enumerator
eDefault	Default display type.
eMenu	Dropdown menu display.
eToggle	Toggle display.
eJoin	Join-next display.
eSeparator	Separator display.
eNoLabel	No label display.
eOperator	Operator path display.

Definition at line 138 of file PDG_NodeTypes.h.

enum PDG_PortType

strong

Enumeration of node port types.

Enumerator
eInput	Input connection.
eOutput	Output connection.
eParameter	Parameter.
eCount	Port type guard/count.

Definition at line 163 of file PDG_NodeTypes.h.
