Motion blur incorrect

   4051   7   2
User Avatar
julca
Member
241 posts
Joined: Oct. 2015
Offline

Hello,

I have some difficulty with my motion blur which largely exceeds my real motion (cf. screenhot).
I would like to know if it's a common problem and how you think it can be resolved.

Thank you.

Attachments:

 Report
User Avatar
Enivob
Member
2637 posts
Joined: June 2008
Offline

It is hard to say without seeing the HIP file but you have to dial it back, right? Locate your velocity attribute and multiply it by 0.1.
Using Houdini Indie 20.0
Windows 11 64GB Ryzen 16 core.
nVidia 3050RTX 8BG RAM.
 Report
User Avatar
trojan_goat
Member
41 posts
Joined: June 2010
Offline

You might also want to check your scene scale. If you are object merging into a scaled object, your motion blur might not look correct
~t.goat
 Report
User Avatar
jason_iversen
Member
12786 posts
Joined: July 2005
Offline

It's common for forwardly extrapolated motion blur to overshoot when a motion discontinuity like this happens (hitting the bottom of the bowl) and so you might try adjusting your Shutter Offset.
Jason Iversen, Technology Supervisor & FX Pipeline/R+D Lead @ Weta FX
also, http://www.odforce.net [www.odforce.net]
 Report
User Avatar
julca
Member
241 posts
Joined: Oct. 2015
Offline

Hello all, Thanks for your comments.

I directly import my simulation files “*.bgeo.sc” without scaling.
But when I build my simulation I scale some parameters like Gravity force (-980.665) and Spacial Space (0.01) and Mass Scale (0.01).
That's because I scale my collider object by 100 to allow me to use a small emitter (start to fill a barrel of 600L with an emitter of 3cm diameter).

And I try to play with the Shutter Offset but without succes (just reduce this problem but dont resolve it entirely).
The fact is my liquid fall quickly and if I reduce my velocity parameter (ex. by 0.1) I don't have enough blur.

Can you tell me where I'm wrong ?
I've joined my project with the first 25 frames simulation cached files.
Thanks.

Attachments:
houdini_motionBlur.rar (25.4 MB)

 Report
User Avatar
JordanWalsh
Member
145 posts
Joined: Feb. 2012
Offline

Dont touch the shutter, for me that usually just adds in more problems down the road.
You want to either lower the magnitude of v if it is going above a certain speed, or blur the magnitude of v, both easily achieved by a wrangle/vop node.
This is a common thing to do for any type of sim.
 Report
User Avatar
julca
Member
241 posts
Joined: Oct. 2015
Offline

Thank you,
I clamp my velocity in an attribute VOP from -40 to 40 and, even if it's not perfect, it considerably reduce this overflow (cf. screenshot).

Attachments:

 Report
User Avatar
julca
Member
241 posts
Joined: Oct. 2015
Offline

Just to conclude,

I need to clamp my velocity vector length instead of clamp individually my velocity vector components (x, y, z) individually like I do in the attribute VOP screenshot of my last post ops: .
In order to not change velocity direction.

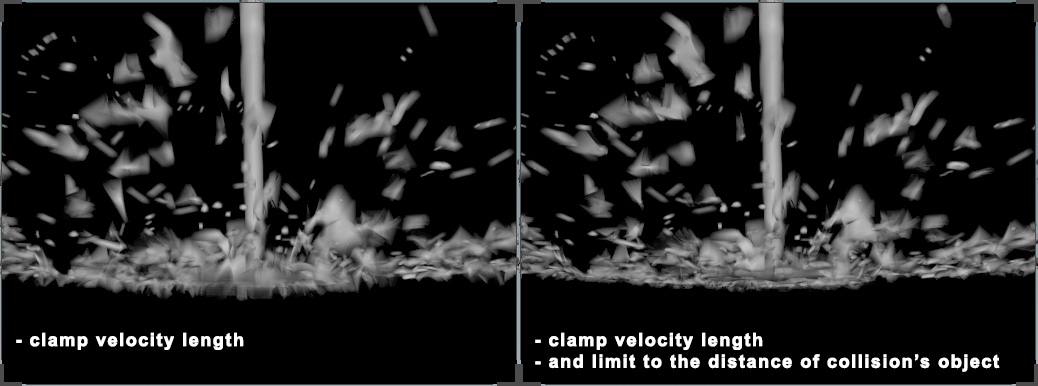

To polish more :idea: I compute the distance from each liquid point to the collision object (use the velocity for direction) and determine the lower velocity length limit (cf. screenshot).

Attachments:
