HDA has problems using SplineComponent input in UE5Preview?

   1002   3   3
User Avatar
Member
5 posts
Joined: July 2021
Offline
I used SplineComponent in BlueprintActor to set my HDA input,but it doesn't work.
The log said:
LogHoudiniEngine: Error: Houdini Engine Session lost! This could be caused by a crash in HARS.
LogHoudiniEngine: Error: Hapi failed:
LogHoudiniEngine: Error: Hapi failed: No valid Houdini Engine session.
It was normal in UE4.I'm sure I used the same operation.
My version:
Houdini 19.0.531
Ue5Preview2&1
Thanks a lot.
User Avatar
Member
51 posts
Joined: July 2017
Offline
Hello, hope this message finds you well!

Are you able to reproduce this consistently?
If so, please provide more detailed instructions to us for use in diagnosing the issue further.

In an attempt to quickly reproduce this issue based on your description, we've made a simple HDA that instances objects along an input curve geo.
  • In UE5, we created an Actor Blueprint with a child Spline, instanced that into our level alongside the test HDA and then sketched a few control points into the spline.
  • On the HDA, we set the input type to World Outliner Input, then used the selector tool to pick the BP containing the SplineComponent and the HDA works and cooks just fine.


Also, we noted your use of 19.0.531 and wanted to mention that there are new production builds available as well, in case you'd like to try to reproduce this using latest:

-Alan

Attachments:

User Avatar
Member
13 posts
Joined: Oct. 2018
Offline
Hi, I have the exact same issue.

The HARS crash happens when you move a point on the spline component of a blueprint that is hooked to the HDA's world outliner input.

It happens in both UE5 and UE4.

LogHoudiniEngineRuntime: Display: [UHoudiniAssetBlueprintComponent::NeedUpdateInputs()] Inputs need update for component: /Game/Developers/tomvelebny/Collections/Levels/LevelTest.LevelTest:PersistentLevel.HoudiniAssetActor_UAID_3C7C3FF50E6A250401_1167386896.HoudiniAssetComponent
LogHoudiniEngine: Error: Houdini Engine Session lost! This could be caused by a crash in HARS.
LogHoudiniEngine: Error: Hapi failed:
LogHoudiniEngine: Error: Hapi failed: No valid Houdini Engine session.

My main goal is to save splines with the UE level and use those as inputs for my HDAs for further processing.

Thanks!
Tech Artist @ Smilegate BCN
User Avatar
Member
5 posts
Joined: July 2021
Offline
有机电脑
Hello, hope this message finds you well!

Are you able to reproduce this consistently?
If so, please provide more detailed instructions to us for use in diagnosing the issue further.

In an attempt to quickly reproduce this issue based on your description, we've made a simple HDA that instances objects along an input curve geo.
  • In UE5, we created an Actor Blueprint with a child Spline, instanced that into our level alongside the test HDA and then sketched a few control points into the spline.
  • On the HDA, we set the input type to World Outliner Input, then used the selector tool to pick the BP containing the SplineComponent and the HDA works and cooks just fine.
    Image Not Found


Also, we noted your use of 19.0.531 and wanted to mention that there are new production builds available as well, in case you'd like to try to reproduce this using latest:

-Alan

Thank you for your reply!
I tried it in UE5.0 with H19.0.589.

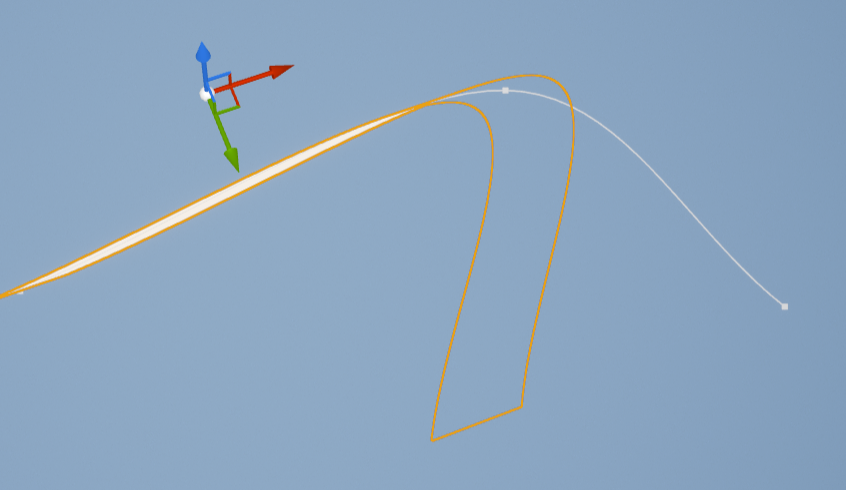

The first time it worked,but still reported Session lost when i moved the spline.

Attachments:
