UI_DeviceEvent.h File Reference

#include "UI_API.h"
#include <RE/RE_IDType.h>
#include <SYS/SYS_Types.h>
#include <UT/UT_Array.h>
#include <UT/UT_StringHolder.h>
#include "UI_EventType.h"

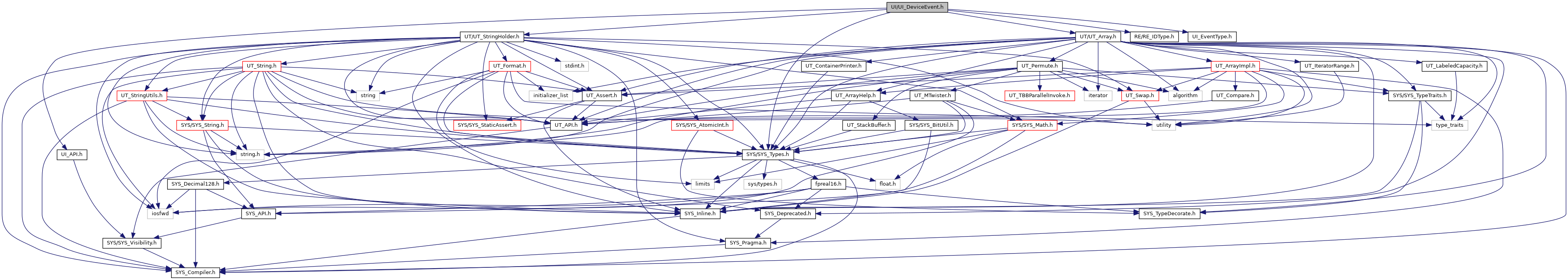

Include dependency graph for UI_DeviceEvent.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	UI_DeviceEvent

Macros
#define	UI_NO_BUTTON   0x0
#define	UI_LEFT_BUTTON   0x01
#define	UI_MIDDLE_BUTTON   0x02
#define	UI_RIGHT_BUTTON   0x04
#define	UI_ALT_KEY   0x0001
#define	UI_SHIFT_KEY   0x0002
#define	UI_CTRL_KEY   0x0004
#define	UI_COMMAND_KEY   0x0008
#define	UI_META_KEYS
#define	UI_ALPHASHIFT_KEY   0x0010
#define	UI_AUTOREPEAT   0x0020
#define	UI_IME_PREEDIT   0x0040
#define	UI_IME_COMMIT   0x0080
#define	UI_KEYPAD_KEY   0x0100
#define	UI_TABLET_MOTION   0x0200
#define	UI_KEYSTATE_CHANGE   0x0400
#define	UI_KEYSEQ_TRIGGER   0x0800
#define	UI_DBLCLK   0x1000
#define	UI_TOGGLE_SEL_MODIFIER   UI_CTRL_KEY
#define	UI_PRESSURE_SCALE   16384.0F
#define	UI_ANGLE_SCALE   100.0F
#define	UI_DEVICE_DIMENSIONS   7

Enumerations
enum	UI_Dimension {   DEVICE_DIM_T = 0, DEVICE_DIM_U = 1, DEVICE_DIM_V = 2, DEVICE_DIM_W = 3,   DEVICE_DIM_X = 4, DEVICE_DIM_Y = 5, DEVICE_DIM_Z = 6 }

Macro Definition Documentation

#define UI_ALPHASHIFT_KEY   0x0010

Definition at line 35 of file UI_DeviceEvent.h.

#define UI_ALT_KEY   0x0001

Examples:

SOP/MSS_CustomBrushState.C.

Definition at line 27 of file UI_DeviceEvent.h.

#define UI_ANGLE_SCALE   100.0F

Definition at line 60 of file UI_DeviceEvent.h.

#define UI_AUTOREPEAT   0x0020

Definition at line 36 of file UI_DeviceEvent.h.

#define UI_COMMAND_KEY   0x0008

Definition at line 30 of file UI_DeviceEvent.h.

#define UI_CTRL_KEY   0x0004

Definition at line 29 of file UI_DeviceEvent.h.

#define UI_DBLCLK   0x1000

Definition at line 43 of file UI_DeviceEvent.h.

#define UI_DEVICE_DIMENSIONS   7

Definition at line 72 of file UI_DeviceEvent.h.

#define UI_IME_COMMIT   0x0080

Definition at line 38 of file UI_DeviceEvent.h.

#define UI_IME_PREEDIT   0x0040

Definition at line 37 of file UI_DeviceEvent.h.

#define UI_KEYPAD_KEY   0x0100

Definition at line 39 of file UI_DeviceEvent.h.

#define UI_KEYSEQ_TRIGGER   0x0800

Definition at line 42 of file UI_DeviceEvent.h.

#define UI_KEYSTATE_CHANGE   0x0400

Definition at line 41 of file UI_DeviceEvent.h.

#define UI_LEFT_BUTTON   0x01

Examples:

DM/DM_GreedyMouseHook.C.

Definition at line 23 of file UI_DeviceEvent.h.

#define UI_META_KEYS

Value:

(UI_ALT_KEY| \
				 UI_SHIFT_KEY| \
				 UI_CTRL_KEY| \
				 UI_COMMAND_KEY)

Definition at line 31 of file UI_DeviceEvent.h.

#define UI_MIDDLE_BUTTON   0x02

Examples:

DM/DM_GreedyMouseHook.C.

Definition at line 24 of file UI_DeviceEvent.h.

#define UI_NO_BUTTON   0x0

Definition at line 22 of file UI_DeviceEvent.h.

#define UI_PRESSURE_SCALE   16384.0F

Definition at line 58 of file UI_DeviceEvent.h.

#define UI_RIGHT_BUTTON   0x04

Examples:

DM/DM_GreedyMouseHook.C.

Definition at line 25 of file UI_DeviceEvent.h.

#define UI_SHIFT_KEY   0x0002

Examples:

SOP/MSS_CustomBrushState.C.

Definition at line 28 of file UI_DeviceEvent.h.

#define UI_TABLET_MOTION   0x0200

Definition at line 40 of file UI_DeviceEvent.h.

#define UI_TOGGLE_SEL_MODIFIER   UI_CTRL_KEY

Definition at line 48 of file UI_DeviceEvent.h.

Enumeration Type Documentation

enum UI_Dimension

Enumerator
DEVICE_DIM_T
DEVICE_DIM_U
DEVICE_DIM_V
DEVICE_DIM_W
DEVICE_DIM_X
DEVICE_DIM_Y
DEVICE_DIM_Z

Definition at line 62 of file UI_DeviceEvent.h.
