PDG_AttributeRef Class Reference

#include <PDG_AttributeRef.h>

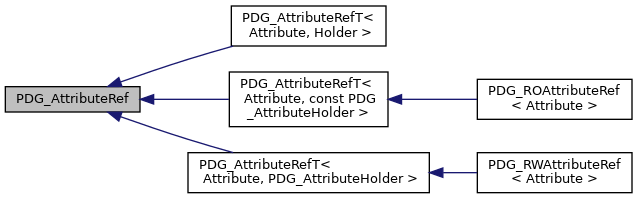

Inheritance diagram for PDG_AttributeRef:

Public Types
enum	Error {   eErrorNone, eErrorUnspecified, eErrorNotFound, eErrorReadOnly,   eErrorInternal, eErrorAttributesReadOnly, eErrorTypeConflict, eErrorTypeUpgrade,   eErrorOverwrite, eErrorUninitialized, eErrorInvalidFlag }

Public Member Functions
	PDG_AttributeRef (const UT_StringHolder &name, const PDG_AttributeOwner *owner, Error error=eErrorNone)
	operator bool () const
	Returns true if the handle is valid. More...
bool	isValid () const
	Returns true if the handle is valid. More...
Error	error () const
	Returns the error state of the handle. More...
const UT_StringHolder &	name () const
	Returns the name of the attribute referenced by this attrib ref. More...
const PDG_AttributeOwner *	owner () const
	Returns the PDG_AttributeOwner that owns the underlying attribute. More...
bool	validate (UT_WorkBuffer &buffer) const
bool	validate (const PDG_Node *node, bool report_errors=true, bool as_warning=false) const

Static Public Member Functions
static bool	attributeError (UT_WorkBuffer &buffer, Error error, const UT_StringHolder &attrib_name, const PDG_AttributeOwner *owner=nullptr)
static void	attributeModified (const PDG_AttributeOwner *owner, PDG_AttributeType attrib_type, const UT_StringHolder &attrib_name)
	Emits events when the attribute is modified. More...

Protected Attributes
UT_StringHolder	myName
const PDG_AttributeOwner *	myOwner
Error	myError

Detailed Description

Base class for attribute references

Definition at line 29 of file PDG_AttributeRef.h.

Member Enumeration Documentation

enum PDG_AttributeRef::Error

Enumeration of possible errors that could occur when attempting to to construct an attribute reference

Enumerator
eErrorNone	No error was specified, i.e. the ref is valid.
eErrorUnspecified	An unspecified error occured - the ref is invalid.
eErrorNotFound	The requested attribute was not found - the ref is invalid.
eErrorReadOnly	The requested attribute was a readonly when attempting to create a RW ref - the ref is invalid
eErrorInternal	The requested attribute is internal, and therefore cannot be removed by user code
eErrorAttributesReadOnly	The entire attribute map is read only.
eErrorTypeConflict	The requested attribute type did not match the attribute - the ref is invalid
eErrorTypeUpgrade	The requested attribute is static and was not upgraded to dynamic.
eErrorOverwrite	The requested attribute already exists, but the API call was instruct to not overwrite existing values
eErrorUninitialized	The ref is uninitialized and needs to be created at a later point.
eErrorInvalidFlag	The attribute doesn't support a flag that was passed to a SetFlag call

Definition at line 34 of file PDG_AttributeRef.h.

Constructor & Destructor Documentation

PDG_AttributeRef::PDG_AttributeRef ( const UT_StringHolder &  name, const PDG_AttributeOwner *  owner, Error  error = eErrorNone  )

inlineexplicit

Definition at line 76 of file PDG_AttributeRef.h.

Member Function Documentation

static bool PDG_AttributeRef::attributeError ( UT_WorkBuffer &  buffer, Error  error, const UT_StringHolder &  attrib_name, const PDG_AttributeOwner *  owner = nullptr  )

static

Writes an attribute error format message to the buffer, based on the supply error, attrib name and optional work item. Returns True if no error is detected, or false if an error occured.

static void PDG_AttributeRef::attributeModified ( const PDG_AttributeOwner *  owner, PDG_AttributeType  attrib_type, const UT_StringHolder &  attrib_name  )

static

Emits events when the attribute is modified.

Error PDG_AttributeRef::error ( ) const

inline

Returns the error state of the handle.

Definition at line 98 of file PDG_AttributeRef.h.

bool PDG_AttributeRef::isValid ( ) const

inline

Returns true if the handle is valid.

Definition at line 92 of file PDG_AttributeRef.h.

const UT_StringHolder& PDG_AttributeRef::name ( void  ) const

inline

Returns the name of the attribute referenced by this attrib ref.

Definition at line 105 of file PDG_AttributeRef.h.

PDG_AttributeRef::operator bool ( ) const

inline

Returns true if the handle is valid.

Definition at line 86 of file PDG_AttributeRef.h.

const PDG_AttributeOwner* PDG_AttributeRef::owner ( ) const

inline

Returns the PDG_AttributeOwner that owns the underlying attribute.

Definition at line 112 of file PDG_AttributeRef.h.

bool PDG_AttributeRef::validate

(

UT_WorkBuffer &

buffer

)

const

Returns false and Writes an attribute error message into the buffer if an error exists, or returns trues and does not modify the buffer if no error has been recorded.

bool PDG_AttributeRef::validate	(	const PDG_Node *	node,
		bool	report_errors = true,
		bool	as_warning = false
	)		const

Same as above, except the attribute error is reported on the specified node instead of returned as a buffer, if an error has occured. The method still returns true if no error has occured, and false if one has.

The report_errors argument is provided as a convenience, to make it possible to parametrically skip error reporting

Member Data Documentation

Error PDG_AttributeRef::myError

protected

Definition at line 150 of file PDG_AttributeRef.h.

UT_StringHolder PDG_AttributeRef::myName

protected

Definition at line 148 of file PDG_AttributeRef.h.

const PDG_AttributeOwner* PDG_AttributeRef::myOwner

protected

Definition at line 149 of file PDG_AttributeRef.h.

---

The documentation for this class was generated from the following file:

• PDG/PDG_AttributeRef.h
