path.h File Reference

#include "pxr/pxr.h"
#include "pxr/usd/sdf/api.h"
#include "pxr/usd/sdf/pool.h"
#include "pxr/usd/sdf/tokens.h"
#include "pxr/base/arch/defines.h"
#include "pxr/base/tf/stl.h"
#include "pxr/base/tf/token.h"
#include "pxr/base/vt/traits.h"
#include <hboost/intrusive_ptr.hpp>
#include <hboost/operators.hpp>
#include <algorithm>
#include <iterator>
#include <set>
#include <string>
#include <type_traits>
#include <utility>
#include <vector>
#include "pxr/usd/sdf/pathNode.h"

Include dependency graph for path.h:

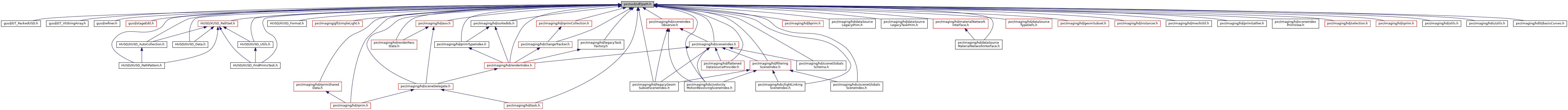

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Sdf_PathNodeHandleImpl< Handle, Counted, PathNode >
class	SdfPath
struct	SdfPath::Hash
struct	SdfPath::FastLessThan
class	SdfPathAncestorsRange
struct	SdfPathAncestorsRange::iterator
struct	Sdf_PathIdentity

Typedefs
typedef hboost::intrusive_ptr < const Sdf_PathNode >	Sdf_PathNodeConstRefPtr
using	Sdf_PathPrimPartPool = Sdf_Pool< Sdf_PathPrimTag, Sdf_SizeofPrimPathNode, 8 >
using	Sdf_PathPropPartPool = Sdf_Pool< Sdf_PathPropTag, Sdf_SizeofPropPathNode, 8 >
using	Sdf_PathPrimHandle = Sdf_PathPrimPartPool::Handle
using	Sdf_PathPropHandle = Sdf_PathPropPartPool::Handle
using	Sdf_PathPrimNodeHandle = Sdf_PathNodeHandleImpl< Sdf_PathPrimHandle, true >
using	Sdf_PathPropNodeHandle = Sdf_PathNodeHandleImpl< Sdf_PathPropHandle, false >
typedef std::set< class SdfPath >	SdfPathSet
	A set of SdfPaths. More...
typedef std::vector< class SdfPath >	SdfPathVector
	A vector of SdfPaths. More...

Functions
void	intrusive_ptr_add_ref (Sdf_PathNode const *)
void	intrusive_ptr_release (Sdf_PathNode const *)
	VT_TYPE_IS_CHEAP_TO_COPY (class SdfPath)
size_t	hash_value (SdfPath const &path)
SDF_API std::ostream &	operator<< (std::ostream &out, const SdfPath &path)
	Writes the string representation of path to out. More...
template<class ForwardIterator , class GetPathFn = Sdf_PathIdentity>
std::pair< ForwardIterator, ForwardIterator >	SdfPathFindPrefixedRange (ForwardIterator begin, ForwardIterator end, SdfPath const &prefix, GetPathFn const &getPath=GetPathFn())
template<class RandomAccessIterator , class GetPathFn >
RandomAccessIterator	Sdf_PathFindLongestPrefixImpl (RandomAccessIterator begin, RandomAccessIterator end, SdfPath const &path, bool strictPrefix, GetPathFn const &getPath)
template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>
RandomAccessIterator	SdfPathFindLongestPrefix (RandomAccessIterator begin, RandomAccessIterator end, SdfPath const &path, GetPathFn const &getPath=GetPathFn())
template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>
RandomAccessIterator	SdfPathFindLongestStrictPrefix (RandomAccessIterator begin, RandomAccessIterator end, SdfPath const &path, GetPathFn const &getPath=GetPathFn())
template<class Iter , class MapParam , class GetPathFn = Sdf_PathIdentity>
Iter	Sdf_PathFindLongestPrefixImpl (MapParam map, SdfPath const &path, bool strictPrefix, GetPathFn const &getPath=GetPathFn())
SDF_API std::set< SdfPath > ::const_iterator	SdfPathFindLongestPrefix (std::set< SdfPath > const &set, SdfPath const &path)
template<class T >
std::map< SdfPath, T > ::const_iterator	SdfPathFindLongestPrefix (std::map< SdfPath, T > const &map, SdfPath const &path)
template<class T >
std::map< SdfPath, T >::iterator	SdfPathFindLongestPrefix (std::map< SdfPath, T > &map, SdfPath const &path)
SDF_API std::set< SdfPath > ::const_iterator	SdfPathFindLongestStrictPrefix (std::set< SdfPath > const &set, SdfPath const &path)
template<class T >
std::map< SdfPath, T > ::const_iterator	SdfPathFindLongestStrictPrefix (std::map< SdfPath, T > const &map, SdfPath const &path)
template<class T >
std::map< SdfPath, T >::iterator	SdfPathFindLongestStrictPrefix (std::map< SdfPath, T > &map, SdfPath const &path)
SDF_API char const *	Sdf_PathGetDebuggerPathText (SdfPath const &)

Variables
PXR_NAMESPACE_CLOSE_SCOPE	PXR_NAMESPACE_OPEN_SCOPE

Typedef Documentation

typedef hboost::intrusive_ptr<const Sdf_PathNode> Sdf_PathNodeConstRefPtr

Definition at line 50 of file path.h.

using Sdf_PathPrimHandle = Sdf_PathPrimPartPool::Handle

Definition at line 76 of file path.h.

using Sdf_PathPrimNodeHandle = Sdf_PathNodeHandleImpl<Sdf_PathPrimHandle, true>

Definition at line 203 of file path.h.

using Sdf_PathPrimPartPool = Sdf_Pool< Sdf_PathPrimTag, Sdf_SizeofPrimPathNode, 8>

Definition at line 71 of file path.h.

using Sdf_PathPropHandle = Sdf_PathPropPartPool::Handle

Definition at line 77 of file path.h.

using Sdf_PathPropNodeHandle = Sdf_PathNodeHandleImpl<Sdf_PathPropHandle, false>

Definition at line 206 of file path.h.

using Sdf_PathPropPartPool = Sdf_Pool< Sdf_PathPropTag, Sdf_SizeofPropPathNode, 8>

Definition at line 74 of file path.h.

typedef std::set<class SdfPath> SdfPathSet

A set of SdfPaths.

Definition at line 210 of file path.h.

typedef std::vector<class SdfPath> SdfPathVector

A vector of SdfPaths.

Definition at line 212 of file path.h.

Function Documentation

size_t hash_value ( SdfPath const &  path )

inline

Definition at line 1143 of file path.h.

void intrusive_ptr_add_ref

(

Sdf_PathNode const *

)

void intrusive_ptr_release

(

Sdf_PathNode const *

)

SDF_API std::ostream& operator<<	(	std::ostream &	out,
		const SdfPath &	path
	)

Writes the string representation of path to out.

template<class RandomAccessIterator , class GetPathFn >

RandomAccessIterator Sdf_PathFindLongestPrefixImpl	(	RandomAccessIterator	begin,
		RandomAccessIterator	end,
		SdfPath const &	path,
		bool	strictPrefix,
		GetPathFn const &	getPath
	)

Definition at line 1198 of file path.h.

template<class Iter , class MapParam , class GetPathFn = Sdf_PathIdentity>

Iter Sdf_PathFindLongestPrefixImpl	(	MapParam	map,
		SdfPath const &	path,
		bool	strictPrefix,
		GetPathFn const &	getPath = GetPathFn()
	)

Definition at line 1321 of file path.h.

SDF_API char const* Sdf_PathGetDebuggerPathText

(

SdfPath const &

)

template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>

RandomAccessIterator SdfPathFindLongestPrefix	(	RandomAccessIterator	begin,
		RandomAccessIterator	end,
		SdfPath const &	path,
		GetPathFn const &	getPath = GetPathFn()
	)

Return an iterator to the element of [begin, end) that is the longest prefix of the given path (including the path itself), if there is such an element, otherwise end. The input range must be ordered according to SdfPath::operator<. If your range's iterators' value_types are not SdfPath, but you can obtain SdfPaths from them (e.g. vector<pair<SdfPath, X>>::iterator), you can pass a function to extract the path from the dereferenced iterator in getPath.

Definition at line 1284 of file path.h.

SDF_API std::set<SdfPath>::const_iterator SdfPathFindLongestPrefix	(	std::set< SdfPath > const &	set,
		SdfPath const &	path
	)

Return an iterator pointing to the element of set whose key is the longest prefix of the given path (including the path itself). If there is no such element, return set.end().

template<class T >

std::map<SdfPath, T>::const_iterator SdfPathFindLongestPrefix	(	std::map< SdfPath, T > const &	map,
		SdfPath const &	path
	)

Return an iterator pointing to the element of map whose key is the longest prefix of the given path (including the path itself). If there is no such element, return map.end().

Definition at line 1374 of file path.h.

template<class T >

std::map<SdfPath, T>::iterator SdfPathFindLongestPrefix	(	std::map< SdfPath, T > &	map,
		SdfPath const &	path
	)

Definition at line 1383 of file path.h.

template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>

RandomAccessIterator SdfPathFindLongestStrictPrefix	(	RandomAccessIterator	begin,
		RandomAccessIterator	end,
		SdfPath const &	path,
		GetPathFn const &	getPath = GetPathFn()
	)

Return an iterator to the element of [begin, end) that is the longest prefix of the given path (excluding the path itself), if there is such an element, otherwise end. The input range must be ordered according to SdfPath::operator<. If your range's iterators' value_types are not SdfPath, but you can obtain SdfPaths from them (e.g. vector<pair<SdfPath, X>>::iterator), you can pass a function to extract the path from the dereferenced iterator in getPath.

Definition at line 1310 of file path.h.

SDF_API std::set<SdfPath>::const_iterator SdfPathFindLongestStrictPrefix	(	std::set< SdfPath > const &	set,
		SdfPath const &	path
	)

Return an iterator pointing to the element of set whose key is the longest prefix of the given path (excluding the path itself). If there is no such element, return set.end().

template<class T >

std::map<SdfPath, T>::const_iterator SdfPathFindLongestStrictPrefix	(	std::map< SdfPath, T > const &	map,
		SdfPath const &	path
	)

Return an iterator pointing to the element of map whose key is the longest prefix of the given path (excluding the path itself). If there is no such element, return map.end().

Definition at line 1404 of file path.h.

template<class T >

std::map<SdfPath, T>::iterator SdfPathFindLongestStrictPrefix	(	std::map< SdfPath, T > &	map,
		SdfPath const &	path
	)

Definition at line 1414 of file path.h.

template<class ForwardIterator , class GetPathFn = Sdf_PathIdentity>

std::pair<ForwardIterator, ForwardIterator> SdfPathFindPrefixedRange	(	ForwardIterator	begin,
		ForwardIterator	end,
		SdfPath const &	prefix,
		GetPathFn const &	getPath = GetPathFn()
	)

Find the subrange of the sorted range [begin, end) that includes all paths prefixed by path. The input range must be ordered according to SdfPath::operator<. If your range's iterators' value_types are not SdfPath, but you can obtain SdfPaths from them (e.g. map<SdfPath, X>::iterator), you can pass a function to extract the path from the dereferenced iterator in getPath.

Definition at line 1167 of file path.h.

VT_TYPE_IS_CHEAP_TO_COPY

(

class SdfPath

)

Variable Documentation

PXR_NAMESPACE_CLOSE_SCOPE PXR_NAMESPACE_OPEN_SCOPE

Examples:

LOP/XUSD_TrueAutoCollection.C, LOP/XUSD_TrueAutoCollection.h, USD/USD_TmpArResolver.C, and USD/USD_TmpArResolver.h.

Definition at line 1441 of file path.h.
