GEO_ImplicitSurfaceOp.h File Reference

#include <VEX/VEX_PodTypes.h>
#include <UT/UT_Interval.h>
#include <UT/UT_Vector4.h>

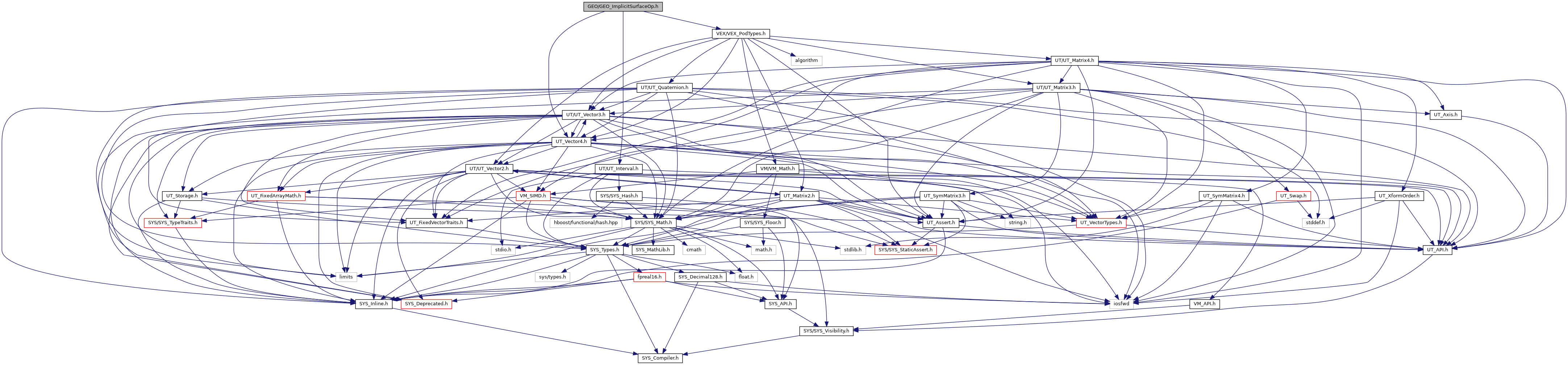

Include dependency graph for GEO_ImplicitSurfaceOp.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	GEO_ImplicitSurfaceOp< PREC >

Namespaces
	GEO_ImplicitSurfaceOps

Macros
#define	__GEO_ImplicitSurfaceOp_h__

Enumerations
enum	GEO_ImplicitSurfaceOptFlag : int {   GEO_ImplicitSurfaceOptFlag::None = 0, GEO_ImplicitSurfaceOptFlag::JustReturnA = 1, GEO_ImplicitSurfaceOptFlag::JustReturnB = 2, GEO_ImplicitSurfaceOptFlag::JustReturnNegA = 3,   GEO_ImplicitSurfaceOptFlag::JustReturnNegB = 4 }
enum	GEO_ImplicitSurfaceOpID : int {   GEO_ImplicitSurfaceOpID::Invalid = 0, GEO_ImplicitSurfaceOpID::Begin = 1, GEO_ImplicitSurfaceOpID::Invert = 2, GEO_ImplicitSurfaceOpID::Offset = 3,   GEO_ImplicitSurfaceOpID::Shell = 4, GEO_ImplicitSurfaceOpID::Union = 5, GEO_ImplicitSurfaceOpID::Intersect = 6, GEO_ImplicitSurfaceOpID::Subtract = 7,   GEO_ImplicitSurfaceOpID::Difference = 8, GEO_ImplicitSurfaceOpID::SmoothUnion = 9, GEO_ImplicitSurfaceOpID::SmoothIntersect = 10, GEO_ImplicitSurfaceOpID::SmoothSubtract = 11,   GEO_ImplicitSurfaceOpID::SmoothDifference = 12, GEO_ImplicitSurfaceOpID::RoundUnion = 13, GEO_ImplicitSurfaceOpID::RoundIntersect = 14, GEO_ImplicitSurfaceOpID::RoundSubtract = 15,   GEO_ImplicitSurfaceOpID::RoundDifference = 16, GEO_ImplicitSurfaceOpID::ChamferUnion = 17, GEO_ImplicitSurfaceOpID::ChamferIntersect = 18, GEO_ImplicitSurfaceOpID::ChamferSubtract = 19,   GEO_ImplicitSurfaceOpID::ChamferDifference = 20, GEO_ImplicitSurfaceOpID::SmoothRepulsiveUnion = 21 }
	Operation ID enumeration matching VEX implicit_shapes_op.h. More...

Functions
template<typename T >
T	GEO_ImplicitSurfaceOps::opInvert (T a)
	Invert: r = -a. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opInvert (T a, T &da)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opInvert (const UT_IntervalT< T > &a)
template<typename T >
T	GEO_ImplicitSurfaceOps::opOffset (T offset, T a)
	Offset: r = a - offset. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opOffset (T offset, T a, T &doffset, T &da)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opOffset (T offset, const UT_IntervalT< T > &a)
template<typename T >
T	GEO_ImplicitSurfaceOps::opShell (T offset, T thickness, T a)
	Shell: r = abs(a - offset) - thickness. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opShell (T offset, T thickness, T a, T &doffset, T &dthickness, T &da)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opShell (T offset, T thickness, const UT_IntervalT< T > &a)
template<typename T >
T	GEO_ImplicitSurfaceOps::opUnion (T a, T b, int a_id, int b_id, int &id)
	Union: r = min(a, b) More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opUnion (T a, T b, int a_id, int b_id, int &id, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opUnion (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opUnion (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opIntersect (T a, T b, int a_id, int b_id, int &id)
	Intersect: r = max(a, b) More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opIntersect (T a, T b, int a_id, int b_id, int &id, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opIntersect (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opIntersect (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opSubtract (T a, T b, int a_id, int b_id, int &id)
	Subtract: r = max(a, -b) More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opSubtract (T a, T b, int a_id, int b_id, int &id, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSubtract (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSubtract (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opDifference (T a, T b, int a_id, int b_id, int &id)
	Difference: r = max(min(a,b), -max(a,b)) More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opDifference (T a, T b, int a_id, int b_id, int &id, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opDifference (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opDifference (const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothUnion (T k, T a, T b, int a_id, int b_id, int &id)
	Smooth union: polynomial smooth min. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothUnion (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothUnion (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothUnion (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothRepulsiveUnion (T k, T repulsion, T a, T b, int a_id, int b_id, int &id)
	Smooth repulsive union. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothRepulsiveUnion (T k, T repulsion, T a, T b, int a_id, int b_id, int &id, T &dk, T &drepulsion, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothRepulsiveUnion (T k, T repulsion, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothRepulsiveUnion (T k, T repulsion, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothIntersect (T k, T a, T b, int a_id, int b_id, int &id)
	Smooth intersect: -smooth_union(-a, -b) More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothIntersect (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothIntersect (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothIntersect (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothSubtract (T k, T a, T b, int a_id, int b_id, int &id)
	Smooth subtract: smooth_intersect(a, -b) More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothSubtract (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothSubtract (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothSubtract (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothDifference (T k, T a, T b, int a_id, int b_id, int &id)
	Smooth difference. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opSmoothDifference (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothDifference (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opSmoothDifference (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundUnion (T k, T a, T b, int a_id, int b_id, int &id)
	Round union. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundUnion (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundUnion (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundUnion (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundIntersect (T k, T a, T b, int a_id, int b_id, int &id)
	Round intersect. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundIntersect (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundIntersect (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundIntersect (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundSubtract (T k, T a, T b, int a_id, int b_id, int &id)
	Round subtract. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundSubtract (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundSubtract (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundSubtract (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundDifference (T k, T a, T b, int a_id, int b_id, int &id)
	Round difference. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opRoundDifference (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundDifference (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opRoundDifference (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferUnion (T k, T a, T b, int a_id, int b_id, int &id)
	Chamfer union. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferUnion (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferUnion (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferUnion (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferIntersect (T k, T a, T b, int a_id, int b_id, int &id)
	Chamfer intersect. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferIntersect (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferIntersect (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferIntersect (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferSubtract (T k, T a, T b, int a_id, int b_id, int &id)
	Chamfer subtract. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferSubtract (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferSubtract (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferSubtract (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferDifference (T k, T a, T b, int a_id, int b_id, int &id)
	Chamfer difference. More...
template<typename T >
T	GEO_ImplicitSurfaceOps::opChamferDifference (T k, T a, T b, int a_id, int b_id, int &id, T &dk, T &da, T &db)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferDifference (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b)
template<typename T >
UT_IntervalT< T >	GEO_ImplicitSurfaceOps::opChamferDifference (T k, const UT_IntervalT< T > &a, const UT_IntervalT< T > &b, GEO_ImplicitSurfaceOptFlag &can_optimize)

Macro Definition Documentation

#define __GEO_ImplicitSurfaceOp_h__

Definition at line 14 of file GEO_ImplicitSurfaceOp.h.

Enumeration Type Documentation

enum GEO_ImplicitSurfaceOpID : int

strong

Operation ID enumeration matching VEX implicit_shapes_op.h.

Enumerator
Invalid
Begin
Invert
Offset
Shell
Union
Intersect
Subtract
Difference
SmoothUnion
SmoothIntersect
SmoothSubtract
SmoothDifference
RoundUnion
RoundIntersect
RoundSubtract
RoundDifference
ChamferUnion
ChamferIntersect
ChamferSubtract
ChamferDifference
SmoothRepulsiveUnion

Definition at line 32 of file GEO_ImplicitSurfaceOp.h.

enum GEO_ImplicitSurfaceOptFlag : int

strong

Optimization flags returned by interval operations Indicates when one operand dominates and the other can be skipped

Enumerator
None
JustReturnA
JustReturnB
JustReturnNegA
JustReturnNegB

Definition at line 22 of file GEO_ImplicitSurfaceOp.h.
