#include "UT_API.h"
#include "UT_Array.h"
#include "UT_PerformanceThread.h"
#include "UT_Span.h"
#include "UT_TaskScope.h"
#include "UT_TBBParallelInvoke.h"
#include "UT_Thread.h"
#include "UT_IteratorRange.h"
#include "UT_Optional.h"
#include <oneapi/tbb/blocked_range.h>
#include <oneapi/tbb/blocked_range2d.h>
#include <oneapi/tbb/parallel_for.h>
#include <oneapi/tbb/parallel_reduce.h>
#include <oneapi/tbb/parallel_sort.h>
#include <oneapi/tbb/task.h>
#include <oneapi/tbb/task_arena.h>
#include <utility>
#include <iterator>
#include <algorithm>

Include dependency graph for UT_ParallelUtil.h:

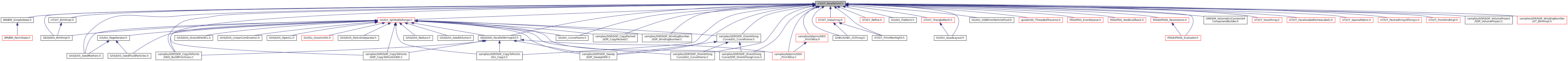

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	UT_BlockedRange< T >
	Declare prior to use. More...

class	UT_BlockedRange2D< RowT, ColT >

struct	UT_EstimatorNumItems< RANGE >

struct	UT_EstimatorNumItems< UT_BlockedRange2D< T > >

class	UT_CoarsenedRange< RANGE >

class	ut_TaskScopedBody< Range, Body >

class	ut_TaskBody< Range, Body >

class	ut_ForEachNumberBody< IntType, Body >

class	ut_TaskScopedInvokeBody< Body >

class	UT_ParallelInvokePointers< F1 >

class	UT_ParallelInvokeFunctors< F1 >

class	ut_ReduceTaskScopedBody< Range, Body >

class	UT_BlockedRange< T >
	Declare prior to use. More...

class	UT_BlockedRange< T >::ValueWrapper

class	UT_BlockedRange2D< RowT, ColT >

class	pss::internal::raw_buffer
	Raw memory buffer with automatic cleanup. More...

struct	pss::internal::parallel_merge_invoke< RandomAccessIterator1, RandomAccessIterator2, RandomAccessIterator3, Compare >

struct	pss::internal::parallel_stable_sort_aux_invoke< RandomAccessIterator1, RandomAccessIterator2, Compare >

Namespaces
	pss

	pss::internal

Typedefs
typedef tbb::split	UT_Split
	Typedef to denote the "split" constructor of a range. More...

Functions
template<typename RANGE >
size_t	UTestimatedNumItems (const RANGE &range)
	This is needed by UT_CoarsenedRange. More...

template<typename Range , typename Body >
void	UTparallelFor (const Range &range, const Body &body, const int subscribe_ratio=2, const int min_grain_size=1, const bool force_use_task_scope=true)

template<typename Range , typename Body >
void	UTparallelForTaskScope (const Range &range, const Body &body, const int subscribe_ratio=2, const int min_grain_size=1)

template<typename Range , typename Body >
void	UTparallelForLightItems (const Range &range, const Body &body, const bool force_use_task_scope=true)

template<typename Range , typename Body >
void	UTparallelForHeavyItems (const Range &range, const Body &body)

template<typename IntType , typename Body >
void	UTparallelForEachNumber (IntType nitems, const Body &body, const bool force_use_task_scope=true)

template<typename IntType , typename Body >
void	UTserialForEachNumber (IntType nitems, const Body &body, bool usetaskscope=true)

template<typename IntType , typename Body >
void	UTparallelForEachNumberTaskScope (IntType nitems, const Body &body)

template<typename Range , typename Body >
void	UTserialFor (const Range &range, const Body &body)

template<typename Body >
const ut_TaskScopedInvokeBody < Body >	UTmakeTaskScopedInvokeBody (const Body &body)

template<typename F1 , typename F2 >
void	UTparallelInvoke (bool parallel, F1 &&f1, F2 &&f2)

template<typename F1 , typename F2 , typename... Rest>
void	UTparallelInvoke (bool parallel, F1 &&f1, F2 &&f2, Rest &&...rest)

template<typename F1 >
void	UTparallelInvoke (bool parallel, const UT_Array< F1 * > &funs)

template<typename F1 >
void	UTparallelInvoke (bool parallel, const UT_Array< F1 > &funs)

template<typename Range , typename Body >
void	UTparallelReduce (const Range &range, Body &body, const int subscribe_ratio=2, const int min_grain_size=1, const bool force_use_task_scope=true)

template<typename Range , typename Body >
void	UTparallelDeterministicReduce (const Range &range, Body &body, const int grain_size, const bool force_use_task_scope=true)

template<typename Range , typename Body >
void	UTparallelReduceLightItems (const Range &range, Body &body)

template<typename Range , typename Body >
void	UTparallelReduceHeavyItems (const Range &range, Body &body)

template<typename Range , typename Body >
void	UTserialReduce (const Range &range, Body &body)

template<typename RandomAccessIterator , typename Compare >
void	UTparallelSort (RandomAccessIterator begin, RandomAccessIterator end, const Compare &compare)

template<typename RandomAccessIterator >
void	UTparallelSort (RandomAccessIterator begin, RandomAccessIterator end)

template<typename T >
void	UTparallelSort (T begin, T end)

template<typename RandomAccessIterator , typename Compare >
void	pss::parallel_stable_sort (RandomAccessIterator xs, RandomAccessIterator xe, Compare comp)

template<class RandomAccessIterator >
void	pss::parallel_stable_sort (RandomAccessIterator xs, RandomAccessIterator xe)
	Wrapper for sorting with default comparator. More...

template<typename RandomAccessIterator , typename Compare >
void	UTparallelStableSort (RandomAccessIterator begin, RandomAccessIterator end, const Compare &compare)

template<typename RandomAccessIterator >
void	UTparallelStableSort (RandomAccessIterator begin, RandomAccessIterator end)

template<typename T >
void	UTparallelStableSort (T begin, T end)

template<typename T , typename Compare >
void	UTparallelStableSort (T begin, T end, const Compare &compare)

template<typename T >
void	UTparallelStableSort (T &a)

template<typename T , typename Compare >
void	UTparallelStableSort (T &a, const Compare &compare)

template<typename Op , typename T >
void	UTparallelDeterministicPrefixSumInPlace (UT_Span< T > &array, const T identity, const Op &op, const int grain_size=1024, const bool force_use_task_scope=true)

template<typename Op , typename T >
void	UTparallelDeterministicPrefixSumInPlace (UT_Array< T > &array, const T identity, const Op &op, const int grain_size=1024, const bool force_use_task_scope=true)

template<class RandomAccessIterator >
void	pss::internal::serial_destroy (RandomAccessIterator zs, RandomAccessIterator ze)
	Destroy sequence [xs,xe) More...

template<class RandomAccessIterator1 , class RandomAccessIterator2 , class RandomAccessIterator3 , class Compare >
void	pss::internal::serial_move_merge (RandomAccessIterator1 xs, RandomAccessIterator1 xe, RandomAccessIterator2 ys, RandomAccessIterator2 ye, RandomAccessIterator3 zs, Compare comp)
	Merge sequences [xs,xe) and [ys,ye) to output sequence [zs,(xe-xs)+(ye-ys)), using std::move. More...

template<typename RandomAccessIterator1 , typename RandomAccessIterator2 , typename Compare >
void	pss::internal::stable_sort_base_case (RandomAccessIterator1 xs, RandomAccessIterator1 xe, RandomAccessIterator2 zs, int inplace, Compare comp)

template<typename RandomAccessIterator1 , typename RandomAccessIterator2 , typename RandomAccessIterator3 , typename Compare >
void	pss::internal::parallel_merge (RandomAccessIterator1 xs, RandomAccessIterator1 xe, RandomAccessIterator2 ys, RandomAccessIterator2 ye, RandomAccessIterator3 zs, bool destroy, Compare comp)

template<typename RandomAccessIterator1 , typename RandomAccessIterator2 , typename Compare >
void	pss::internal::parallel_stable_sort_aux (RandomAccessIterator1 xs, RandomAccessIterator1 xe, RandomAccessIterator2 zs, int inplace, Compare comp)

Typedef Documentation

typedef tbb::split UT_Split

Typedef to denote the "split" constructor of a range.

Definition at line 55 of file UT_ParallelUtil.h.

Function Documentation

template<typename RANGE >

size_t UTestimatedNumItems ( const RANGE & range )

inline

This is needed by UT_CoarsenedRange.

Definition at line 90 of file UT_ParallelUtil.h.

template<typename Body >

const ut_TaskScopedInvokeBody<Body> UTmakeTaskScopedInvokeBody ( const Body & body )

Takes a functor for passing to UTparallelInvoke, and wraps it in a ut_TaskScopeInvokeBody object so the functor will be invoked wrapped in a UT_TaskScope that makes it safe to use UT_TaskLock objects that are currently locked by the parent scope.

Definition at line 496 of file UT_ParallelUtil.h.

template<typename Op , typename T >

void UTparallelDeterministicPrefixSumInPlace	(	UT_Span< T > &	array,
		const T	identity,
		const Op &	op,
		const int	grain_size = `1024`,
		const bool	force_use_task_scope = `true`
	)

Performs a prefix sum across all the entries of the array. Ie, for (int i = 1; i < array.entries(); i++) array(i) = OP(array(i-1), array(i)); tbb has this as tbb_parallel_scan but does not guarantee determinism. Note determinism is based on grain size, so that must be fixed.

Definition at line 1086 of file UT_ParallelUtil.h.

template<typename Op , typename T >

void UTparallelDeterministicPrefixSumInPlace	(	UT_Array< T > &	array,
		const T	identity,
		const Op &	op,
		const int	grain_size = `1024`,
		const bool	force_use_task_scope = `true`
	)

Definition at line 1161 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelDeterministicReduce	(	const Range &	range,
		Body &	body,
		const int	grain_size,
		const bool	force_use_task_scope = `true`
	)

This is a simple wrapper for deterministic reduce that uses tbb. It works in the same manner as UTparallelReduce, with the following differences:

reduction and join order is deterministic (devoid of threading uncertainty;
a fixed grain size must be provided by the caller; grain size is not adjusted based on the available resources (this is required to satisfy determinism). This version should be used when task joining is not associative (such as accumulation of a floating point residual).

Definition at line 780 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelFor	(	const Range &	range,
		const Body &	body,
		const int	subscribe_ratio = `2`,
		const int	min_grain_size = `1`,
		const bool	force_use_task_scope = `true`
	)

Run the body function over a range in parallel. UTparallelFor attempts to spread the range out over at most subscribe_ratio * num_processor tasks. The factor subscribe_ratio can be used to help balance the load. UTparallelFor() uses tbb for its implementation. The used grain size is the maximum of min_grain_size and if UTestimatedNumItems(range) / (subscribe_ratio * num_processor). If subscribe_ratio == 0, then a grain size of min_grain_size will be used. A range can be split only when UTestimatedNumItems(range) exceeds the grain size the range is divisible. Requirements for the Range functor are:

the requirements of the tbb Range Concept
UT_estimatorNumItems<Range> must return the the estimated number of work items for the range. When Range::size() is not the correct estimate, then a (partial) specialization of UT_estimatorNumItemsimatorRange must be provided for the type Range.

Requirements for the Body function are:

Body(const Body &);

Copy Constructor
Body()::~Body();

Destructor
void Body::operator()(const Range &range) const;

Function call to perform operation on the range. Note the operator is const.

The requirements for a Range object are:

Range::Range(const Range&);

Copy constructor
Range::~Range();

Destructor
bool Range::is_divisible() const;

True if the range can be partitioned into two sub-ranges
bool Range::empty() const;

True if the range is empty
Range::Range(Range &r, UT_Split) const;

Split the range r into two sub-ranges (i.e. modify r and *this)

Example:

class Square
{
public:
     Square(fpreal *data) : myData(data) {}
    ~Square();
    void        operator()(const UT_BlockedRange<int64> &range) const
                {
                    for (int64 i = range.begin(); i != range.end(); ++i)
                        myData[i] *= myData[i];
                }
    fpreal      *myData;
};
...
void
parallel_square(fpreal *array, int64 length)
{
    UTparallelFor(UT_BlockedRange<int64>(0, length), Square(array));
}

See Also: UTparallelReduce(), UT_BlockedRange()

Examples:: APEX/apex_external_test.C.

Definition at line 295 of file UT_ParallelUtil.h.

template<typename IntType , typename Body >

void UTparallelForEachNumber	(	IntType	nitems,
		const Body &	body,
		const bool	force_use_task_scope = `true`
	)

Version of UTparallelFor tuned for a range consists of heavy items, for example, defragmenting an entire attribute.

This approach uses "ideal" load balancing across threads and doesn't rely on the TBB task scheduler for splitting the range. Instead, it iterates from 0 to nitems, calling body with a UT_BlockedRange<IntType> containing a list of tasks to execute.

Note: The IntType must work with SYS_AtomicInt (currently int32 or int64). If you get a boost static assertion, please make sure the body range takes the proper integer type.

Definition at line 406 of file UT_ParallelUtil.h.

template<typename IntType , typename Body >

void UTparallelForEachNumberTaskScope	(	IntType	nitems,
		const Body &	body
	)

Version of UTparallelForEachNumber that wraps the body in a UT_TaskScope that makes it safe to use UT_TaskLock objects that are currently locked by the parent scope.

Definition at line 448 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelForHeavyItems	(	const Range &	range,
		const Body &	body
	)

Version of UTparallelFor that is tuned for the case where the range consists of heavy items, for example, defragmenting an entire attribute.

If possible, UTparallelForEachNumber() is preferred over use of UTparallelForHeavyItems().

Note, when the range is guaranteed to be small, you might prefer to run UTparallelFor(range, body, 0, 1). That form of the loop would guarantee that a separate task is started for each iteration of the body. However, that form can cause issues when the range gets large, in that a large number of tasks may be created.

Definition at line 383 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelForLightItems	(	const Range &	range,
		const Body &	body,
		const bool	force_use_task_scope = `true`
	)

Version of UTparallelFor that is tuned for the case where the range consists of lightweight items, for example, float additions or matrix-vector multiplications.

Examples:: tetprim/GEO_PrimTetra.C.

Definition at line 362 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelForTaskScope	(	const Range &	range,
		const Body &	body,
		const int	subscribe_ratio = `2`,
		const int	min_grain_size = `1`
	)

Version of UTparallelFor that always creates a task scope to prevent deadlocking of child tasks that might acquire UT_TaskLocks.

Definition at line 348 of file UT_ParallelUtil.h.

template<typename F1 , typename F2 >

void UTparallelInvoke	(	bool	parallel,
		F1 &&	f1,
		F2 &&	f2
	)

inline

UTparallelInvoke() executes the given functions in parallel when the parallel flag is true - otherwise it runs them serially. F1 and F2 should be void functors.

Definition at line 505 of file UT_ParallelUtil.h.

template<typename F1 , typename F2 , typename... Rest>

void UTparallelInvoke	(	bool	parallel,
		F1 &&	f1,
		F2 &&	f2,
		Rest &&...	rest
	)

inline

Definition at line 520 of file UT_ParallelUtil.h.

template<typename F1 >

void UTparallelInvoke	(	bool	parallel,
		const UT_Array< F1 * > &	funs
	)

inline

UTparallelInvoke() executes the array of functions in parallel when the parallel flag is true - otherwise it runs them serially. F1 should be a void functor.

Definition at line 554 of file UT_ParallelUtil.h.

template<typename F1 >

void UTparallelInvoke	(	bool	parallel,
		const UT_Array< F1 > &	funs
	)

inline

UTparallelInvoke() executes the array of functions in parallel when the parallel flag is true - otherwise it runs them serially. F1 should be a void functor.

Definition at line 588 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelReduce	(	const Range &	range,
		Body &	body,
		const int	subscribe_ratio = `2`,
		const int	min_grain_size = `1`,
		const bool	force_use_task_scope = `true`
	)

UTparallelReduce() is a simple wrapper that uses tbb for its implementation. Run the body function over a range in parallel.

WARNING: The operator()() and join() functions MUST NOT initialize data! Both of these functions MUST ONLY accumulate data! This is because TBB may re-use body objects for multiple ranges. Effectively, operator()() must act as an in-place join operation for data as it comes in. Initialization must be kept to the constructors of Body.

Requirements for the Body function are:

Body()::~Body();

Destructor
Body::Body(Body &r, UT_Split) const;

The splitting constructor. WARNING: This must be able to run concurrently with calls to r.operator()() and r.join(), so this should not copy values accumulating in r.
void Body::operator()(const Range &range);

Function call to perform operation on the range. Note the operator is not const.
void Body::join(const Body &other);

Join the results from another operation with this operation. not const.

The requirements for a Range object are:

Range::Range(const Range&);

Copy constructor
Range::~Range();

Destructor
bool Range::is_divisible() const;

True if the range can be partitioned into two sub-ranges
bool Range::empty() const;

True if the range is empty
Range::Range(Range &r, UT_Split) const;

Split the range r into two sub-ranges (i.e. modify r and *this)

Example:

class Dot
{
public:
 Dot(const fpreal *a, const fpreal *b)
     : myA(a)
     , myB(b)
     , mySum(0)
 {}
 Dot(Dot &src, UT_Split)
     : myA(src.myA)
     , myB(src.myB)
     , mySum(0)
 {}
 void    operator()(const UT_BlockedRange<int64> &range)
         {
              for (int64 i = range.begin(); i != range.end(); ++i)
                  mySum += myA[i] * myB[i];
         }
 void    join(const Dot &other)
         {
             mySum += other.mySum;
         }
 fpreal          mySum;
 const fpreal    *myA, *myB;
};
fpreal
parallel_dot(const fpreal *a, const fpreal *b, int64 length)
{
 Dot     body(a, b);
 UTparallelReduce(UT_BlockedRange<int64>(0, length), body);
 return body.mySum;
}

See Also: UTparallelFor(), UT_BlockedRange()

Definition at line 720 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelReduceHeavyItems	(	const Range &	range,
		Body &	body
	)

Version of UTparallelReduce that is tuned for the case where the range consists of heavy items, for example, computing the bounding box of a list of geometry objects.

Definition at line 827 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTparallelReduceLightItems	(	const Range &	range,
		Body &	body
	)

Version of UTparallelReduce that is tuned for the case where the range consists of lightweight items, for example, finding the min/max in a set of integers.

Definition at line 818 of file UT_ParallelUtil.h.

template<typename RandomAccessIterator , typename Compare >

void UTparallelSort	(	RandomAccessIterator	begin,
		RandomAccessIterator	end,
		const Compare &	compare
	)

UTparallelSort() is a simple wrapper that uses tbb for its implementation.

WARNING: UTparallelSort is UNSTABLE! You must explicitly force stability if needed.

Examples:: tetprim/GEO_PrimTetra.C.

Definition at line 850 of file UT_ParallelUtil.h.

template<typename RandomAccessIterator >

void UTparallelSort	(	RandomAccessIterator	begin,
		RandomAccessIterator	end
	)

UTparallelSort() is a simple wrapper that uses tbb for its implementation.

WARNING: UTparallelSort is UNSTABLE! You must explicitly force stability if needed.

Definition at line 863 of file UT_ParallelUtil.h.

template<typename T >

void UTparallelSort	(	T *	begin,
		T *	end
	)

UTparallelSort() is a simple wrapper that uses tbb for its implementation.

WARNING: UTparallelSort is UNSTABLE! You must explicitly force stability if needed.

Definition at line 876 of file UT_ParallelUtil.h.

template<typename RandomAccessIterator , typename Compare >

void UTparallelStableSort	(	RandomAccessIterator	begin,
		RandomAccessIterator	end,
		const Compare &	compare
	)

UTparalleStableSort() is a stable parallel merge sort.

NOTE: UTparallelStableSort requires a temporary buffer of size end-begin. On allocation failure it falls back to calling std::stable_sort. NOTE: Element initialization is done via std::move, so non-POD element types should implement c++11 move semantics.

Definition at line 907 of file UT_ParallelUtil.h.

template<typename RandomAccessIterator >

void UTparallelStableSort	(	RandomAccessIterator	begin,
		RandomAccessIterator	end
	)

UTparalleStableSort() is a stable parallel merge sort.

NOTE: UTparallelStableSort requires a temporary buffer of size end-begin. On allocation failure it falls back to calling std::stable_sort. NOTE: Element initialization is done via std::move, so non-POD element types should implement c++11 move semantics.

Definition at line 920 of file UT_ParallelUtil.h.

template<typename T >

void UTparallelStableSort	(	T *	begin,
		T *	end
	)

UTparalleStableSort() is a stable parallel merge sort.

NOTE: UTparallelStableSort requires a temporary buffer of size end-begin. On allocation failure it falls back to calling std::stable_sort. NOTE: Element initialization is done via std::move, so non-POD element types should implement c++11 move semantics.

Definition at line 932 of file UT_ParallelUtil.h.

template<typename T , typename Compare >

void UTparallelStableSort	(	T *	begin,
		T *	end,
		const Compare &	compare
	)

UTparalleStableSort() is a stable parallel merge sort.

NOTE: UTparallelStableSort requires a temporary buffer of size end-begin. On allocation failure it falls back to calling std::stable_sort. NOTE: Element initialization is done via std::move, so non-POD element types should implement c++11 move semantics.

Definition at line 944 of file UT_ParallelUtil.h.

template<typename T >

void UTparallelStableSort ( T & a )

UTparalleStableSort() is a stable parallel merge sort. This form works with UT_Array and other containers with begin/end members.

NOTE: UTparallelStableSort requires a temporary buffer of size end-begin. On allocation failure it falls back to calling std::stable_sort. NOTE: Element initialization is done via std::move, so non-POD element types should implement c++11 move semantics.

Definition at line 959 of file UT_ParallelUtil.h.

template<typename T , typename Compare >

void UTparallelStableSort	(	T &	a,
		const Compare &	compare
	)

UTparalleStableSort() is a stable parallel merge sort. This form works with UT_Array and other containers with begin/end members.

NOTE: UTparallelStableSort requires a temporary buffer of size end-begin. On allocation failure it falls back to calling std::stable_sort. NOTE: Element initialization is done via std::move, so non-POD element types should implement c++11 move semantics.

Definition at line 974 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTserialFor	(	const Range &	range,
		const Body &	body
	)

UTserialFor can be used as a debugging tool to quickly replace a parallel for with a serial for.

Definition at line 456 of file UT_ParallelUtil.h.

template<typename IntType , typename Body >

void UTserialForEachNumber	(	IntType	nitems,
		const Body &	body,
		bool	usetaskscope = `true`
	)

UTserialForEachNumber can be used as a debugging tool to quickly replace a parallel for with a serial for.

Definition at line 437 of file UT_ParallelUtil.h.

template<typename Range , typename Body >

void UTserialReduce	(	const Range &	range,
		Body &	body
	)

UTserialReduce can be used as a debugging tool to quickly replace a parallel reduce with a serial for.

Definition at line 835 of file UT_ParallelUtil.h.

Classes

Namespaces

Typedefs

Functions

Typedef Documentation

Function Documentation
