types.h File Reference
#include "pxr/pxr.h"
#include "pxr/base/gf/vec3i.h"
#include "pxr/imaging/hgi/api.h"
#include <vector>
#include <limits>
#include <stdlib.h>

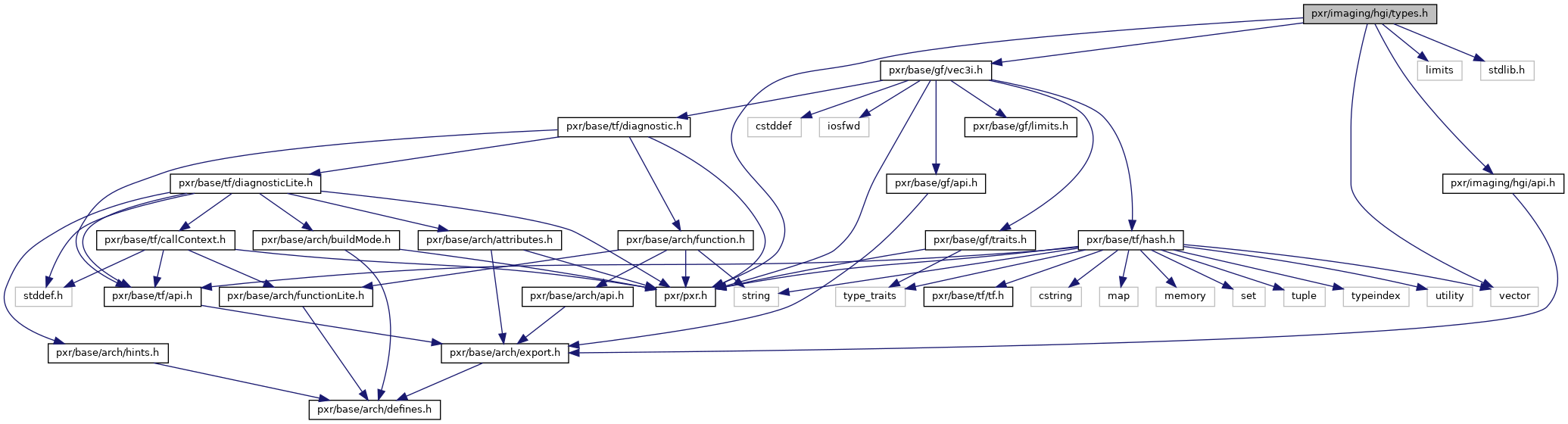

+ Include dependency graph for types.h:

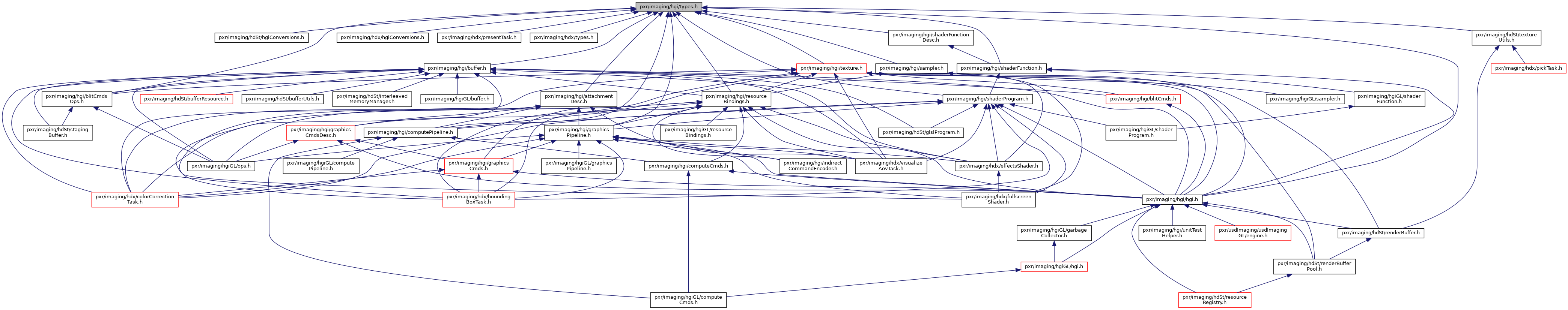

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  HgiMipInfo


Enumerations

enum  HgiFormat : int {
  HgiFormatInvalid = -1, HgiFormatUNorm8 = 0, HgiFormatUNorm8Vec2, HgiFormatUNorm8Vec4,
  HgiFormatSNorm8, HgiFormatSNorm8Vec2, HgiFormatSNorm8Vec4, HgiFormatFloat16,
  HgiFormatFloat16Vec2, HgiFormatFloat16Vec3, HgiFormatFloat16Vec4, HgiFormatFloat32,
  HgiFormatFloat32Vec2, HgiFormatFloat32Vec3, HgiFormatFloat32Vec4, HgiFormatInt16,
  HgiFormatInt16Vec2, HgiFormatInt16Vec3, HgiFormatInt16Vec4, HgiFormatUInt16,
  HgiFormatUInt16Vec2, HgiFormatUInt16Vec3, HgiFormatUInt16Vec4, HgiFormatInt32,
  HgiFormatInt32Vec2, HgiFormatInt32Vec3, HgiFormatInt32Vec4, HgiFormatUNorm8Vec4srgb,
  HgiFormatBC6FloatVec3, HgiFormatBC6UFloatVec3, HgiFormatBC7UNorm8Vec4, HgiFormatBC7UNorm8Vec4srgb,
  HgiFormatBC1UNorm8Vec4, HgiFormatBC3UNorm8Vec4, HgiFormatFloat32UInt8, HgiFormatPackedInt1010102,
  HgiFormatCount
}


Functions

HGI_API size_t HgiGetComponentCount (HgiFormat f)
 Return the count of components in the given format. More...

HGI_API size_t HgiGetDataSizeOfFormat (HgiFormat f, size_t *blockWidth=nullptr, size_t *blockHeight=nullptr)

HGI_API bool HgiIsCompressed (HgiFormat f)
 Return whether the given format uses compression. More...

HGI_API size_t HgiGetDataSize (HgiFormat f, const GfVec3i &dimensions)

HGI_API HgiFormat HgiGetComponentBaseFormat (HgiFormat f)

HGI_API std::vector< HgiMipInfoHgiGetMipInfos (HgiFormat format, const GfVec3i &dimensions, size_t layerCount, size_t dataByteSize=std::numeric_limits< size_t >::max())


Enumeration Type Documentation

enum HgiFormat : int

HgiFormat describes the memory format of image buffers used in Hgi. These formats are closely aligned with HdFormat and allow us to keep Hgi independent of Hd.

For reference, see: https://www.khronos.org/registry/vulkan/specs/1.1/html/vkspec.html#VkFormat

Enumerator
HgiFormatInvalid
HgiFormatUNorm8
HgiFormatUNorm8Vec2
HgiFormatUNorm8Vec4
HgiFormatSNorm8
HgiFormatSNorm8Vec2
HgiFormatSNorm8Vec4
HgiFormatFloat16
HgiFormatFloat16Vec2
HgiFormatFloat16Vec3
HgiFormatFloat16Vec4
HgiFormatFloat32
HgiFormatFloat32Vec2
HgiFormatFloat32Vec3
HgiFormatFloat32Vec4
HgiFormatInt16
HgiFormatInt16Vec2
HgiFormatInt16Vec3
HgiFormatInt16Vec4
HgiFormatUInt16
HgiFormatUInt16Vec2
HgiFormatUInt16Vec3
HgiFormatUInt16Vec4
HgiFormatInt32
HgiFormatInt32Vec2
HgiFormatInt32Vec3
HgiFormatInt32Vec4
HgiFormatUNorm8Vec4srgb
HgiFormatBC6FloatVec3
HgiFormatBC6UFloatVec3
HgiFormatBC7UNorm8Vec4
HgiFormatBC7UNorm8Vec4srgb
HgiFormatBC1UNorm8Vec4
HgiFormatBC3UNorm8Vec4
HgiFormatFloat32UInt8
HgiFormatPackedInt1010102
HgiFormatCount

Definition at line 45 of file types.h.

Function Documentation

HGI_API HgiFormat HgiGetComponentBaseFormat ( HgiFormat  f)

Returns the scalar type of the format, in the form of an HgiFormat, if possible.

HGI_API size_t HgiGetComponentCount ( HgiFormat  f)

Return the count of components in the given format.

HGI_API size_t HgiGetDataSize ( HgiFormat  f,
const GfVec3i dimensions
)

Returns the size necessary to allocate a buffer of given dimensions and format, rounding dimensions up to suitable multiple when using a compressed format.

HGI_API size_t HgiGetDataSizeOfFormat ( HgiFormat  f,
size_t *  blockWidth = nullptr,
size_t *  blockHeight = nullptr
)

Return the size of a single element of the given format.

For an uncompressed format, returns the number of bytes per pixel and sets blockWidth and blockHeight to 1. For a compressed format (e.g., BC6), returns the number of bytes per block and sets blockWidth and blockHeight to the width and height of a block.

HGI_API std::vector<HgiMipInfo> HgiGetMipInfos ( HgiFormat  format,
const GfVec3i dimensions,
size_t  layerCount,
size_t  dataByteSize = std::numeric_limits< size_t >::max()
)

Returns mip infos.

If dataByteSize is specified, the levels stops when the total memory required by all levels up to that point reach the specified value. Otherwise, the levels stop when all dimensions are 1. Mip map sizes are calculated by dividing the previous mip level by two and rounding down to the nearest integer (minimum integer is 1). level 0: 37x53 level 1: 18x26 level 2: 9x13 level 3: 4x6 level 4: 2x3 level 5: 1x1

HGI_API bool HgiIsCompressed ( HgiFormat  f)

Return whether the given format uses compression.
