rtcore_builder.h File Reference
#include "rtcore_scene.h"

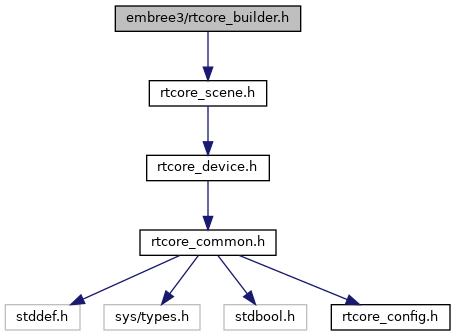

+ Include dependency graph for rtcore_builder.h:
+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  RTCBuildArguments


Typedefs

typedef
typedefRTC_NAMESPACE_BEGIN
struct RTCBVHTy *
RTCBVH

typedef struct
RTCThreadLocalAllocatorTy *
RTCThreadLocalAllocator

typedef void *(* RTCCreateNodeFunction )(RTCThreadLocalAllocator allocator, unsigned int childCount, void *userPtr)

typedef void(* RTCSetNodeChildrenFunction )(void *nodePtr, void **children, unsigned int childCount, void *userPtr)

typedef void(* RTCSetNodeBoundsFunction )(void *nodePtr, const struct RTCBounds **bounds, unsigned int childCount, void *userPtr)

typedef void *(* RTCCreateLeafFunction )(RTCThreadLocalAllocator allocator, const struct RTCBuildPrimitive *primitives, size_t primitiveCount, void *userPtr)

typedef void(* RTCSplitPrimitiveFunction )(const struct RTCBuildPrimitive *primitive, unsigned int dimension, float position, struct RTCBounds *leftBounds, struct RTCBounds *rightBounds, void *userPtr)


Enumerations

enum  RTCBuildFlags { RTC_BUILD_FLAG_NONE = 0, RTC_BUILD_FLAG_DYNAMIC = (1 << 0) }

enum  RTCBuildConstants { RTC_BUILD_MAX_PRIMITIVES_PER_LEAF = 32 }


Functions

struct RTC_ALIGN (32) RTCBuildPrimitive

RTC_FORCEINLINE struct
RTCBuildArguments
rtcDefaultBuildArguments ()

RTC_API RTCBVH rtcNewBVH (RTCDevice device)

RTC_API voidrtcBuildBVH (const struct RTCBuildArguments *args)

RTC_API voidrtcThreadLocalAlloc (RTCThreadLocalAllocator allocator, size_t bytes, size_t align)

RTC_API void rtcRetainBVH (RTCBVH bvh)

RTC_API void rtcReleaseBVH (RTCBVH bvh)


Typedef Documentation

typedef typedefRTC_NAMESPACE_BEGIN struct RTCBVHTy* RTCBVH

Definition at line 24 of file rtcore_builder.h.

typedef void*(* RTCCreateLeafFunction)(RTCThreadLocalAllocator allocator, const struct RTCBuildPrimitive *primitives, size_t primitiveCount, void *userPtr)

Definition at line 48 of file rtcore_builder.h.

typedef void*(* RTCCreateNodeFunction)(RTCThreadLocalAllocator allocator, unsigned int childCount, void *userPtr)

Definition at line 39 of file rtcore_builder.h.

typedef void(* RTCSetNodeBoundsFunction)(void *nodePtr, const struct RTCBounds **bounds, unsigned int childCount, void *userPtr)

Definition at line 45 of file rtcore_builder.h.

typedef void(* RTCSetNodeChildrenFunction)(void *nodePtr, void **children, unsigned int childCount, void *userPtr)

Definition at line 42 of file rtcore_builder.h.

typedef void(* RTCSplitPrimitiveFunction)(const struct RTCBuildPrimitive *primitive, unsigned int dimension, float position, struct RTCBounds *leftBounds, struct RTCBounds *rightBounds, void *userPtr)

Definition at line 51 of file rtcore_builder.h.

typedef struct RTCThreadLocalAllocatorTy* RTCThreadLocalAllocator

Definition at line 36 of file rtcore_builder.h.

Enumeration Type Documentation

Enumerator
RTC_BUILD_MAX_PRIMITIVES_PER_LEAF

Definition at line 60 of file rtcore_builder.h.

Enumerator
RTC_BUILD_FLAG_NONE
RTC_BUILD_FLAG_DYNAMIC

Definition at line 54 of file rtcore_builder.h.

Function Documentation

struct RTC_ALIGN ( 32  )

Definition at line 27 of file rtcore_builder.h.

RTC_API void* rtcBuildBVH ( const struct RTCBuildArguments args)
RTC_FORCEINLINE struct RTCBuildArguments rtcDefaultBuildArguments ( )

Definition at line 95 of file rtcore_builder.h.

RTC_API RTCBVH rtcNewBVH ( RTCDevice  device)
RTC_API void rtcReleaseBVH ( RTCBVH  bvh)
RTC_API void rtcRetainBVH ( RTCBVH  bvh)
RTC_API void* rtcThreadLocalAlloc ( RTCThreadLocalAllocator  allocator,
size_t  bytes,
size_t  align
)
