NodeUnion.h File Reference
#include <openvdb/version.h>
#include <openvdb/Types.h>
#include <cstring>
#include <type_traits>

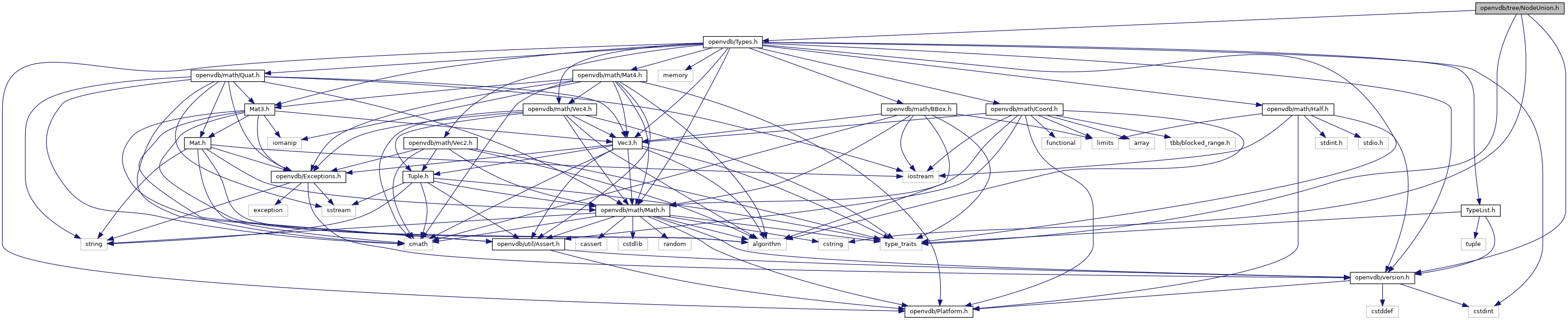

+ Include dependency graph for NodeUnion.h:

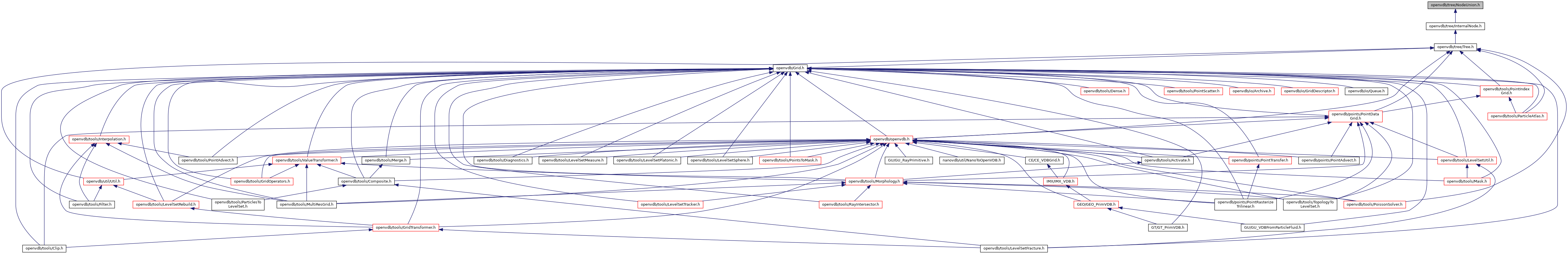

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


class  openvdb::OPENVDB_VERSION_NAME::tree::NodeUnion< ValueT, ChildT, Enable >
 Default implementation of a NodeUnion that stores the child pointer and the value separately (i.e., not in a union). Types which select this specialization usually do not conform to the requirements of a union member, that is that the type ValueT is not trivially copyable. This implementation is thus NOT used for POD, math::Vec, math::Mat, math::Quat or math::Coord types, but is used (for example) with std::string. More...
class  openvdb::OPENVDB_VERSION_NAME::tree::NodeUnion< ValueT, ChildT, typename std::enable_if< std::is_trivially_copyable< ValueT >::value >::type >
 Template specialization of a NodeUnion that stores the child pointer and the value together (int, float, pointer, etc.) More...



Detailed Description

NodeUnion is a templated helper class that controls access to either the child node pointer or the value for a particular element of a root or internal node. For space efficiency, the child pointer and the value are unioned when possible, since the two are never in use simultaneously.

Definition in file NodeUnion.h.
