SIM_DataUtils.h File Reference

#include "SIM_Data.h"
#include "SIM_DataFactory.h"
#include "SIM_Utils.h"
#include <UT/UT_StringArray.h>
#include <UT/UT_StringHolder.h>
#include <SYS/SYS_Compiler.h>

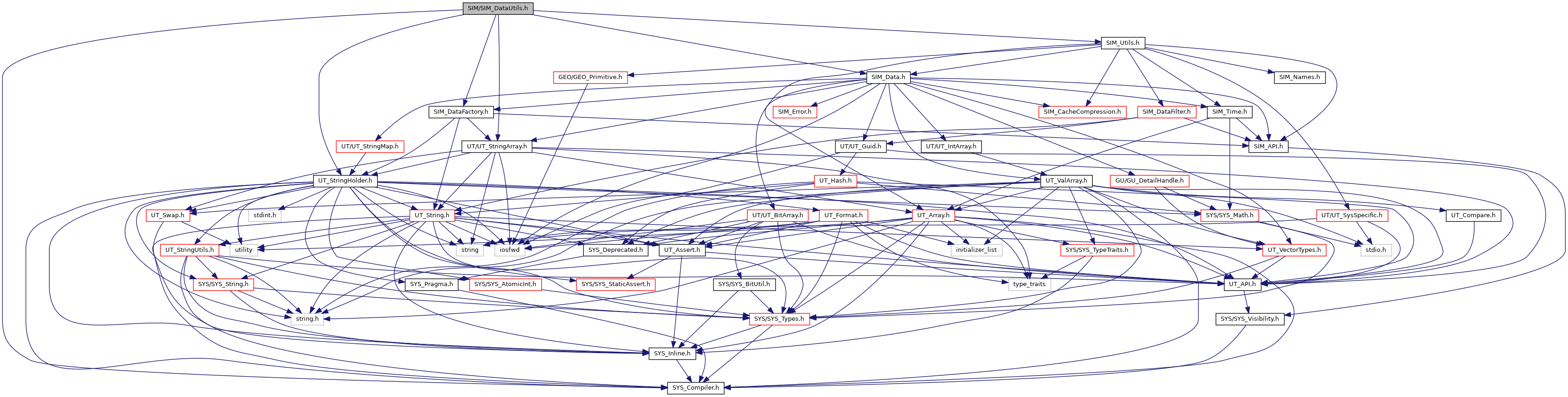

Include dependency graph for SIM_DataUtils.h:

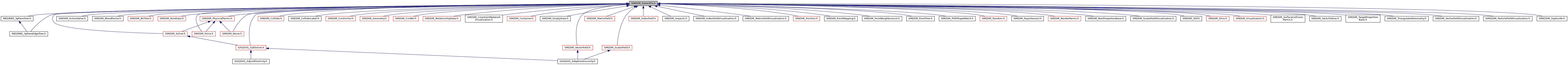

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DECLARE_CLASSNAME(DataClass, SuperClass)
#define	DECLARE_STANDARD_GETCASTTOTYPE()
#define	DECLARE_DATAFACTORY(DataClass, SuperClass, Description, DopParms)
#define	IMPLEMENT_DATAFACTORY(DataClass)

Macro Definition Documentation

#define DECLARE_CLASSNAME	(		DataClass,
			SuperClass
	)

Value:

private: \
            typedef SuperClass   BaseClass; \
            typedef DataClass    ThisClass; \
        public: \
            static inline const UT_StringHolder &classname() \
                                 { \
                                     static constexpr UT_StringLit theType(#DataClass); \
                                     return theType.asHolder(); \
                                 } \
        private: \
            const UT_StringHolder &getDataTypeSubclass() const override \
                                 { \
                                     return classname(); \
                                 } \
        protected: \
            static void     getDataTypeSuperclasses(UT_StringArray& classes) \
                            { \
                                static constexpr UT_StringLit theSuperType(#SuperClass); \
                                classes.append(theSuperType.asHolder()); \
                                SuperClass::getDataTypeSuperclasses(classes); \
                            } \
        private: \

This macro provides a quick way to define a static function called classname() which returns the provided class name as a string.

Definition at line 20 of file SIM_DataUtils.h.

#define DECLARE_DATAFACTORY	(		DataClass,
			SuperClass,
			Description,
			DopParms
	)

This macro simplifies the calling and casting the return value from This macro quickly defines all the static functions needed to declare a SIM_DataFactory for a SIM_Data subclass.

Definition at line 63 of file SIM_DataUtils.h.

#define DECLARE_STANDARD_GETCASTTOTYPE

(

)

Value:

protected: \
	    void       *getCastToType(const UT_StringRef &totype) const override \
                         { \
                             if( classname() == totype ) \
                                 return (void *)this; \
                             return BaseClass::getCastToType(totype); \
                         } \

This function implements a standard version of getDistanceToType(). Only if your subclass uses multiple inheritance will it be necessary to write a customized version of this function. Be sure to add this declaration to your class definition or the DECLARE_DATAFACTORY() macro will not compile properly.

Definition at line 50 of file SIM_DataUtils.h.

#define IMPLEMENT_DATAFACTORY

(

DataClass

)

Value:

static SIM_DataFactoryCreator \
               DataClass##Creator(DataClass::createDataFactory);

Add this macro to the initialization function for your library. It uses the declaration above to register your data type.

Examples:

SIM/GAS_NetVDBSliceExchange.C, SIM/SIM_ElectricalProperties.C, SIM/SIM_ForceOrbit.C, SIM/SIM_GasAdd.C, SIM/SIM_RadialEmit.C, SIM/SIM_SolverHair.C, and SIM/SNOW_Solver.C.

Definition at line 100 of file SIM_DataUtils.h.
