UT_SubSystem.h File Reference

#include "UT_API.h"
#include "UT_NonCopyable.h"
#include "UT_UniquePtr.h"
#include <SYS/SYS_StaticInit.h>
#include <type_traits>

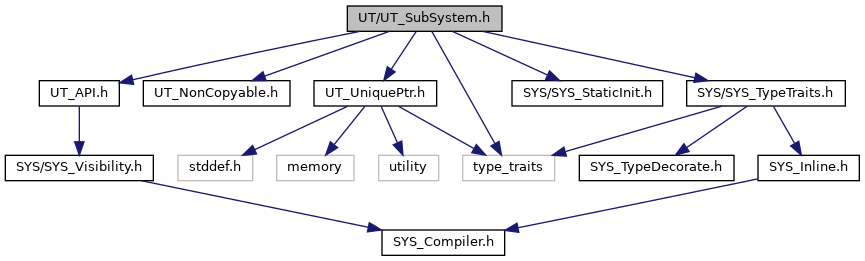

Include dependency graph for UT_SubSystem.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	UT_ISubSystem
class	UT_SubSystem
	The subsystem to initialize and cleanup UT. More...

Namespaces
	UT_SubSystemImpl

Macros
#define	UT_ENABLE_SUBSYSTEMS
#define	UT_SUBSYSTEM_CLASS(sub_type)
#define	UT_SUBSYSTEM_IMPL_INNER(cls)
#define	UT_SUBSYSTEM_IMPL(cls)
#define	UT_SUBSYSTEM_DECLARE(api, cls)

Functions
UT_API UT_ThreadIOPool &	UThoudiniIOPool ()
UT_API void	UTsubSystemInitialize ()
	Initialize all subsystems. More...
UT_API void	UTsubSystemShutdown ()
	UT_SubSystemImpl::SYSdeclareStaticObject (UT_API, theRegistry)
UT_API UT_ISubSystem *	UT_SubSystemImpl::utGetSubSystem (UT_SubSystem::Type t)
template<typename T >
T *	UTgetSubSystem ()
	UT_SUBSYSTEM_DECLARE (UT_API, UT_SubSystem)

Macro Definition Documentation

#define UT_ENABLE_SUBSYSTEMS

Definition at line 18 of file UT_SubSystem.h.

#define UT_SUBSYSTEM_CLASS

(

sub_type

)

Value:

public:                                                                        \
    static constexpr Type subsystem_type = UT_ISubSystem::Type::sub_type;      \
    Type type() const override                                                 \
    {                                                                          \
        return subsystem_type;                                                 \
    }                                                                          \
                                                                               \
private:                                                                       \
    static bool theIsRegistered;

Definition at line 74 of file UT_SubSystem.h.

#define UT_SUBSYSTEM_DECLARE	(		api,
			cls
	)

Value:

namespace cls_Namespace                                                    \
    {                                                                          \
    SYSdeclareStaticInit(api, cls)                                             \
    }

Definition at line 102 of file UT_SubSystem.h.

#define UT_SUBSYSTEM_IMPL

(

cls

)

Value:

namespace cls_Namespace                                                    \
    {                                                                          \
    UT_SUBSYSTEM_IMPL_INNER(cls)                                               \
    SYSimplementStaticInit(cls);                                               \
    }

Definition at line 95 of file UT_SubSystem.h.

#define UT_SUBSYSTEM_IMPL_INNER

(

cls

)

Value:

static SYS_StaticInit<cls> theSubSystem;                                   \
    static void cls##Init()                                                    \
    {                                                                          \
        UT_ISubSystem::registerSubSystem<cls>(*theSubSystem);                  \
    }                                                                          \
    static void cls##CleanUp()                                                 \
    {                                                                          \
    }

Definition at line 85 of file UT_SubSystem.h.

Function Documentation

UT_SUBSYSTEM_DECLARE	(	UT_API	,
		UT_SubSystem
	)

template<typename T >

T* UTgetSubSystem

(

)

Definition at line 149 of file UT_SubSystem.h.

UT_API UT_ThreadIOPool& UThoudiniIOPool

(

)

The general purpose thread pool. Any work can be done on this pool. The exception to this is licensing work. We must not do any licensing work on this thread as license checks will end up blocking the thread causing a hang waiting for licensing work to be processed.

UT_API void UTsubSystemInitialize

(

)

Initialize all subsystems.

UT_API void UTsubSystemShutdown

(

)

Shutdown all subsystems. initialize() must be called prior to this function.
