VE_Device.h File Reference

#include "VE_API.h"
#include "VE_Ext.h"
#include "VE_Instance.h"
#include "VE_Memory.h"
#include "VE_PhysicalDevice.h"
#include "VE_Result.h"
#include <SYS/SYS_Handle.h>

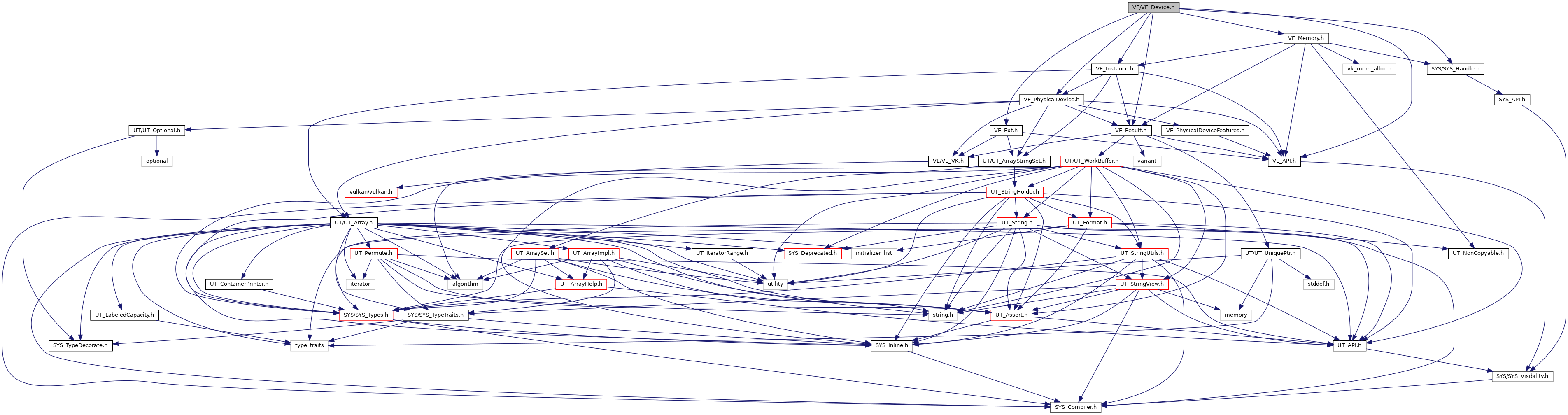

Include dependency graph for VE_Device.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	VE_BufferAllocation
class	VE_Device

Typedefs
using	VE_QueueFlags = uint32_t

Enumerations
enum	VE_QueueFlagBits { VE_QUEUE_GRAPHICS_BIT = VK_QUEUE_GRAPHICS_BIT, VE_QUEUE_COMPUTE_BIT = VK_QUEUE_COMPUTE_BIT, VE_QUEUE_TRANSFER_BIT = VK_QUEUE_TRANSFER_BIT }

Functions
VE_API VE_Result< VkDevice >	VEcreateVulkanDevice (VkPhysicalDevice, VkDeviceCreateInfo)
VE_API VE_Result< VkDevice >	VEcreateVulkanDevice (VkPhysicalDevice, const VkPhysicalDeviceFeatures2 *feature_chain_ptr, uint32_t enabled_extension_count, const char *const *enabled_extensions, const uint32_t queue_family_count, const uint32_t queue_family_indices[], const uint32_t queue_counts[])
	This call assigns equal priorities to all queues. More...
VE_API VE_Result< VkDevice >	VEcreateVulkanDevice (VkPhysicalDevice, const VE_PhysicalDeviceFeatures &enabled_features, uint32_t enabled_extension_count, const char *const *enabled_extensions, const uint32_t queue_family_count, const uint32_t queue_family_indices[], const uint32_t queue_counts[])
	This call assigns equal priorities to all queues. More...
VE_API VE_Result< VkDevice >	VEcreateVulkanDevice (VkPhysicalDevice, const VE_PhysicalDeviceFeatures &enabled_features, uint32_t enabled_extension_count, const char *const *enabled_extensions, uint32_t queue_family_index, uint32_t queue_count)
	Create a device with access to only one family of queues. More...
VE_API VE_Result< VkDevice >	VEcreateVulkanDevice (const VE_PhysicalDevice &, const VE_PhysicalDeviceFeatures &enabled_features, uint32_t enabled_extension_count, const char *const *enabled_extensions, VkQueueFlags queue_flags)
	Create a device with a single queue statisfying the given queue_flags. More...
VE_API void	VEdestroyVulkanDevice (VkDevice)
	Clean up a VkDevice. This likely will simply call vkDestroyDevice. More...
VE_API VE_Result< SYS_Handle >	VEcreateExternalMemoryHandle (void *pfn, VkDevice device, VkDeviceMemory memory)

Typedef Documentation

using VE_QueueFlags = uint32_t

Definition at line 36 of file VE_Device.h.

Enumeration Type Documentation

enum VE_QueueFlagBits

Enumerator
VE_QUEUE_GRAPHICS_BIT
VE_QUEUE_COMPUTE_BIT
VE_QUEUE_TRANSFER_BIT

Definition at line 23 of file VE_Device.h.

Function Documentation

VE_API VE_Result<SYS_Handle> VEcreateExternalMemoryHandle	(	void *	pfn,
		VkDevice	device,
		VkDeviceMemory	memory
	)

Will create the system specific external memory handle for the memory passed in. pfn should be a function pointer with signature matching either PFN_vkGetMemoryFdKHR or PFN_vkGetMemoryWin32HandleKHR, depending on the platrom. memory must have been created with the

VE_API VE_Result<VkDevice> VEcreateVulkanDevice	(	VkPhysicalDevice	,
		VkDeviceCreateInfo
	)

NOTE: These are low-level calls and it is recommended to use a higher-level interface to Vulkan if possible.

Create a Vulkan logical device object. It grants access to a specific device, which in many cases will be a dedicated GPU. Some high-level uses of the device are listed below.

• Creation of command queues. • Creation and tracking of various synchronization constructs. • Allocating, freeing, and managing memory. • Creation and destruction of command buffers and command buffer pools. • Creation, destruction, and management of graphics state.

It is the caller's responsibily to pass the returned VkDevice to ve_destroyVulkanDevice once it is no longer needed.

VE_API VE_Result<VkDevice> VEcreateVulkanDevice	(	VkPhysicalDevice	,
		const VkPhysicalDeviceFeatures2 *	feature_chain_ptr,
		uint32_t	enabled_extension_count,
		const char *const *	enabled_extensions,
		const uint32_t	queue_family_count,
		const uint32_t	queue_family_indices[],
		const uint32_t	queue_counts[]
	)

This call assigns equal priorities to all queues.

VE_API VE_Result<VkDevice> VEcreateVulkanDevice	(	VkPhysicalDevice	,
		const VE_PhysicalDeviceFeatures &	enabled_features,
		uint32_t	enabled_extension_count,
		const char *const *	enabled_extensions,
		const uint32_t	queue_family_count,
		const uint32_t	queue_family_indices[],
		const uint32_t	queue_counts[]
	)

This call assigns equal priorities to all queues.

VE_API VE_Result<VkDevice> VEcreateVulkanDevice	(	VkPhysicalDevice	,
		const VE_PhysicalDeviceFeatures &	enabled_features,
		uint32_t	enabled_extension_count,
		const char *const *	enabled_extensions,
		uint32_t	queue_family_index,
		uint32_t	queue_count
	)

Create a device with access to only one family of queues.

VE_API VE_Result<VkDevice> VEcreateVulkanDevice	(	const VE_PhysicalDevice &	,
		const VE_PhysicalDeviceFeatures &	enabled_features,
		uint32_t	enabled_extension_count,
		const char *const *	enabled_extensions,
		VkQueueFlags	queue_flags
	)

Create a device with a single queue statisfying the given queue_flags.

VE_API void VEdestroyVulkanDevice

(

VkDevice

)

Clean up a VkDevice. This likely will simply call vkDestroyDevice.
