XmlIo.h File Reference

#include <MaterialXCore/Library.h>
#include <MaterialXCore/Document.h>
#include <MaterialXFormat/Export.h>
#include <MaterialXFormat/File.h>

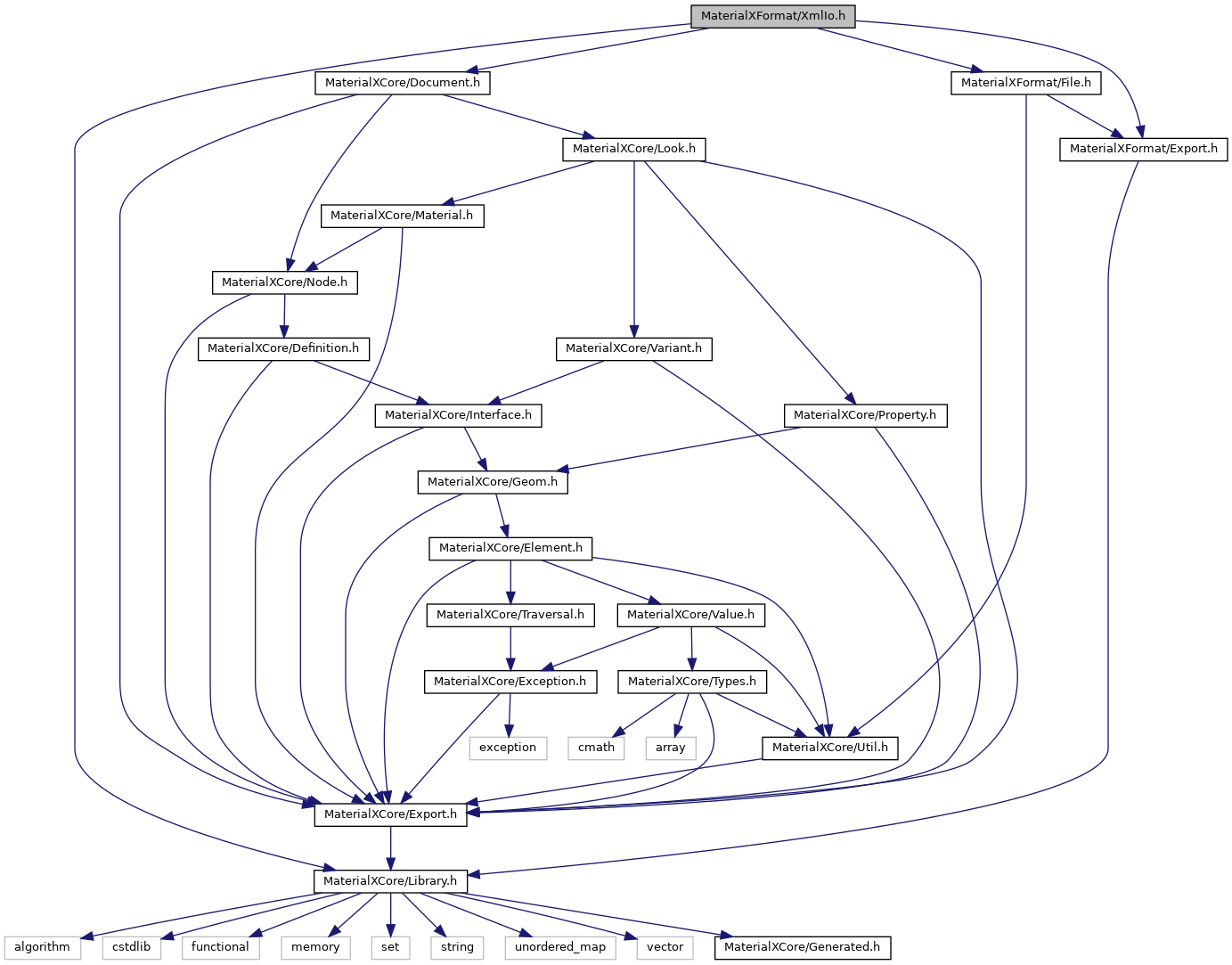

Include dependency graph for XmlIo.h:

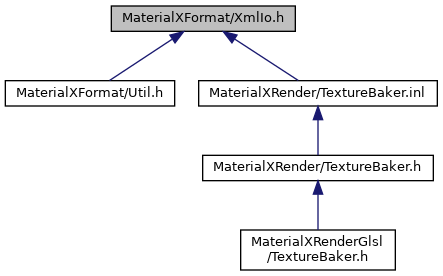

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	XmlReadOptions
class	XmlWriteOptions
class	ExceptionParseError
class	ExceptionFileMissing

Typedefs
using	XmlReadFunction = std::function< void(DocumentPtr, const FilePath &, const FileSearchPath &, const XmlReadOptions *)>

Functions
Read Functions
MX_FORMAT_API void	readFromXmlBuffer (DocumentPtr doc, const char *buffer, FileSearchPath searchPath=FileSearchPath(), const XmlReadOptions *readOptions=nullptr)
MX_FORMAT_API void	readFromXmlStream (DocumentPtr doc, std::istream &stream, FileSearchPath searchPath=FileSearchPath(), const XmlReadOptions *readOptions=nullptr)
MX_FORMAT_API void	readFromXmlFile (DocumentPtr doc, FilePath filename, FileSearchPath searchPath=FileSearchPath(), const XmlReadOptions *readOptions=nullptr)
MX_FORMAT_API void	readFromXmlString (DocumentPtr doc, const string &str, const FileSearchPath &searchPath=FileSearchPath(), const XmlReadOptions *readOptions=nullptr)
Write Functions
MX_FORMAT_API void	writeToXmlStream (DocumentPtr doc, std::ostream &stream, const XmlWriteOptions *writeOptions=nullptr)
MX_FORMAT_API void	writeToXmlFile (DocumentPtr doc, const FilePath &filename, const XmlWriteOptions *writeOptions=nullptr)
MX_FORMAT_API string	writeToXmlString (DocumentPtr doc, const XmlWriteOptions *writeOptions=nullptr)
Edit Functions
MX_FORMAT_API void	prependXInclude (DocumentPtr doc, const FilePath &filename)

Variables
MX_FORMAT_API const string	MTLX_EXTENSION
MX_FORMAT_API const int	MAX_XINCLUDE_DEPTH
MX_FORMAT_API const int	MAX_XML_TREE_DEPTH

Detailed Description

Support for the MTLX file format

Definition in file XmlIo.h.

Typedef Documentation

using XmlReadFunction = std::function<void(DocumentPtr, const FilePath&, const FileSearchPath&, const XmlReadOptions*)>

A standard function that reads from an XML file into a Document, with optional search path and read options.

Definition at line 30 of file XmlIo.h.

Function Documentation

MX_FORMAT_API void prependXInclude	(	DocumentPtr	doc,
		const FilePath &	filename
	)

Add an XInclude reference to the top of a Document, creating a generic element to hold the reference filename.

Parameters

doc	The Document to be modified.
filename	The filename of the XInclude reference to be added.

MX_FORMAT_API void readFromXmlBuffer	(	DocumentPtr	doc,
		const char *	buffer,
		FileSearchPath	searchPath = FileSearchPath(),
		const XmlReadOptions *	readOptions = nullptr
	)

Read a Document as XML from the given character buffer.

Parameters

doc	The Document into which data is read.
buffer	The character buffer from which data is read.
searchPath	An optional sequence of file paths that will be applied in order when searching for the given file and its includes. This argument can be supplied either as a FileSearchPath, or as a standard string with paths separated by the PATH_SEPARATOR character.
readOptions	An optional pointer to an XmlReadOptions object. If provided, then the given options will affect the behavior of the read function. Defaults to a null pointer.

Exceptions

ExceptionParseError

if the document cannot be parsed.

MX_FORMAT_API void readFromXmlFile	(	DocumentPtr	doc,
		FilePath	filename,
		FileSearchPath	searchPath = FileSearchPath(),
		const XmlReadOptions *	readOptions = nullptr
	)

Read a Document as XML from the given filename.

Parameters

doc	The Document into which data is read.
filename	The filename from which data is read. This argument can be supplied either as a FilePath or a standard string.
searchPath	An optional sequence of file paths that will be applied in order when searching for the given file and its includes. This argument can be supplied either as a FileSearchPath, or as a standard string with paths separated by the PATH_SEPARATOR character.
readOptions	An optional pointer to an XmlReadOptions object. If provided, then the given options will affect the behavior of the read function. Defaults to a null pointer.

Exceptions

ExceptionParseError	if the document cannot be parsed.
ExceptionFileMissing	if the file cannot be opened.

MX_FORMAT_API void readFromXmlStream	(	DocumentPtr	doc,
		std::istream &	stream,
		FileSearchPath	searchPath = FileSearchPath(),
		const XmlReadOptions *	readOptions = nullptr
	)

Read a Document as XML from the given input stream.

Parameters

doc	The Document into which data is read.
stream	The input stream from which data is read.
searchPath	An optional sequence of file paths that will be applied in order when searching for the given file and its includes. This argument can be supplied either as a FileSearchPath, or as a standard string with paths separated by the PATH_SEPARATOR character.
readOptions	An optional pointer to an XmlReadOptions object. If provided, then the given options will affect the behavior of the read function. Defaults to a null pointer.

Exceptions

ExceptionParseError

if the document cannot be parsed.

MX_FORMAT_API void readFromXmlString	(	DocumentPtr	doc,
		const string &	str,
		const FileSearchPath &	searchPath = FileSearchPath(),
		const XmlReadOptions *	readOptions = nullptr
	)

Read a Document as XML from the given string.

Parameters

doc	The Document into which data is read.
str	The string from which data is read.
searchPath	An optional sequence of file paths that will be applied in order when searching for the given file and its includes. This argument can be supplied either as a FileSearchPath, or as a standard string with paths separated by the PATH_SEPARATOR character.
readOptions	An optional pointer to an XmlReadOptions object. If provided, then the given options will affect the behavior of the read function. Defaults to a null pointer.

Exceptions

ExceptionParseError

if the document cannot be parsed.

MX_FORMAT_API void writeToXmlFile	(	DocumentPtr	doc,
		const FilePath &	filename,
		const XmlWriteOptions *	writeOptions = nullptr
	)

Write a Document as XML to the given filename.

Parameters

doc	The Document to be written.
filename	The filename to which data is written. This argument can be supplied either as a FilePath or a standard string.
writeOptions	An optional pointer to an XmlWriteOptions object. If provided, then the given options will affect the behavior of the write function. Defaults to a null pointer.

MX_FORMAT_API void writeToXmlStream	(	DocumentPtr	doc,
		std::ostream &	stream,
		const XmlWriteOptions *	writeOptions = nullptr
	)

Write a Document as XML to the given output stream.

Parameters

doc	The Document to be written.
stream	The output stream to which data is written
writeOptions	An optional pointer to an XmlWriteOptions object. If provided, then the given options will affect the behavior of the write function. Defaults to a null pointer.

MX_FORMAT_API string writeToXmlString	(	DocumentPtr	doc,
		const XmlWriteOptions *	writeOptions = nullptr
	)

Write a Document as XML to a new string, returned by value.

Parameters

doc	The Document to be written.
writeOptions	An optional pointer to an XmlWriteOptions object. If provided, then the given options will affect the behavior of the write function. Defaults to a null pointer.

Returns

The output string, returned by value

Variable Documentation

MX_FORMAT_API const int MAX_XINCLUDE_DEPTH

MX_FORMAT_API const int MAX_XML_TREE_DEPTH

MX_FORMAT_API const string MTLX_EXTENSION
