HdStSubtextureIdentifier Class Reference

#include <subtextureIdentifier.h>

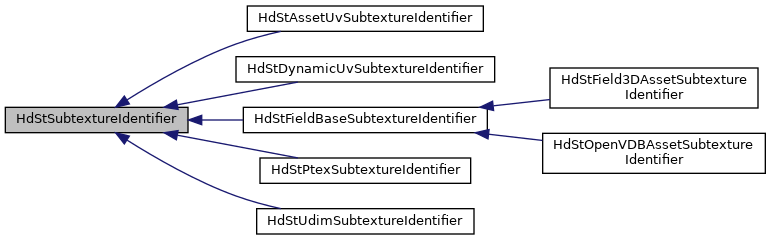

Inheritance diagram for HdStSubtextureIdentifier:

Public Types
using	ID = size_t

Public Member Functions
virtual HDST_API std::unique_ptr < HdStSubtextureIdentifier >	Clone () const =0
virtual HDST_API	~HdStSubtextureIdentifier ()

Protected Member Functions
virtual ID	_Hash () const =0

Friends
HDST_API friend size_t	hash_value (const HdStSubtextureIdentifier &subId)

Detailed Description

Base class for additional information to identify a texture in a file that can contain several textures (e.g., frames in a movie or grids in an OpenVDB file).

Definition at line 28 of file subtextureIdentifier.h.

Member Typedef Documentation

using HdStSubtextureIdentifier::ID = size_t

Definition at line 31 of file subtextureIdentifier.h.

Constructor & Destructor Documentation

virtual HDST_API HdStSubtextureIdentifier::~HdStSubtextureIdentifier ( )

virtual

Member Function Documentation

virtual ID HdStSubtextureIdentifier::_Hash ( ) const

protectedpure virtual

Implemented in HdStUdimSubtextureIdentifier, HdStPtexSubtextureIdentifier, HdStDynamicUvSubtextureIdentifier, HdStAssetUvSubtextureIdentifier, HdStField3DAssetSubtextureIdentifier, HdStFieldBaseSubtextureIdentifier, and HdStOpenVDBAssetSubtextureIdentifier.

virtual HDST_API std::unique_ptr<HdStSubtextureIdentifier> HdStSubtextureIdentifier::Clone ( ) const

pure virtual

Implemented in HdStUdimSubtextureIdentifier, HdStPtexSubtextureIdentifier, HdStDynamicUvSubtextureIdentifier, HdStAssetUvSubtextureIdentifier, HdStField3DAssetSubtextureIdentifier, and HdStOpenVDBAssetSubtextureIdentifier.

Friends And Related Function Documentation

HDST_API friend size_t hash_value ( const HdStSubtextureIdentifier &  subId )

friend

---

The documentation for this class was generated from the following file:

• pxr/imaging/hdSt/subtextureIdentifier.h
