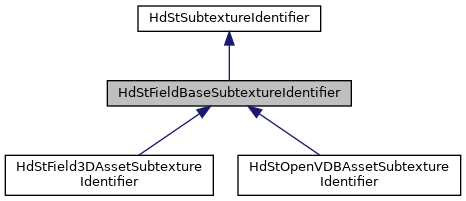

Inheritance diagram for HdStFieldBaseSubtextureIdentifier:

Public Member Functions
HDST_API TfToken const &	GetFieldName () const

HDST_API int	GetFieldIndex () const

HDST_API	~HdStFieldBaseSubtextureIdentifier () override=0

Public Member Functions inherited from HdStSubtextureIdentifier
virtual HDST_API std::unique_ptr < HdStSubtextureIdentifier >	Clone () const =0

virtual HDST_API	~HdStSubtextureIdentifier ()

Protected Member Functions
HDST_API	HdStFieldBaseSubtextureIdentifier (TfToken const &fieldName, int fieldIndex)

HDST_API ID	_Hash () const override

Additional Inherited Members
Public Types inherited from HdStSubtextureIdentifier
using	ID = size_t

Detailed Description

Base class for information identifying a grid in a volume field file. Parallels FieldBase in usdVol.

Definition at line 55 of file subtextureIdentifier.h.

Constructor & Destructor Documentation

HDST_API HdStFieldBaseSubtextureIdentifier::~HdStFieldBaseSubtextureIdentifier ( )

overridepure virtual

HDST_API HdStFieldBaseSubtextureIdentifier::HdStFieldBaseSubtextureIdentifier	(	TfToken const &	fieldName,
		int	fieldIndex
	)

protected

HDST_API ID HdStFieldBaseSubtextureIdentifier::_Hash ( ) const

overrideprotectedvirtual

HDST_API int HdStFieldBaseSubtextureIdentifier::GetFieldIndex ( ) const

inline

Get field index.

Definition at line 66 of file subtextureIdentifier.h.

HDST_API TfToken const& HdStFieldBaseSubtextureIdentifier::GetFieldName ( ) const

inline

Get field name.

Definition at line 61 of file subtextureIdentifier.h.

The documentation for this class was generated from the following file:
