camera.h File Reference

#include "pxr/pxr.h"
#include "pxr/imaging/hd/api.h"
#include "pxr/imaging/hd/version.h"
#include "pxr/imaging/hd/sprim.h"
#include "pxr/imaging/cameraUtil/conformWindow.h"
#include "pxr/usd/sdf/path.h"
#include "pxr/base/tf/staticTokens.h"
#include "pxr/base/gf/matrix4d.h"
#include "pxr/base/gf/range1f.h"
#include <vector>

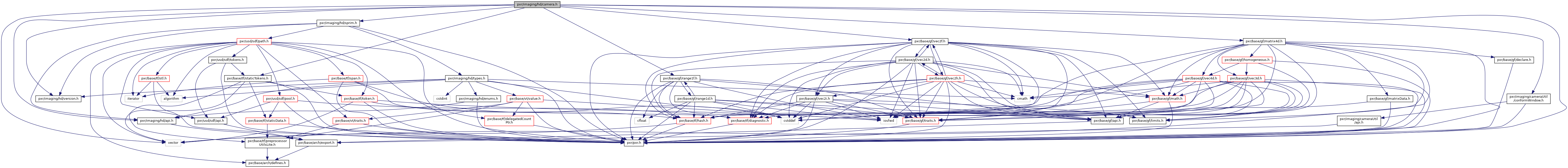

Include dependency graph for camera.h:

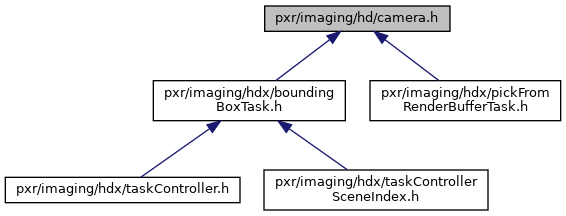

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	HdCamera

Macros
#define	HD_CAMERA_TOKENS

Functions
	TF_DECLARE_PUBLIC_TOKENS (HdCameraTokens, HD_API, HD_CAMERA_TOKENS)

Macro Definition Documentation

#define HD_CAMERA_TOKENS

Value:

/* frustum */                                   \
    (projection)                                    \
    (horizontalAperture)                            \
    (verticalAperture)                              \
    (horizontalApertureOffset)                      \
    (verticalApertureOffset)                        \
    (focalLength)                                   \
    (clippingRange)                                 \
    (clipPlanes)                                    \
                                                    \
    /* depth of field */                            \
    (fStop)                                         \
    (focusDistance)                                 \
                                                    \
    /* shutter/lighting */                          \
    (shutterOpen)                                   \
    (shutterClose)                                  \
    (exposure)                                      \
                                                    \
    /* how to match window with different aspect */ \
    (windowPolicy)                                  \
                                                    \
    /* OpenGL-style matrices, deprecated */         \
    (worldToViewMatrix)                             \
    (projectionMatrix)

Camera state that can be requested from the scene delegate via GetCameraParamValue(id, token). The parameters below mimic the USD camera schema and GfCamera (with the exception of window policy). All spatial units are in world units though and projection is HdCamera::Projection rather than a token.

Definition at line 48 of file camera.h.

Function Documentation

TF_DECLARE_PUBLIC_TOKENS	(	HdCameraTokens	,
		HD_API	,
		HD_CAMERA_TOKENS
	)
