rtcore_scene.h File Reference

#include "rtcore_device.h"

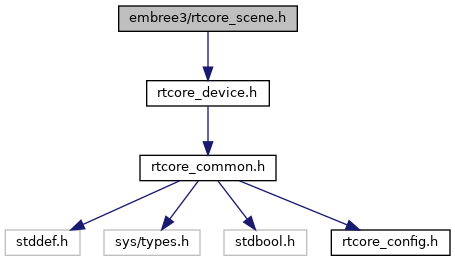

Include dependency graph for rtcore_scene.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	RTCCollision

Typedefs
typedef bool(*	RTCProgressMonitorFunction )(void *ptr, double n)
typedef void(*	RTCCollideFunc )(void *userPtr, struct RTCCollision *collisions, unsigned int num_collisions)

Enumerations
enum	RTCSceneFlags {   RTC_SCENE_FLAG_NONE = 0, RTC_SCENE_FLAG_DYNAMIC = (1 << 0), RTC_SCENE_FLAG_COMPACT = (1 << 1), RTC_SCENE_FLAG_ROBUST = (1 << 2),   RTC_SCENE_FLAG_CONTEXT_FILTER_FUNCTION = (1 << 3) }

Functions
RTC_API RTCScene	rtcNewScene (RTCDevice device)
RTC_API RTCDevice	rtcGetSceneDevice (RTCScene hscene)
RTC_API void	rtcRetainScene (RTCScene scene)
RTC_API void	rtcReleaseScene (RTCScene scene)
RTC_API unsigned int	rtcAttachGeometry (RTCScene scene, RTCGeometry geometry)
RTC_API void	rtcAttachGeometryByID (RTCScene scene, RTCGeometry geometry, unsigned int geomID)
RTC_API void	rtcDetachGeometry (RTCScene scene, unsigned int geomID)
RTC_API RTCGeometry	rtcGetGeometry (RTCScene scene, unsigned int geomID)
RTC_API void	rtcCommitScene (RTCScene scene)
RTC_API void	rtcJoinCommitScene (RTCScene scene)
RTC_API void	rtcSetSceneProgressMonitorFunction (RTCScene scene, RTCProgressMonitorFunction progress, void *ptr)
RTC_API void	rtcSetSceneBuildQuality (RTCScene scene, enum RTCBuildQuality quality)
RTC_API void	rtcSetSceneFlags (RTCScene scene, enum RTCSceneFlags flags)
RTC_API enum RTCSceneFlags	rtcGetSceneFlags (RTCScene scene)
RTC_API void	rtcGetSceneBounds (RTCScene scene, struct RTCBounds *bounds_o)
RTC_API void	rtcGetSceneLinearBounds (RTCScene scene, struct RTCLinearBounds *bounds_o)
RTC_API bool	rtcPointQuery (RTCScene scene, struct RTCPointQuery *query, struct RTCPointQueryContext *context, RTCPointQueryFunction queryFunc, void *userPtr)
RTC_API bool	rtcPointQuery4 (const int *valid, RTCScene scene, struct RTCPointQuery4 *query, struct RTCPointQueryContext *context, RTCPointQueryFunction queryFunc, void **userPtr)
RTC_API bool	rtcPointQuery8 (const int *valid, RTCScene scene, struct RTCPointQuery8 *query, struct RTCPointQueryContext *context, RTCPointQueryFunction queryFunc, void **userPtr)
RTC_API bool	rtcPointQuery16 (const int *valid, RTCScene scene, struct RTCPointQuery16 *query, struct RTCPointQueryContext *context, RTCPointQueryFunction queryFunc, void **userPtr)
RTC_API void	rtcIntersect1 (RTCScene scene, struct RTCIntersectContext *context, struct RTCRayHit *rayhit)
RTC_API void	rtcIntersect4 (const int *valid, RTCScene scene, struct RTCIntersectContext *context, struct RTCRayHit4 *rayhit)
RTC_API void	rtcIntersect8 (const int *valid, RTCScene scene, struct RTCIntersectContext *context, struct RTCRayHit8 *rayhit)
RTC_API void	rtcIntersect16 (const int *valid, RTCScene scene, struct RTCIntersectContext *context, struct RTCRayHit16 *rayhit)
RTC_API void	rtcIntersect1M (RTCScene scene, struct RTCIntersectContext *context, struct RTCRayHit *rayhit, unsigned int M, size_t byteStride)
RTC_API void	rtcIntersect1Mp (RTCScene scene, struct RTCIntersectContext *context, struct RTCRayHit **rayhit, unsigned int M)
RTC_API void	rtcIntersectNM (RTCScene scene, struct RTCIntersectContext *context, struct RTCRayHitN *rayhit, unsigned int N, unsigned int M, size_t byteStride)
RTC_API void	rtcIntersectNp (RTCScene scene, struct RTCIntersectContext *context, const struct RTCRayHitNp *rayhit, unsigned int N)
RTC_API void	rtcOccluded1 (RTCScene scene, struct RTCIntersectContext *context, struct RTCRay *ray)
RTC_API void	rtcOccluded4 (const int *valid, RTCScene scene, struct RTCIntersectContext *context, struct RTCRay4 *ray)
RTC_API void	rtcOccluded8 (const int *valid, RTCScene scene, struct RTCIntersectContext *context, struct RTCRay8 *ray)
RTC_API void	rtcOccluded16 (const int *valid, RTCScene scene, struct RTCIntersectContext *context, struct RTCRay16 *ray)
RTC_API void	rtcOccluded1M (RTCScene scene, struct RTCIntersectContext *context, struct RTCRay *ray, unsigned int M, size_t byteStride)
RTC_API void	rtcOccluded1Mp (RTCScene scene, struct RTCIntersectContext *context, struct RTCRay **ray, unsigned int M)
RTC_API void	rtcOccludedNM (RTCScene scene, struct RTCIntersectContext *context, struct RTCRayN *ray, unsigned int N, unsigned int M, size_t byteStride)
RTC_API void	rtcOccludedNp (RTCScene scene, struct RTCIntersectContext *context, const struct RTCRayNp *ray, unsigned int N)
RTC_API void	rtcCollide (RTCScene scene0, RTCScene scene1, RTCCollideFunc callback, void *userPtr)

Typedef Documentation

typedef void(* RTCCollideFunc)(void *userPtr, struct RTCCollision *collisions, unsigned int num_collisions)

Definition at line 145 of file rtcore_scene.h.

typedef bool(* RTCProgressMonitorFunction)(void *ptr, double n)

Definition at line 62 of file rtcore_scene.h.

Enumeration Type Documentation

enum RTCSceneFlags

Enumerator
RTC_SCENE_FLAG_NONE
RTC_SCENE_FLAG_DYNAMIC
RTC_SCENE_FLAG_COMPACT
RTC_SCENE_FLAG_ROBUST
RTC_SCENE_FLAG_CONTEXT_FILTER_FUNCTION

Definition at line 18 of file rtcore_scene.h.

Function Documentation

RTC_API unsigned int rtcAttachGeometry	(	RTCScene	scene,
		RTCGeometry	geometry
	)

RTC_API void rtcAttachGeometryByID	(	RTCScene	scene,
		RTCGeometry	geometry,
		unsigned int	geomID
	)

RTC_API void rtcCollide	(	RTCScene	scene0,
		RTCScene	scene1,
		RTCCollideFunc	callback,
		void *	userPtr
	)

Performs collision detection of two scenes

RTC_API void rtcCommitScene

(

RTCScene

scene

)

RTC_API void rtcDetachGeometry	(	RTCScene	scene,
		unsigned int	geomID
	)

RTC_API RTCGeometry rtcGetGeometry	(	RTCScene	scene,
		unsigned int	geomID
	)

RTC_API void rtcGetSceneBounds	(	RTCScene	scene,
		struct RTCBounds *	bounds_o
	)

RTC_API RTCDevice rtcGetSceneDevice

(

RTCScene

hscene

)

RTC_API enum RTCSceneFlags rtcGetSceneFlags

(

RTCScene

scene

)

RTC_API void rtcGetSceneLinearBounds	(	RTCScene	scene,
		struct RTCLinearBounds *	bounds_o
	)

RTC_API void rtcIntersect1	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayHit *	rayhit
	)

RTC_API void rtcIntersect16	(	const int *	valid,
		RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayHit16 *	rayhit
	)

RTC_API void rtcIntersect1M	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayHit *	rayhit,
		unsigned int	M,
		size_t	byteStride
	)

RTC_API void rtcIntersect1Mp	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayHit **	rayhit,
		unsigned int	M
	)

RTC_API void rtcIntersect4	(	const int *	valid,
		RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayHit4 *	rayhit
	)

RTC_API void rtcIntersect8	(	const int *	valid,
		RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayHit8 *	rayhit
	)

RTC_API void rtcIntersectNM	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayHitN *	rayhit,
		unsigned int	N,
		unsigned int	M,
		size_t	byteStride
	)

RTC_API void rtcIntersectNp	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		const struct RTCRayHitNp *	rayhit,
		unsigned int	N
	)

RTC_API void rtcJoinCommitScene

(

RTCScene

scene

)

RTC_API RTCScene rtcNewScene

(

RTCDevice

device

)

RTC_API void rtcOccluded1	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRay *	ray
	)

RTC_API void rtcOccluded16	(	const int *	valid,
		RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRay16 *	ray
	)

RTC_API void rtcOccluded1M	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRay *	ray,
		unsigned int	M,
		size_t	byteStride
	)

RTC_API void rtcOccluded1Mp	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRay **	ray,
		unsigned int	M
	)

RTC_API void rtcOccluded4	(	const int *	valid,
		RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRay4 *	ray
	)

RTC_API void rtcOccluded8	(	const int *	valid,
		RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRay8 *	ray
	)

RTC_API void rtcOccludedNM	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		struct RTCRayN *	ray,
		unsigned int	N,
		unsigned int	M,
		size_t	byteStride
	)

RTC_API void rtcOccludedNp	(	RTCScene	scene,
		struct RTCIntersectContext *	context,
		const struct RTCRayNp *	ray,
		unsigned int	N
	)

RTC_API bool rtcPointQuery	(	RTCScene	scene,
		struct RTCPointQuery *	query,
		struct RTCPointQueryContext *	context,
		RTCPointQueryFunction	queryFunc,
		void *	userPtr
	)

RTC_API bool rtcPointQuery16	(	const int *	valid,
		RTCScene	scene,
		struct RTCPointQuery16 *	query,
		struct RTCPointQueryContext *	context,
		RTCPointQueryFunction	queryFunc,
		void **	userPtr
	)

RTC_API bool rtcPointQuery4	(	const int *	valid,
		RTCScene	scene,
		struct RTCPointQuery4 *	query,
		struct RTCPointQueryContext *	context,
		RTCPointQueryFunction	queryFunc,
		void **	userPtr
	)

RTC_API bool rtcPointQuery8	(	const int *	valid,
		RTCScene	scene,
		struct RTCPointQuery8 *	query,
		struct RTCPointQueryContext *	context,
		RTCPointQueryFunction	queryFunc,
		void **	userPtr
	)

RTC_API void rtcReleaseScene

(

RTCScene

scene

)

RTC_API void rtcRetainScene

(

RTCScene

scene

)

RTC_API void rtcSetSceneBuildQuality	(	RTCScene	scene,
		enum RTCBuildQuality	quality
	)

RTC_API void rtcSetSceneFlags	(	RTCScene	scene,
		enum RTCSceneFlags	flags
	)

RTC_API void rtcSetSceneProgressMonitorFunction	(	RTCScene	scene,
		RTCProgressMonitorFunction	progress,
		void *	ptr
	)
