CH_Types.h File Reference
#include "CH_API.h"
#include <UT/UT_Array.h>

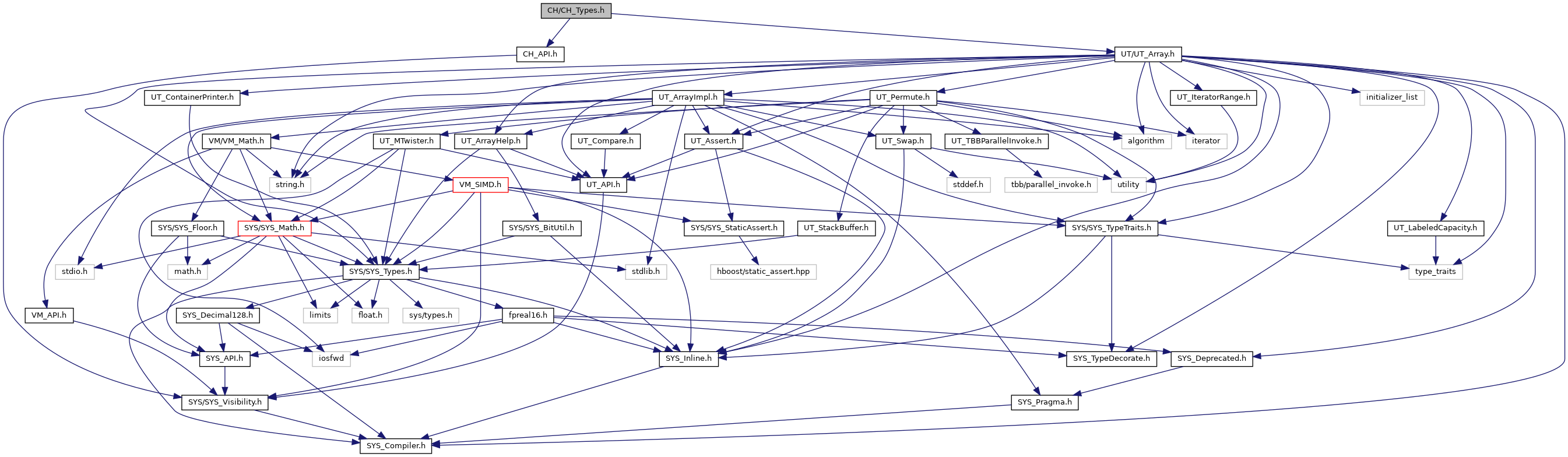

+ Include dependency graph for CH_Types.h:
+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs

using CH_GroupList = UT_Array< CH_Group * >

using CH_SegmentList = UT_Array< CH_Segment * >

using CH_ChannelList = UT_Array< CH_Channel * >

using CH_ChannelRefList = UT_Array< CH_ChannelRef >

using CH_CollectionList = UT_Array< CH_Collection * >

using CH_NameList = UT_Array< const char * >

using CHfindCallBack = int(*)(CH_Collection *grp, CH_Channel *chp, void *)


Enumerations

enum  CH_ScopeMasks {
  CH_SCOPEMASK_NONE = 0x0, CH_SCOPED = 0x1, CH_SELECTED = 0x2, CH_PINNED = 0x4,
  CH_DISPLAY = 0x8, CH_TEMPLATE = 0x10, CH_LAYER_SCOPED = 0x20, CH_LAYER_SELECTED = 0x40,
  CH_LAYER_PINNED = 0x80, CH_LAYER_DISPLAY = 0x100, CH_HIDDEN = 0x200, CH_VECTOR_HIDDEN = 0x400,
  CH_GRAPH_SELECTED = 0x800, CH_PARM_SELECTED = 0x1000, CH_NUM_FLAGS = 13, CH_ALL_FLAGS = ((1<<13)-1)
}

enum  CH_ChannelBehavior {
  CH_CHANNEL_DEFAULT, CH_CHANNEL_HOLD, CH_CHANNEL_CYCLE, CH_CHANNEL_EXTEND,
  CH_CHANNEL_SLOPE, CH_CHANNEL_CYCLEOFF, CH_CHANNEL_OSCILLATE, CH_CHANNEL_BEHAVIOR_COUNT
}

enum  CH_ChannelFlag {
  CH_CHANNEL_NONE = 0x00, CH_CHANNEL_MODIFIED = 0x01, CH_CHANNEL_COOKING = 0x02, CH_CACHE_ENABLED = 0x04,
  CH_CHANNEL_SPARE = 0x08, CH_CHANNEL_ACTIVE = 0x10, CH_CHANNEL_PENDING = 0x20, CH_CHANNEL_PENDINGHOLD = 0x40,
  CH_CHANNEL_LOCKED = 0x80, CH_CHANNEL_FLAG_MASK = 0xFF
}

enum  CH_GetKeyExtend { CH_GETKEY_EXTEND_NONE, CH_GETKEY_EXTEND_DEFAULT, CH_GETKEY_EXTEND_BOUNDARY }

enum  CH_SegmentScale { CH_SCALE_ANY, CH_SCALE_START, CH_SCALE_END }

enum  CH_ValueTypes { CH_VALUE = 0, CH_SLOPE, CH_ACCEL, CH_NUM_VALUES }

enum  CH_TweenMode {
  CH_TweenMode::Classic, CH_TweenMode::BlendToNeighbor, CH_TweenMode::BlendToFrame, CH_TweenMode::EaseInOut,
  CH_TweenMode::BlendToEase, CH_TweenMode::PullPush, CH_TweenMode::NoiseWave, CH_TweenMode::BlendToSnapshot,
  CH_TweenMode::TimeOffsetter, CH_TweenMode::TimeOffsetterStagger, CH_TweenMode::ReduceResample, CH_TweenMode::SmoothRough,
  CH_TweenMode::Reverse, CH_TweenMode::Count
}

enum  CH_TweenToolType { CH_TweenToolType::SLIDER, CH_TweenToolType::BUTTON }


Variables

CH_API const char *const chScopeFlagNames []

CH_API char CHvalueNames [2][CH_NUM_VALUES]


Typedef Documentation

Definition at line 26 of file CH_Types.h.

Definition at line 27 of file CH_Types.h.

Definition at line 28 of file CH_Types.h.

Definition at line 24 of file CH_Types.h.

using CH_NameList = UT_Array<const char *>

Definition at line 29 of file CH_Types.h.

Definition at line 25 of file CH_Types.h.

using CHfindCallBack = int(*)(CH_Collection *grp, CH_Channel *chp, void *)

Definition at line 31 of file CH_Types.h.

Enumeration Type Documentation

Enumerator
CH_CHANNEL_DEFAULT
CH_CHANNEL_HOLD
CH_CHANNEL_CYCLE
CH_CHANNEL_EXTEND
CH_CHANNEL_SLOPE
CH_CHANNEL_CYCLEOFF
CH_CHANNEL_OSCILLATE
CH_CHANNEL_BEHAVIOR_COUNT

Definition at line 58 of file CH_Types.h.

Enumerator
CH_CHANNEL_NONE
CH_CHANNEL_MODIFIED
CH_CHANNEL_COOKING
CH_CACHE_ENABLED
CH_CHANNEL_SPARE
CH_CHANNEL_ACTIVE
CH_CHANNEL_PENDING
CH_CHANNEL_PENDINGHOLD
CH_CHANNEL_LOCKED
CH_CHANNEL_FLAG_MASK

Definition at line 72 of file CH_Types.h.

Enumerator
CH_GETKEY_EXTEND_NONE
CH_GETKEY_EXTEND_DEFAULT
CH_GETKEY_EXTEND_BOUNDARY

Definition at line 92 of file CH_Types.h.

Enumerator
CH_SCOPEMASK_NONE
CH_SCOPED
CH_SELECTED
CH_PINNED
CH_DISPLAY
CH_TEMPLATE
CH_LAYER_SCOPED
CH_LAYER_SELECTED
CH_LAYER_PINNED
CH_LAYER_DISPLAY
CH_HIDDEN
CH_VECTOR_HIDDEN
CH_GRAPH_SELECTED
CH_PARM_SELECTED
CH_NUM_FLAGS
CH_ALL_FLAGS

Definition at line 33 of file CH_Types.h.

Enumerator
CH_SCALE_ANY
CH_SCALE_START
CH_SCALE_END

Definition at line 107 of file CH_Types.h.

enum CH_TweenMode
strong

CH_TweenMode - Tweening modes used by the CH_Tweener and CH_TweenTools

Classic: Blends the given key linearly between neighboring keys. Adds a key if none exists at the given time. BlendToNeighbor: Blends between the current key value and the neighbor's value. Whether it is the left or right neighbor depends on which direction the slider is dragged. Resets base values on mouse up. EaseInOut: Tweens a sequence of keys between a perfect Ease In/Out between the previous keys BlendToEase: Tweens a sequence of keys between their current values and an ease In/Out depending on which direction the slider is dragged. Resets base values on mouse up. BlendToFrame: Tweens the selected keys linearly between the values evaluated at the frames defined in CH_Tweener (See CH_Tweener::setBlendTimes) PullPush: Softens or Intensifies the animation curve by blending the keys towards or away from the linear curve between the neighboring keys NoiseWave: Adds noise to or waves out keys BlendToSnapshot: Blends to the channel's snapshot TimeOffsetter: "Offsets" the channel's timing by adjusting key values instead of shifting them in time. TimeOffsetterStagger: Offsets channels as with TimeOffsetter, but also applies a small stagger to each selected channel ReduceResample: Reduces keys in the selected segments, or adds keys by resampling the selected segments. SmoothRough: Applies a smoothing filter when dragging left, or a noise filter when dragging right. Reverse: Reverses the animation (button)

Enumerator
Classic
BlendToNeighbor
BlendToFrame
EaseInOut
BlendToEase
PullPush
NoiseWave
BlendToSnapshot
TimeOffsetter
TimeOffsetterStagger
ReduceResample
SmoothRough
Reverse
Count

Definition at line 152 of file CH_Types.h.

enum CH_TweenToolType
strong
Enumerator
SLIDER
BUTTON

Definition at line 174 of file CH_Types.h.

Enumerator
CH_VALUE
CH_SLOPE
CH_ACCEL
CH_NUM_VALUES

Definition at line 113 of file CH_Types.h.

Variable Documentation

CH_API const char* const chScopeFlagNames[]
CH_API char CHvalueNames[2][CH_NUM_VALUES]
