Diagnostics.h File Reference

Various diagnostic tools to identify potential issues with for example narrow-band level sets or fog volumes. More...

#include <openvdb/Grid.h>
#include <openvdb/math/Math.h>
#include <openvdb/math/Vec3.h>
#include <openvdb/math/Stencils.h>
#include <openvdb/math/Operators.h>
#include <openvdb/tree/LeafManager.h>
#include <openvdb/thread/Threading.h>
#include <openvdb/openvdb.h>
#include <tbb/blocked_range.h>
#include <tbb/parallel_reduce.h>
#include <cmath>
#include <set>
#include <sstream>
#include <string>
#include <type_traits>
#include <vector>

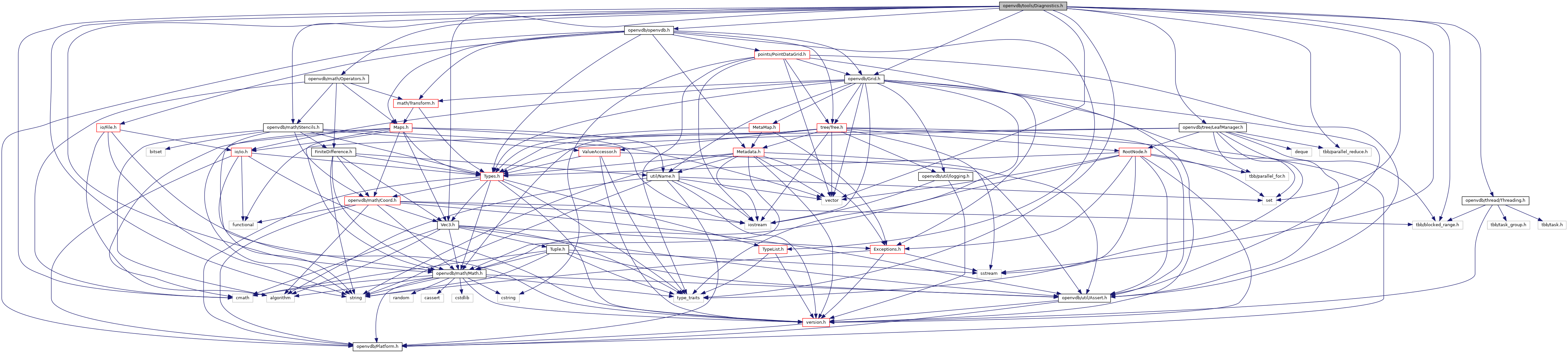

Include dependency graph for Diagnostics.h:

Go to the source code of this file.

Classes
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckNan< GridT, TreeIterT >
	Checks NaN values. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckInf< GridT, TreeIterT >
	Checks for infinite values, e.g. 1/0 or -1/0. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckFinite< GridT, TreeIterT >
	Checks for both NaN and inf values, i.e. any value that is not finite. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckMagnitude< GridT, TreeIterT >
	Check that the magnitude of a value, a, is close to a fixed magnitude, b, given a fixed tolerance c. That is | |a| - |b| | <= c. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckRange< GridT, MinInclusive, MaxInclusive, TreeIterT >
	Checks a value against a range. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckMin< GridT, TreeIterT >
	Checks a value against a minimum. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckMax< GridT, TreeIterT >
	Checks a value against a maximum. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckNormGrad< GridT, TreeIterT, GradScheme >
	Checks the norm of the gradient against a range, i.e., |∇Φ| ∈ [min, max]. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckEikonal< GridT, TreeIterT, StencilT >
	Checks the norm of the gradient at zero-crossing voxels against a range. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::CheckDivergence< GridT, TreeIterT, DiffScheme >
	Checks the divergence against a range. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::Diagnose< GridT >
	Performs multithreaded diagnostics of a grid. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::CheckLevelSet< GridType >
	Class that performs various types of checks on narrow-band level sets. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::CheckFogVolume< GridType >
	Class that performs various types of checks on fog volumes. More...

Namespaces
	openvdb
	openvdb::OPENVDB_VERSION_NAME
	openvdb::OPENVDB_VERSION_NAME::tools

Functions
template<class GridType >
std::string	openvdb::OPENVDB_VERSION_NAME::tools::checkLevelSet (const GridType &grid, size_t number=9)
	Perform checks on a grid to see if it is a valid symmetric, narrow-band level set. More...
template<class GridType >
std::string	openvdb::OPENVDB_VERSION_NAME::tools::checkFogVolume (const GridType &grid, size_t number=6)
	Perform checks on a grid to see if it is a valid fog volume. More...
template<class GridType >
bool	openvdb::OPENVDB_VERSION_NAME::tools::uniqueInactiveValues (const GridType &grid, std::vector< typename GridType::ValueType > &values, size_t numValues)
	Threaded method to find unique inactive values. More...

Detailed Description

Various diagnostic tools to identify potential issues with for example narrow-band level sets or fog volumes.

Author

Ken Museth

Definition in file Diagnostics.h.
