LevelSetTubes.h File Reference

Generate a narrow-band level set of a capsule, tapered capsule, and tube complex. More...

#include <openvdb/Grid.h>
#include <openvdb/openvdb.h>
#include <openvdb/math/Math.h>
#include <openvdb/util/NullInterrupter.h>
#include <vector>
#include "impl/LevelSetTubesImpl.h"

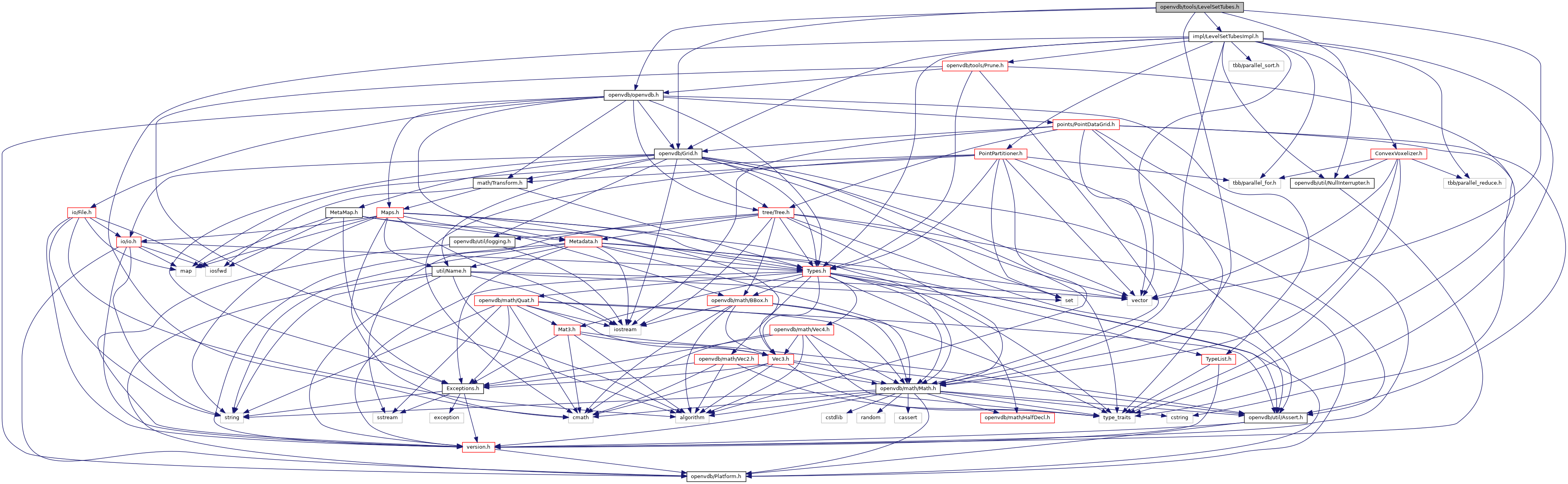

Include dependency graph for LevelSetTubes.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	openvdb
	openvdb::OPENVDB_VERSION_NAME
	openvdb::OPENVDB_VERSION_NAME::tools

Enumerations
enum	openvdb::OPENVDB_VERSION_NAME::tools::TubeRadiiPolicy { openvdb::OPENVDB_VERSION_NAME::tools::TUBE_AUTOMATIC = 0, openvdb::OPENVDB_VERSION_NAME::tools::TUBE_VERTEX_RADII, openvdb::OPENVDB_VERSION_NAME::tools::TUBE_SEGMENT_RADII }
	Different policies when creating a tube complex with varying radii. More...

Functions
template<typename GridType , typename ScalarType , typename InterruptT >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::createLevelSetCapsule (const math::Vec3< ScalarType > &pt1, const math::Vec3< ScalarType > &pt2, ScalarType radius, float voxelSize, float halfWidth=float(LEVEL_SET_HALF_WIDTH), InterruptT *interrupter=nullptr, bool threaded=true)
	Return a grid of type GridType containing a narrow-band level set representation of a capsule (tube with constant radius and sphere caps). More...
template<typename GridType , typename ScalarType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::createLevelSetCapsule (const math::Vec3< ScalarType > &pt1, const math::Vec3< ScalarType > &pt2, ScalarType radius, float voxelSize, float halfWidth=float(LEVEL_SET_HALF_WIDTH), bool threaded=true)
	Return a grid of type GridType containing a narrow-band level set representation of a capsule (tube with constant radius and sphere caps). More...
template<typename GridType , typename ScalarType , typename InterruptT >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::createLevelSetTaperedCapsule (const math::Vec3< ScalarType > &pt1, const math::Vec3< ScalarType > &pt2, ScalarType radius1, ScalarType radius2, float voxelSize, float halfWidth=float(LEVEL_SET_HALF_WIDTH), InterruptT *interrupter=nullptr, bool threaded=true)
	Return a grid of type GridType containing a narrow-band level set representation of a tapered capsule (tube with sphere caps and different radii at both ends, or equivalently the convex hull of two spheres with possibly different centers and radii). More...
template<typename GridType , typename ScalarType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::createLevelSetTaperedCapsule (const math::Vec3< ScalarType > &pt1, const math::Vec3< ScalarType > &pt2, ScalarType radius1, ScalarType radius2, float voxelSize, float halfWidth=float(LEVEL_SET_HALF_WIDTH), bool threaded=true)
	Return a grid of type GridType containing a narrow-band level set representation of a tapered capsule (tube with sphere caps and different radii at both ends, or equivalently the convex hull of two spheres with possibly different centers and radii). More...
template<typename GridType , typename ScalarType , typename InterruptT >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::createLevelSetTubeComplex (const std::vector< math::Vec3< ScalarType >> &vertices, const std::vector< Vec2I > &segments, ScalarType radius, float voxelSize, float halfWidth=float(LEVEL_SET_HALF_WIDTH), InterruptT *interrupter=nullptr)
	Return a grid of type GridType containing a narrow-band level set representation of a tube complex (a collection of capsules defined by endpoint coordinates and segment indices). More...
template<typename GridType , typename ScalarType , typename InterruptT >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::createLevelSetTubeComplex (const std::vector< math::Vec3< ScalarType >> &vertices, const std::vector< Vec2I > &segments, const std::vector< ScalarType > &radii, float voxelSize, float halfWidth=float(LEVEL_SET_HALF_WIDTH), TubeRadiiPolicy radii_policy=TUBE_AUTOMATIC, InterruptT *interrupter=nullptr)
	Return a grid of type GridType containing a narrow-band level set representation of a tube complex (a collection of tubes defined by endpoint coordinates, segment indices, and radii). More...

Detailed Description

Generate a narrow-band level set of a capsule, tapered capsule, and tube complex.

Author

Greg Hurst

Note

By definition a level set has a fixed narrow band width (the half width is defined by LEVEL_SET_HALF_WIDTH in Types.h), whereas an SDF can have a variable narrow band width.

Definition in file LevelSetTubes.h.
