Vec3.h File Reference

#include <openvdb/Exceptions.h>
#include <openvdb/util/Assert.h>
#include "Math.h"
#include "Tuple.h"
#include <algorithm>
#include <cmath>
#include <type_traits>

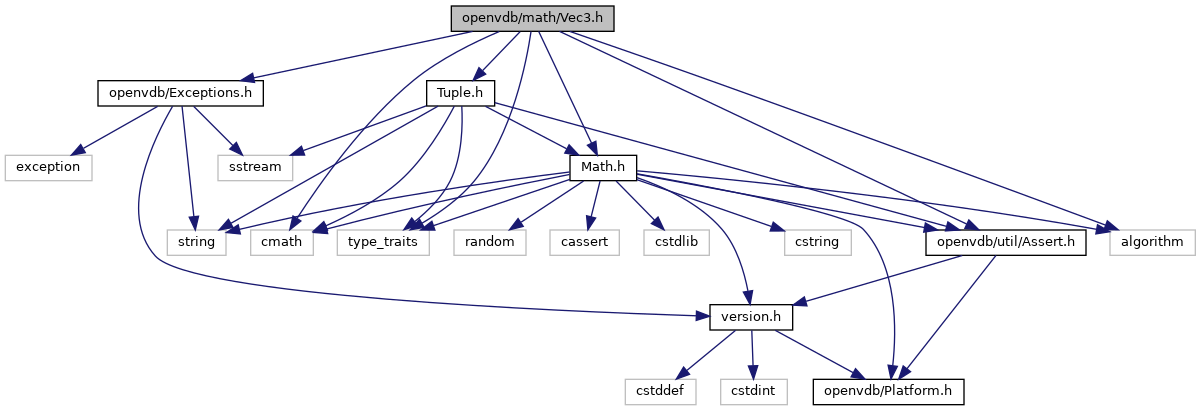

Include dependency graph for Vec3.h:

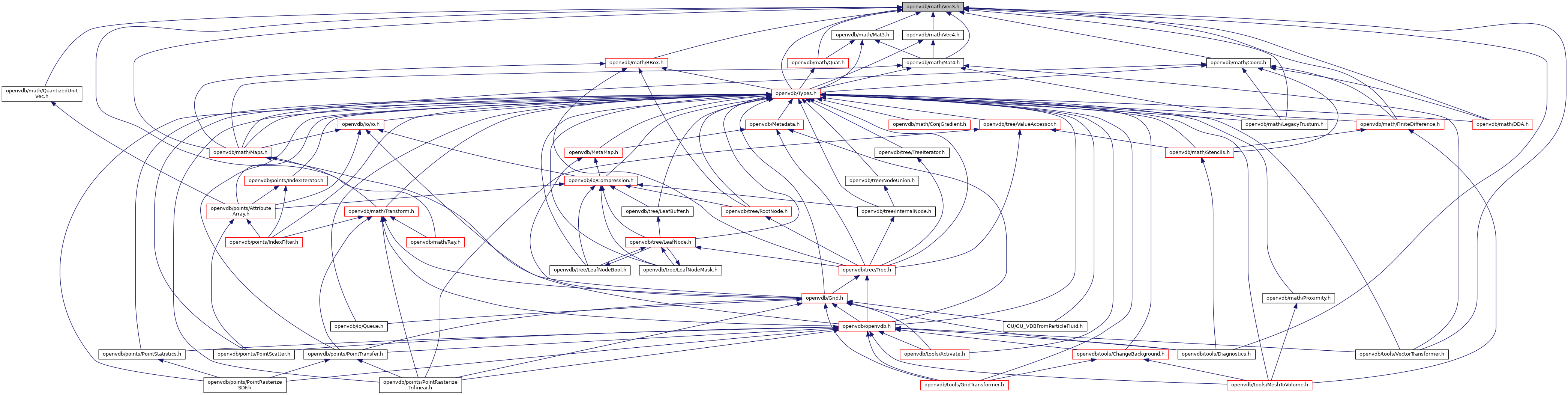

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	openvdb::OPENVDB_VERSION_NAME::math::Mat3< T >
	3x3 matrix class. More...
class	openvdb::OPENVDB_VERSION_NAME::math::Vec3< T >

Namespaces
	openvdb
	openvdb::OPENVDB_VERSION_NAME
	openvdb::OPENVDB_VERSION_NAME::math

Typedefs
using	openvdb::OPENVDB_VERSION_NAME::math::Vec3i = Vec3< int32_t >
using	openvdb::OPENVDB_VERSION_NAME::math::Vec3ui = Vec3< uint32_t >
using	openvdb::OPENVDB_VERSION_NAME::math::Vec3s = Vec3< float >
using	openvdb::OPENVDB_VERSION_NAME::math::Vec3d = Vec3< double >

Functions
template<typename T0 , typename T1 >
bool	openvdb::OPENVDB_VERSION_NAME::math::operator== (const Vec3< T0 > &v0, const Vec3< T1 > &v1)
	Equality operator, does exact floating point comparisons. More...
template<typename T0 , typename T1 >
bool	openvdb::OPENVDB_VERSION_NAME::math::operator!= (const Vec3< T0 > &v0, const Vec3< T1 > &v1)
	Inequality operator, does exact floating point comparisons. More...
template<typename S , typename T >
Vec3< typename promote< S, T > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator* (S scalar, const Vec3< T > &v)
	Multiply each element of the given vector by scalar and return the result. More...
template<typename S , typename T >
Vec3< typename promote< S, T > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator* (const Vec3< T > &v, S scalar)
	Multiply each element of the given vector by scalar and return the result. More...
template<typename T0 , typename T1 >
Vec3< typename promote< T0, T1 > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator* (const Vec3< T0 > &v0, const Vec3< T1 > &v1)
	Multiply corresponding elements of v0 and v1 and return the result. More...
template<typename S , typename T >
Vec3< typename promote< S, T > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator/ (S scalar, const Vec3< T > &v)
	Divide scalar by each element of the given vector and return the result. More...
template<typename S , typename T >
Vec3< typename promote< S, T > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator/ (const Vec3< T > &v, S scalar)
	Divide each element of the given vector by scalar and return the result. More...
template<typename T0 , typename T1 >
Vec3< typename promote< T0, T1 > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator/ (const Vec3< T0 > &v0, const Vec3< T1 > &v1)
	Divide corresponding elements of v0 and v1 and return the result. More...
template<typename T0 , typename T1 >
Vec3< typename promote< T0, T1 > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator+ (const Vec3< T0 > &v0, const Vec3< T1 > &v1)
	Add corresponding elements of v0 and v1 and return the result. More...
template<typename S , typename T >
Vec3< typename promote< S, T > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator+ (const Vec3< T > &v, S scalar)
	Add scalar to each element of the given vector and return the result. More...
template<typename T0 , typename T1 >
Vec3< typename promote< T0, T1 > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator- (const Vec3< T0 > &v0, const Vec3< T1 > &v1)
	Subtract corresponding elements of v0 and v1 and return the result. More...
template<typename S , typename T >
Vec3< typename promote< S, T > ::type >	openvdb::OPENVDB_VERSION_NAME::math::operator- (const Vec3< T > &v, S scalar)
	Subtract scalar from each element of the given vector and return the result. More...
template<typename T >
T	openvdb::OPENVDB_VERSION_NAME::math::angle (const Vec3< T > &v1, const Vec3< T > &v2)
template<typename T >
bool	openvdb::OPENVDB_VERSION_NAME::math::isApproxEqual (const Vec3< T > &a, const Vec3< T > &b)
template<typename T >
bool	openvdb::OPENVDB_VERSION_NAME::math::isApproxEqual (const Vec3< T > &a, const Vec3< T > &b, const Vec3< T > &eps)
template<typename T >
Vec3< T >	openvdb::OPENVDB_VERSION_NAME::math::Abs (const Vec3< T > &v)
template<typename T >
void	openvdb::OPENVDB_VERSION_NAME::math::orthonormalize (Vec3< T > &v1, Vec3< T > &v2, Vec3< T > &v3)
template<typename T >
Vec3< T >	openvdb::OPENVDB_VERSION_NAME::math::minComponent (const Vec3< T > &v1, const Vec3< T > &v2)
	Return component-wise minimum of the two vectors. More...
template<typename T >
Vec3< T >	openvdb::OPENVDB_VERSION_NAME::math::maxComponent (const Vec3< T > &v1, const Vec3< T > &v2)
	Return component-wise maximum of the two vectors. More...
template<typename T >
Vec3< T >	openvdb::OPENVDB_VERSION_NAME::math::Exp (Vec3< T > v)
	Return a vector with the exponent applied to each of the components of the input vector. More...
template<typename T >
Vec3< T >	openvdb::OPENVDB_VERSION_NAME::math::Log (Vec3< T > v)
	Return a vector with log applied to each of the components of the input vector. More...
