aov.h File Reference

#include "pxr/pxr.h"
#include "pxr/imaging/hd/api.h"
#include "pxr/imaging/hd/types.h"
#include "pxr/usd/sdf/path.h"
#include "pxr/base/gf/vec3i.h"
#include "pxr/base/tf/hashmap.h"
#include "pxr/base/vt/value.h"

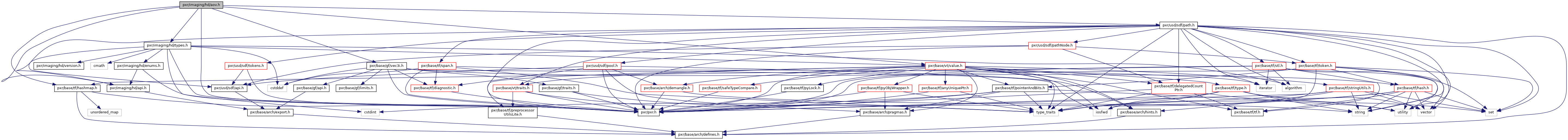

Include dependency graph for aov.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	HdAovDescriptor
struct	HdRenderBufferDescriptor
class	HdRenderPassAovBinding
class	HdParsedAovToken

Typedefs
typedef std::vector < HdAovDescriptor >	HdAovDescriptorList
typedef std::vector < HdRenderPassAovBinding >	HdRenderPassAovBindingVector
typedef std::vector < HdParsedAovToken >	HdParsedAovTokenVector

Functions
HD_API std::ostream &	operator<< (std::ostream &out, const HdRenderPassAovBinding &desc)
HD_API bool	operator== (const HdRenderPassAovBinding &lhs, const HdRenderPassAovBinding &rhs)
HD_API bool	operator!= (const HdRenderPassAovBinding &lhs, const HdRenderPassAovBinding &rhs)
HD_API size_t	hash_value (const HdRenderPassAovBinding &b)
HD_API bool	HdAovHasDepthSemantic (TfToken const &aovName)
	Returns true if the AOV is used as a depth binding based on its name. More...
HD_API bool	HdAovHasDepthStencilSemantic (TfToken const &aovName)
	Returns true if the AOV is used as a depthStencil binding based on its name. More...

Variables
PXR_NAMESPACE_OPEN_SCOPE typedef TfHashMap< TfToken, VtValue, TfToken::HashFunctor >	HdAovSettingsMap

Typedef Documentation

typedef std::vector<HdAovDescriptor> HdAovDescriptorList

Definition at line 62 of file aov.h.

typedef std::vector<HdParsedAovToken> HdParsedAovTokenVector

Definition at line 176 of file aov.h.

typedef std::vector<HdRenderPassAovBinding> HdRenderPassAovBindingVector

Definition at line 137 of file aov.h.

Function Documentation

HD_API size_t hash_value

(

const HdRenderPassAovBinding &

b

)

HD_API bool HdAovHasDepthSemantic

(

TfToken const &

aovName

)

Returns true if the AOV is used as a depth binding based on its name.

HD_API bool HdAovHasDepthStencilSemantic

(

TfToken const &

aovName

)

Returns true if the AOV is used as a depthStencil binding based on its name.

HD_API bool operator!=	(	const HdRenderPassAovBinding &	lhs,
		const HdRenderPassAovBinding &	rhs
	)

HD_API std::ostream& operator<<	(	std::ostream &	out,
		const HdRenderPassAovBinding &	desc
	)

HD_API bool operator==	(	const HdRenderPassAovBinding &	lhs,
		const HdRenderPassAovBinding &	rhs
	)

Variable Documentation

PXR_NAMESPACE_OPEN_SCOPE typedef TfHashMap<TfToken, VtValue, TfToken::HashFunctor> HdAovSettingsMap

Definition at line 21 of file aov.h.
