path.h File Reference
#include "pxr/pxr.h"
#include "pxr/usd/sdf/api.h"
#include "pxr/usd/sdf/pool.h"
#include "pxr/usd/sdf/tokens.h"
#include "pxr/base/arch/defines.h"
#include "pxr/base/tf/stl.h"
#include "pxr/base/tf/token.h"
#include "pxr/base/vt/traits.h"
#include <hboost/intrusive_ptr.hpp>
#include <algorithm>
#include <iterator>
#include <set>
#include <string>
#include <type_traits>
#include <utility>
#include <vector>
#include "pxr/usd/sdf/pathNode.h"
+ Include dependency graph for path.h:

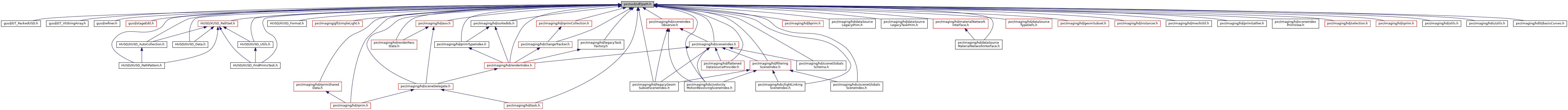

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  Sdf_PathNodeHandleImpl< Handle, Counted, PathNode >

class  SdfPath

struct  SdfPath::Hash

struct  SdfPath::FastLessThan

class  SdfPathAncestorsRange

struct  SdfPathAncestorsRange::iterator

struct  Sdf_PathIdentity


Typedefs

typedef hboost::intrusive_ptr
< const Sdf_PathNode
Sdf_PathNodeConstRefPtr

using Sdf_PathPrimPartPool = Sdf_Pool< Sdf_PathPrimTag, Sdf_SizeofPrimPathNode, 8 >

using Sdf_PathPropPartPool = Sdf_Pool< Sdf_PathPropTag, Sdf_SizeofPropPathNode, 8 >

using Sdf_PathPrimHandle = Sdf_PathPrimPartPool::Handle

using Sdf_PathPropHandle = Sdf_PathPropPartPool::Handle

using Sdf_PathPrimNodeHandle = Sdf_PathNodeHandleImpl< Sdf_PathPrimHandle, true >

using Sdf_PathPropNodeHandle = Sdf_PathNodeHandleImpl< Sdf_PathPropHandle, false >

typedef std::set< class SdfPathSdfPathSet
 A set of SdfPaths. More...

typedef std::vector< class
SdfPath
SdfPathVector
 A vector of SdfPaths. More...


Functions

void intrusive_ptr_add_ref (Sdf_PathNode const *)

void intrusive_ptr_release (Sdf_PathNode const *)

 VT_TYPE_IS_CHEAP_TO_COPY (class SdfPath)

size_t hash_value (SdfPath const &path)

SDF_API std::ostream & operator<< (std::ostream &out, const SdfPath &path)
 Writes the string representation of path to out. More...

template<class ForwardIterator , class GetPathFn = Sdf_PathIdentity>
std::pair< ForwardIterator,
ForwardIterator >
SdfPathFindPrefixedRange (ForwardIterator begin, ForwardIterator end, SdfPath const &prefix, GetPathFn const &getPath=GetPathFn())

template<class RandomAccessIterator , class GetPathFn >
RandomAccessIterator Sdf_PathFindLongestPrefixImpl (RandomAccessIterator begin, RandomAccessIterator end, SdfPath const &path, bool strictPrefix, GetPathFn const &getPath)

template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>
RandomAccessIterator SdfPathFindLongestPrefix (RandomAccessIterator begin, RandomAccessIterator end, SdfPath const &path, GetPathFn const &getPath=GetPathFn())

template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>
RandomAccessIterator SdfPathFindLongestStrictPrefix (RandomAccessIterator begin, RandomAccessIterator end, SdfPath const &path, GetPathFn const &getPath=GetPathFn())

template<class Iter , class MapParam , class GetPathFn = Sdf_PathIdentity>
Iter Sdf_PathFindLongestPrefixImpl (MapParam map, SdfPath const &path, bool strictPrefix, GetPathFn const &getPath=GetPathFn())

SDF_API std::set< SdfPath >
::const_iterator
SdfPathFindLongestPrefix (std::set< SdfPath > const &set, SdfPath const &path)

template<class T >
std::map< SdfPath, T >
::const_iterator
SdfPathFindLongestPrefix (std::map< SdfPath, T > const &map, SdfPath const &path)

template<class T >
std::map< SdfPath, T >::iterator SdfPathFindLongestPrefix (std::map< SdfPath, T > &map, SdfPath const &path)

SDF_API std::set< SdfPath >
::const_iterator
SdfPathFindLongestStrictPrefix (std::set< SdfPath > const &set, SdfPath const &path)

template<class T >
std::map< SdfPath, T >
::const_iterator
SdfPathFindLongestStrictPrefix (std::map< SdfPath, T > const &map, SdfPath const &path)

template<class T >
std::map< SdfPath, T >::iterator SdfPathFindLongestStrictPrefix (std::map< SdfPath, T > &map, SdfPath const &path)

SDF_API char const * Sdf_PathGetDebuggerPathText (SdfPath const &)


Variables

PXR_NAMESPACE_CLOSE_SCOPE PXR_NAMESPACE_OPEN_SCOPE


Typedef Documentation

typedef hboost::intrusive_ptr<const Sdf_PathNode> Sdf_PathNodeConstRefPtr

Definition at line 49 of file path.h.

Definition at line 75 of file path.h.

Definition at line 202 of file path.h.

using Sdf_PathPrimPartPool = Sdf_Pool< Sdf_PathPrimTag, Sdf_SizeofPrimPathNode, 8>

Definition at line 70 of file path.h.

Definition at line 76 of file path.h.

Definition at line 205 of file path.h.

using Sdf_PathPropPartPool = Sdf_Pool< Sdf_PathPropTag, Sdf_SizeofPropPathNode, 8>

Definition at line 73 of file path.h.

typedef std::set<class SdfPath> SdfPathSet

A set of SdfPaths.

Definition at line 209 of file path.h.

typedef std::vector<class SdfPath> SdfPathVector

A vector of SdfPaths.

Definition at line 211 of file path.h.

Function Documentation

size_t hash_value ( SdfPath const &  path)
inline

Definition at line 1134 of file path.h.

void intrusive_ptr_add_ref ( Sdf_PathNode const *  )
void intrusive_ptr_release ( Sdf_PathNode const *  )
SDF_API std::ostream& operator<< ( std::ostream &  out,
const SdfPath path
)

Writes the string representation of path to out.

template<class RandomAccessIterator , class GetPathFn >
RandomAccessIterator Sdf_PathFindLongestPrefixImpl ( RandomAccessIterator  begin,
RandomAccessIterator  end,
SdfPath const &  path,
bool  strictPrefix,
GetPathFn const &  getPath
)

Definition at line 1189 of file path.h.

template<class Iter , class MapParam , class GetPathFn = Sdf_PathIdentity>
Iter Sdf_PathFindLongestPrefixImpl ( MapParam  map,
SdfPath const &  path,
bool  strictPrefix,
GetPathFn const &  getPath = GetPathFn()
)

Definition at line 1312 of file path.h.

SDF_API char const* Sdf_PathGetDebuggerPathText ( SdfPath const &  )
template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>
RandomAccessIterator SdfPathFindLongestPrefix ( RandomAccessIterator  begin,
RandomAccessIterator  end,
SdfPath const &  path,
GetPathFn const &  getPath = GetPathFn()
)

Return an iterator to the element of [begin, end) that is the longest prefix of the given path (including the path itself), if there is such an element, otherwise end. The input range must be ordered according to SdfPath::operator<. If your range's iterators' value_types are not SdfPath, but you can obtain SdfPaths from them (e.g. vector<pair<SdfPath, X>>::iterator), you can pass a function to extract the path from the dereferenced iterator in getPath.

Definition at line 1275 of file path.h.

SDF_API std::set<SdfPath>::const_iterator SdfPathFindLongestPrefix ( std::set< SdfPath > const &  set,
SdfPath const &  path
)

Return an iterator pointing to the element of set whose key is the longest prefix of the given path (including the path itself). If there is no such element, return set.end().

template<class T >
std::map<SdfPath, T>::const_iterator SdfPathFindLongestPrefix ( std::map< SdfPath, T > const &  map,
SdfPath const &  path
)

Return an iterator pointing to the element of map whose key is the longest prefix of the given path (including the path itself). If there is no such element, return map.end().

Definition at line 1365 of file path.h.

template<class T >
std::map<SdfPath, T>::iterator SdfPathFindLongestPrefix ( std::map< SdfPath, T > &  map,
SdfPath const &  path
)

Definition at line 1374 of file path.h.

template<class RandomAccessIterator , class GetPathFn = Sdf_PathIdentity, class = typename std::enable_if< std::is_base_of< std::random_access_iterator_tag, typename std::iterator_traits< RandomAccessIterator>::iterator_category >::value >::type>
RandomAccessIterator SdfPathFindLongestStrictPrefix ( RandomAccessIterator  begin,
RandomAccessIterator  end,
SdfPath const &  path,
GetPathFn const &  getPath = GetPathFn()
)

Return an iterator to the element of [begin, end) that is the longest prefix of the given path (excluding the path itself), if there is such an element, otherwise end. The input range must be ordered according to SdfPath::operator<. If your range's iterators' value_types are not SdfPath, but you can obtain SdfPaths from them (e.g. vector<pair<SdfPath, X>>::iterator), you can pass a function to extract the path from the dereferenced iterator in getPath.

Definition at line 1301 of file path.h.

SDF_API std::set<SdfPath>::const_iterator SdfPathFindLongestStrictPrefix ( std::set< SdfPath > const &  set,
SdfPath const &  path
)

Return an iterator pointing to the element of set whose key is the longest prefix of the given path (excluding the path itself). If there is no such element, return set.end().

template<class T >
std::map<SdfPath, T>::const_iterator SdfPathFindLongestStrictPrefix ( std::map< SdfPath, T > const &  map,
SdfPath const &  path
)

Return an iterator pointing to the element of map whose key is the longest prefix of the given path (excluding the path itself). If there is no such element, return map.end().

Definition at line 1395 of file path.h.

template<class T >
std::map<SdfPath, T>::iterator SdfPathFindLongestStrictPrefix ( std::map< SdfPath, T > &  map,
SdfPath const &  path
)

Definition at line 1405 of file path.h.

template<class ForwardIterator , class GetPathFn = Sdf_PathIdentity>
std::pair<ForwardIterator, ForwardIterator> SdfPathFindPrefixedRange ( ForwardIterator  begin,
ForwardIterator  end,
SdfPath const &  prefix,
GetPathFn const &  getPath = GetPathFn()
)

Find the subrange of the sorted range [begin, end) that includes all paths prefixed by path. The input range must be ordered according to SdfPath::operator<. If your range's iterators' value_types are not SdfPath, but you can obtain SdfPaths from them (e.g. map<SdfPath, X>::iterator), you can pass a function to extract the path from the dereferenced iterator in getPath.

Definition at line 1158 of file path.h.

VT_TYPE_IS_CHEAP_TO_COPY ( class SdfPath  )

Variable Documentation

PXR_NAMESPACE_CLOSE_SCOPE PXR_NAMESPACE_OPEN_SCOPE
Examples:
LOP/XUSD_TrueAutoCollection.C, and LOP/XUSD_TrueAutoCollection.h.

Definition at line 1432 of file path.h.
