#include <pathNode.h>

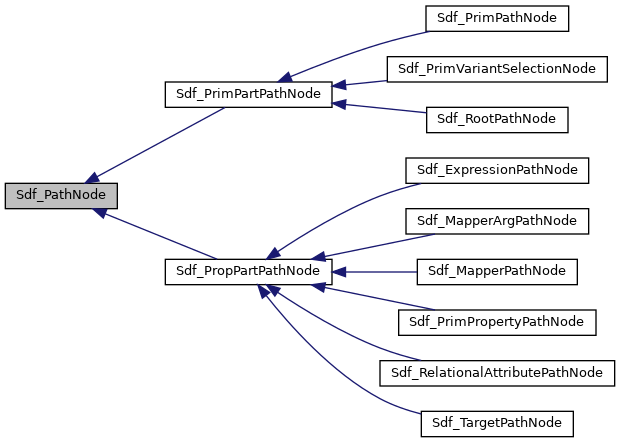

Inheritance diagram for Sdf_PathNode:

Classes
struct	_EqualElement

struct	LessThan

Public Types
enum	NodeType : uint8_t { RootNode, PrimNode, PrimVariantSelectionNode, PrimPropertyNode, TargetNode, MapperNode, RelationalAttributeNode, MapperArgNode, ExpressionNode, NumNodeTypes }

typedef std::pair< TfToken, TfToken >	VariantSelectionType

Public Member Functions
NodeType	GetNodeType () const

Sdf_PathNode const *	GetParentNode () const

size_t	GetElementCount () const

bool	IsAbsolutePath () const

bool	IsAbsoluteRoot () const

bool	ContainsTargetPath () const

bool	IsNamespaced () const

bool	ContainsPrimVariantSelection () const

const TfToken &	GetName () const

const SdfPath &	GetTargetPath () const

const VariantSelectionType &	GetVariantSelection () const

TfToken	GetElement () const

template<class Less >
bool	Compare (const Sdf_PathNode &rhs) const

uint32_t	GetCurrentRefCount () const

Static Public Member Functions
static Sdf_PathPrimNodeHandle	FindOrCreatePrim (Sdf_PathNode const *parent, const TfToken &name, TfFunctionRef< bool()> isValid)

static Sdf_PathPropNodeHandle	FindOrCreatePrimProperty (Sdf_PathNode const *parent, const TfToken &name, TfFunctionRef< bool()> isValid)

static Sdf_PathPrimNodeHandle	FindOrCreatePrimVariantSelection (Sdf_PathNode const *parent, const TfToken &variantSet, const TfToken &variant, TfFunctionRef< bool()> isValid)

static Sdf_PathPropNodeHandle	FindOrCreateTarget (Sdf_PathNode const *parent, SdfPath const &targetPath, TfFunctionRef< bool()> isValid)

static Sdf_PathPropNodeHandle	FindOrCreateRelationalAttribute (Sdf_PathNode const *parent, const TfToken &name, TfFunctionRef< bool()> isValid)

static Sdf_PathPropNodeHandle	FindOrCreateMapper (Sdf_PathNode const *parent, SdfPath const &targetPath, TfFunctionRef< bool()> isValid)

static Sdf_PathPropNodeHandle	FindOrCreateMapperArg (Sdf_PathNode const *parent, const TfToken &name, TfFunctionRef< bool()> isValid)

static Sdf_PathPropNodeHandle	FindOrCreateExpression (Sdf_PathNode const *parent, TfFunctionRef< bool()> isValid)

static Sdf_PathNode const *	GetAbsoluteRootNode ()

static Sdf_PathNode const *	GetRelativeRootNode ()

static std::pair< Sdf_PathNode const , Sdf_PathNode const >	RemoveCommonSuffix (Sdf_PathNode const a, Sdf_PathNode const b, bool stopAtRootPrim)

static SDF_API const TfToken &	GetPathToken (Sdf_PathNode const primPart, Sdf_PathNode const propPart)

static SDF_API TfToken	GetPathAsToken (Sdf_PathNode const primPart, Sdf_PathNode const propPart)

static char const *	GetDebugText (Sdf_PathNode const primPart, Sdf_PathNode const propPart)

Static Public Attributes
static constexpr uint8_t	IsAbsoluteFlag = 1 << 0

static constexpr uint8_t	ContainsPrimVarSelFlag = 1 << 1

static constexpr uint8_t	ContainsTargetPathFlag = 1 << 2

static constexpr uint32_t	HasTokenBit = 1u << 31

static constexpr uint32_t	RefCountMask = ~HasTokenBit

Protected Member Functions
	Sdf_PathNode (Sdf_PathNode const *parent, NodeType nodeType)

	Sdf_PathNode (bool isAbsolute)

	~Sdf_PathNode ()

void	_Destroy () const

TfToken	_GetElementImpl () const

template<class Buffer >
void	_WriteText (Buffer &out) const

SDF_API void	_RemovePathTokenFromTable () const

Static Protected Member Functions
static TfToken	_CreatePathToken (Sdf_PathNode const primPart, Sdf_PathNode const propPart)

template<class Buffer >
static void	_WriteTextToBuffer (Sdf_PathNode const primPart, Sdf_PathNode const propPart, Buffer &out)

template<class Buffer >
static void	_WriteTextToBuffer (SdfPath const &path, Buffer &out)

Friends
struct	Sdf_PathNodePrivateAccess

void	TfDelegatedCountIncrement (const Sdf_PathNode *) noexcept

void	TfDelegatedCountDecrement (const Sdf_PathNode *) noexcept

Detailed Description

Definition at line 41 of file pathNode.h.

Member Typedef Documentation

typedef std::pair<TfToken, TfToken> Sdf_PathNode::VariantSelectionType

Definition at line 191 of file pathNode.h.

Member Enumeration Documentation

enum Sdf_PathNode::NodeType : uint8_t

Enumerator
RootNode
PrimNode
PrimVariantSelectionNode
PrimPropertyNode
TargetNode
MapperNode
RelationalAttributeNode
MapperArgNode
ExpressionNode
NumNodeTypes	Internal sentinel value.

Definition at line 56 of file pathNode.h.

Constructor & Destructor Documentation

Sdf_PathNode::Sdf_PathNode	(	Sdf_PathNode const *	parent,
		NodeType	nodeType
	)

inlineprotected

Definition at line 229 of file pathNode.h.

Sdf_PathNode::Sdf_PathNode ( bool isAbsolute )

explicitprotected

Sdf_PathNode::~Sdf_PathNode ( )

inlineprotected

Definition at line 242 of file pathNode.h.

Member Function Documentation

static TfToken Sdf_PathNode::_CreatePathToken	(	Sdf_PathNode const *	primPart,
		Sdf_PathNode const *	propPart
	)

staticprotected

void Sdf_PathNode::_Destroy ( ) const

inlineprotected

Definition at line 652 of file pathNode.h.

TfToken Sdf_PathNode::_GetElementImpl ( ) const

protected

SDF_API void Sdf_PathNode::_RemovePathTokenFromTable ( ) const

protected

template<class Buffer >

void Sdf_PathNode::_WriteText ( Buffer & out ) const

protected

template<class Buffer >

static void Sdf_PathNode::_WriteTextToBuffer	(	Sdf_PathNode const *	primPart,
		Sdf_PathNode const *	propPart,
		Buffer &	out
	)

staticprotected

template<class Buffer >

static void Sdf_PathNode::_WriteTextToBuffer	(	SdfPath const &	path,
		Buffer &	out
	)

staticprotected

template<class Comp >

bool Sdf_PathNode::Compare ( const Sdf_PathNode & rhs ) const

inline

Definition at line 601 of file pathNode.h.

bool Sdf_PathNode::ContainsPrimVariantSelection ( ) const

inline

Definition at line 177 of file pathNode.h.

bool Sdf_PathNode::ContainsTargetPath ( ) const

inline

Definition at line 167 of file pathNode.h.

static Sdf_PathPropNodeHandle Sdf_PathNode::FindOrCreateExpression	(	Sdf_PathNode const *	parent,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathPropNodeHandle Sdf_PathNode::FindOrCreateMapper	(	Sdf_PathNode const *	parent,
		SdfPath const &	targetPath,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathPropNodeHandle Sdf_PathNode::FindOrCreateMapperArg	(	Sdf_PathNode const *	parent,
		const TfToken &	name,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathPrimNodeHandle Sdf_PathNode::FindOrCreatePrim	(	Sdf_PathNode const *	parent,
		const TfToken &	name,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathPropNodeHandle Sdf_PathNode::FindOrCreatePrimProperty	(	Sdf_PathNode const *	parent,
		const TfToken &	name,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathPrimNodeHandle Sdf_PathNode::FindOrCreatePrimVariantSelection	(	Sdf_PathNode const *	parent,
		const TfToken &	variantSet,
		const TfToken &	variant,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathPropNodeHandle Sdf_PathNode::FindOrCreateRelationalAttribute	(	Sdf_PathNode const *	parent,
		const TfToken &	name,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathPropNodeHandle Sdf_PathNode::FindOrCreateTarget	(	Sdf_PathNode const *	parent,
		SdfPath const &	targetPath,
		TfFunctionRef< bool()>	isValid
	)

static

static Sdf_PathNode const* Sdf_PathNode::GetAbsoluteRootNode ( )

static

uint32_t Sdf_PathNode::GetCurrentRefCount ( ) const

inline

Definition at line 224 of file pathNode.h.

static char const* Sdf_PathNode::GetDebugText	(	Sdf_PathNode const *	primPart,
		Sdf_PathNode const *	propPart
	)

static

TfToken Sdf_PathNode::GetElement ( ) const

inline

Definition at line 726 of file pathNode.h.

size_t Sdf_PathNode::GetElementCount ( ) const

inline

Definition at line 164 of file pathNode.h.

const TfToken & Sdf_PathNode::GetName ( ) const

inline

Definition at line 680 of file pathNode.h.

NodeType Sdf_PathNode::GetNodeType ( ) const

inline

Definition at line 154 of file pathNode.h.

Sdf_PathNode const* Sdf_PathNode::GetParentNode ( ) const

inline

Definition at line 162 of file pathNode.h.

static SDF_API TfToken Sdf_PathNode::GetPathAsToken	(	Sdf_PathNode const *	primPart,
		Sdf_PathNode const *	propPart
	)

static

static SDF_API const TfToken& Sdf_PathNode::GetPathToken	(	Sdf_PathNode const *	primPart,
		Sdf_PathNode const *	propPart
	)

static

static Sdf_PathNode const* Sdf_PathNode::GetRelativeRootNode ( )

static

const SdfPath & Sdf_PathNode::GetTargetPath ( ) const

inline

Definition at line 704 of file pathNode.h.

const Sdf_PathNode::VariantSelectionType & Sdf_PathNode::GetVariantSelection ( ) const

inline

Definition at line 717 of file pathNode.h.

bool Sdf_PathNode::IsAbsolutePath ( ) const

inline

Definition at line 165 of file pathNode.h.

bool Sdf_PathNode::IsAbsoluteRoot ( ) const

inline

Definition at line 166 of file pathNode.h.

bool Sdf_PathNode::IsNamespaced ( ) const

inline

Definition at line 170 of file pathNode.h.

static std::pair<Sdf_PathNode const , Sdf_PathNode const > Sdf_PathNode::RemoveCommonSuffix	(	Sdf_PathNode const *	a,
		Sdf_PathNode const *	b,
		bool	stopAtRootPrim
	)

static

Friends And Related Function Documentation

friend struct Sdf_PathNodePrivateAccess

friend

Definition at line 281 of file pathNode.h.

void TfDelegatedCountDecrement ( const Sdf_PathNode * )

friend

void TfDelegatedCountIncrement ( const Sdf_PathNode * )

friend

Member Data Documentation

constexpr uint8_t Sdf_PathNode::ContainsPrimVarSelFlag = 1 << 1

static

Definition at line 47 of file pathNode.h.

constexpr uint8_t Sdf_PathNode::ContainsTargetPathFlag = 1 << 2

static

Definition at line 48 of file pathNode.h.

constexpr uint32_t Sdf_PathNode::HasTokenBit = 1u << 31

static

Definition at line 50 of file pathNode.h.

constexpr uint8_t Sdf_PathNode::IsAbsoluteFlag = 1 << 0

static

Definition at line 46 of file pathNode.h.

constexpr uint32_t Sdf_PathNode::RefCountMask = ~HasTokenBit

static

Definition at line 51 of file pathNode.h.

The documentation for this class was generated from the following file:

pxr/usd/sdf/pathNode.h
