Executes a VdfNetwork to compute a requested set of values. Caches the computed data in a EfPageCacheStorage container and recalls existing data using a page specified via the currently set value on the key output. More...

#include <pageCacheBasedExecutor.h>

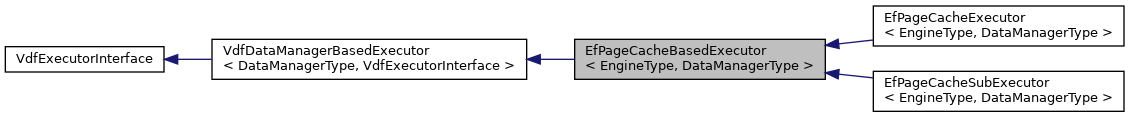

Inheritance diagram for EfPageCacheBasedExecutor< EngineType, DataManagerType >:

Public Member Functions
	EfPageCacheBasedExecutor (EfPageCacheStorage *cacheStorage)

virtual	~EfPageCacheBasedExecutor ()

virtual void	SetOutputValue (const VdfOutput &output, const VdfVector &value, const VdfMask &mask) override

void	WillDeleteNode (const VdfNode &node)

Public Member Functions inherited from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >
	VdfDataManagerBasedExecutor ()

	VdfDataManagerBasedExecutor (const VdfExecutorInterface *parentExecutor)

virtual	~VdfDataManagerBasedExecutor ()

virtual void	Resize (const VdfNetwork &network) override

virtual bool	TakeOutputValue (const VdfOutput &output, VdfVector *value, const VdfMask &mask) override

virtual void	DuplicateOutputData (const VdfOutput &sourceOutput, const VdfOutput &destOutput) override

virtual bool	IsEmpty () const override

virtual bool	HasInvalidationTimestampMismatch (const VdfOutput &source, const VdfOutput &dest) const override

Public Member Functions inherited from VdfExecutorInterface
	VdfExecutorInterface (const VdfExecutorInterface &)=delete

VdfExecutorInterface &	operator= (const VdfExecutorInterface &)=delete

virtual VDF_API	~VdfExecutorInterface ()

VDF_API void	Run (const VdfSchedule &schedule, VdfExecutorErrorLogger *errorLogger=NULL)

VDF_API void	Run (const VdfSchedule &schedule, const VdfRequest &computeRequest, VdfExecutorErrorLogger *errorLogger=NULL)

virtual const VdfExecutorFactoryBase &	GetFactory () const =0

VDF_API void	RegisterObserver (const VdfExecutorObserver *observer) const

VDF_API void	UnregisterObserver (const VdfExecutorObserver *observer) const

const VdfVector *	GetOutputValue (const VdfOutput &output, const VdfMask &mask) const

const VdfExecutorInterface *	GetParentExecutor () const

VDF_API void	SetParentExecutor (const VdfExecutorInterface *parentExecutor)

VDF_API void	InvalidateValues (const VdfMaskedOutputVector &invalidationRequest)

VDF_API void	InvalidateTopologicalState ()

VDF_API void	ClearData ()

VDF_API void	ClearDataForOutput (const VdfId outputId, const VdfId nodeId)

void	IncrementExecutorInvalidationTimestamp ()

void	InheritExecutorInvalidationTimestamp (const VdfExecutorInterface &executor)

VdfInvalidationTimestamp	GetExecutorInvalidationTimestamp () const

void	SetInterruptionFlag (const std::atomic_bool *interruptionFlag)

const std::atomic_bool *	GetInterruptionFlag () const

bool	HasBeenInterrupted () const

void	SetExecutionStats (VdfExecutionStats *stats)

VdfExecutionStats *	GetExecutionStats () const

Protected Member Functions
virtual const VdfVector *	_GetInputValue (const VdfConnection &connection, const VdfMask &mask) const override

virtual const VdfVector *	_GetOutputValueForReading (const VdfOutput &output, const VdfMask &mask) const override

virtual void	_ClearData () override

Protected Member Functions inherited from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >
virtual VdfVector *	_GetOutputValueForWriting (const VdfOutput &output) const override

void	_ClearDataForOutput (const VdfId outputId, const VdfId nodeId) override

virtual bool	_IsOutputInvalid (const VdfId outputId, const VdfMask &invalidationMask) const override

virtual void	_UpdateInvalidationTimestamp () override

virtual void	_SetReferenceOutputValue (const VdfOutput &destOutput, const VdfOutput &sourceOutput, const VdfMask &sourceMask) const override

virtual void	_TouchOutput (const VdfOutput &output) const override

Protected Member Functions inherited from VdfExecutorInterface
VDF_API	VdfExecutorInterface ()

VDF_API	VdfExecutorInterface (const VdfExecutorInterface *parentExecutor)

Additional Inherited Members
Protected Attributes inherited from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >
DataManagerType	_dataManager

Detailed Description

template<template< typename > class EngineType, typename DataManagerType>
class EfPageCacheBasedExecutor< EngineType, DataManagerType >

Executes a VdfNetwork to compute a requested set of values. Caches the computed data in a EfPageCacheStorage container and recalls existing data using a page specified via the currently set value on the key output.

Definition at line 43 of file pageCacheBasedExecutor.h.

Constructor & Destructor Documentation

template<template< typename > class EngineType, typename DataManagerType >

EfPageCacheBasedExecutor< EngineType, DataManagerType >::EfPageCacheBasedExecutor ( EfPageCacheStorage * cacheStorage )

inline

Constructor.

Definition at line 53 of file pageCacheBasedExecutor.h.

template<template< typename > class EngineType, typename DataManagerType >

virtual EfPageCacheBasedExecutor< EngineType, DataManagerType >::~EfPageCacheBasedExecutor ( )

inlinevirtual

Destructor.

Definition at line 65 of file pageCacheBasedExecutor.h.

Member Function Documentation

template<template< typename > class EngineType, typename DataManagerType >

void EfPageCacheBasedExecutor< EngineType, DataManagerType >::_ClearData ( )

overrideprotectedvirtual

Virtual implementation of the ClearData call. This may be overridden by classes, which derive from VdfExecutorInterface.

Reimplemented from VdfExecutorInterface.

Definition at line 409 of file pageCacheBasedExecutor.h.

template<template< typename > class EngineType, typename DataManagerType >

const VdfVector * EfPageCacheBasedExecutor< EngineType, DataManagerType >::_GetInputValue	(	const VdfConnection &	connection,
		const VdfMask &	mask
	)		const

overrideprotectedvirtual

Returns value for the cache that flows across connection.

Reimplemented from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >.

Definition at line 175 of file pageCacheBasedExecutor.h.

template<template< typename > class EngineType, typename DataManagerType >

const VdfVector * EfPageCacheBasedExecutor< EngineType, DataManagerType >::_GetOutputValueForReading	(	const VdfOutput &	output,
		const VdfMask &	mask
	)		const

overrideprotectedvirtual

Returns an output value for reading.

Reimplemented from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >.

Definition at line 196 of file pageCacheBasedExecutor.h.

template<template< typename > class EngineType, typename DataManagerType >

void EfPageCacheBasedExecutor< EngineType, DataManagerType >::SetOutputValue	(	const VdfOutput &	output,
		const VdfVector &	value,
		const VdfMask &	mask
	)

overridevirtual

Set an output value.

Changes the currently selected page in the page cache, if output is a key output in the EfPageCacheStorage container.

Reimplemented from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >.

Definition at line 147 of file pageCacheBasedExecutor.h.

template<template< typename > class EngineType, typename DataManagerType >

void EfPageCacheBasedExecutor< EngineType, DataManagerType >::WillDeleteNode ( const VdfNode & node )

Removes any internal references to node upon deleting the node from the VdfNetwork.

Definition at line 166 of file pageCacheBasedExecutor.h.

The documentation for this class was generated from the following file:

pxr/exec/ef/pageCacheBasedExecutor.h
