Abstract base class for classes that execute a VdfNetwork to compute a requested set of values. More...

#include <executorInterface.h>

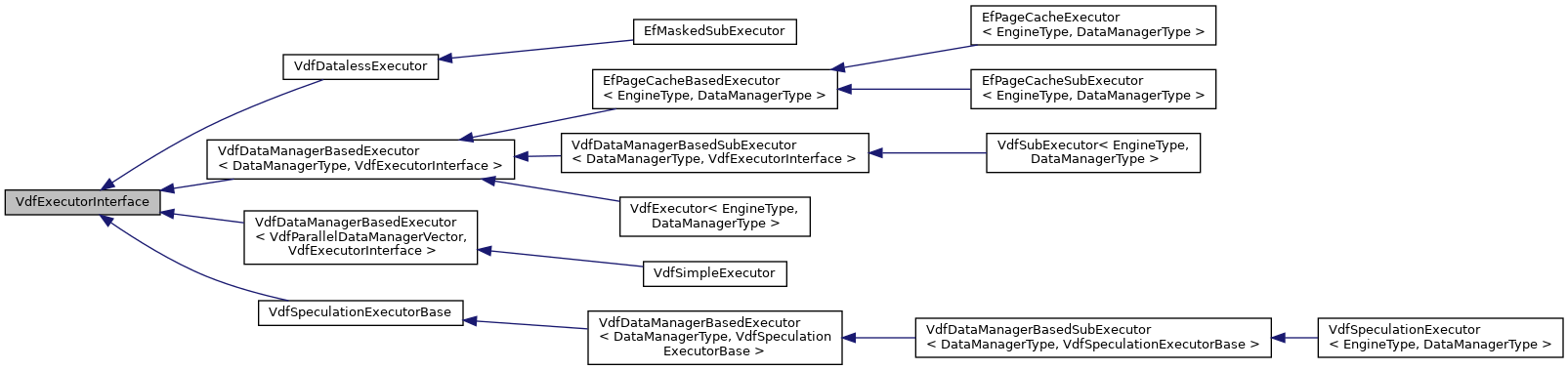

Inheritance diagram for VdfExecutorInterface:

Public Member Functions
	VdfExecutorInterface (const VdfExecutorInterface &)=delete

VdfExecutorInterface &	operator= (const VdfExecutorInterface &)=delete

virtual VDF_API	~VdfExecutorInterface ()

Evaluation
VDF_API void	Run (const VdfSchedule &schedule, VdfExecutorErrorLogger *errorLogger=NULL)

VDF_API void	Run (const VdfSchedule &schedule, const VdfRequest &computeRequest, VdfExecutorErrorLogger *errorLogger=NULL)

Factory Construction
virtual const VdfExecutorFactoryBase &	GetFactory () const =0

Executor Observer Notification
VDF_API void	RegisterObserver (const VdfExecutorObserver *observer) const

VDF_API void	UnregisterObserver (const VdfExecutorObserver *observer) const

Cache Management
virtual void	Resize (const VdfNetwork &network)

virtual void	SetOutputValue (const VdfOutput &output, const VdfVector &value, const VdfMask &mask)=0

virtual bool	TakeOutputValue (const VdfOutput &output, VdfVector *value, const VdfMask &mask)=0

const VdfVector *	GetOutputValue (const VdfOutput &output, const VdfMask &mask) const

virtual void	DuplicateOutputData (const VdfOutput &sourceOutput, const VdfOutput &destOutput)=0

Executor Hierarchy Management
const VdfExecutorInterface *	GetParentExecutor () const

VDF_API void	SetParentExecutor (const VdfExecutorInterface *parentExecutor)

Invalidation
VDF_API void	InvalidateValues (const VdfMaskedOutputVector &invalidationRequest)

VDF_API void	InvalidateTopologicalState ()

VDF_API void	ClearData ()

VDF_API void	ClearDataForOutput (const VdfId outputId, const VdfId nodeId)

virtual bool	IsEmpty () const =0

Mung Buffer Locking Invalidation Timestamps
void	IncrementExecutorInvalidationTimestamp ()

void	InheritExecutorInvalidationTimestamp (const VdfExecutorInterface &executor)

VdfInvalidationTimestamp	GetExecutorInvalidationTimestamp () const

virtual bool	HasInvalidationTimestampMismatch (const VdfOutput &source, const VdfOutput &dest) const =0

Executor Interruption
void	SetInterruptionFlag (const std::atomic_bool *interruptionFlag)

const std::atomic_bool *	GetInterruptionFlag () const

bool	HasBeenInterrupted () const

Diagnostic Support
void	SetExecutionStats (VdfExecutionStats *stats)

VdfExecutionStats *	GetExecutionStats () const

Protected Member Functions
VDF_API	VdfExecutorInterface ()

VDF_API	VdfExecutorInterface (const VdfExecutorInterface *parentExecutor)

virtual void	_Run (const VdfSchedule &schedule, const VdfRequest &computeRequest, VdfExecutorErrorLogger *errorLogger)=0

virtual const VdfVector *	_GetInputValue (const VdfConnection &connection, const VdfMask &mask) const =0

virtual const VdfVector *	_GetOutputValueForReading (const VdfOutput &output, const VdfMask &mask) const =0

virtual VdfVector *	_GetOutputValueForWriting (const VdfOutput &output) const =0

virtual bool	_IsOutputInvalid (const VdfId outputId, const VdfMask &invalidationMask) const =0

virtual bool	_InvalidateOutput (const VdfOutput &output, const VdfMask &invalidationMask)=0

virtual bool	_PreProcessInvalidation (const VdfMaskedOutputVector &invalidationRequest, VdfMaskedOutputVector *processedRequest)

virtual void	_UpdateInvalidationTimestamp ()=0

virtual VDF_API void	_ClearData ()

virtual VDF_API void	_ClearDataForOutput (const VdfId outputId, const VdfId nodeId)

virtual void	_SetReferenceOutputValue (const VdfOutput &destOutput, const VdfOutput &sourceOutput, const VdfMask &sourceMask) const =0

virtual void	_TouchOutput (const VdfOutput &output) const =0

Friends
class	VdfContext

class	VdfIterator

class	VdfSpeculationNode

template<template< typename > class E, class D >
class	VdfSpeculationExecutor

template<class T >
class	VdfSpeculationExecutorEngine

template<class T >
class	VdfPullBasedExecutorEngine

template<class T >
class	VdfParallelSpeculationExecutorEngine

class	VdfExecutorInvalidator

Detailed Description

Abstract base class for classes that execute a VdfNetwork to compute a requested set of values.

Definition at line 44 of file executorInterface.h.

Constructor & Destructor Documentation

VdfExecutorInterface::VdfExecutorInterface ( const VdfExecutorInterface & )

delete

Noncopyable.

virtual VDF_API VdfExecutorInterface::~VdfExecutorInterface ( )

virtual

Destructor.

VDF_API VdfExecutorInterface::VdfExecutorInterface ( )

protected

Protected default constructor.

VDF_API VdfExecutorInterface::VdfExecutorInterface ( const VdfExecutorInterface * parentExecutor )

explicitprotected

Construct with a parent executor.

Member Function Documentation

virtual VDF_API void VdfExecutorInterface::_ClearData ( )

protectedvirtual

Virtual implementation of the ClearData call. This may be overridden by classes, which derive from VdfExecutorInterface.

Reimplemented in EfMaskedSubExecutor, VdfDatalessExecutor, and EfPageCacheBasedExecutor< EngineType, DataManagerType >.

virtual VDF_API void VdfExecutorInterface::_ClearDataForOutput	(	const VdfId	outputId,
		const VdfId	nodeId
	)

protectedvirtual

Virtual implementation of the ClearDataForOutput call. This may be overridden by classes, which derive from VdfExecutorInterface.

Reimplemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

virtual const VdfVector* VdfExecutorInterface::_GetInputValue	(	const VdfConnection &	connection,
		const VdfMask &	mask
	)		const

protectedpure virtual

Returns a value for the cache that flows across connection.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, EfPageCacheBasedExecutor< EngineType, DataManagerType >, VdfDatalessExecutor, VdfDataManagerBasedSubExecutor< DataManagerType, VdfExecutorInterface >, and VdfDataManagerBasedSubExecutor< DataManagerType, VdfSpeculationExecutorBase >.

virtual const VdfVector* VdfExecutorInterface::_GetOutputValueForReading	(	const VdfOutput &	output,
		const VdfMask &	mask
	)		const

protectedpure virtual

Returns an output value for reading.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, EfPageCacheBasedExecutor< EngineType, DataManagerType >, VdfDatalessExecutor, VdfDataManagerBasedSubExecutor< DataManagerType, VdfExecutorInterface >, and VdfDataManagerBasedSubExecutor< DataManagerType, VdfSpeculationExecutorBase >.

virtual VdfVector* VdfExecutorInterface::_GetOutputValueForWriting ( const VdfOutput & output ) const

protectedpure virtual

Returns an output value for writing.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

virtual bool VdfExecutorInterface::_InvalidateOutput	(	const VdfOutput &	output,
		const VdfMask &	invalidationMask
	)

protectedpure virtual

Called during invalidation to mark outputs as invalid and determine when the traversal can terminate early.

Returns true if there was anything to invalidate and false if output was already invalid.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and EfMaskedSubExecutor.

virtual bool VdfExecutorInterface::_IsOutputInvalid	(	const VdfId	outputId,
		const VdfMask &	invalidationMask
	)		const

protectedpure virtual

Returns true if the output is already invalid for the given invalidationMask.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, and VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >.

virtual bool VdfExecutorInterface::_PreProcessInvalidation	(	const VdfMaskedOutputVector &	invalidationRequest,
		VdfMaskedOutputVector *	processedRequest
	)

inlineprotectedvirtual

This method is called as a pre-processing step before an InvalidateValues() call. The method will return true if processedRequest is to override the originally supplied invalidationRequest for executor invalidation.

Definition at line 361 of file executorInterface.h.

virtual void VdfExecutorInterface::_Run	(	const VdfSchedule &	schedule,
		const VdfRequest &	computeRequest,
		VdfExecutorErrorLogger *	errorLogger
	)

protectedpure virtual

Run this executor with the given schedule and request.

Implemented in VdfSubExecutor< EngineType, DataManagerType >, and VdfSimpleExecutor.

virtual void VdfExecutorInterface::_SetReferenceOutputValue	(	const VdfOutput &	destOutput,
		const VdfOutput &	sourceOutput,
		const VdfMask &	sourceMask
	)		const

protectedpure virtual

Called to set destOutput's buffer output to be a reference to the buffer output of sourceOutput.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

virtual void VdfExecutorInterface::_TouchOutput ( const VdfOutput & output ) const

protectedpure virtual

Mark the output as having been visited. This is only to be used by the speculation engine to tell its parent executor that an output has been visited and should be marked for invalidation.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

virtual void VdfExecutorInterface::_UpdateInvalidationTimestamp ( )

protectedpure virtual

Called before invalidation begins to update the timestamp that will be written for every VdfOutput visited during invalidation. This timestamp is later used to identify outputs for mung buffer locking.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

VDF_API void VdfExecutorInterface::ClearData ( )

Clears the executors buffers

VDF_API void VdfExecutorInterface::ClearDataForOutput	(	const VdfId	outputId,
		const VdfId	nodeId
	)

Clears the executor buffers for a specific output

virtual void VdfExecutorInterface::DuplicateOutputData	(	const VdfOutput &	sourceOutput,
		const VdfOutput &	destOutput
	)

pure virtual

Duplicates the output data associated with sourceOutput and copies it to destOutput.

Implemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and EfMaskedSubExecutor.

VdfExecutionStats* VdfExecutorInterface::GetExecutionStats ( ) const

inline

Returns the Execution Stats object, if any.

Definition at line 296 of file executorInterface.h.

VdfInvalidationTimestamp VdfExecutorInterface::GetExecutorInvalidationTimestamp ( ) const

inline

Returns this executor's invalidation timestamp

Definition at line 241 of file executorInterface.h.

virtual const VdfExecutorFactoryBase& VdfExecutorInterface::GetFactory ( ) const

pure virtual

Returns a factory class facilitating the construction of new executors that share traits with this executor instance.

Implemented in VdfSpeculationExecutor< EngineType, DataManagerType >, VdfSubExecutor< EngineType, DataManagerType >, EfPageCacheSubExecutor< EngineType, DataManagerType >, VdfExecutor< EngineType, DataManagerType >, EfMaskedSubExecutor, EfPageCacheExecutor< EngineType, DataManagerType >, and VdfSimpleExecutor.

const std::atomic_bool* VdfExecutorInterface::GetInterruptionFlag ( ) const

inline

Returns the interruption flag

Definition at line 267 of file executorInterface.h.

const VdfVector* VdfExecutorInterface::GetOutputValue	(	const VdfOutput &	output,
		const VdfMask &	mask
	)		const

inline

Returns the cached value for a given output if it has a cache that contains all values specified by mask. Otherwise, returns NULL.

Definition at line 141 of file executorInterface.h.

const VdfExecutorInterface* VdfExecutorInterface::GetParentExecutor ( ) const

inline

Returns the parent executor, if any.

Definition at line 162 of file executorInterface.h.

bool VdfExecutorInterface::HasBeenInterrupted ( ) const

inline

Returns whether or not the executor has been interrupted, if the executor supports interruption. If interruption is not supported, i.e. no interruption flag has been set, this will always return false.

Definition at line 275 of file executorInterface.h.

virtual bool VdfExecutorInterface::HasInvalidationTimestampMismatch	(	const VdfOutput &	source,
		const VdfOutput &	dest
	)		const

pure virtual

Returns true, if the invalidation timestamps between the source and dest outputs do not match, i.e. the source output should be mung buffer locked.

Implemented in EfMaskedSubExecutor, VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, and VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >.

void VdfExecutorInterface::IncrementExecutorInvalidationTimestamp ( )

inline

Increment this executor's invalidation timestamp for mung buffer locking.

Definition at line 228 of file executorInterface.h.

void VdfExecutorInterface::InheritExecutorInvalidationTimestamp ( const VdfExecutorInterface & executor )

inline

Inherit the invalidation timestamp from another executor.

Definition at line 234 of file executorInterface.h.

VDF_API void VdfExecutorInterface::InvalidateTopologicalState ( )

Invalidate all state depending on network topology. This must be called after changes to the network have been made.

XXX:exec I believe that we should not have this kind of API exposed. Clients should not have to know about the internal state kept in the executors. This is very similiar to schedules and perhaps should be treated like schedules by being registered with the networks that they depend on. A generalized mechanism in VdfNetwork might be nice.

VDF_API void VdfExecutorInterface::InvalidateValues ( const VdfMaskedOutputVector & invalidationRequest )

Invalidates the network, starting from the masked outputs in request.

Performs an optimized vectorized traversal.

virtual bool VdfExecutorInterface::IsEmpty ( ) const

pure virtual

Returns true if the executor buffers are empty.

Implemented in EfMaskedSubExecutor, VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

VdfExecutorInterface& VdfExecutorInterface::operator= ( const VdfExecutorInterface & )

delete

VDF_API void VdfExecutorInterface::RegisterObserver ( const VdfExecutorObserver * observer ) const

Can be called by clients to register a VdfExecutorObserver with this executor.

virtual void VdfExecutorInterface::Resize ( const VdfNetwork & network )

inlinevirtual

Resize the executor to accomodate data for the given network.

Reimplemented in VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, and VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >.

Definition at line 117 of file executorInterface.h.

VDF_API void VdfExecutorInterface::Run	(	const VdfSchedule &	schedule,
		VdfExecutorErrorLogger *	errorLogger = `NULL`
	)

Executes the schedule.

VDF_API void VdfExecutorInterface::Run	(	const VdfSchedule &	schedule,
		const VdfRequest &	computeRequest,
		VdfExecutorErrorLogger *	errorLogger = `NULL`
	)

Executes the schedule.

computeRequest must be a subset of the scheduled request. If the full, scheduled request should be computed, then computeRequest should be set to schedule.GetRequest().

void VdfExecutorInterface::SetExecutionStats ( VdfExecutionStats * stats )

inline

Sets an execution stats object.

When stats is not NULL, then execution statistics will be gathered into the object. When NULL, execution statistics will not be gathered.

Definition at line 290 of file executorInterface.h.

void VdfExecutorInterface::SetInterruptionFlag ( const std::atomic_bool * interruptionFlag )

inline

Set the interruption flag.

Definition at line 261 of file executorInterface.h.

virtual void VdfExecutorInterface::SetOutputValue	(	const VdfOutput &	output,
		const VdfVector &	value,
		const VdfMask &	mask
	)

pure virtual

Sets the cached value for a given output.

Implemented in VdfSpeculationExecutor< EngineType, DataManagerType >, EfPageCacheBasedExecutor< EngineType, DataManagerType >, VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

VDF_API void VdfExecutorInterface::SetParentExecutor ( const VdfExecutorInterface * parentExecutor )

Sets the parent executor.

This method also inherits the execution stats from the parent executor, unless the executor already has its execution stats set.

XXX: We need to get rid of this public API, since most executors do not support changing out the parent executor after construction.

virtual bool VdfExecutorInterface::TakeOutputValue	(	const VdfOutput &	output,
		VdfVector *	value,
		const VdfMask &	mask
	)

pure virtual

Transfers ownership of the value to the given output. Returns true if the transfer of ownership was successful. If the transfer of ownership was successful, the executor assumes responsibility for the lifetime of value. Otherwise, the call site maintains this responsibility.

Implemented in VdfSpeculationExecutor< EngineType, DataManagerType >, VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >, VdfDataManagerBasedExecutor< DataManagerType, VdfSpeculationExecutorBase >, VdfDataManagerBasedExecutor< VdfParallelDataManagerVector, VdfExecutorInterface >, and VdfDatalessExecutor.

VDF_API void VdfExecutorInterface::UnregisterObserver ( const VdfExecutorObserver * observer ) const

Must be called by clients to unregister a VdfExecutorObserver, which has been previously registered with RegisterObserver().
