GeomElement Class Reference

#include <Geom.h>

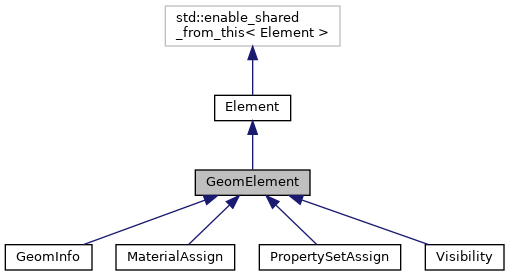

+ Inheritance diagram for GeomElement:

Public Member Functions

virtual ~GeomElement ()

Geometry
void setGeom (const string &geom)
 Set the geometry string of this element. More...

bool hasGeom () const
 Return true if this element has a geometry string. More...

const stringgetGeom () const
 Return the geometry string of this element. More...

string getActiveGeom () const

Collection
void setCollectionString (const string &collection)
 Set the collection string of this element. More...

bool hasCollectionString () const
 Return true if this element has a collection string. More...

const stringgetCollectionString () const
 Return the collection string of this element. More...

void setCollection (ConstCollectionPtr collection)
 Assign a Collection to this element. More...

CollectionPtr getCollection () const
 Return the Collection that is assigned to this element. More...

Validation
bool validate (string *message=nullptr) const override

- Public Member Functions inherited from Element
virtual ~Element ()

 Element (const Element &)=delete

Elementoperator= (const Element &)=delete

bool operator== (const Element &rhs) const

bool operator!= (const Element &rhs) const

void setCategory (const string &category)
 Set the element's category string. More...

const stringgetCategory () const

void setName (const string &name)

const stringgetName () const
 Return the element's name string. More...

string getNamePath (ConstElementPtr relativeTo=nullptr) const

ElementPtr getDescendant (const string &namePath) const

void setFilePrefix (const string &prefix)
 Set the element's file prefix string. More...

bool hasFilePrefix () const
 Return true if the given element has a file prefix string. More...

const stringgetFilePrefix () const
 Return the element's file prefix string. More...

const stringgetActiveFilePrefix () const

void setGeomPrefix (const string &prefix)
 Set the element's geom prefix string. More...

bool hasGeomPrefix () const
 Return true if the given element has a geom prefix string. More...

const stringgetGeomPrefix () const
 Return the element's geom prefix string. More...

const stringgetActiveGeomPrefix () const

void setColorSpace (const string &colorSpace)
 Set the element's color space string. More...

bool hasColorSpace () const
 Return true if the given element has a color space string. More...

const stringgetColorSpace () const
 Return the element's color space string. More...

const stringgetActiveColorSpace () const

void setInheritString (const string &inherit)
 Set the inherit string of this element. More...

bool hasInheritString () const
 Return true if this element has an inherit string. More...

const stringgetInheritString () const
 Return the inherit string of this element. More...

void setInheritsFrom (ConstElementPtr super)
 Set the element that this one directly inherits from. More...

ElementPtr getInheritsFrom () const
 Return the element, if any, that this one directly inherits from. More...

bool hasInheritedBase (ConstElementPtr base) const

bool hasInheritanceCycle () const
 Return true if the inheritance chain for this element contains a cycle. More...

void setNamespace (const string &space)
 Set the namespace string of this element. More...

bool hasNamespace () const
 Return true if this element has a namespace string. More...

const stringgetNamespace () const
 Return the namespace string of this element. More...

string getQualifiedName (const string &name) const

void setDocString (const string &doc)
 Set the documentation string of this element. More...

string getDocString () const
 Return the documentation string of this element. More...

template<class T >
bool isA (const string &category=EMPTY_STRING) const

template<class T >
shared_ptr< TasA ()
 Dynamic cast to an instance of the given subclass. More...

template<class T >
shared_ptr< const TasA () const
 Dynamic cast to a const instance of the given subclass. More...

template<class T >
shared_ptr< TaddChild (const string &name=EMPTY_STRING)

ElementPtr addChildOfCategory (const string &category, string name=EMPTY_STRING)

ElementPtr changeChildCategory (ElementPtr child, const string &category)

ElementPtr getChild (const string &name) const
 Return the child element, if any, with the given name. More...

template<class T >
shared_ptr< TgetChildOfType (const string &name) const

const vector< ElementPtr > & getChildren () const

template<class T >
vector< shared_ptr< T > > getChildrenOfType (const string &category=EMPTY_STRING) const

void setChildIndex (const string &name, int index)

int getChildIndex (const string &name) const

void removeChild (const string &name)
 Remove the child element, if any, with the given name. More...

template<class T >
void removeChildOfType (const string &name)

void setAttribute (const string &attrib, const string &value)
 Set the value string of the given attribute. More...

bool hasAttribute (const string &attrib) const
 Return true if the given attribute is present. More...

const stringgetAttribute (const string &attrib) const

const StringVecgetAttributeNames () const
 Return a vector of stored attribute names, in the order they were set. More...

template<class T >
void setTypedAttribute (const string &attrib, const T &data)

template<class T >
T getTypedAttribute (const string &attrib) const

void removeAttribute (const string &attrib)
 Remove the given attribute, if present. More...

ElementPtr getSelf ()
 Return our self pointer. More...

ConstElementPtr getSelf () const
 Return our self pointer. More...

ElementPtr getParent ()
 Return our parent element. More...

ConstElementPtr getParent () const
 Return our parent element. More...

ElementPtr getRoot ()
 Return the root element of our tree. More...

ConstElementPtr getRoot () const
 Return the root element of our tree. More...

DocumentPtr getDocument ()
 Return the root document of our tree. More...

ConstDocumentPtr getDocument () const
 Return the root document of our tree. More...

template<class T >
shared_ptr< const TgetAncestorOfType () const

TreeIterator traverseTree () const

GraphIterator traverseGraph () const

virtual Edge getUpstreamEdge (size_t index=0) const

virtual size_t getUpstreamEdgeCount () const
 Return the number of queriable upstream edges for this element. More...

ElementPtr getUpstreamElement (size_t index=0) const

InheritanceIterator traverseInheritance () const

void setSourceUri (const string &sourceUri)

bool hasSourceUri () const
 Return true if this element has a source URI. More...

const stringgetSourceUri () const
 Return the element's source URI. More...

const stringgetActiveSourceUri () const

void copyContentFrom (const ConstElementPtr &source)

void clearContent ()
 Clear all attributes and descendants from this element. More...

string createValidChildName (string name) const

StringResolverPtr createStringResolver (const string &geom=EMPTY_STRING) const

string asString () const

template<class T >
shared_ptr< TresolveRootNameReference (const string &name) const


Static Public Attributes

static const string GEOM_ATTRIBUTE

static const string COLLECTION_ATTRIBUTE

- Static Public Attributes inherited from Element
static const string NAME_ATTRIBUTE

static const string FILE_PREFIX_ATTRIBUTE

static const string GEOM_PREFIX_ATTRIBUTE

static const string COLOR_SPACE_ATTRIBUTE

static const string INHERIT_ATTRIBUTE

static const string NAMESPACE_ATTRIBUTE

static const string DOC_ATTRIBUTE


Protected Member Functions

 GeomElement (ElementPtr parent, const string &category, const string &name)

- Protected Member Functions inherited from Element
 Element (ElementPtr parent, const string &category, const string &name)

void validateRequire (bool expression, bool &res, string *message, string errorDesc) const

virtual void registerChildElement (ElementPtr child)

virtual void unregisterChildElement (ElementPtr child)

ElementPtr getSelfNonConst () const


Additional Inherited Members

- Protected Types inherited from Element
using DocumentPtr = shared_ptr< Document >

using ConstDocumentPtr = shared_ptr< const Document >

- Protected Attributes inherited from Element
string _category

string _name

string _sourceUri

ElementMap _childMap

vector< ElementPtr_childOrder

StringMap _attributeMap

StringVec _attributeOrder

weak_ptr< Element_parent

weak_ptr< Element_root


Detailed Description

The base class for geometric elements, which support bindings to geometries and geometric collections.

Definition at line 152 of file Geom.h.

Constructor & Destructor Documentation

GeomElement::GeomElement ( ElementPtr  parent,
const string category,
const string name
)
inlineprotected

Definition at line 155 of file Geom.h.

virtual GeomElement::~GeomElement ( )
inlinevirtual

Definition at line 161 of file Geom.h.

Member Function Documentation

string GeomElement::getActiveGeom ( ) const
inline

Return the active geometry string of this element, taking all geometry string substitutions at this scope into account.

Definition at line 186 of file Geom.h.

CollectionPtr GeomElement::getCollection ( ) const

Return the Collection that is assigned to this element.

const string& GeomElement::getCollectionString ( ) const
inline

Return the collection string of this element.

Definition at line 210 of file Geom.h.

const string& GeomElement::getGeom ( ) const
inline

Return the geometry string of this element.

Definition at line 179 of file Geom.h.

bool GeomElement::hasCollectionString ( ) const
inline

Return true if this element has a collection string.

Definition at line 204 of file Geom.h.

bool GeomElement::hasGeom ( ) const
inline

Return true if this element has a geometry string.

Definition at line 173 of file Geom.h.

void GeomElement::setCollection ( ConstCollectionPtr  collection)

Assign a Collection to this element.

void GeomElement::setCollectionString ( const string collection)
inline

Set the collection string of this element.

Definition at line 198 of file Geom.h.

void GeomElement::setGeom ( const string geom)
inline

Set the geometry string of this element.

Definition at line 167 of file Geom.h.

bool GeomElement::validate ( string message = nullptr) const
overridevirtual

Validate that the given element tree, including all descendants, is consistent with the MaterialX specification.

Reimplemented from Element.

Member Data Documentation

const string GeomElement::COLLECTION_ATTRIBUTE
static

Definition at line 233 of file Geom.h.

const string GeomElement::GEOM_ATTRIBUTE
static

Definition at line 232 of file Geom.h.


The documentation for this class was generated from the following file:
