#include <imagebuf.h>

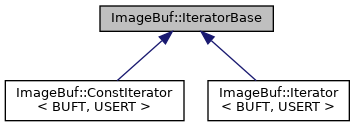

Inheritance diagram for ImageBuf::IteratorBase:

Public Member Functions
int	x () const
	Retrieve the current x location of the iterator. More...

int	y () const
	Retrieve the current y location of the iterator. More...

int	z () const
	Retrieve the current z location of the iterator. More...

bool	valid () const
	Is the current location within the designated iteration range? More...

bool	valid (int x_, int y_, int z_=0) const

bool	exists (int x_, int y_, int z_=0) const

bool	exists () const

bool	done () const
	Are we finished iterating over the region? More...

int	deep_samples () const
	Retrieve the number of deep data samples at this pixel. More...

WrapMode	wrap () const
	Return the wrap mode. More...

void OIIO_API	pos (int x_, int y_, int z_=0)

void	operator++ ()

void	operator++ (int)
	Increment to the next pixel in the region. More...

ROI	range () const
	Return the iteration range. More...

void OIIO_API	rerange (int xbegin, int xend, int ybegin, int yend, int zbegin, int zend, WrapMode wrap=WrapDefault)

const void *	rawptr () const

float	deep_value (int c, int s) const
	Retrieve the deep data value of sample s of channel c. More...

uint32_t	deep_value_uint (int c, int s) const

bool	localpixels () const

bool	has_error () const

void	clear_error ()

Protected Member Functions
OIIO_API	IteratorBase (const ImageBuf &ib, WrapMode wrap, bool write=false)

OIIO_API	IteratorBase (const ImageBuf &ib, int x, int y, int z, WrapMode wrap, bool write=false)

OIIO_API	IteratorBase (const ImageBuf &ib, const ROI &roi, WrapMode wrap, bool write=false)
	Construct valid iteration region from ImageBuf and ROI. More...

OIIO_API	IteratorBase (const ImageBuf &ib, int xbegin, int xend, int ybegin, int yend, int zbegin, int zend, WrapMode wrap, bool write=false)

OIIO_API	IteratorBase (const IteratorBase &i)
	Copy constructor. More...

OIIO_API const IteratorBase &	operator= (const IteratorBase &i)
	Assign one IteratorBase to another. More...

	~IteratorBase ()

void OIIO_API	init_ib (WrapMode wrap, bool write)

void OIIO_API	range_is_image ()

void	pos_xincr ()

void OIIO_API	pos_xincr_local_past_end ()

void OIIO_API	pos_done ()

void OIIO_API	release_tile ()

Protected Attributes
const ImageBuf *	m_ib = nullptr

bool	m_valid = false

bool	m_exists = false

bool	m_deep = false

bool	m_localpixels = false

int	m_img_xbegin

int	m_img_xend

int	m_img_ybegin

int	m_img_yend

int	m_img_zbegin

int	m_img_zend

int	m_rng_xbegin

int	m_rng_xend

int	m_rng_ybegin

int	m_rng_yend

int	m_rng_zbegin

int	m_rng_zend

int	m_x

int	m_y

int	m_z

pvt::ImageCacheTile *	m_tile = nullptr

int	m_tilexbegin

int	m_tileybegin

int	m_tilezbegin

int	m_tilexend

int	m_nchannels

stride_t	m_pixel_stride

char *	m_proxydata = nullptr

WrapMode	m_wrap = WrapBlack

bool	m_readerror = false

Friends
class	ImageBuf

class	ImageBufImpl

Detailed Description

Base class for Iterator and ConstIterator – this contains all the common functionality.

Definition at line 1196 of file imagebuf.h.

Constructor & Destructor Documentation

OIIO_API ImageBuf::IteratorBase::IteratorBase	(	const ImageBuf &	ib,
		WrapMode	wrap,
		bool	write = `false`
	)

protected

OIIO_API ImageBuf::IteratorBase::IteratorBase	(	const ImageBuf &	ib,
		int	x,
		int	y,
		int	z,
		WrapMode	wrap,
		bool	write = `false`
	)

protected

OIIO_API ImageBuf::IteratorBase::IteratorBase	(	const ImageBuf &	ib,
		const ROI &	roi,
		WrapMode	wrap,
		bool	write = `false`
	)

protected

Construct valid iteration region from ImageBuf and ROI.

OIIO_API ImageBuf::IteratorBase::IteratorBase	(	const ImageBuf &	ib,
		int	xbegin,
		int	xend,
		int	ybegin,
		int	yend,
		int	zbegin,
		int	zend,
		WrapMode	wrap,
		bool	write = `false`
	)

protected

Construct from an ImageBuf and designated region – iterate over region, starting with the upper left pixel.

OIIO_API ImageBuf::IteratorBase::IteratorBase ( const IteratorBase & i )

protected

Copy constructor.

ImageBuf::IteratorBase::~IteratorBase ( )

inlineprotected

Definition at line 1220 of file imagebuf.h.

Member Function Documentation

void ImageBuf::IteratorBase::clear_error ( )

inline

Definition at line 1340 of file imagebuf.h.

int ImageBuf::IteratorBase::deep_samples ( ) const

inline

Retrieve the number of deep data samples at this pixel.

Definition at line 1270 of file imagebuf.h.

float ImageBuf::IteratorBase::deep_value	(	int	c,
		int	s
	)		const

inline

Retrieve the deep data value of sample s of channel c.

Definition at line 1324 of file imagebuf.h.

uint32_t ImageBuf::IteratorBase::deep_value_uint	(	int	c,
		int	s
	)		const

inline

Definition at line 1329 of file imagebuf.h.

bool ImageBuf::IteratorBase::done ( ) const

inline

Are we finished iterating over the region?

Definition at line 1259 of file imagebuf.h.

bool ImageBuf::IteratorBase::exists	(	int	x_,
		int	y_,
		int	z_ = `0`
	)		const

inline

Is the location (x,y[,z]) within the region of the ImageBuf that contains pixel values (sometimes called the "data window")?

Definition at line 1248 of file imagebuf.h.

bool ImageBuf::IteratorBase::exists ( ) const

inline

Does the current location exist within the ImageBuf's data window?

Definition at line 1256 of file imagebuf.h.

bool ImageBuf::IteratorBase::has_error ( void ) const

inline

Definition at line 1337 of file imagebuf.h.

void OIIO_API ImageBuf::IteratorBase::init_ib	(	WrapMode	wrap,
		bool	write
	)

protected

bool ImageBuf::IteratorBase::localpixels ( ) const

inline

Definition at line 1334 of file imagebuf.h.

void ImageBuf::IteratorBase::operator++ ( )

inline

Increment to the next pixel in the region.

Definition at line 1281 of file imagebuf.h.

void ImageBuf::IteratorBase::operator++ ( int )

inline

Increment to the next pixel in the region.

Definition at line 1305 of file imagebuf.h.

OIIO_API const IteratorBase& ImageBuf::IteratorBase::operator= ( const IteratorBase & i )

protected

Assign one IteratorBase to another.

void OIIO_API ImageBuf::IteratorBase::pos	(	int	x_,
		int	y_,
		int	z_ = `0`
	)

Explicitly point the iterator. This results in an invalid iterator if outside the previously-designated region.

void OIIO_API ImageBuf::IteratorBase::pos_done ( )

protected

void ImageBuf::IteratorBase::pos_xincr ( )

inlineprotected

Definition at line 1376 of file imagebuf.h.

void OIIO_API ImageBuf::IteratorBase::pos_xincr_local_past_end ( )

protected

ROI ImageBuf::IteratorBase::range ( ) const

inline

Return the iteration range.

Definition at line 1308 of file imagebuf.h.

void OIIO_API ImageBuf::IteratorBase::range_is_image ( )

protected

const void* ImageBuf::IteratorBase::rawptr ( ) const

inline

Definition at line 1321 of file imagebuf.h.

void OIIO_API ImageBuf::IteratorBase::release_tile ( )

protected

void OIIO_API ImageBuf::IteratorBase::rerange	(	int	xbegin,
		int	xend,
		int	ybegin,
		int	yend,
		int	zbegin,
		int	zend,
		WrapMode	wrap = `WrapDefault`
	)

Reset the iteration range for this iterator and reposition to the beginning of the range, but keep referring to the same image.

bool ImageBuf::IteratorBase::valid ( ) const

inline

Is the current location within the designated iteration range?

Definition at line 1235 of file imagebuf.h.

bool ImageBuf::IteratorBase::valid	(	int	x_,
		int	y_,
		int	z_ = `0`
	)		const

inline

Is the location (x,y[,z]) within the designated iteration range?

Definition at line 1239 of file imagebuf.h.

WrapMode ImageBuf::IteratorBase::wrap ( ) const

inline

Return the wrap mode.

Definition at line 1273 of file imagebuf.h.

int ImageBuf::IteratorBase::x ( ) const

inline

Retrieve the current x location of the iterator.

Definition at line 1228 of file imagebuf.h.

int ImageBuf::IteratorBase::y ( ) const

inline

Retrieve the current y location of the iterator.

Definition at line 1230 of file imagebuf.h.

int ImageBuf::IteratorBase::z ( ) const

inline

Retrieve the current z location of the iterator.

Definition at line 1232 of file imagebuf.h.

Friends And Related Function Documentation

friend class ImageBuf

friend

Definition at line 1343 of file imagebuf.h.

friend class ImageBufImpl

friend

Definition at line 1344 of file imagebuf.h.

Member Data Documentation

bool ImageBuf::IteratorBase::m_deep = false

protected

Definition at line 1347 of file imagebuf.h.

bool ImageBuf::IteratorBase::m_exists = false

protected

Definition at line 1346 of file imagebuf.h.

const ImageBuf* ImageBuf::IteratorBase::m_ib = nullptr

protected

Definition at line 1345 of file imagebuf.h.

int ImageBuf::IteratorBase::m_img_xbegin

protected

Definition at line 1350 of file imagebuf.h.

int ImageBuf::IteratorBase::m_img_xend

protected

Definition at line 1350 of file imagebuf.h.

int ImageBuf::IteratorBase::m_img_ybegin

protected

Definition at line 1350 of file imagebuf.h.

int ImageBuf::IteratorBase::m_img_yend

protected

Definition at line 1350 of file imagebuf.h.

int ImageBuf::IteratorBase::m_img_zbegin

protected

Definition at line 1350 of file imagebuf.h.

int ImageBuf::IteratorBase::m_img_zend

protected

Definition at line 1350 of file imagebuf.h.

bool ImageBuf::IteratorBase::m_localpixels = false

protected

Definition at line 1348 of file imagebuf.h.

int ImageBuf::IteratorBase::m_nchannels

protected

Definition at line 1359 of file imagebuf.h.

stride_t ImageBuf::IteratorBase::m_pixel_stride

protected

Definition at line 1360 of file imagebuf.h.

char* ImageBuf::IteratorBase::m_proxydata = nullptr

protected

Definition at line 1361 of file imagebuf.h.

bool ImageBuf::IteratorBase::m_readerror = false

protected

Definition at line 1363 of file imagebuf.h.

int ImageBuf::IteratorBase::m_rng_xbegin

protected

Definition at line 1353 of file imagebuf.h.

int ImageBuf::IteratorBase::m_rng_xend

protected

Definition at line 1353 of file imagebuf.h.

int ImageBuf::IteratorBase::m_rng_ybegin

protected

Definition at line 1353 of file imagebuf.h.

int ImageBuf::IteratorBase::m_rng_yend

protected

Definition at line 1353 of file imagebuf.h.

int ImageBuf::IteratorBase::m_rng_zbegin

protected

Definition at line 1353 of file imagebuf.h.

int ImageBuf::IteratorBase::m_rng_zend

protected

Definition at line 1353 of file imagebuf.h.

pvt::ImageCacheTile* ImageBuf::IteratorBase::m_tile = nullptr

protected

Definition at line 1356 of file imagebuf.h.

int ImageBuf::IteratorBase::m_tilexbegin

protected

Definition at line 1357 of file imagebuf.h.

int ImageBuf::IteratorBase::m_tilexend

protected

Definition at line 1358 of file imagebuf.h.

int ImageBuf::IteratorBase::m_tileybegin

protected

Definition at line 1357 of file imagebuf.h.

int ImageBuf::IteratorBase::m_tilezbegin

protected

Definition at line 1357 of file imagebuf.h.

bool ImageBuf::IteratorBase::m_valid = false

protected

Definition at line 1346 of file imagebuf.h.

WrapMode ImageBuf::IteratorBase::m_wrap = WrapBlack

protected

Definition at line 1362 of file imagebuf.h.

int ImageBuf::IteratorBase::m_x

protected

Definition at line 1355 of file imagebuf.h.

int ImageBuf::IteratorBase::m_y

protected

Definition at line 1355 of file imagebuf.h.

int ImageBuf::IteratorBase::m_z

protected

Definition at line 1355 of file imagebuf.h.

The documentation for this class was generated from the following file:

OpenImageIO/imagebuf.h

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
