#include <Syntax.h>

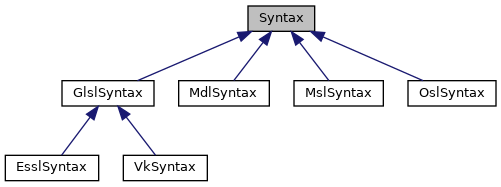

Inheritance diagram for Syntax:

Public Types
enum	Punctuation { PARENTHESES, CURLY_BRACKETS, SQUARE_BRACKETS, DOUBLE_SQUARE_BRACKETS }
	Punctuation types. More...

Public Member Functions
virtual	~Syntax ()

void	registerTypeSyntax (TypeDesc type, TypeSyntaxPtr syntax)

void	registerTypeSyntax (const TypeDesc *type, TypeSyntaxPtr syntax)

void	registerReservedWords (const StringSet &names)

void	registerInvalidTokens (const StringMap &tokens)

const StringSet &	getReservedWords () const
	Returns a set of names that are reserved words for this language syntax. More...

const StringMap &	getInvalidTokens () const
	Returns a mapping from disallowed tokens to replacement strings for this language syntax. More...

const TypeSyntax &	getTypeSyntax (TypeDesc type) const

const TypeSyntax &	getTypeSyntax (const TypeDesc *type) const

const vector< TypeSyntaxPtr > &	getTypeSyntaxes () const
	Returns an array of all registered type syntax objects. More...

TypeDesc	getType (const string &name) const
	Return a type description for the given type name. More...

const string &	getTypeName (TypeDesc type) const
	Returns the name syntax of the given type. More...

const string &	getTypeName (const TypeDesc *type) const

virtual string	getOutputTypeName (TypeDesc type) const
	Returns the type name in an output context. More...

string	getOutputTypeName (const TypeDesc *type) const

const string &	getTypeAlias (TypeDesc type) const

const string &	getTypeAlias (const TypeDesc *type) const

const string &	getTypeDefinition (TypeDesc type) const

const string &	getTypeDefinition (const TypeDesc *type) const

const string &	getDefaultValue (TypeDesc type, bool uniform=false) const
	Returns the default value string for the given type. More...

const string &	getDefaultValue (const TypeDesc *type, bool uniform=false) const

virtual string	getValue (TypeDesc type, const Value &value, bool uniform=false) const
	Returns the value string for a given type and value object. More...

string	getValue (const TypeDesc *type, const Value &value, bool uniform=false) const

virtual string	getValue (const ShaderPort *port, bool uniform=false) const
	Returns the value string for a given shader port object. More...

virtual const string &	getInputQualifier () const

virtual const string &	getOutputQualifier () const

virtual const string &	getConstantQualifier () const =0

virtual const string &	getUniformQualifier () const

virtual const string &	getNewline () const
	Return the characters used for a newline. More...

virtual const string &	getIndentation () const
	Return the characters used for a single indentation level. More...

virtual const string &	getStringQuote () const
	Return the characters used to begin/end a string definition. More...

virtual const string &	getIncludeStatement () const
	Return the string pattern used for a file include statement. More...

virtual const string &	getSingleLineComment () const
	Return the characters used for single line comment. More...

virtual const string &	getBeginMultiLineComment () const
	Return the characters used to begin a multi line comments block. More...

virtual const string &	getEndMultiLineComment () const
	Return the characters used to end a multi line comments block. More...

virtual const string &	getSourceFileExtension () const =0
	Return the file extension used for source code files in this language. More...

virtual string	getArrayTypeSuffix (TypeDesc, const Value &) const
	Return the array suffix to use for declaring an array type. More...

string	getArrayTypeSuffix (const TypeDesc *type, const Value &value) const

virtual string	getArrayVariableSuffix (TypeDesc type, const Value &value) const
	Return the array suffix to use for declaring an array variable. More...

string	getArrayVariableSuffix (const TypeDesc *type, const Value &value) const

virtual bool	typeSupported (const TypeDesc *type) const

virtual void	makeValidName (string &name) const
	Modify the given name string to remove any invalid characters or tokens. More...

virtual void	makeIdentifier (string &name, IdentifierMap &identifiers) const

virtual string	getVariableName (const string &name, TypeDesc type, IdentifierMap &identifiers) const

string	getVariableName (const string &name, const TypeDesc *type, IdentifierMap &identifiers) const

virtual bool	remapEnumeration (const string &value, TypeDesc type, const string &enumNames, std::pair< TypeDesc, ValuePtr > &result) const

virtual StructTypeSyntaxPtr	createStructSyntax (const string &structTypeName, const string &defaultValue, const string &uniformDefaultValue, const string &typeAlias, const string &typeDefinition) const

Static Public Attributes
static const string	NEWLINE
	Constants with commonly used strings. More...

static const string	SEMICOLON

static const string	COMMA

Protected Member Functions
	Syntax (TypeSystemPtr typeSystem)
	Protected constructor. More...

Protected Attributes
TypeSystemPtr	_typeSystem

vector< TypeSyntaxPtr >	_typeSyntaxes

std::unordered_map< TypeDesc, size_t, TypeDesc::Hasher >	_typeSyntaxIndexByType

StringSet	_reservedWords

StringMap	_invalidTokens

Static Protected Attributes
static const string	INDENTATION

static const string	STRING_QUOTE

static const string	INCLUDE_STATEMENT

static const string	SINGLE_LINE_COMMENT

static const string	BEGIN_MULTI_LINE_COMMENT

static const string	END_MULTI_LINE_COMMENT

static const std::unordered_map< char, size_t >	CHANNELS_MAPPING

Detailed Description

Base class for syntax objects used by shader generators to emit code with correct syntax for each language.

Definition at line 43 of file Syntax.h.

Member Enumeration Documentation

enum Syntax::Punctuation

Punctuation types.

Enumerator
PARENTHESES
CURLY_BRACKETS
SQUARE_BRACKETS
DOUBLE_SQUARE_BRACKETS

Definition at line 47 of file Syntax.h.

Constructor & Destructor Documentation

virtual Syntax::~Syntax ( )

inlinevirtual

Definition at line 56 of file Syntax.h.

Syntax::Syntax ( TypeSystemPtr typeSystem )

protected

Protected constructor.

Member Function Documentation

virtual StructTypeSyntaxPtr Syntax::createStructSyntax	(	const string &	structTypeName,
		const string &	defaultValue,
		const string &	uniformDefaultValue,
		const string &	typeAlias,
		const string &	typeDefinition
	)		const

virtual

Reimplemented in GlslSyntax.

virtual string Syntax::getArrayTypeSuffix	(	TypeDesc	,
		const Value &
	)		const

inlinevirtual

Return the array suffix to use for declaring an array type.

Reimplemented in MdlSyntax.

Definition at line 163 of file Syntax.h.

string Syntax::getArrayTypeSuffix	(	const TypeDesc *	type,
		const Value &	value
	)		const

inline

Definition at line 164 of file Syntax.h.

virtual string Syntax::getArrayVariableSuffix	(	TypeDesc	type,
		const Value &	value
	)		const

virtual

Return the array suffix to use for declaring an array variable.

Reimplemented in MdlSyntax.

string Syntax::getArrayVariableSuffix	(	const TypeDesc *	type,
		const Value &	value
	)		const

inline

Definition at line 168 of file Syntax.h.

virtual const string& Syntax::getBeginMultiLineComment ( ) const

inlinevirtual

Return the characters used to begin a multi line comments block.

Definition at line 154 of file Syntax.h.

virtual const string& Syntax::getConstantQualifier ( ) const

pure virtual

Get the qualifier used when declaring constant variables. Derived classes must define this method.

Implemented in MdlSyntax, GlslSyntax, MslSyntax, and OslSyntax.

const string& Syntax::getDefaultValue	(	TypeDesc	type,
		bool	uniform = `false`
	)		const

Returns the default value string for the given type.

const string& Syntax::getDefaultValue	(	const TypeDesc *	type,
		bool	uniform = `false`
	)		const

inline

Definition at line 110 of file Syntax.h.

virtual const string& Syntax::getEndMultiLineComment ( ) const

inlinevirtual

Return the characters used to end a multi line comments block.

Definition at line 157 of file Syntax.h.

virtual const string& Syntax::getIncludeStatement ( ) const

inlinevirtual

Return the string pattern used for a file include statement.

Definition at line 148 of file Syntax.h.

virtual const string& Syntax::getIndentation ( ) const

inlinevirtual

Return the characters used for a single indentation level.

Definition at line 142 of file Syntax.h.

virtual const string& Syntax::getInputQualifier ( ) const

inlinevirtual

Returns a type qualifier to be used when declaring types for input variables. Default implementation returns empty string and derived syntax classes should override this method.

Reimplemented in GlslSyntax, MslSyntax, and VkSyntax.

Definition at line 122 of file Syntax.h.

const StringMap& Syntax::getInvalidTokens ( ) const

inline

Returns a mapping from disallowed tokens to replacement strings for this language syntax.

Definition at line 77 of file Syntax.h.

virtual const string& Syntax::getNewline ( ) const

inlinevirtual

Return the characters used for a newline.

Definition at line 139 of file Syntax.h.

virtual const string& Syntax::getOutputQualifier ( ) const

inlinevirtual

Returns a type qualifier to be used when declaring types for output variables. Default implementation returns empty string and derived syntax classes should override this method.

Reimplemented in GlslSyntax, MslSyntax, and OslSyntax.

Definition at line 127 of file Syntax.h.

virtual string Syntax::getOutputTypeName ( TypeDesc type ) const

virtual

Returns the type name in an output context.

Reimplemented in MslSyntax.

string Syntax::getOutputTypeName ( const TypeDesc * type ) const

inline

Definition at line 96 of file Syntax.h.

const StringSet& Syntax::getReservedWords ( ) const

inline

Returns a set of names that are reserved words for this language syntax.

Definition at line 74 of file Syntax.h.

virtual const string& Syntax::getSingleLineComment ( ) const

inlinevirtual

Return the characters used for single line comment.

Definition at line 151 of file Syntax.h.

virtual const string& Syntax::getSourceFileExtension ( ) const

pure virtual

Return the file extension used for source code files in this language.

Implemented in MdlSyntax, GlslSyntax, MslSyntax, and OslSyntax.

virtual const string& Syntax::getStringQuote ( ) const

inlinevirtual

Return the characters used to begin/end a string definition.

Definition at line 145 of file Syntax.h.

TypeDesc Syntax::getType ( const string & name ) const

inline

Return a type description for the given type name.

Definition at line 88 of file Syntax.h.

const string& Syntax::getTypeAlias ( TypeDesc type ) const

Returns a type alias for the given data type. If not used returns an empty string.

const string& Syntax::getTypeAlias ( const TypeDesc * type ) const

inline

Definition at line 101 of file Syntax.h.

const string& Syntax::getTypeDefinition ( TypeDesc type ) const

Returns a custom type definition if needed for the given data type. If not used returns an empty string.

const string& Syntax::getTypeDefinition ( const TypeDesc * type ) const

inline

Definition at line 106 of file Syntax.h.

const string& Syntax::getTypeName ( TypeDesc type ) const

Returns the name syntax of the given type.

const string& Syntax::getTypeName ( const TypeDesc * type ) const

inline

Definition at line 92 of file Syntax.h.

const TypeSyntax& Syntax::getTypeSyntax ( TypeDesc type ) const

Returns the type syntax object for a named type. Throws an exception if a type syntax is not defined for the given type.

const TypeSyntax& Syntax::getTypeSyntax ( const TypeDesc * type ) const

inline

Definition at line 82 of file Syntax.h.

const vector<TypeSyntaxPtr>& Syntax::getTypeSyntaxes ( ) const

inline

Returns an array of all registered type syntax objects.

Definition at line 85 of file Syntax.h.

virtual const string& Syntax::getUniformQualifier ( ) const

inlinevirtual

Get the qualifier used when declaring uniform variables. Default implementation returns empty string and derived syntax classes should override this method.

Reimplemented in MdlSyntax, GlslSyntax, and MslSyntax.

Definition at line 136 of file Syntax.h.

virtual string Syntax::getValue	(	TypeDesc	type,
		const Value &	value,
		bool	uniform = `false`
	)		const

virtual

Returns the value string for a given type and value object.

string Syntax::getValue	(	const TypeDesc *	type,
		const Value &	value,
		bool	uniform = `false`
	)		const

inline

Definition at line 114 of file Syntax.h.

virtual string Syntax::getValue	(	const ShaderPort *	port,
		bool	uniform = `false`
	)		const

virtual

Returns the value string for a given shader port object.

virtual string Syntax::getVariableName	(	const string &	name,
		TypeDesc	type,
		IdentifierMap &	identifiers
	)		const

virtual

Create a unique identifier for the given variable name and type. The method is used for naming variables (inputs and outputs) in generated code. Derived classes can override this method to have a custom naming strategy. Default implementation adds a number suffix, or increases an existing number suffix, on the name string if there is a name collision.

string Syntax::getVariableName	(	const string &	name,
		const TypeDesc *	type,
		IdentifierMap &	identifiers
	)		const

inline

Definition at line 187 of file Syntax.h.

virtual void Syntax::makeIdentifier	(	string &	name,
		IdentifierMap &	identifiers
	)		const

virtual

Make sure the given name is a unique identifier, updating it if needed to make it unique.

virtual void Syntax::makeValidName ( string & name ) const

virtual

Modify the given name string to remove any invalid characters or tokens.

Reimplemented in MdlSyntax.

void Syntax::registerInvalidTokens ( const StringMap & tokens )

Register a set string replacements for disallowed tokens for a code generator when naming variables and functions. Multiple calls will add to the internal set of tokens.

void Syntax::registerReservedWords ( const StringSet & names )

Register names that are reserved words not to be used by a code generator when naming variables and functions. Keywords, types, built-in functions etc. should be added to this set. Multiple calls will add to the internal set of names.

void Syntax::registerTypeSyntax	(	TypeDesc	type,
		TypeSyntaxPtr	syntax
	)

Register syntax handling for a data type. Required to be set for all supported data types.

void Syntax::registerTypeSyntax	(	const TypeDesc *	type,
		TypeSyntaxPtr	syntax
	)

inline

Definition at line 61 of file Syntax.h.

virtual bool Syntax::remapEnumeration	(	const string &	value,
		TypeDesc	type,
		const string &	enumNames,
		std::pair< TypeDesc, ValuePtr > &	result
	)		const

virtual

Given an input specification attempt to remap this to an enumeration which is accepted by the shader generator. The enumeration may be converted to a different type than the input.

Parameters

value	The value string to remap.
type	The type of the value to remap,
enumNames	Type enumeration names
result	Enumeration type and value (returned).

Returns: Return true if the remapping was successful.

Reimplemented in MdlSyntax, MslSyntax, and GlslSyntax.

virtual bool Syntax::typeSupported ( const TypeDesc * type ) const

virtual

Query if given type is supported in the syntax. By default all types are assumed to be supported.

Reimplemented in MslSyntax, and GlslSyntax.

Member Data Documentation

StringMap Syntax::_invalidTokens

protected

Definition at line 218 of file Syntax.h.

StringSet Syntax::_reservedWords

protected

Definition at line 217 of file Syntax.h.

vector<TypeSyntaxPtr> Syntax::_typeSyntaxes

protected

Definition at line 214 of file Syntax.h.

std::unordered_map<TypeDesc, size_t, TypeDesc::Hasher> Syntax::_typeSyntaxIndexByType

protected

Definition at line 215 of file Syntax.h.

TypeSystemPtr Syntax::_typeSystem

protected

Definition at line 213 of file Syntax.h.

const string Syntax::BEGIN_MULTI_LINE_COMMENT

staticprotected

Definition at line 224 of file Syntax.h.

const std::unordered_map<char, size_t> Syntax::CHANNELS_MAPPING

staticprotected

Definition at line 227 of file Syntax.h.

const string Syntax::COMMA

static

Definition at line 207 of file Syntax.h.

const string Syntax::END_MULTI_LINE_COMMENT

staticprotected

Definition at line 225 of file Syntax.h.

const string Syntax::INCLUDE_STATEMENT

staticprotected

Definition at line 222 of file Syntax.h.

const string Syntax::INDENTATION

staticprotected

Definition at line 220 of file Syntax.h.

const string Syntax::NEWLINE

static

Constants with commonly used strings.

Definition at line 205 of file Syntax.h.

const string Syntax::SEMICOLON

static

Definition at line 206 of file Syntax.h.

const string Syntax::SINGLE_LINE_COMMENT

staticprotected

Definition at line 223 of file Syntax.h.

const string Syntax::STRING_QUOTE

staticprotected

Definition at line 221 of file Syntax.h.

The documentation for this class was generated from the following file:

MaterialXGenShader/Syntax.h

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
