#include <APEX_Callback.h>

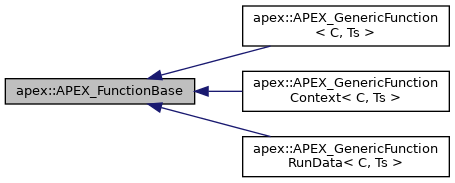

Inheritance diagram for apex::APEX_FunctionBase:

Public Member Functions
virtual	~APEX_FunctionBase ()=default

virtual const UT_StringHolder &	getName () const =0

virtual void	compile (const APEX_Graph graph, APEX_NodeID node_id, APEX_Program prog, UT_Array< APEX_Argument > &args) const

virtual void	execute (APEX_ArgPtrs &arg_ptrs) const

virtual APEX_CallbackType	callbackType () const
	What kind of function is this? Informs things like scopes & conditions. More...

virtual const APEX_Signature &	signature () const =0

virtual const APEX_TypeDefinitionBase *	runDataTypeDef () const

virtual const char *	minProductVersion () const
	Earliest Houdini version that this callback is allowed in "X.Y.Z" format. More...

virtual bool	isHidden () const
	Determines whether the callback should be hidden from the UI. More...

virtual bool	requiresCEFlush () const
	Whether the callback requires its input geometry CE caches to be flushed. More...

virtual bool	usesCE () const
	Whether the callback leaves CE caches in its output geometry. More...

virtual void	runDataCompileHook (APEX_Argument rundata_instance, const APEX_Graph in_graph, APEX_NodeID for_node, APEX_Program *bind_to) const
	Called for any type with rundata with a reference to the rundata so it can be initialized. More...

bool	opensScope () const
	Does this node open a scope? More...

bool	closesScope () const
	Does this node close a scope? More...

virtual UT_StringHolder	scopeConnection () const
	Name of the fake wire which is used to denote scope relationships. More...

virtual bool	hasSubnetTemplate () const

virtual const Dict &	parmDefaults () const

Detailed Description

Definition at line 410 of file APEX_Callback.h.

Constructor & Destructor Documentation

virtual apex::APEX_FunctionBase::~APEX_FunctionBase ( )

virtualdefault

Member Function Documentation

virtual APEX_CallbackType apex::APEX_FunctionBase::callbackType ( ) const

inlinevirtual

What kind of function is this? Informs things like scopes & conditions.

Reimplemented in apex::APEX_GenericFunction< C, Ts >, apex::APEX_GenericFunctionContext< C, Ts >, and apex::APEX_GenericFunctionRunData< C, Ts >.

Definition at line 426 of file APEX_Callback.h.

bool apex::APEX_FunctionBase::closesScope ( ) const

inline

Does this node close a scope?

Definition at line 461 of file APEX_Callback.h.

virtual void apex::APEX_FunctionBase::compile	(	const APEX_Graph *	graph,
		APEX_NodeID	node_id,
		APEX_Program *	prog,
		UT_Array< APEX_Argument > &	args
	)		const

inlinevirtual

Definition at line 416 of file APEX_Callback.h.

virtual void apex::APEX_FunctionBase::execute ( APEX_ArgPtrs & arg_ptrs ) const

inlinevirtual

Reimplemented in apex::APEX_GenericFunction< C, Ts >, apex::APEX_GenericFunctionContext< C, Ts >, and apex::APEX_GenericFunctionRunData< C, Ts >.

Definition at line 423 of file APEX_Callback.h.

virtual const UT_StringHolder& apex::APEX_FunctionBase::getName ( ) const

pure virtual

Implemented in apex::APEX_GenericFunction< C, Ts >, apex::APEX_GenericFunctionContext< C, Ts >, and apex::APEX_GenericFunctionRunData< C, Ts >.

virtual bool apex::APEX_FunctionBase::hasSubnetTemplate ( ) const

inlinevirtual

Definition at line 470 of file APEX_Callback.h.

virtual bool apex::APEX_FunctionBase::isHidden ( ) const

inlinevirtual

Determines whether the callback should be hidden from the UI.

Definition at line 436 of file APEX_Callback.h.

virtual const char* apex::APEX_FunctionBase::minProductVersion ( ) const

inlinevirtual

Earliest Houdini version that this callback is allowed in "X.Y.Z" format.

Definition at line 433 of file APEX_Callback.h.

bool apex::APEX_FunctionBase::opensScope ( ) const

inline

Does this node open a scope?

Definition at line 454 of file APEX_Callback.h.

virtual const Dict& apex::APEX_FunctionBase::parmDefaults ( ) const

inlinevirtual

Reimplemented in apex::APEX_GenericFunction< C, Ts >, and apex::APEX_GenericFunctionRunData< C, Ts >.

Definition at line 472 of file APEX_Callback.h.

virtual bool apex::APEX_FunctionBase::requiresCEFlush ( ) const

inlinevirtual

Whether the callback requires its input geometry CE caches to be flushed.

Definition at line 439 of file APEX_Callback.h.

virtual void apex::APEX_FunctionBase::runDataCompileHook	(	APEX_Argument *	rundata_instance,
		const APEX_Graph *	in_graph,
		APEX_NodeID	for_node,
		APEX_Program *	bind_to
	)		const
