dependencies.h File Reference
#include "pxr/pxr.h"
#include "pxr/usd/sdf/layer.h"
#include "pxr/usd/usdUtils/api.h"
#include <string>
#include <vector>

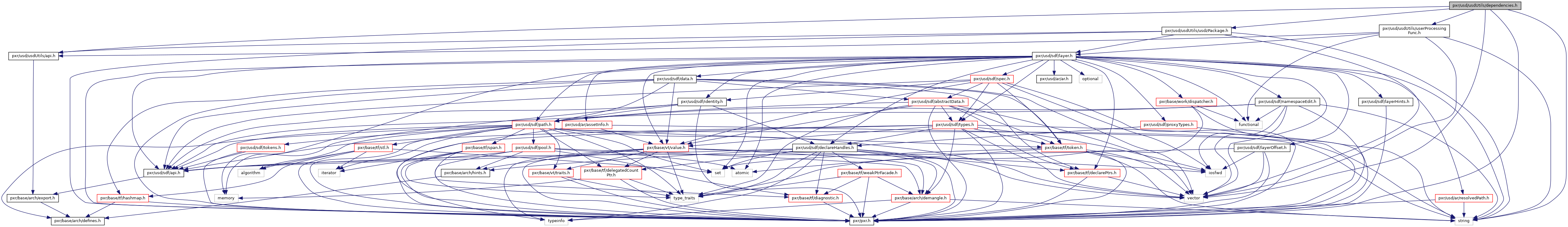

+ Include dependency graph for dependencies.h:
+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs

using UsdUtilsModifyAssetPathFn = std::function< std::string(const std::string &assetPath)>


Functions

USDUTILS_API void UsdUtilsExtractExternalReferences (const std::string &filePath, std::vector< std::string > *subLayers, std::vector< std::string > *references, std::vector< std::string > *payloads)

USDUTILS_API bool UsdUtilsCreateNewUsdzPackage (const SdfAssetPath &assetPath, const std::string &usdzFilePath, const std::string &firstLayerName=std::string())

USDUTILS_API bool UsdUtilsCreateNewARKitUsdzPackage (const SdfAssetPath &assetPath, const std::string &usdzFilePath, const std::string &firstLayerName=std::string())

USDUTILS_API bool UsdUtilsComputeAllDependencies (const SdfAssetPath &assetPath, std::vector< SdfLayerRefPtr > *layers, std::vector< std::string > *assets, std::vector< std::string > *unresolvedPaths)

USDUTILS_API void UsdUtilsModifyAssetPaths (const SdfLayerHandle &layer, const UsdUtilsModifyAssetPathFn &modifyFn)


Detailed Description

Utilities for the following tasks that require consideration of a USD asset's external dependencies:

  • extracting asset dependencies from a USD file.
  • creating a USDZ package containing a given asset and all of its external dependencies.
  • some time in the future, localize a given asset and all of its dependencies into a specified directory.

Definition in file dependencies.h.

Typedef Documentation

using UsdUtilsModifyAssetPathFn = std::function<std::string( const std::string& assetPath)>

Callback that is used to modify asset paths in a layer. The assetPath will contain the string value that's authored. The returned value is the new value that should be authored in the layer. If the function returns an empty string, that value will be removed from the layer.

Definition at line 171 of file dependencies.h.

Function Documentation

USDUTILS_API bool UsdUtilsComputeAllDependencies ( const SdfAssetPath assetPath,
std::vector< SdfLayerRefPtr > *  layers,
std::vector< std::string > *  assets,
std::vector< std::string > *  unresolvedPaths
)

Recursively computes all the dependencies of the given asset and populates layers with all the dependencies that can be opened as an SdfLayer. All of the resolved non-layer dependencies are populated in assets. Any unresolved (layer and non-layer) asset paths are populated in unresolvedPaths.

The input vectors to be populated with the results are cleared before any results are added to them.

Returns true if the given asset was resolved correctly.

USDUTILS_API bool UsdUtilsCreateNewARKitUsdzPackage ( const SdfAssetPath assetPath,
const std::string usdzFilePath,
const std::string firstLayerName = std::string()
)

Similar to UsdUtilsCreateNewUsdzPackage, this function packages all of the dependencies of the given asset. Assets targeted at the initial usdz implementation in ARKit operate under greater constraints than usdz files for more general 'in house' uses, and this option attempts to ensure that these constraints are honored; this may involve more transformations to the data, which may cause loss of features such as VariantSets. Any anonymous layers that are encountered during dependency discovery will be serialized into the resulting package.

If firstLayerName is specified, it is modified to have the ".usdc" extension, as required by the initial usdz implementation in ARKit.

Returns true if the package was created successfully.

Note
Clients of this function must take care of configuring the asset resolver context before invoking the function. To create a default resolver context, use CreateDefaultContextForAsset() with the asset path.
If the given asset has a dependency on a directory (i.e. an external reference to a directory path), the dependency is ignored and the contents of the directory are not included in the created package.
This function modifies the layers referenced by assetPath (including the root layer and all transitive layer dependencies) in-place. However, it does not save the layers before copying them into the package that is created. It also does not revert the changes it makes to the layers. Therefore, it is strongly recommended that you run this function in isolation after any source UsdStages have been closed. If you have UsdStages open during the function call that reference the layers being modified, you may receive warnings or composition errors which may not affect the resulting package adversely.
See Also
UsdUtilsCreateNewUsdzPackage()
USDUTILS_API bool UsdUtilsCreateNewUsdzPackage ( const SdfAssetPath assetPath,
const std::string usdzFilePath,
const std::string firstLayerName = std::string()
)

Creates a USDZ package containing the specified asset, identified by its assetPath. The created package will include a localized version of the asset itself and all of its external dependencies. Any anonymous layers that are encountered during dependency discovery will be serialized into the resulting package. Due to localization, the packaged layers might be modified to have different asset paths.

You can optionally specify a different package-internal name for the first layer of the asset by specifying firstLayerName. By default, firstLayerName is empty, meaning that the original name is preserved.

Returns true if the package was created successfully.

Note
Clients of this function must take care of configuring the asset resolver context before invoking the function. To create a default resolver context, use CreateDefaultContextForAsset() with the asset path.
If the given asset has a dependency on a directory (i.e. an external reference to a directory path), the dependency is ignored and the contents of the directory are not included in the created package.
This function modifies the layers referenced by assetPath (including the root layer and all transitive layer dependencies) in-place. However, it does not save the layers before copying them into the package that is created. It also does not revert the changes it makes to the layers. Therefore, it is strongly recommended that you run this function in isolation after any source UsdStages have been closed. If you have UsdStages open during the function call that reference the layers being modified, you may receive warnings or composition errors which may not affect the resulting package adversely.
See Also
UsdUtilsCreateNewARKitUsdzPackage()
USDUTILS_API void UsdUtilsExtractExternalReferences ( const std::string filePath,
std::vector< std::string > *  subLayers,
std::vector< std::string > *  references,
std::vector< std::string > *  payloads
)

Parses the file at filePath, identifying external references, and sorting them into separate type-based buckets. Sublayers are returned in the sublayers vector, references, whether prim references, value clip references or values from asset path attributes, are returned in the references vector. Payload paths are returned in payloads.

Note
No recursive chasing of dependencies is performed; that is the client's responsibility, if desired.
Not all returned references are actually authored explicitly in the layer. For example, templated clip asset paths are resolved and expanded to include all available clip files that match the specified pattern.
USDUTILS_API void UsdUtilsModifyAssetPaths ( const SdfLayerHandle &  layer,
const UsdUtilsModifyAssetPathFn modifyFn
)

Helper function that visits every asset path in layer, calls modifyFn and replaces the value with the return value of modifyFn. This modifies layer in place.

This can be useful in preparing a layer for consumption in contexts that do not have access to the ArResolver for which the layer's asset paths were authored: we can replace all paths with their fully resolved equivalents, for example.
