CE_Image.h File Reference

#include "CE_API.h"
#include <UT/UT_NonCopyable.h>
#include <UT/UT_VectorTypes.h>
#include <UT/UT_VoxelArray.h>
#include <SYS/SYS_Inline.h>
#include <SYS/SYS_Types.h>

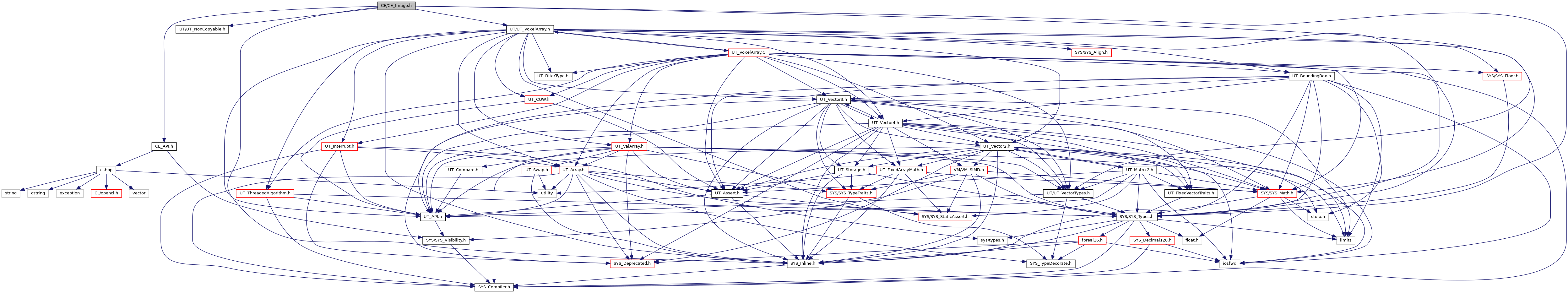

Include dependency graph for CE_Image.h:

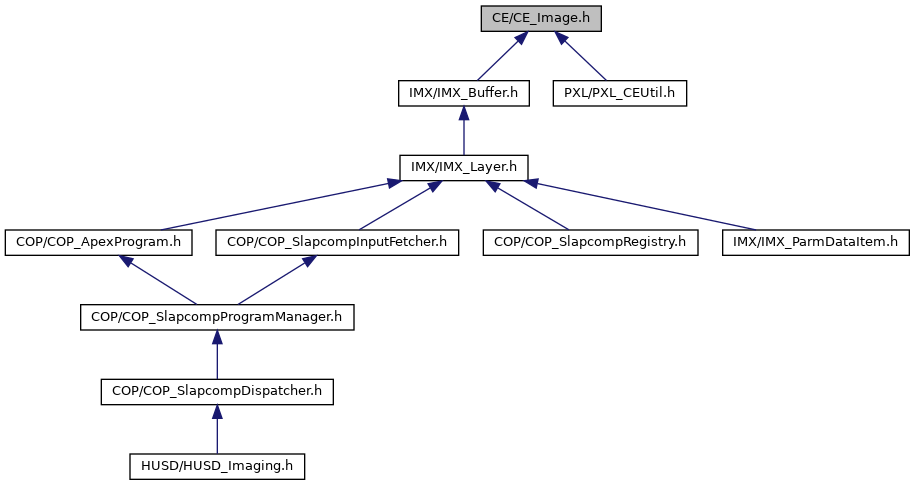

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	CE_Image
struct	CE_StorageTypeTraits< STORAGE >
	Type traits for a given storage type... More...
struct	CE_StorageTypeTraits< CE_Image::FIXED16 >
struct	CE_StorageTypeTraits< CE_Image::FIXED8 >
struct	CE_StorageTypeTraits< CE_Image::FLOAT32 >
struct	CE_StorageTypeTraits< CE_Image::FLOAT16 >
struct	CE_StorageTypeTraits< CE_Image::INT32 >
struct	CE_StorageTypeTraits< CE_Image::INT16 >
struct	CE_StorageTypeTraits< CE_Image::INT8 >
struct	CE_ImageValueConverter< STORAGE, SCALAR_TYPE >
struct	CE_ImageValueConverter< CE_Image::StorageType::FIXED8, SCALAR_TYPE >
	Fixed points specialization for 8-bit. More...
struct	CE_ImageValueConverter< CE_Image::StorageType::FIXED16, SCALAR_TYPE >
	Fixed points specialization for 16-bit. More...
struct	CE_ImageDataConverter< FROM, TO >
	Templated function for converting between different storage types. More...
struct	CE_ImageDataConverter< STORAGE, STORAGE >

Functions
template<typename T >
void CE_API	CEfillVoxelArrayFromFlatStorage (UT_VoxelArray< T > &dest, const void *src, CE_Image::StorageType storage)
template<typename T >
void CE_API	CEfillFlatStorageFromVoxelArray (void *dest, const UT_VoxelArray< T > &src, CE_Image::StorageType storage)

Function Documentation

template<typename T >

void CE_API CEfillFlatStorageFromVoxelArray	(	void *	dest,
		const UT_VoxelArray< T > &	src,
		CE_Image::StorageType	storage
	)

This function can be used to convert a 2D voxel array of vectors, integers, or floats into a flat array of specified storage. The source array must have Z-resolution of 1. dest must be of size X_RES * Y_RES * TUPLE_SIZE_OF_T * BYTES_FOR_STORAGE and its final layout will be {layers of y-pixels: {layers of x-pixels: {comp0, comp1, ...}}} That is, every component of every pixel along the first row, followed by the second row, etc.

template<typename T >

void CE_API CEfillVoxelArrayFromFlatStorage	(	UT_VoxelArray< T > &	dest,
		const void *	src,
		CE_Image::StorageType	storage
	)

This function can be used to convert a flat array (of specified storage) into a 2D voxel array of vectors, integers, or floats. The destination voxel array must have its size already initialized. src must be of size X_RES * Y_RES * TUPLE_SIZE_OF_T * BYTES_FOR_STORAGE and its layout must be {layers of x-pixels}, where each is {pixel data}, and each one of those is {component0, component1, ...} (every component's type is controlled by the storage specifier), everything tightly packed.
