GA_PageIterator.h File Reference

#include "GA_API.h"
#include "GA_Iterator.h"
#include "GA_Range.h"
#include "GA_SplittableRange.h"
#include "GA_Types.h"
#include <UT/UT_ThreadedAlgorithm.h>
#include <stddef.h>

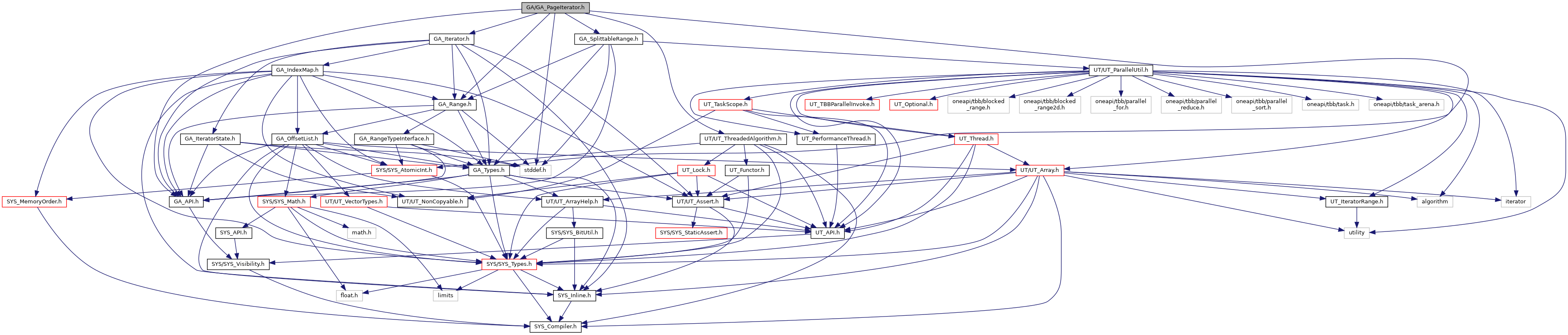

Include dependency graph for GA_PageIterator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GA_PageIterator

Macros
#define	GA_FOR_INFORANGE(info, full_range, IT_NAME)
#define	GA_FOR_INFORANGE_BOSS(info, full_range, IT_NAME, boss)
#define	GA_FOR_INFO_ALLPOINTS(gdp, info, IT_NAME)
	Iterate over all points for the given info. More...
#define	GA_FOR_INFO_ALLPOINTS_BOSS(gdp, info, IT_NAME, boss)
	Iterate over all points for the given info with a UT_Interrupt. More...
#define	GA_FOR_INFO_GROUP_POINTS_BOSS(gdp, pointgrp, info, IT_NAME, boss)
	Iterate over all points for the given info with a UT_Interrupt. More...

Functions
template<typename Body >
**void	GAforEachPageBlock (GA_PageIterator &page_iterator, const Body &body)
*	GAforEachPageBlock (pit, [&](GA_Offset start, GA_Offset end)*{*pagehandle.setPage(start);*for(GA_Offset off=start;off< end;off++)*{}*})
template<typename Body >
re build pagehandles inside this loop For non *trivial loops binding may be safer *void	GAparallelForEachPage (const GA_Range &range, bool shouldthread, const Body &body)

Variables
*UT_IntArray	scratchpad
*GA_ROPageHandleF	pagehandle
***	NOTE

Macro Definition Documentation

#define GA_FOR_INFO_ALLPOINTS	(		gdp,
			info,
			IT_NAME
	)

Value:

GA_SplittableRange      lcl_prange(gdp->getPointRange()); \
    for (GA_PageIterator pit=lcl_prange.beginPages(info); \
            !pit.atEnd(); ++pit) \
        for (GA_Iterator IT_NAME = pit.begin(); !IT_NAME.atEnd(); ++IT_NAME)

Iterate over all points for the given info.

Definition at line 229 of file GA_PageIterator.h.

#define GA_FOR_INFO_ALLPOINTS_BOSS	(		gdp,
			info,
			IT_NAME,
			boss
	)

Value:

GA_SplittableRange      lcl_prange(gdp->getPointRange()); \
    for (GA_PageIterator pit=lcl_prange.beginPages(info); \
            !pit.atEnd() && !boss->opInterrupt(); ++pit) \
        for (GA_Iterator IT_NAME = pit.begin(); !IT_NAME.atEnd(); ++IT_NAME)

Iterate over all points for the given info with a UT_Interrupt.

Definition at line 236 of file GA_PageIterator.h.

#define GA_FOR_INFO_GROUP_POINTS_BOSS	(		gdp,
			pointgrp,
			info,
			IT_NAME,
			boss
	)

Value:

GA_SplittableRange      lcl_prange(gdp->getPointRange(pointgrp)); \
    for (GA_PageIterator pit=lcl_prange.beginPages(info); \
            !pit.atEnd() && !boss->opInterrupt(); ++pit) \
        for (GA_Iterator IT_NAME = pit.begin(); !IT_NAME.atEnd(); ++IT_NAME)

Iterate over all points for the given info with a UT_Interrupt.

Definition at line 244 of file GA_PageIterator.h.

#define GA_FOR_INFORANGE	(		info,
			full_range,
			IT_NAME
	)

Value:

GA_SplittableRange      lcl_prange(full_range); \
    for (GA_PageIterator pit=lcl_prange.beginPages(info); \
            !pit.atEnd(); ++pit) \
        for (GA_Iterator IT_NAME = pit.begin(); !IT_NAME.atEnd(); ++IT_NAME)

Define macros roughly equivalent to FOR_INFOTASKS (in UT_ThreadedAlgorithm). This will break up the full range into a load balanced iteration over pages. For example: GA_FOR_INFOTASKS(info, gdp->getPointRange(), it) { doSomething(it.getOrder()); // Use point number doSomething(it.getOffset()); // Use point offset }

Definition at line 214 of file GA_PageIterator.h.

#define GA_FOR_INFORANGE_BOSS	(		info,
			full_range,
			IT_NAME,
			boss
	)

Value:

GA_SplittableRange      lcl_prange(full_range); \
    for (GA_PageIterator pit=lcl_prange.beginPages(info); \
            !pit.atEnd() && !boss->opInterrupt(); ++pit) \
        for (GA_Iterator IT_NAME = pit.begin(); !IT_NAME.atEnd(); ++IT_NAME)

Like FOR_INFOTASKS_BOSS, iterate with an optional opInterrupt for every block completed.

Definition at line 222 of file GA_PageIterator.h.

Function Documentation

template<typename Body >

* * void GAforEachPageBlock	(	GA_PageIterator &	page_iterator,
		const Body &	body
	)

Invokes a body across each block within a page iterator, avoiding the double loop you normally needed. Usage: GA_PageIterator pit(...); GAforEachPageBlock(pit, [&](GA_Offset start, GA_Offset end) { for (GA_Offset off = start; off < end; off++) { /* work with off

Definition at line 124 of file GA_PageIterator.h.

* GAforEachPageBlock	(	pit	,
		[&] (GA_Offset start, GA_Offset end)*{*pagehandle.setPage(start);*for(GA_Offset off=start;off< end;off++)*{}*}
	)

template<typename Body >

re build pagehandles inside this loop For non* trivial loops binding may be safer* void GAparallelForEachPage ( const GA_Range &  range, bool  shouldthread, const Body &  body  )

explicit

Definition at line 166 of file GA_PageIterator.h.

Variable Documentation

* * * NOTE

Definition at line 158 of file GA_PageIterator.h.

* GA_ROPageHandleF pagehandle

Definition at line 151 of file GA_PageIterator.h.

* UT_IntArray scratchpad

Invokes the body approximately once per worker thread with a shared atomic int to provide load-balanced iteration over the pages in the range. shouldthread allows you to easily disable threading, for example if you know some cases are not threadsafe or you have a larger grain size. Body Signature: void body(GA_PageIterator page_iterator) Usage: GAparallelForEachPage(range, shouldthread, [&](GA_PageIterator pit) { /* Thread local data structures / scratchpads

Definition at line 150 of file GA_PageIterator.h.
