GU_SoftTransform.h File Reference

#include "GU_API.h"
#include <GA/GA_Handle.h>
#include <GEO/GEO_Detail.h>
#include <UT/UT_VectorTypes.h>

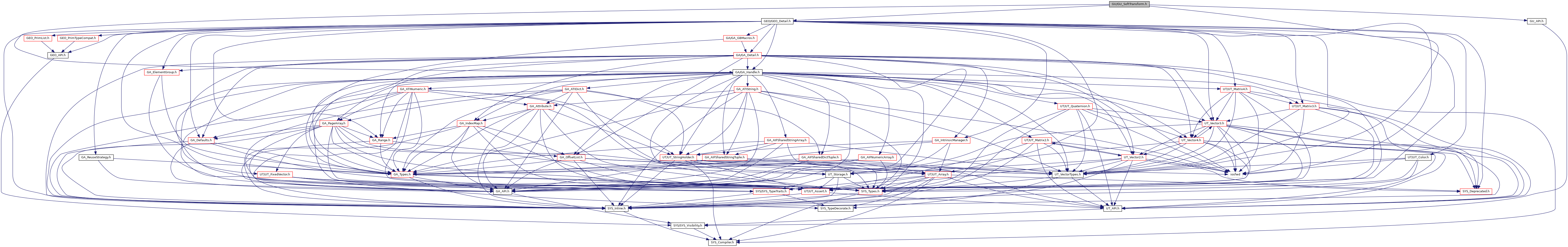

Include dependency graph for GU_SoftTransform.h:

Go to the source code of this file.

Functions
void GU_API	GUsoftTransformPoints (GEO_Detail *gdp, const GEO_Detail::LocalXformContextF *local, const UT_XformOrder &order, float tx, float ty, float tz, float rx, float ry, float rz, float sx, float sy, float sz, float s_xy, float s_xz, float s_yz, float px, float py, float pz, float prx, float pry, float prz, const GEO_Rolloff *rolloff, const GA_ROHandleF &distances, const GA_PointGroup *ptgroup, const bool keep_normal_length=true, GEO_Delta *geodelta=NULL, const GA_RWHandleF *falloff_output=NULL, bool updateaffectednormals=false, bool updateallnormals=false, const char *attribpattern=NULL)
void GU_API	GUsoftTransformEdges (GEO_Detail *gdp, const GEO_Detail::LocalXformContextF *local, const UT_XformOrder &order, float tx, float ty, float tz, float rx, float ry, float rz, float sx, float sy, float sz, float s_xy, float s_xz, float s_yz, float px, float py, float pz, float prx, float pry, float prz, const GEO_Rolloff *rolloff, const GA_ROHandleF &distances, const GA_EdgeGroup *ptgroup, const bool keep_normal_length=true, GEO_Delta *geodelta=NULL, const GA_RWHandleF *falloff_output=NULL, bool updateaffectednormals=false, bool updateallnormals=false, const char *attribpattern=NULL)
void GU_API	GUsoftTranslatePoints (GEO_Detail *gdp, const UT_Vector3 &delta, const GEO_Rolloff *rolloff, const GA_ROHandleF &distances, const GA_PointGroup *ptgroup, GEO_Delta *geodelta=NULL, const GA_RWHandleF *falloff_output=NULL, bool update_affected_normals=false, bool update_all_normals=false, const char *attrib_pattern=NULL)
void GU_API	GUsoftTranslateEdges (GEO_Detail *gdp, const UT_Vector3 &delta, const GEO_Rolloff *rolloff, const GA_ROHandleF &distances, const GA_EdgeGroup *edge_group, GEO_Delta *geodelta=NULL, const GA_RWHandleF *falloff_output=NULL, bool update_affected_normals=false, bool update_all_normals=false, const char *attrib_pattern=NULL)
void GU_API	GUsoftNormalTranslatePoints (GEO_Detail *gdp, const float distance, const GEO_Rolloff *rolloff, const GA_ROHandleF &distances, const GA_PointGroup *ptgroup, GEO_Delta *geodelta=NULL, const GA_RWHandleF *falloff_output=NULL, const GA_ROHandleID *closest_points=NULL, const bool update_affected_normals=false, bool update_all_normals=false, const GA_ROHandleF *mask=nullptr)

Function Documentation

void GU_API GUsoftNormalTranslatePoints	(	GEO_Detail *	gdp,
		const float	distance,
		const GEO_Rolloff *	rolloff,
		const GA_ROHandleF &	distances,
		const GA_PointGroup *	ptgroup,
		GEO_Delta *	geodelta = NULL,
		const GA_RWHandleF *	falloff_output = NULL,
		const GA_ROHandleID *	closest_points = NULL,
		const bool	update_affected_normals = false,
		bool	update_all_normals = false,
		const GA_ROHandleF *	mask = nullptr
	)

void GU_API GUsoftTransformEdges	(	GEO_Detail *	gdp,
		const GEO_Detail::LocalXformContextF *	local,
		const UT_XformOrder &	order,
		float	tx,
		float	ty,
		float	tz,
		float	rx,
		float	ry,
		float	rz,
		float	sx,
		float	sy,
		float	sz,
		float	s_xy,
		float	s_xz,
		float	s_yz,
		float	px,
		float	py,
		float	pz,
		float	prx,
		float	pry,
		float	prz,
		const GEO_Rolloff *	rolloff,
		const GA_ROHandleF &	distances,
		const GA_EdgeGroup *	ptgroup,
		const bool	keep_normal_length = true,
		GEO_Delta *	geodelta = NULL,
		const GA_RWHandleF *	falloff_output = NULL,
		bool	updateaffectednormals = false,
		bool	updateallnormals = false,
		const char *	attribpattern = NULL
	)

void GU_API GUsoftTransformPoints	(	GEO_Detail *	gdp,
		const GEO_Detail::LocalXformContextF *	local,
		const UT_XformOrder &	order,
		float	tx,
		float	ty,
		float	tz,
		float	rx,
		float	ry,
		float	rz,
		float	sx,
		float	sy,
		float	sz,
		float	s_xy,
		float	s_xz,
		float	s_yz,
		float	px,
		float	py,
		float	pz,
		float	prx,
		float	pry,
		float	prz,
		const GEO_Rolloff *	rolloff,
		const GA_ROHandleF &	distances,
		const GA_PointGroup *	ptgroup,
		const bool	keep_normal_length = true,
		GEO_Delta *	geodelta = NULL,
		const GA_RWHandleF *	falloff_output = NULL,
		bool	updateaffectednormals = false,
		bool	updateallnormals = false,
		const char *	attribpattern = NULL
	)

void GU_API GUsoftTranslateEdges	(	GEO_Detail *	gdp,
		const UT_Vector3 &	delta,
		const GEO_Rolloff *	rolloff,
		const GA_ROHandleF &	distances,
		const GA_EdgeGroup *	edge_group,
		GEO_Delta *	geodelta = NULL,
		const GA_RWHandleF *	falloff_output = NULL,
		bool	update_affected_normals = false,
		bool	update_all_normals = false,
		const char *	attrib_pattern = NULL
	)

void GU_API GUsoftTranslatePoints	(	GEO_Detail *	gdp,
		const UT_Vector3 &	delta,
		const GEO_Rolloff *	rolloff,
		const GA_ROHandleF &	distances,
		const GA_PointGroup *	ptgroup,
		GEO_Delta *	geodelta = NULL,
		const GA_RWHandleF *	falloff_output = NULL,
		bool	update_affected_normals = false,
		bool	update_all_normals = false,
		const char *	attrib_pattern = NULL
	)
