PXL_Common.h File Reference

#include <limits.h>
#include "PXL_API.h"
#include <SYS/SYS_Types.h>
#include <UT/UT_Assert.h>
#include <UT/UT_ComputeGPU.h>

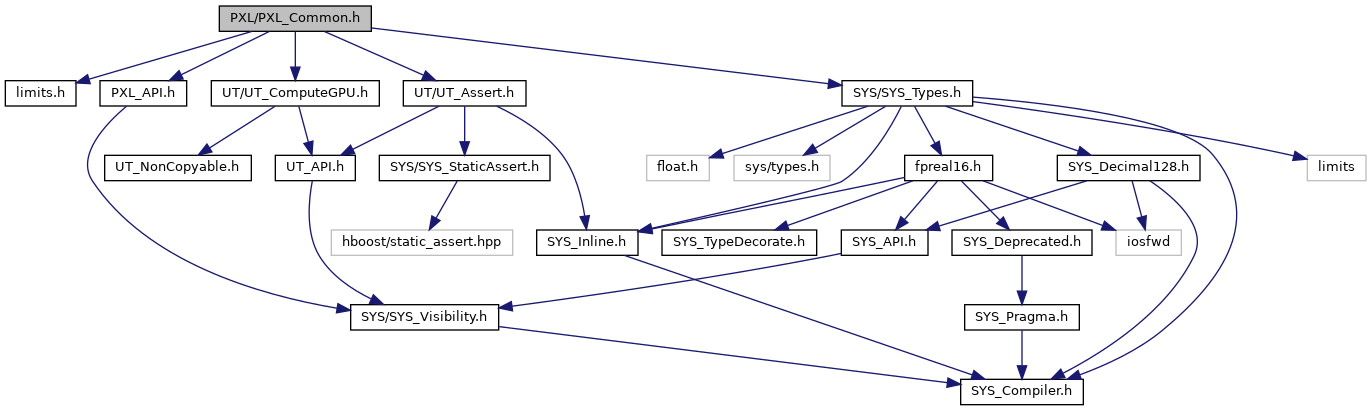

Include dependency graph for PXL_Common.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	PXL_DataFormatResolver< T >
struct	PXL_TypeResolver< PXL_DataFormat >

Macros
#define	DEF_TYPERESOLVER(FORMAT, CPPTYPE)
#define	PXL_WHITE_8   UCHAR_MAX
#define	PXL_WHITE_16   USHRT_MAX
#define	PXL_WHITE_32   UINT_MAX

Enumerations
enum	PXL_DataFormat {   PXL_INT8 = 0, PXL_INT16, PXL_INT32, PXL_FLOAT32,   PXL_FLOAT16, PXL_MAX_DATA_FORMAT }
enum	PXL_Packing {   PACK_SINGLE =0, PACK_DUAL, PACK_DUAL_NI, PACK_RGB,   PACK_RGBA, PACK_RGB_NI, PACK_RGBA_NI, PACK_UV,   PACK_UNKNOWN = 255, PACK_UV_NI = PACK_DUAL_NI }
enum	PXL_ColorSpace {   PXL_CS_UNKNOWN, PXL_CS_LINEAR, PXL_CS_GAMMA2_2, PXL_CS_CUSTOM_GAMMA,   PXL_CS_SRGB, PXL_CS_REC709, PXL_CS_OCIO, PXL_CS_MAX_SPACES }
enum	PXL_Visualization {   PXL_Visualization::NONE, PXL_Visualization::SDF, PXL_Visualization::RANDOMID, PXL_Visualization::IMAGECOORD,   PXL_Visualization::HUENML, PXL_Visualization::HUEVEL, PXL_Visualization::SLOPEDIR }

Functions
PXL_API const char *	PXLdataFormat (PXL_DataFormat f)
PXL_API const char *	PXLpacking (PXL_Packing p)
PXL_API const char *	PXLgetColorSpaceName (PXL_ColorSpace cs)
PXL_API PXL_ColorSpace	PXLgetColorSpace (const char *csname)
const char *	PXLcolorSpace (PXL_ColorSpace s)
PXL_ColorSpace	PXLcolorSpace (const char *s)
UT_GPUType	PXLconvertToUTGPUType (PXL_DataFormat t)
int	PXLformatDepth (PXL_DataFormat d)
int	PXLpackingComponents (PXL_Packing p)
int	PXLpackingDepth (PXL_Packing p)
unsigned int	PXLwhitePoint (PXL_DataFormat dt)
PXL_API void	PXLdetermineProcCaps ()
PXL_API bool	PXLcpuHasMMX ()
PXL_API int	PXLcpuHasSSE ()
PXL_API bool	PXLcpuHasXMMX ()
PXL_API bool	PXLcpuHasCondMov ()
int	PXLclampChar (int t)
int	PXLclampShort (int t)
bool	PXLformatIsInteger (const PXL_DataFormat d)

Variables
PXL_API const int	pxlDefinesDepth [6]
PXL_API const int	pxlDefinesPComp [256]
PXL_API const int	pxlDefinesPDepth [256]
PXL_API const unsigned int	pxlDefinesWhite [6]

Macro Definition Documentation

#define DEF_TYPERESOLVER	(		FORMAT,
			CPPTYPE
	)

Value:

template <> struct PXL_DataFormatResolver<CPPTYPE> { \
        static constexpr PXL_DataFormat format = FORMAT; \
    }; \
    template <> struct PXL_TypeResolver<FORMAT> { \
        using T = CPPTYPE; \
    }; \
    /* end macro */

Definition at line 57 of file PXL_Common.h.

#define PXL_WHITE_16   USHRT_MAX

Definition at line 99 of file PXL_Common.h.

#define PXL_WHITE_32   UINT_MAX

Definition at line 100 of file PXL_Common.h.

#define PXL_WHITE_8   UCHAR_MAX

Definition at line 98 of file PXL_Common.h.

Enumeration Type Documentation

enum PXL_ColorSpace

Enumerator
PXL_CS_UNKNOWN
PXL_CS_LINEAR
PXL_CS_GAMMA2_2
PXL_CS_CUSTOM_GAMMA
PXL_CS_SRGB
PXL_CS_REC709
PXL_CS_OCIO
PXL_CS_MAX_SPACES

Definition at line 72 of file PXL_Common.h.

enum PXL_DataFormat

Enumerator
PXL_INT8
PXL_INT16
PXL_INT32
PXL_FLOAT32
PXL_FLOAT16
PXL_MAX_DATA_FORMAT

Definition at line 20 of file PXL_Common.h.

enum PXL_Packing

Enumerator
PACK_SINGLE
PACK_DUAL
PACK_DUAL_NI
PACK_RGB
PACK_RGBA
PACK_RGB_NI
PACK_RGBA_NI
PACK_UV
PACK_UNKNOWN
PACK_UV_NI

Definition at line 32 of file PXL_Common.h.

enum PXL_Visualization

strong

Enumerator
NONE
SDF
RANDOMID
IMAGECOORD
HUENML
HUEVEL
SLOPEDIR

Definition at line 165 of file PXL_Common.h.

Function Documentation

int PXLclampChar ( int  t )

inline

Definition at line 143 of file PXL_Common.h.

int PXLclampShort ( int  t )

inline

Definition at line 153 of file PXL_Common.h.

const char* PXLcolorSpace ( PXL_ColorSpace  s )

inline

Definition at line 93 of file PXL_Common.h.

PXL_ColorSpace PXLcolorSpace ( const char *  s )

inline

Definition at line 95 of file PXL_Common.h.

UT_GPUType PXLconvertToUTGPUType ( PXL_DataFormat  t )

inline

Definition at line 107 of file PXL_Common.h.

PXL_API bool PXLcpuHasCondMov

(

)

PXL_API bool PXLcpuHasMMX

(

)

PXL_API int PXLcpuHasSSE

(

)

PXL_API bool PXLcpuHasXMMX

(

)

PXL_API const char* PXLdataFormat

(

PXL_DataFormat

f

)

Examples:

IMG/TIL_NullFilter.C.

PXL_API void PXLdetermineProcCaps

(

)

int PXLformatDepth ( PXL_DataFormat  d )

inline

Definition at line 123 of file PXL_Common.h.

bool PXLformatIsInteger ( const PXL_DataFormat  d )

inline

Definition at line 162 of file PXL_Common.h.

PXL_API PXL_ColorSpace PXLgetColorSpace

(

const char *

csname

)

PXL_API const char* PXLgetColorSpaceName

(

PXL_ColorSpace

cs

)

PXL_API const char* PXLpacking

(

PXL_Packing

p

)

Examples:

IMG/TIL_NullFilter.C.

int PXLpackingComponents ( PXL_Packing  p )

inline

Definition at line 126 of file PXL_Common.h.

int PXLpackingDepth ( PXL_Packing  p )

inline

Definition at line 129 of file PXL_Common.h.

unsigned int PXLwhitePoint ( PXL_DataFormat  dt )

inline

Definition at line 132 of file PXL_Common.h.

Variable Documentation

PXL_API const int pxlDefinesDepth[6]

PXL_API const int pxlDefinesPComp[256]

PXL_API const int pxlDefinesPDepth[256]

PXL_API const unsigned int pxlDefinesWhite[6]
