PointMove.h File Reference

Ability to move VDB Points using a custom deformer. More...

#include <openvdb/openvdb.h>
#include <openvdb/points/PointDataGrid.h>
#include <openvdb/points/PointMask.h>
#include <tbb/concurrent_vector.h>
#include <algorithm>
#include <iterator>
#include <map>
#include <numeric>
#include <tuple>
#include <unordered_map>
#include <vector>

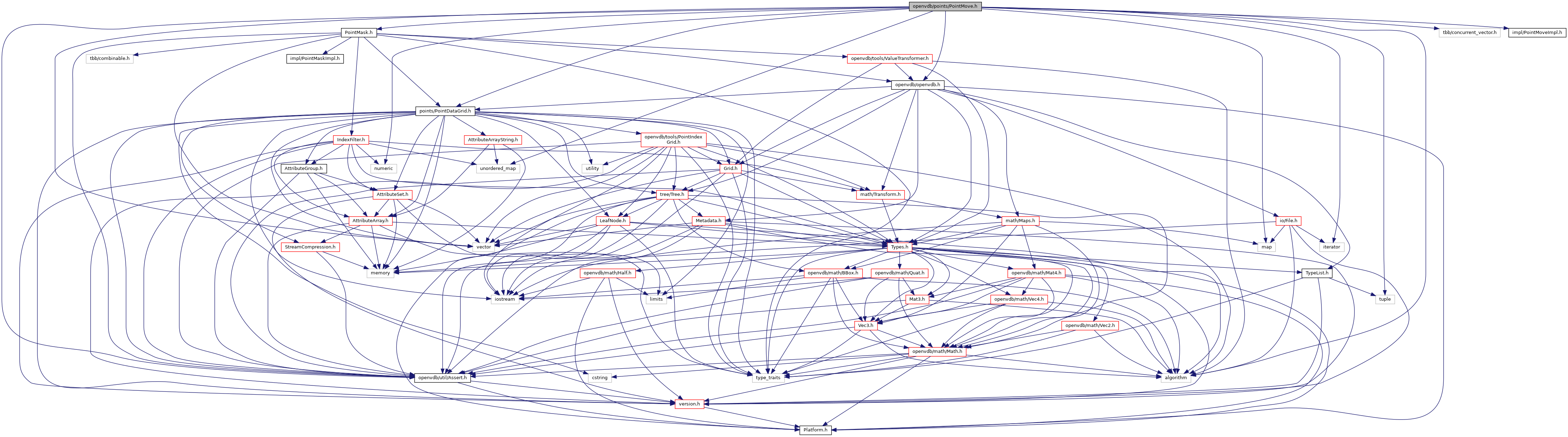

Include dependency graph for PointMove.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	openvdb::OPENVDB_VERSION_NAME::points::future::Advect
class	openvdb::OPENVDB_VERSION_NAME::points::CachedDeformer< T >
	A Deformer that caches the resulting positions from evaluating another Deformer. More...
struct	openvdb::OPENVDB_VERSION_NAME::points::CachedDeformer< T >::Cache
struct	openvdb::OPENVDB_VERSION_NAME::points::CachedDeformer< T >::Cache::Leaf
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::BuildMoveMapsOp< DeformerT, TreeT, FilterT >
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::ArrayProcessor< ValueType, OpType >
	Helper class used internally by processTypedArray() More...
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::AttributeHandles
	Cache read and write attribute handles to amortize construction cost. More...
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::AttributeHandles::CacheHandleOp
	Create a handle and reinterpret cast as an int handle to store. More...
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::GlobalMovePointsOp< TreeT >
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::GlobalMovePointsOp< TreeT >::PerformTypedMoveOp
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::LocalMovePointsOp< TreeT >
struct	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::LocalMovePointsOp< TreeT >::PerformTypedMoveOp

Namespaces
	openvdb
	openvdb::OPENVDB_VERSION_NAME
	openvdb::OPENVDB_VERSION_NAME::points
	openvdb::OPENVDB_VERSION_NAME::points::future
	A container for ABI=5 to help ease introduction of upcoming features.
	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal

Typedefs
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::LeafIndex = Index32
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::IndexArray = std::vector< Index >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::IndexTriple = std::tuple< LeafIndex, Index, Index >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::IndexTripleArray = tbb::concurrent_vector< IndexTriple >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::GlobalPointIndexMap = std::vector< IndexTripleArray >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::GlobalPointIndexIndices = std::vector< IndexArray >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::IndexPair = std::pair< Index, Index >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::IndexPairArray = std::vector< IndexPair >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::LocalPointIndexMap = std::vector< IndexPairArray >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::LeafIndexArray = std::vector< LeafIndex >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::LeafOffsetArray = std::vector< LeafIndexArray >
using	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::LeafMap = std::unordered_map< Coord, LeafIndex >

Functions
template<typename PointDataGridT , typename DeformerT , typename FilterT = NullFilter>
void	openvdb::OPENVDB_VERSION_NAME::points::movePoints (PointDataGridT &points, DeformerT &deformer, const FilterT &filter=NullFilter(), future::Advect *objectNotInUse=nullptr, bool threaded=true)
	Move points in a PointDataGrid using a custom deformer. More...
template<typename PointDataGridT , typename DeformerT , typename FilterT = NullFilter>
void	openvdb::OPENVDB_VERSION_NAME::points::movePoints (PointDataGridT &points, const math::Transform &transform, DeformerT &deformer, const FilterT &filter=NullFilter(), future::Advect *objectNotInUse=nullptr, bool threaded=true)
	Move points in a PointDataGrid using a custom deformer and a new transform. More...
template<typename LeafT >
Index	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::indexOffsetFromVoxel (const Index voxelOffset, const LeafT &leaf, IndexArray &offsets)
template<typename ArrayType , typename OpType >
bool	openvdb::OPENVDB_VERSION_NAME::points::point_move_internal::processTypedArray (const ArrayType &array, OpType &op)
	Utility function that, given a generic attribute array, calls a functor with the fully-resolved value type of the array. More...

Detailed Description

Ability to move VDB Points using a custom deformer.

Author

Dan Bailey

Deformers used when moving points are in world space by default and must adhere to the interface described in the example below:

struct MyDeformer
{
    // A reset is performed on each leaf in turn before the points in that leaf are
    // deformed. A leaf and leaf index (standard leaf traversal order) are supplied as
    // the arguments, which matches the functor interface for LeafManager::foreach().
    template <typename LeafNoteType>
    void reset(LeafNoteType& leaf, size_t idx);

    // Evaluate the deformer and modify the given position to generate the deformed
    // position. An index iterator is supplied as the argument to allow querying the
    // point offset or containing voxel coordinate.
    template <typename IndexIterT>
    void apply(Vec3d& position, const IndexIterT& iter) const;
};

Note

The DeformerTraits struct (defined in PointMask.h) can be used to configure a deformer to evaluate in index space.

Definition in file PointMove.h.
