RAY_Procedural.h File Reference

#include "RAY_API.h"
#include <SYS/SYS_Types.h>
#include <GA/GA_Handle.h>
#include <GU/GU_DetailHandle.h>
#include <UT/UT_BoundingBox.h>
#include <UT/UT_String.h>
#include <UT/UT_StringHolder.h>
#include <UT/UT_SharedPtr.h>
#include <UT/UT_IntrusivePtr.h>

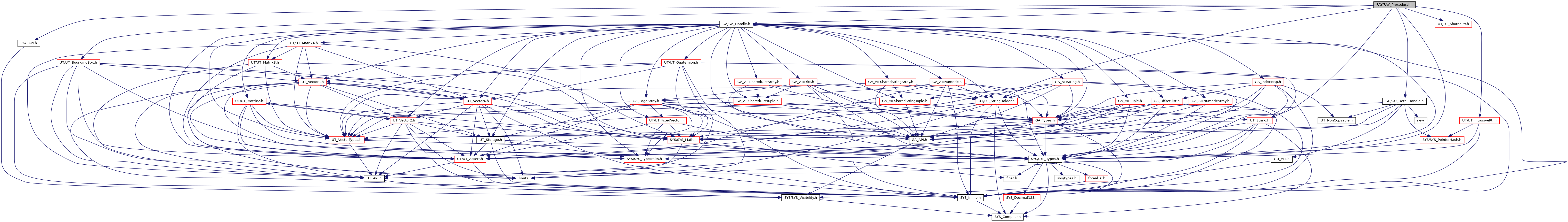

Include dependency graph for RAY_Procedural.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	RAY_ProceduralArg
	Parameter definition for arguments to RAY_Procedural. More...
class	RAY_ROProceduralGeo
	Reference counted geometry handle for procedurals. More...
class	RAY_ProceduralGeo
struct	RAY_PrimitiveMaterialAttributes
class	RAY_ProceduralChild
	Class representing a child object of the current procedural. More...
class	RAY_Procedural
	Procedural primitive for mantra (RAY) More...

Typedefs
typedef void *	RAY_Handle
	Aliases for different handle types. More...
typedef void *	RAY_ObjectHandle
	A handle for objects. Can also be used anywhere a RAY_Handle is expected. More...
typedef void *	RAY_MaterialHandle
	A handle for materials. Can also be used anywhere a RAY_Handle is expected. More...
typedef void *	RAY_LightHandle
	A handle for lights. Can also be used anywhere a RAY_Handle is expected. More...
using	RAY_ProceduralChildPtr = UT_IntrusivePtr< RAY_ProceduralChild >

Functions
SYS_VISIBILITY_EXPORT RAY_Procedural *	allocProcedural (const char *name)
	Mantra procedural primitives. More...
SYS_VISIBILITY_EXPORT const RAY_ProceduralArg *	getProceduralArgs (const char *n)
	Dynamic load entry point to query arguments for a procedural. More...
SYS_VISIBILITY_EXPORT void	registerProcedural (RAY_ProceduralFactory *factory)
	Modern interface to register procedurals. More...

Typedef Documentation

typedef void* RAY_Handle

Aliases for different handle types.

A generic handle that can be used by RAY_Procedural::import and RAY_Procedural::importAll.

Definition at line 81 of file RAY_Procedural.h.

typedef void* RAY_LightHandle

A handle for lights. Can also be used anywhere a RAY_Handle is expected.

Definition at line 90 of file RAY_Procedural.h.

typedef void* RAY_MaterialHandle

A handle for materials. Can also be used anywhere a RAY_Handle is expected.

Definition at line 87 of file RAY_Procedural.h.

typedef void* RAY_ObjectHandle

A handle for objects. Can also be used anywhere a RAY_Handle is expected.

Definition at line 84 of file RAY_Procedural.h.

using RAY_ProceduralChildPtr = UT_IntrusivePtr<RAY_ProceduralChild>

Definition at line 625 of file RAY_Procedural.h.

Function Documentation

SYS_VISIBILITY_EXPORT RAY_Procedural* allocProcedural

(

const char *

name

)

Mantra procedural primitives.

When a procedural is defined as a dynamic object, the allocProcedural() function is called to build a new instance of the procedural. The name passed in will be the name defined by the table entry. This can be used for: a) Error checking – you can verify that you're name is what you expect. However, this isn't mandatory. b) To have more than one procedural defined per C++ class. Using the name, you can create procedurals of different types.

The argument list for the procedural is specified by a list of arguments. The getProceduralArgs() method should return a pointer to an array of RAY_ProceduralArg's. The list should be terminated by an entry with default arguments (i.e. null pointers). For example: Arguments can then be queried using the argValue() methods in the proceduralDynamic load entry point to create an instance

SYS_VISIBILITY_EXPORT const RAY_ProceduralArg* getProceduralArgs

(

const char *

n

)

Dynamic load entry point to query arguments for a procedural.

SYS_VISIBILITY_EXPORT void registerProcedural

(

RAY_ProceduralFactory *

factory

)

Modern interface to register procedurals.

Examples:

RAY/RAY_DemoBox.C, RAY/RAY_DemoFile.C, RAY/RAY_DemoGT.C, RAY/RAY_DemoMountain.C, RAY/RAY_DemoSprite.C, RAY/RAY_DemoStamp.C, and RAY/RAY_DemoVolumeSphere.C.

Definition at line 56 of file RAY_DemoBox.C.
