#include "UT_API.h"
#include "UT_Assert.h"
#include "UT_Axis.h"
#include "UT_FixedVectorTraits.h"
#include "UT_Swap.h"
#include "UT_SymMatrix3.h"
#include "UT_Vector3.h"
#include "UT_VectorTypes.h"
#include <SYS/SYS_Deprecated.h>
#include <SYS/SYS_Math.h>
#include <iosfwd>

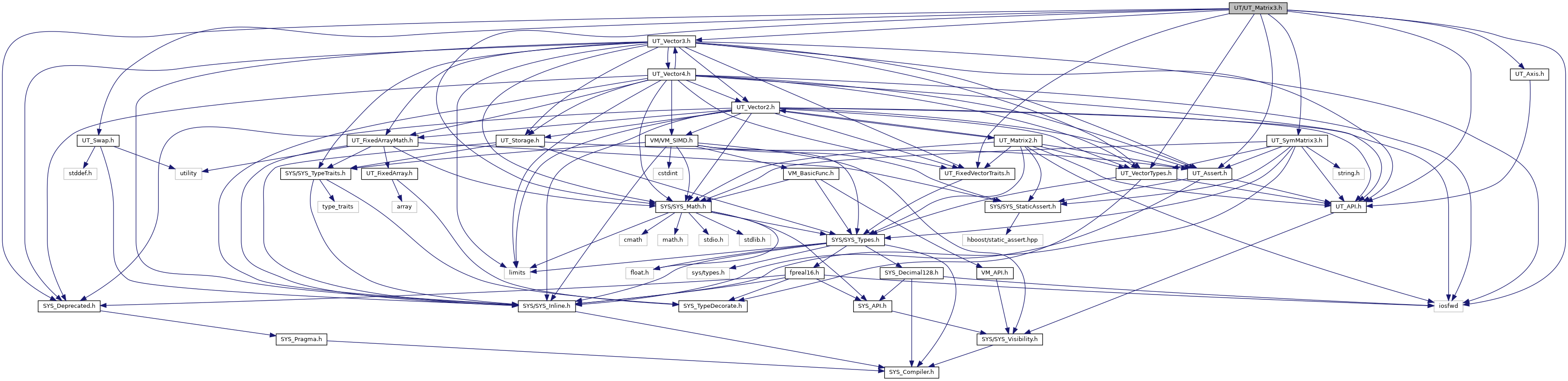

Include dependency graph for UT_Matrix3.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	UT_Matrix3T< T >

class	UT_FixedVector< T, D >

struct	UT_FixedVectorTraits< UT_Matrix3T< T > >

struct	UT_Matrix3TFromUnbounded< T >

struct	UT_FromUnbounded< V >
	UT_FromUnbounded creates a V from an unbounded array-like type. More...

struct	UT_FromUnbounded< UT_Matrix3T< T > >

struct	UT_Matrix3TFromFixed< T >

struct	UT_FromFixed< V >

struct	UT_FromFixed< UT_Matrix3T< T > >

Macros
#define	__UT_Matrix3_h__

Functions
template<typename T >
UT_API UT_Matrix3T< T >	operator+ (const UT_Matrix3T< T > &m1, const UT_Matrix3T< T > &m2)

template<typename T >
UT_API UT_Matrix3T< T >	operator- (const UT_Matrix3T< T > &m1, const UT_Matrix3T< T > &m2)

template<typename T >
UT_API UT_Matrix3T< T >	operator* (const UT_Matrix3T< T > &m1, const UT_Matrix3T< T > &m2)

template<typename T , typename S >
UT_API UT_Matrix3T< T >	operator+ (const UT_Matrix3T< T > &m, const UT_Vector3T< S > &v)

template<typename T , typename S >
UT_Matrix3T< T >	operator+ (const UT_Vector3T< S > &v, const UT_Matrix3T< T > &m)

template<typename T , typename S >
UT_API UT_Matrix3T< T >	operator- (const UT_Matrix3T< T > &m, const UT_Vector3T< S > &v)

template<typename T , typename S >
UT_API UT_Matrix3T< T >	operator- (const UT_Vector3T< S > &v, const UT_Matrix3T< T > &m)

template<typename T , typename S >
UT_API UT_Matrix3T< T >	operator+ (const UT_Matrix3T< T > &mat, S sc)

template<typename T , typename S >
UT_Matrix3T< T >	operator- (const UT_Matrix3T< T > &mat, S sc)

template<typename T , typename S >
UT_API UT_Matrix3T< T >	operator* (const UT_Matrix3T< T > &mat, S sc)

template<typename T , typename S >
UT_Matrix3T< T >	operator/ (const UT_Matrix3T< T > &mat, S sc)

template<typename T , typename S >
UT_Matrix3T< T >	operator+ (S sc, const UT_Matrix3T< T > &mat)

template<typename T , typename S >
UT_API UT_Matrix3T< T >	operator- (S sc, const UT_Matrix3T< T > &mat)

template<typename T , typename S >
UT_Matrix3T< T >	operator* (S sc, const UT_Matrix3T< T > &mat)

template<typename T , typename S >
UT_API UT_Matrix3T< T >	operator/ (S sc, const UT_Matrix3T< T > &mat)

template<typename T >
UT_Matrix3T< T >	SYSmin (const UT_Matrix3T< T > &v1, const UT_Matrix3T< T > &v2)

template<typename T >
UT_Matrix3T< T >	SYSmax (const UT_Matrix3T< T > &v1, const UT_Matrix3T< T > &v2)

template<typename T , typename S >
UT_Matrix3T< T >	SYSlerp (const UT_Matrix3T< T > &v1, const UT_Matrix3T< T > &v2, S t)

template<typename T , typename S >
UT_Matrix3T< T >	SYSbilerp (const UT_Matrix3T< T > &u0v0, const UT_Matrix3T< T > &u1v0, const UT_Matrix3T< T > &u0v1, const UT_Matrix3T< T > &u1v1, S u, S v)
	Bilinear interpolation. More...

template<typename T , typename S >
UT_Matrix3T< T >	SYSbarycentric (const UT_Matrix3T< T > &v0, const UT_Matrix3T< T > &v1, const UT_Matrix3T< T > &v2, S u, S v)
	Barycentric interpolation. More...

template<typename T , typename S >
UT_Vector3T< T >	operator* (const UT_Vector3T< T > &v, const UT_Matrix3T< S > &m)

template<>
UT_Matrix3T< float >	SYSlerp (const UT_Matrix3T< float > &v1, const UT_Matrix3T< float > &v2, float t)

template<typename T >
UT_API size_t	format (char *buffer, size_t buffer_size, const UT_Matrix3T< T > &v)

template<typename TS >
constexpr UT_Matrix3T < SYS_FixedArrayElement_t< TS > >	UTmakeMatrix3T (const TS &as) noexcept


template<typename T , typename S >
UT_Vector3T< T >	rowVecMult (const UT_Vector3T< T > &v, const UT_Matrix3T< S > &m)

template<typename T , typename S >
UT_Vector3T< T >	colVecMult (const UT_Matrix3T< S > &m, const UT_Vector3T< T > &v)

Macro Definition Documentation

#define __UT_Matrix3_h__

Definition at line 11 of file UT_Matrix3.h.

Function Documentation

template<typename T , typename S >

UT_Vector3T< T > colVecMult	(	const UT_Matrix3T< S > &	m,
		const UT_Vector3T< T > &	v
	)

inline

Multiplication of a row or column vector by a matrix (ie. right vs. left multiplication respectively). The operator*() declared above is an alias for rowVecMult(). The functions that take a 4x4 matrix first extend the vector to 4D (with a trailing 1.0 element).

Definition at line 1534 of file UT_Matrix3.h.

template<typename T >

UT_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const UT_Matrix3T< T > &	v
	)

template<typename T >

UT_API UT_Matrix3T<T> operator*	(	const UT_Matrix3T< T > &	m1,
		const UT_Matrix3T< T > &	m2
	)

template<typename T , typename S >

UT_API UT_Matrix3T<T> operator*	(	const UT_Matrix3T< T > &	mat,
		S	sc
	)

template<typename T , typename S >

UT_Matrix3T< T > operator*	(	S	sc,
		const UT_Matrix3T< T > &	mat
	)

inline

Definition at line 1477 of file UT_Matrix3.h.

template<typename T , typename S >

UT_Vector3T<T> operator*	(	const UT_Vector3T< T > &	v,
		const UT_Matrix3T< S > &	m
	)

inline

Definition at line 1527 of file UT_Matrix3.h.

template<typename T >

UT_API UT_Matrix3T<T> operator+	(	const UT_Matrix3T< T > &	m1,
		const UT_Matrix3T< T > &	m2
	)

template<typename T , typename S >

UT_API UT_Matrix3T<T> operator+	(	const UT_Matrix3T< T > &	m,
		const UT_Vector3T< S > &	v
	)

template<typename T , typename S >

UT_Matrix3T< T > operator+	(	const UT_Vector3T< S > &	v,
		const UT_Matrix3T< T > &	m
	)

inline

Definition at line 1470 of file UT_Matrix3.h.

template<typename T , typename S >

UT_API UT_Matrix3T<T> operator+	(	const UT_Matrix3T< T > &	mat,
		S	sc
	)

template<typename T , typename S >

UT_Matrix3T<T> operator+	(	S	sc,
		const UT_Matrix3T< T > &	mat
	)

inline

template<typename T >

UT_API UT_Matrix3T<T> operator-	(	const UT_Matrix3T< T > &	m1,
		const UT_Matrix3T< T > &	m2
	)

template<typename T , typename S >

UT_API UT_Matrix3T<T> operator-	(	const UT_Matrix3T< T > &	m,
		const UT_Vector3T< S > &	v
	)

template<typename T , typename S >

UT_API UT_Matrix3T<T> operator-	(	const UT_Vector3T< S > &	v,
		const UT_Matrix3T< T > &	m
	)

template<typename T , typename S >

UT_Matrix3T<T> operator-	(	const UT_Matrix3T< T > &	mat,
		S	sc
	)

inline

template<typename T , typename S >

UT_API UT_Matrix3T<T> operator-	(	S	sc,
		const UT_Matrix3T< T > &	mat
	)

template<typename T , typename S >

UT_Matrix3T< T > operator/	(	const UT_Matrix3T< T > &	mat,
		S	sc
	)

inline

Definition at line 1484 of file UT_Matrix3.h.

template<typename T , typename S >

UT_API UT_Matrix3T<T> operator/	(	S	sc,
		const UT_Matrix3T< T > &	mat
	)

template<typename T , typename S >

UT_Vector3T< T > rowVecMult	(	const UT_Vector3T< T > &	v,
		const UT_Matrix3T< S > &	m
	)

inline

Multiplication of a row or column vector by a matrix (ie. right vs. left multiplication respectively). The operator*() declared above is an alias for rowVecMult(). The functions that take a 4x4 matrix first extend the vector to 4D (with a trailing 1.0 element).

Definition at line 1516 of file UT_Matrix3.h.

template<typename T , typename S >

UT_Matrix3T<T> SYSbarycentric	(	const UT_Matrix3T< T > &	v0,
		const UT_Matrix3T< T > &	v1,
		const UT_Matrix3T< T > &	v2,
		S	u,
		S	v
	)

inline

Barycentric interpolation.

Definition at line 79 of file UT_Matrix3.h.

template<typename T , typename S >

UT_Matrix3T<T> SYSbilerp	(	const UT_Matrix3T< T > &	u0v0,
		const UT_Matrix3T< T > &	u1v0,
		const UT_Matrix3T< T > &	u0v1,
		const UT_Matrix3T< T > &	u1v1,
		S	u,
		S	v
	)

inline

Bilinear interpolation.

Definition at line 72 of file UT_Matrix3.h.

template<typename T , typename S >

UT_Matrix3T< T > SYSlerp	(	const UT_Matrix3T< T > &	v1,
		const UT_Matrix3T< T > &	v2,
		S	t
	)

inline

Definition at line 1639 of file UT_Matrix3.h.

template<>

UT_Matrix3T<float> SYSlerp	(	const UT_Matrix3T< float > &	v1,
		const UT_Matrix3T< float > &	v2,
		float	t
	)

inline

Definition at line 1657 of file UT_Matrix3.h.

template<typename T >

UT_Matrix3T< T > SYSmax	(	const UT_Matrix3T< T > &	v1,
		const UT_Matrix3T< T > &	v2
	)

inline

Definition at line 1622 of file UT_Matrix3.h.

template<typename T >

UT_Matrix3T< T > SYSmin	(	const UT_Matrix3T< T > &	v1,
		const UT_Matrix3T< T > &	v2
	)

inline

Definition at line 1605 of file UT_Matrix3.h.

template<typename TS >

constexpr UT_Matrix3T< SYS_FixedArrayElement_t< TS > > UTmakeMatrix3T ( const TS & as )

noexcept

Definition at line 1742 of file UT_Matrix3.h.
