#include "pxr/pxr.h"
#include "pxr/base/ts/api.h"
#include "pxr/base/gf/interval.h"
#include "pxr/base/gf/vec2d.h"
#include "pxr/base/tf/preprocessorUtilsLite.h"
#include <cstdint>
#include <vector>

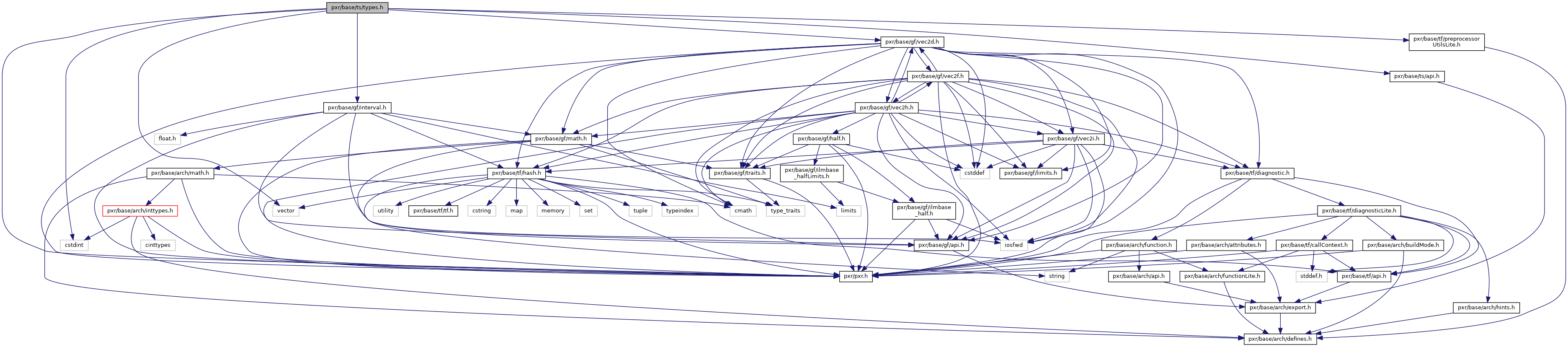

Include dependency graph for types.h:

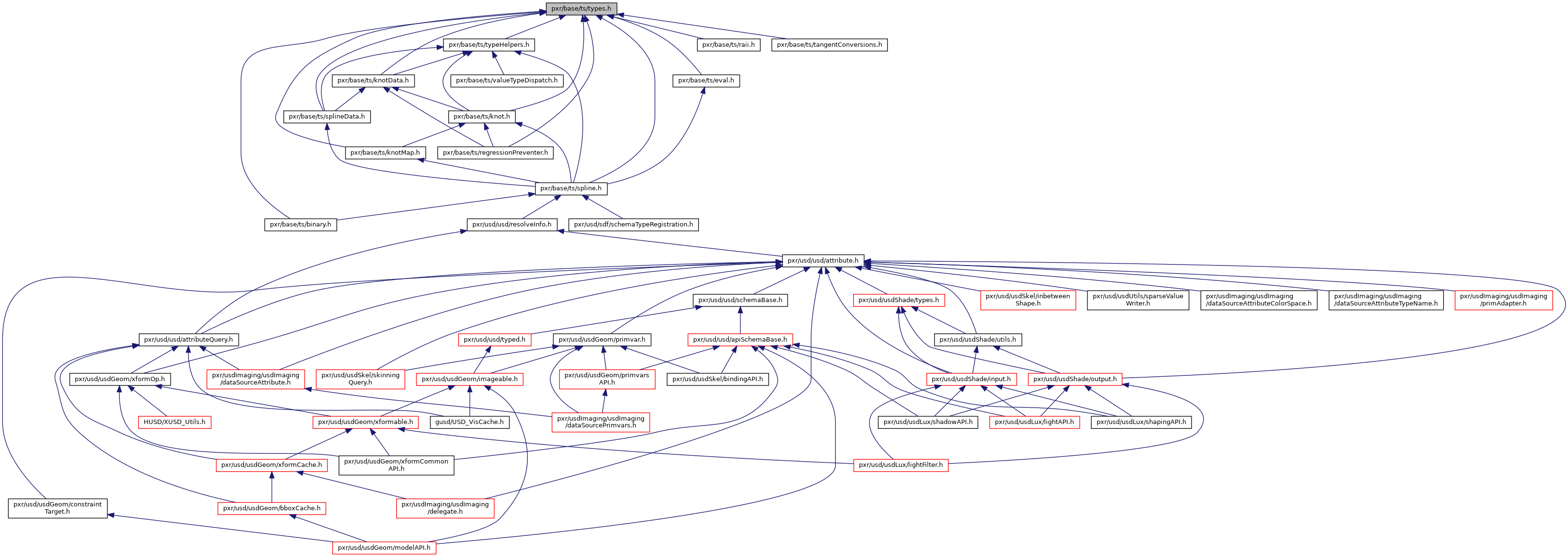

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	TsLoopParams

class	TsExtrapolation

class	TsSplineSamples< Vertex >
	`TsSplineSamples<Vertex>` holds a collection of piecewise linear polylines that approximate a `TsSpline`. More...

class	TsSplineSamplesWithSources< Vertex >
	`TsSplineSamplesWithSources<Vertex>` is a `TsSplineSamples<Vertex>` that also includes source information for each polyline. More...

Macros
#define	TS_SPLINE_SUPPORTED_VALUE_TYPES

#define	TS_SPLINE_SAMPLE_VERTEX_TYPES

#define	TS_SPLINE_VALUE_TYPE_NAME(x) TF_PP_TUPLE_ELEM(0, x)

#define	TS_SPLINE_VALUE_CPP_TYPE(x) TF_PP_TUPLE_ELEM(1, x)

#define	_TS_SUPPORT_DATA_TYPE(unused, tuple)

#define	_TS_SUPPORT_SAMPLE_TYPE(unused, tuple)

Enumerations
enum	TsInterpMode { TsInterpValueBlock = 0, TsInterpHeld = 1, TsInterpLinear = 2, TsInterpCurve = 3 }

enum	TsCurveType { TsCurveTypeBezier = 0, TsCurveTypeHermite = 1 }

enum	TsExtrapMode { TsExtrapValueBlock = 0, TsExtrapHeld = 1, TsExtrapLinear = 2, TsExtrapSloped = 3, TsExtrapLoopRepeat = 4, TsExtrapLoopReset = 5, TsExtrapLoopOscillate = 6 }

enum	TsSplineSampleSource { TsSourcePreExtrap, TsSourcePreExtrapLoop, TsSourceInnerLoopPreEcho, TsSourceInnerLoopProto, TsSourceInnerLoopPostEcho, TsSourceKnotInterp, TsSourcePostExtrap, TsSourcePostExtrapLoop }

enum	TsTangentAlgorithm { TsTangentAlgorithmNone, TsTangentAlgorithmCustom, TsTangentAlgorithmAutoEase }

enum	TsAntiRegressionMode { TsAntiRegressionNone, TsAntiRegressionContain, TsAntiRegressionKeepRatio, TsAntiRegressionKeepStart }

Functions
	TF_PP_SEQ_FOR_EACH (_TS_SUPPORT_DATA_TYPE,~, TS_SPLINE_SUPPORTED_VALUE_TYPES) template< class T > inline const expr bool TsSplineIsValidSampleType
	True if template parameter T is a supported spline sampling vertex type. More...

	TF_PP_SEQ_FOR_EACH (_TS_SUPPORT_SAMPLE_TYPE,~, TS_SPLINE_SAMPLE_VERTEX_TYPES) using TsTime

Variables
template<class T >
constexpr bool	TsSplineIsValidDataType = false
	True if template parameter T is a supported spline data type. More...

Macro Definition Documentation

#define _TS_SUPPORT_DATA_TYPE	(	unused,
		tuple
	)

Value:

template <>                                                         \
    inline constexpr bool                                               \
    TsSplineIsValidDataType< TS_SPLINE_VALUE_CPP_TYPE(tuple) > = true;

Definition at line 47 of file types.h.

#define _TS_SUPPORT_SAMPLE_TYPE	(	unused,
		tuple
	)

Value:

template <>                                                         \
    inline constexpr bool                                               \
    TsSplineIsValidSampleType< TS_SPLINE_VALUE_CPP_TYPE(tuple) > = true;

Definition at line 62 of file types.h.

#define TS_SPLINE_SAMPLE_VERTEX_TYPES

Value:

((Vec2d,    GfVec2d))                       \
    ((Vec2f,    GfVec2f))                       \
    ((Vec2h,    GfVec2h))

Definition at line 34 of file types.h.

#define TS_SPLINE_SUPPORTED_VALUE_TYPES

Sequence of value types that are supported by the spline system.

double
float
GfHalf

Definition at line 29 of file types.h.

#define TS_SPLINE_VALUE_CPP_TYPE ( x ) TF_PP_TUPLE_ELEM(1, x)

Definition at line 40 of file types.h.

#define TS_SPLINE_VALUE_TYPE_NAME ( x ) TF_PP_TUPLE_ELEM(0, x)

Definition at line 39 of file types.h.

Enumeration Type Documentation

enum TsAntiRegressionMode

Modes for enforcing non-regression in splines.

See page_ts_regression for a general introduction to regression and anti-regression.

Enumerator
TsAntiRegressionNone	Do not enforce. If there is regression, runtime evaluation will use KeepRatio.
TsAntiRegressionContain	Prevent tangents from crossing neighboring knots. This guarantees non-regression, but is slightly over-conservative, preventing the authoring of some extreme curves that cannot be created without non-contained tangents.
TsAntiRegressionKeepRatio	If there is regression in a segment, shorten both of its tangents until the regression is just barely prevented (the curve comes to a near-standstill at some time). Preserve the ratio of the tangent lengths.
TsAntiRegressionKeepStart	If there is regression in a segment, leave its start tangent alone, and shorten its end tangent until the regression is just barely prevented. This matches Maya behavior.

Definition at line 295 of file types.h.

enum TsCurveType

Type of interpolation for a spline's Curve segments.

Enumerator
TsCurveTypeBezier
TsCurveTypeHermite

Definition at line 92 of file types.h.

enum TsExtrapMode

Curve-shaping mode for one of a spline's extrapolation regions (before all knots and after all knots).

Enumerator
TsExtrapValueBlock
TsExtrapHeld
TsExtrapLinear
TsExtrapSloped
TsExtrapLoopRepeat
TsExtrapLoopReset
TsExtrapLoopOscillate

Definition at line 101 of file types.h.

enum TsInterpMode

Interpolation mode for a spline segment (region between two knots).

Enumerator
TsInterpValueBlock
TsInterpHeld
TsInterpLinear
TsInterpCurve

Definition at line 82 of file types.h.

enum TsSplineSampleSource

The source for a particular part of a sampled spline. A TsSpline can have a number of different regions. The source is not important to the values that vary over time, but if the spline is sampled and displayed in a user interface, the source can be used to highlight different regions of the displayed spline.

Enumerator
TsSourcePreExtrap
TsSourcePreExtrapLoop
TsSourceInnerLoopPreEcho
TsSourceInnerLoopProto
TsSourceInnerLoopPostEcho
TsSourceKnotInterp
TsSourcePostExtrap
TsSourcePostExtrapLoop

Definition at line 118 of file types.h.

enum TsTangentAlgorithm

Automatic tangent calculation algorithms.

Which automatic tangent algorithm to use.

None - Tangents are not automatically calculated, the provided values are used. Note that the tangent values are still subject to modification by the spline's anti-regression setting.

Custom - The tangent algorithm is determined by the "preTanAlgorithm" and "postTanAlgorithm" keys in the knot's custom data. These custom data keys are reserved for this purpose. If the custom data values do not exist or if their value cannot be understood, then Custom behaves as if the None algorithm was used. Note that the Custom algorithm is not yet implemented so it currently always behaves like None.

AutoEase - Use the "Auto Ease" algorithm from Maya/animX. This is a cubic controlled blending algorithm that computes a slope between the slopes to the knots on either side of this knot. If there is a discontinuity in the spline at this knot (this knot has no previous or next knot, is dual valued, or is adjacent to a value blocked segment of the spline) then the slope will be 0 (flat).

See Also: TsKnot::SetPreTanAlgorithm, TsKnot::SetPostTanAlgorithm

Enumerator
TsTangentAlgorithmNone
TsTangentAlgorithmCustom
TsTangentAlgorithmAutoEase

Definition at line 153 of file types.h.

Function Documentation

TF_PP_SEQ_FOR_EACH	(	_TS_SUPPORT_DATA_TYPE	,
		~	,
		TS_SPLINE_SUPPORTED_VALUE_TYPES
	)		const

True if template parameter T is a supported spline sampling vertex type.

TF_PP_SEQ_FOR_EACH	(	_TS_SUPPORT_SAMPLE_TYPE	,
		~	,
		TS_SPLINE_SAMPLE_VERTEX_TYPES
	)

Variable Documentation

template<class T >

constexpr bool TsSplineIsValidDataType = false

inline

True if template parameter T is a supported spline data type.

Definition at line 45 of file types.h.
