HdxTask Class Reference

#include <task.h>

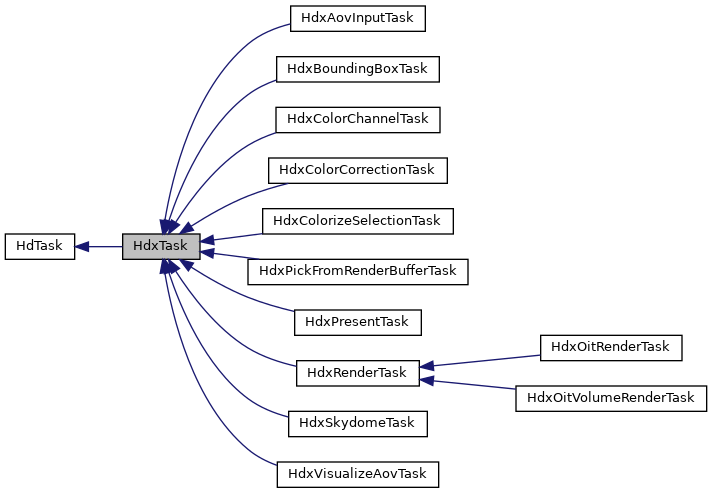

Inheritance diagram for HdxTask:

Public Member Functions
HDX_API	HdxTask (SdfPath const &id)
HDX_API	~HdxTask () override
virtual HDX_API bool	IsConverged () const
HDX_API void	Sync (HdSceneDelegate *delegate, HdTaskContext *ctx, HdDirtyBits *dirtyBits) overridefinal
Public Member Functions inherited from HdTask
HD_API	HdTask (SdfPath const &id)
virtual HD_API	~HdTask ()
virtual void	Prepare (HdTaskContext *ctx, HdRenderIndex *renderIndex)=0
virtual void	Execute (HdTaskContext *ctx)=0
virtual HD_API const TfTokenVector &	GetRenderTags () const
SdfPath const &	GetId () const
virtual HD_API HdDirtyBits	GetInitialDirtyBitsMask () const

Protected Member Functions
virtual void	_Sync (HdSceneDelegate *delegate, HdTaskContext *ctx, HdDirtyBits *dirtyBits)=0
HDX_API void	_ToggleRenderTarget (HdTaskContext *ctx)
HDX_API void	_ToggleDepthTarget (HdTaskContext *ctx)
HDX_API void	_SwapTextures (HdTaskContext *ctx, const TfToken &textureToken, const TfToken &textureIntermediateToken)
HDX_API Hgi *	_GetHgi () const
Protected Member Functions inherited from HdTask
template<class T >
bool	_GetTaskParams (HdSceneDelegate *delegate, T *outValue)
HD_API TfTokenVector	_GetTaskRenderTags (HdSceneDelegate *delegate)

Additional Inherited Members
Static Protected Member Functions inherited from HdTask
static HD_API bool	_HasTaskContextData (HdTaskContext const *ctx, TfToken const &id)
	Check if the shared context contains a value for the given id. More...
template<class T >
static bool	_GetTaskContextData (HdTaskContext const *ctx, TfToken const &id, T *outValue)
template<class T >
static T	_GetDriver (HdTaskContext const *ctx, TfToken const &driverName)

Detailed Description

Base class for (some) tasks in Hdx that provides common progressive rendering and Hgi functionality.

Tasks that require neither progressive rendering nor Hgi can continue to derive directly from HdTask.

Definition at line 44 of file task.h.

Constructor & Destructor Documentation

HDX_API HdxTask::HdxTask

(

SdfPath const &

id

)

HDX_API HdxTask::~HdxTask ( )

override

Member Function Documentation

HDX_API Hgi* HdxTask::_GetHgi ( ) const

protected

HDX_API void HdxTask::_SwapTextures ( HdTaskContext *  ctx, const TfToken &  textureToken, const TfToken &  textureIntermediateToken  )

protected

virtual void HdxTask::_Sync ( HdSceneDelegate *  delegate, HdTaskContext *  ctx, HdDirtyBits *  dirtyBits  )

protectedpure virtual

Implemented in HdxColorCorrectionTask, HdxPickFromRenderBufferTask, HdxPresentTask, HdxBoundingBoxTask, HdxColorizeSelectionTask, HdxRenderTask, HdxVisualizeAovTask, HdxSkydomeTask, HdxAovInputTask, HdxOitRenderTask, HdxOitVolumeRenderTask, and HdxColorChannelTask.

HDX_API void HdxTask::_ToggleDepthTarget ( HdTaskContext *  ctx )

protected

HDX_API void HdxTask::_ToggleRenderTarget ( HdTaskContext *  ctx )

protected

virtual HDX_API bool HdxTask::IsConverged ( ) const

virtual

This function returns true when a (progressive) task considers its execution results converged. Usually this means that a progressive render delegate is finished rendering into the HdRenderBuffers used by this task. Returns true by default which is a good default for rasterizers.

Applications with data-driven task lists can determine their convergence state by determining which tasks are HdxTasks and then querying specifically those tasks for IsConverged.

Reimplemented in HdxPickFromRenderBufferTask, HdxColorizeSelectionTask, HdxRenderTask, and HdxAovInputTask.

HDX_API void HdxTask::Sync ( HdSceneDelegate *  delegate, HdTaskContext *  ctx, HdDirtyBits *  dirtyBits  )

finaloverridevirtual

We override HdTask::Sync, but make it 'final' to make sure derived classes can't override it and instead override _Sync. This 'non-virtual interface'-like pattern allows us to ensure we always initialized Hgi during the Sync task so derived classes don't have to.

Implements HdTask.

---

The documentation for this class was generated from the following file:

• pxr/imaging/hdx/task.h
