types.h File Reference
#include "pxr/pxr.h"
#include "pxr/imaging/hd/api.h"
#include "pxr/imaging/hd/enums.h"
#include "pxr/imaging/hd/version.h"
#include "pxr/base/vt/value.h"
#include <algorithm>
#include <cmath>
#include <cstddef>
#include <cstdint>

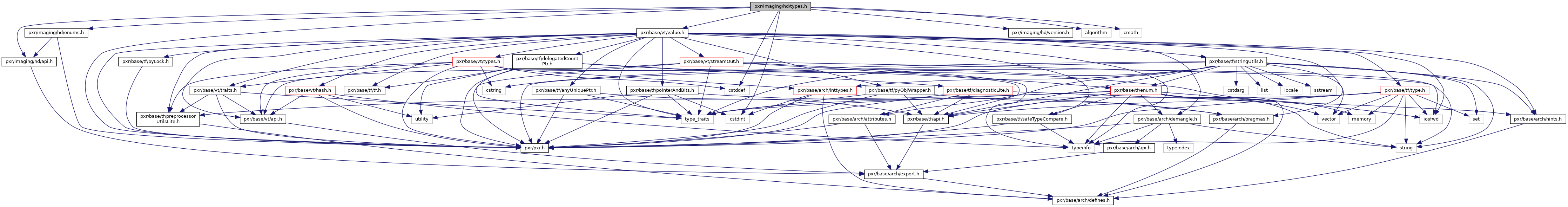

+ Include dependency graph for types.h:

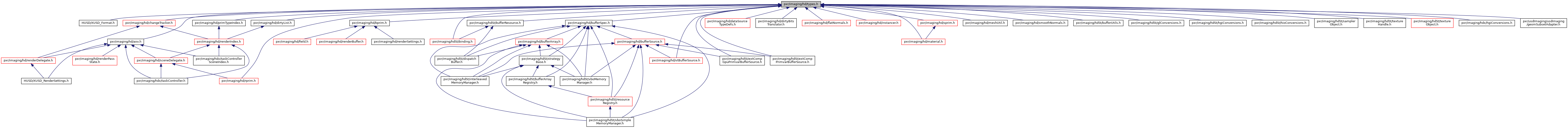

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  HdSamplerParameters

struct  HdVec4f_2_10_10_10_REV

struct  HdTupleType


Typedefs

typedef uint32_t HdDirtyBits

using HdDepthStencilType = std::pair< float, uint32_t >


Enumerations

enum  HdWrap {
  HdWrapClamp, HdWrapRepeat, HdWrapBlack, HdWrapMirror,
  HdWrapNoOpinion, HdWrapLegacyNoOpinionFallbackRepeat, HdWrapUseMetadata = HdWrapNoOpinion, HdWrapLegacy = HdWrapLegacyNoOpinionFallbackRepeat
}

enum  HdMinFilter {
  HdMinFilterNearest, HdMinFilterLinear, HdMinFilterNearestMipmapNearest, HdMinFilterLinearMipmapNearest,
  HdMinFilterNearestMipmapLinear, HdMinFilterLinearMipmapLinear
}

enum  HdMagFilter { HdMagFilterNearest, HdMagFilterLinear }

enum  HdBorderColor { HdBorderColorTransparentBlack, HdBorderColorOpaqueBlack, HdBorderColorOpaqueWhite }

enum  HdType {
  HdTypeInvalid =-1, HdTypeBool =0, HdTypeUInt8, HdTypeUInt16,
  HdTypeInt8, HdTypeInt16, HdTypeInt32, HdTypeInt32Vec2,
  HdTypeInt32Vec3, HdTypeInt32Vec4, HdTypeUInt32, HdTypeUInt32Vec2,
  HdTypeUInt32Vec3, HdTypeUInt32Vec4, HdTypeFloat, HdTypeFloatVec2,
  HdTypeFloatVec3, HdTypeFloatVec4, HdTypeFloatMat3, HdTypeFloatMat4,
  HdTypeDouble, HdTypeDoubleVec2, HdTypeDoubleVec3, HdTypeDoubleVec4,
  HdTypeDoubleMat3, HdTypeDoubleMat4, HdTypeHalfFloat, HdTypeHalfFloatVec2,
  HdTypeHalfFloatVec3, HdTypeHalfFloatVec4, HdTypeInt32_2_10_10_10_REV, HdTypeCount
}

enum  HdFormat {
  HdFormatInvalid =-1, HdFormatUNorm8 =0, HdFormatUNorm8Vec2, HdFormatUNorm8Vec3,
  HdFormatUNorm8Vec4, HdFormatSNorm8, HdFormatSNorm8Vec2, HdFormatSNorm8Vec3,
  HdFormatSNorm8Vec4, HdFormatFloat16, HdFormatFloat16Vec2, HdFormatFloat16Vec3,
  HdFormatFloat16Vec4, HdFormatFloat32, HdFormatFloat32Vec2, HdFormatFloat32Vec3,
  HdFormatFloat32Vec4, HdFormatInt16, HdFormatInt16Vec2, HdFormatInt16Vec3,
  HdFormatInt16Vec4, HdFormatUInt16, HdFormatUInt16Vec2, HdFormatUInt16Vec3,
  HdFormatUInt16Vec4, HdFormatInt32, HdFormatInt32Vec2, HdFormatInt32Vec3,
  HdFormatInt32Vec4, HdFormatFloat32UInt8, HdFormatCount
}


Functions

int HdConvertFloatToFixed (float v, int b)

float HdConvertFixedToFloat (int v, int b)

template<class HashState >
void TfHashAppend (HashState &h, HdTupleType const &tt)

HD_API const voidHdGetValueData (const VtValue &)

HD_API HdTupleType HdGetValueTupleType (const VtValue &)

HD_API HdType HdGetComponentType (HdType)

HD_API size_t HdGetComponentCount (HdType t)

HD_API size_t HdDataSizeOfType (HdType)
 Return the size, in bytes, of a single value of the given type. More...

HD_API size_t HdDataSizeOfTupleType (HdTupleType)
 Return the size, in bytes, of a value with HdTupleType. More...

HD_API HdFormat HdGetComponentFormat (HdFormat f)
 Return the single-channel version of a given format. More...

HD_API size_t HdGetComponentCount (HdFormat f)
 Return the count of components in the given format. More...

HD_API size_t HdDataSizeOfFormat (HdFormat f)


Typedef Documentation

using HdDepthStencilType = std::pair<float, uint32_t>

Type representing a depth-stencil value.

Definition at line 493 of file types.h.

typedef uint32_t HdDirtyBits

Type representing a set of dirty bits.

Definition at line 158 of file types.h.

Enumeration Type Documentation

Border color to use for clamped texture values.

  • HdBorderColorTransparentBlack
  • HdBorderColorOpaqueBlack
  • HdBorderColorOpaqueWhite
Enumerator
HdBorderColorTransparentBlack
HdBorderColorOpaqueBlack
HdBorderColorOpaqueWhite

Definition at line 116 of file types.h.

enum HdFormat

HdFormat describes the memory format of image buffers used in Hd. It's similar to HdType but with more specific associated semantics.

The list of supported formats is modelled after Vulkan and DXGI, though Hydra only supports a subset. Endian-ness is explicitly not captured; color data is assumed to always be RGBA.

For reference, see: https://www.khronos.org/registry/vulkan/specs/1.1/html/vkspec.html#VkFormat

Enumerator
HdFormatInvalid
HdFormatUNorm8
HdFormatUNorm8Vec2
HdFormatUNorm8Vec3
HdFormatUNorm8Vec4
HdFormatSNorm8
HdFormatSNorm8Vec2
HdFormatSNorm8Vec3
HdFormatSNorm8Vec4
HdFormatFloat16
HdFormatFloat16Vec2
HdFormatFloat16Vec3
HdFormatFloat16Vec4
HdFormatFloat32
HdFormatFloat32Vec2
HdFormatFloat32Vec3
HdFormatFloat32Vec4
HdFormatInt16
HdFormatInt16Vec2
HdFormatInt16Vec3
HdFormatInt16Vec4
HdFormatUInt16
HdFormatUInt16Vec2
HdFormatUInt16Vec3
HdFormatUInt16Vec4
HdFormatInt32
HdFormatInt32Vec2
HdFormatInt32Vec3
HdFormatInt32Vec4
HdFormatFloat32UInt8
HdFormatCount

Definition at line 423 of file types.h.

Enumerates magFilter attribute type values.

  • HdFilterNearest Nearest to center of the pixel
  • HdFilterLinear Weighted average of the four texture elements closest to the pixel
Enumerator
HdMagFilterNearest
HdMagFilterLinear

Definition at line 100 of file types.h.

Enumerates minFilter attribute type values.

  • HdMinFilterNearest Nearest to center of the pixel
  • HdMinFilterLinear Weighted average od the four texture elements closest to the pixel
  • HdMinFilterNearestMipmapNearest Nearest to center of the pixel from the nearest mipmaps
  • HdMinFilterLinearMipmapNeares Weighted average using texture elements from the nearest mipmaps
  • HdMinFilterNearestMipmapLinear Weighted average of the nearest pixels from the two nearest mipmaps
  • HdMinFilterLinearMipmapLinear WeightedAverage of the weighted averages from the nearest mipmaps
Enumerator
HdMinFilterNearest
HdMinFilterLinear
HdMinFilterNearestMipmapNearest
HdMinFilterLinearMipmapNearest
HdMinFilterNearestMipmapLinear
HdMinFilterLinearMipmapLinear

Definition at line 81 of file types.h.

enum HdType

HdType describes the type of an attribute value used in Hd.

HdType values have a specific machine representation and size. See HdDataSizeOfType().

HdType specifies a scalar, vector, or matrix type. Vector and matrix types can be unpacked into the underlying "component" type; see HdGetComponentType().

HdType is intended to span the common set of attribute types used in shading languages such as GLSL. However, it currently does not include non-4x4 matrix types, nor struct types.

Fixed-size array types are represented by the related class HdTupleType. HdTupleType is used anywhere there is a possibility of an array of values.

Value arrays and attribute buffers

Attribute data is often stored in linear buffers. These buffers have multiple dimensions and it is important to distinguish them:

  • "Components" refer to the scalar components that comprise a vector or matrix. For example, a vec3 has 3 components, a mat4 has 16 components, and a float has a single component.
  • "Elements" refer to external concepts that entries in a buffer associate with. Typically these are pieces of geometry, such as faces or vertices.
  • "Arrays" refer to the idea that each element may associate with a fixed-size array of values. For example, one approach to motion blur might store a size-2 array of HdFloatMat4 values for each element of geometry, holding the transforms at the beginning and ending of the camera shutter interval.

Combining these concepts in an example, a primvar buffer might hold data for 10 vertices (the elements) with each vertex having a 2 entries (an array) of 4x4 matrices (with 16 components each). As a packed linear buffer, this would occupy 10*2*16==320 floats.

It is important to distinguish components from array entries, and arrays from elements. HdType and HdTupleType only addresses components and arrays; elements are tracked by buffers. See for example HdBufferSource::GetNumElements().

In other words, HdType and HdTupleType describe values. Buffers describe elements and all other details regarding buffer layout, such as offset/stride used to interleave attribute data.

For more background, see the OpenGL discussion on data types:

Enumerator
HdTypeInvalid
HdTypeBool

Corresponds to GL_BOOL.

HdTypeUInt8
HdTypeUInt16
HdTypeInt8
HdTypeInt16
HdTypeInt32

Corresponds to GL_INT.

HdTypeInt32Vec2

A 2-component vector with Int32-valued components.

HdTypeInt32Vec3

A 3-component vector with Int32-valued components.

HdTypeInt32Vec4

A 4-component vector with Int32-valued components.

HdTypeUInt32

An unsigned 32-bit integer. Corresponds to GL_UNSIGNED_INT.

HdTypeUInt32Vec2

A 2-component vector with UInt32-valued components.

HdTypeUInt32Vec3

A 3-component vector with UInt32-valued components.

HdTypeUInt32Vec4

A 4-component vector with UInt32-valued components.

HdTypeFloat

Corresponds to GL_FLOAT.

HdTypeFloatVec2

Corresponds to GL_FLOAT_VEC2.

HdTypeFloatVec3

Corresponds to GL_FLOAT_VEC3.

HdTypeFloatVec4

Corresponds to GL_FLOAT_VEC4.

HdTypeFloatMat3

Corresponds to GL_FLOAT_MAT3.

HdTypeFloatMat4

Corresponds to GL_FLOAT_MAT4.

HdTypeDouble

Corresponds to GL_DOUBLE.

HdTypeDoubleVec2

Corresponds to GL_DOUBLE_VEC2.

HdTypeDoubleVec3

Corresponds to GL_DOUBLE_VEC3.

HdTypeDoubleVec4

Corresponds to GL_DOUBLE_VEC4.

HdTypeDoubleMat3

Corresponds to GL_DOUBLE_MAT3.

HdTypeDoubleMat4

Corresponds to GL_DOUBLE_MAT4.

HdTypeHalfFloat
HdTypeHalfFloatVec2
HdTypeHalfFloatVec3
HdTypeHalfFloatVec4
HdTypeInt32_2_10_10_10_REV

Packed, reverse-order encoding of a 4-component vector into Int32. Corresponds to GL_INT_2_10_10_10_REV.

See Also
HdVec4f_2_10_10_10_REV
HdTypeCount

Definition at line 287 of file types.h.

enum HdWrap

Enumerates wrapping attributes type values.

  • HdWrapClamp Clamp coordinate to range [1/(2N),1-1/(2N)] where N is the size of the texture in the direction of clamping
  • HdWrapRepeat Creates a repeating pattern
  • HdWrapBlack Clamp coordinate to range [-1/(2N),1+1/(2N)] where N is the size of the texture in the direction of clamping
  • HdWrapMirror Creates a mirrored repeating pattern.
  • HdWrapNoOpinion No opinion. The data texture can define its own wrap mode that we can use instead. Fallback to HdWrapBlack
  • HdWrapLegacyNoOpinionFallbackRepeat (deprecated) Similar to HdWrapNoOpinon but fallback to HdWrapRepeat
  • HdWrapUseMetadata (deprecated) Alias for HdWrapNoOpinion
  • HdWrapLegacy (deprecated) Alias for HdWrapLegacyNoOpinionFallbackRepeat
Enumerator
HdWrapClamp
HdWrapRepeat
HdWrapBlack
HdWrapMirror
HdWrapNoOpinion
HdWrapLegacyNoOpinionFallbackRepeat
HdWrapUseMetadata
HdWrapLegacy

Definition at line 54 of file types.h.

Function Documentation

float HdConvertFixedToFloat ( int  v,
int  b
)
inline

Definition at line 169 of file types.h.

int HdConvertFloatToFixed ( float  v,
int  b
)
inline

Definition at line 161 of file types.h.

HD_API size_t HdDataSizeOfFormat ( HdFormat  f)

Return the size of a single element of the given format. For block formats, this will return 0.

HD_API size_t HdDataSizeOfTupleType ( HdTupleType  )

Return the size, in bytes, of a value with HdTupleType.

HD_API size_t HdDataSizeOfType ( HdType  )

Return the size, in bytes, of a single value of the given type.

HD_API size_t HdGetComponentCount ( HdType  t)

Return the count of components in the given value type. For example, HdTypeFloatVec3 has 3 components.

HD_API size_t HdGetComponentCount ( HdFormat  f)

Return the count of components in the given format.

HD_API HdFormat HdGetComponentFormat ( HdFormat  f)

Return the single-channel version of a given format.

HD_API HdType HdGetComponentType ( HdType  )

Return the component type for the given value type. For vectors and matrices, this is the scalar type of their components. For scalars, this is the type itself. As an example, the component type of HdTypeFloatMat4 is HdTypeFloat.

HD_API const void* HdGetValueData ( const VtValue )

Returns a direct pointer to the data held by a VtValue. Returns nullptr if the VtValue is empty or holds a type unknown to Hd.

HD_API HdTupleType HdGetValueTupleType ( const VtValue )

Returns the HdTupleType that describes the given VtValue. For scalar, vector, and matrix types, the count is 1. For any VtArray type, the count is the number of array members.

template<class HashState >
void TfHashAppend ( HashState &  h,
HdTupleType const &  tt
)

Definition at line 376 of file types.h.
