quath.h File Reference

#include "pxr/pxr.h"
#include "pxr/base/gf/api.h"
#include "pxr/base/gf/declare.h"
#include "pxr/base/gf/vec3h.h"
#include "pxr/base/gf/traits.h"
#include "pxr/base/gf/half.h"
#include "pxr/base/tf/hash.h"
#include <iosfwd>

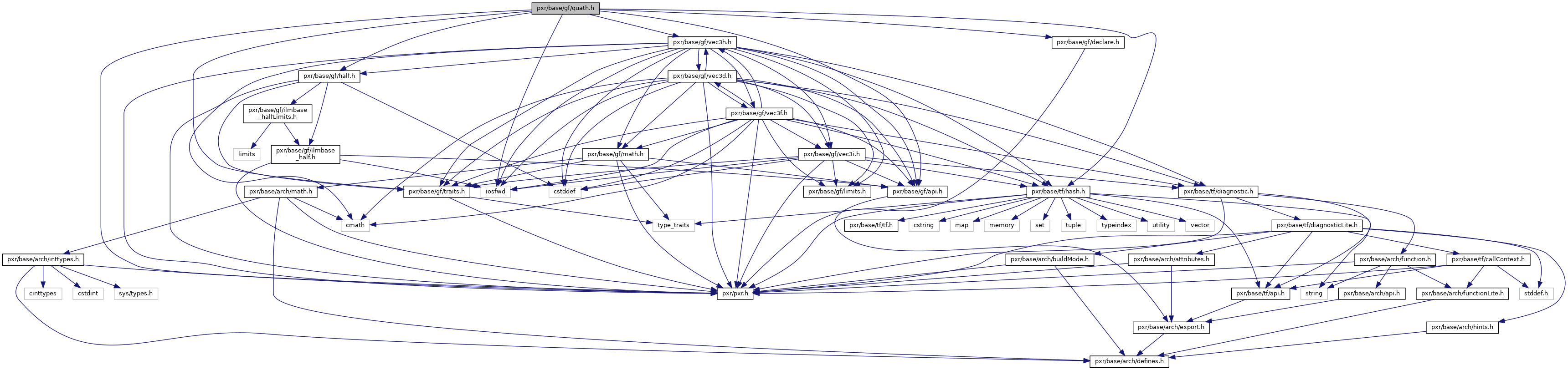

Include dependency graph for quath.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	GfIsGfQuat< class GfQuath >
class	GfQuath

Functions
GfHalf	GfDot (const GfQuath &q1, const GfQuath &q2)
	Return the dot (inner) product of two quaternions. More...
GF_API GfQuath	GfSlerp (double alpha, const GfQuath &q0, const GfQuath &q1)
GF_API GfQuath	GfSlerp (const GfQuath &q0, const GfQuath &q1, double alpha)
GF_API std::ostream &	operator<< (std::ostream &, GfQuath const &)

Function Documentation

GfHalf GfDot ( const GfQuath &  q1, const GfQuath &  q2  )

inline

Return the dot (inner) product of two quaternions.

Definition at line 263 of file quath.h.

GF_API GfQuath GfSlerp	(	double	alpha,
		const GfQuath &	q0,
		const GfQuath &	q1
	)

Spherically linearly interpolate between q0 and q1.

If the interpolant alpha is zero, then the result is q0, while alpha of one yields q1.

GF_API GfQuath GfSlerp	(	const GfQuath &	q0,
		const GfQuath &	q1,
		double	alpha
	)

GF_API std::ostream& operator<<	(	std::ostream &	,
		GfQuath const &
	)

Output a GfQuatd using the format (re, i, j, k)
